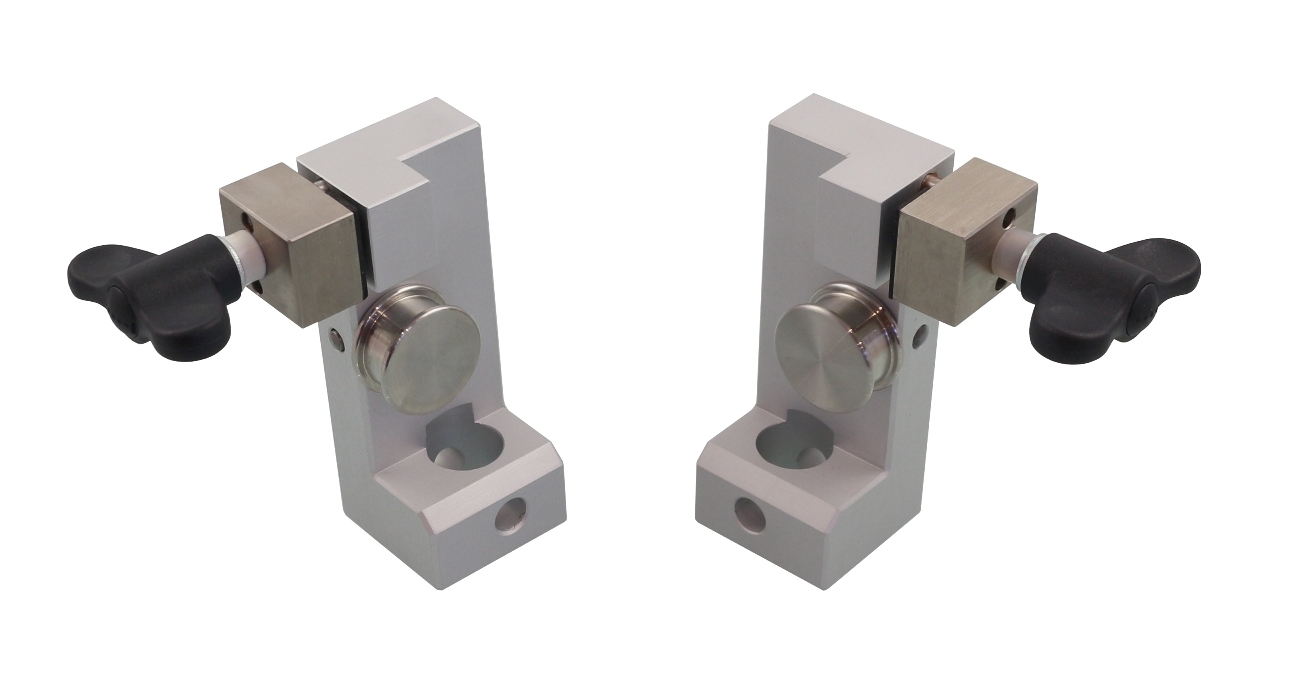

TH76-1-Af159

Capstan rope grip to test ropes,

Yarn, filament, narrow ribbons, etc.

Max. sample size: 2 mm Ø

Min. sample length: 240mm

Capstan (bollard) 20 mm Ø

Force: 1 kN

Aluminum, anodized
Coupling Af159

Temperature range: 0 … +70°C


Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH76 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH76 Datenblatt.pdf

tn_TH76-1+Ko

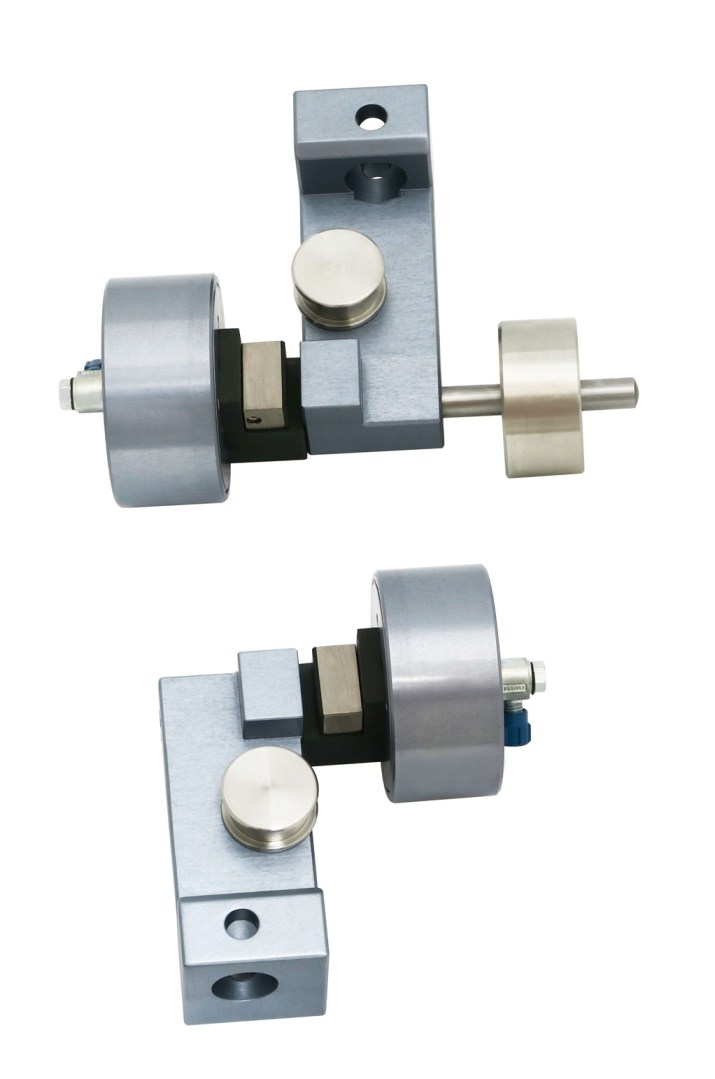

TH76-1+Ko

Pneumatic version

With 1 piston

tn_TH76-1+Ko+BD 1,2kg 2019-12-17 02 -

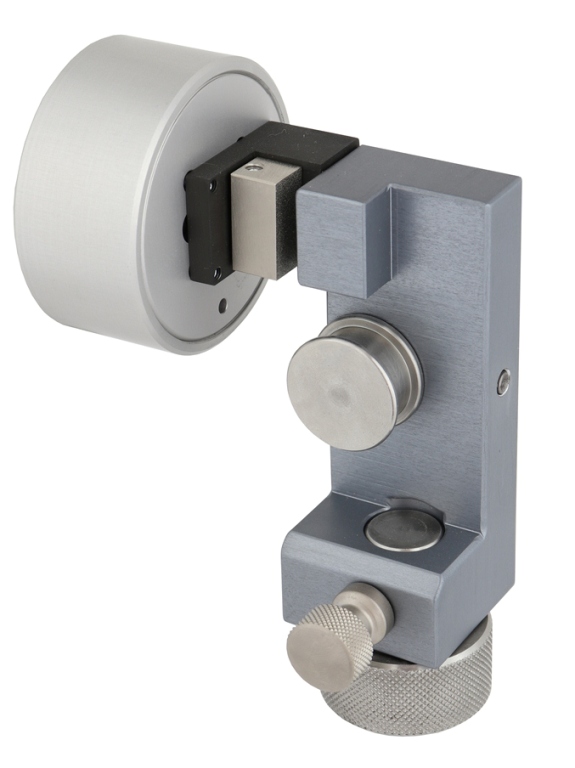

TH76-1+Ko+BD

With diamond-coated jaws


tn_TH76-1+Ko+BD 1,2kg 2019-12-17 01 -

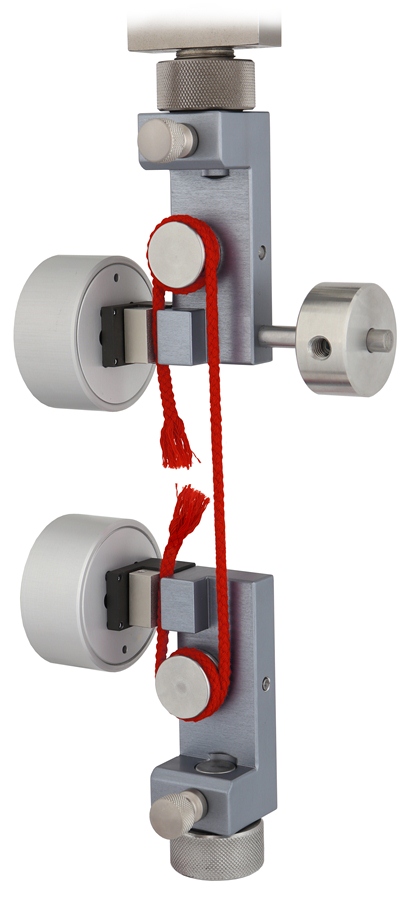

TH76-1+Ko+BD

TH76-1-Af20-Ko+BGVu_Vulkollanbeschichtete_Backen_2022-08-11_01

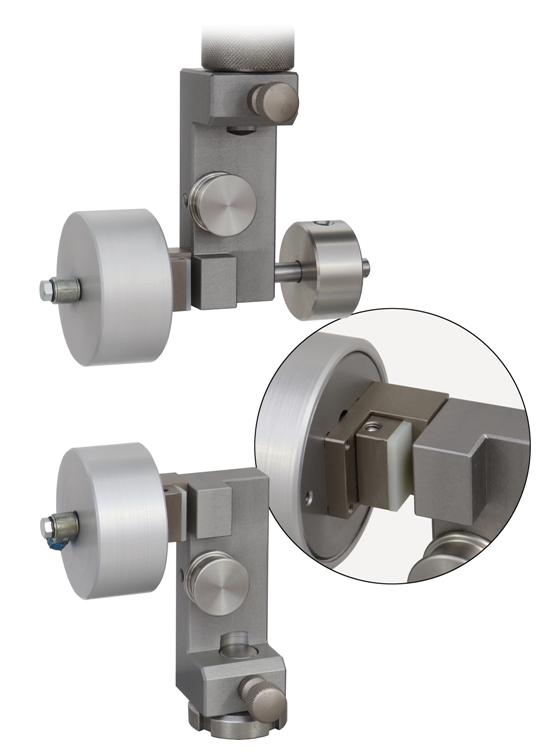

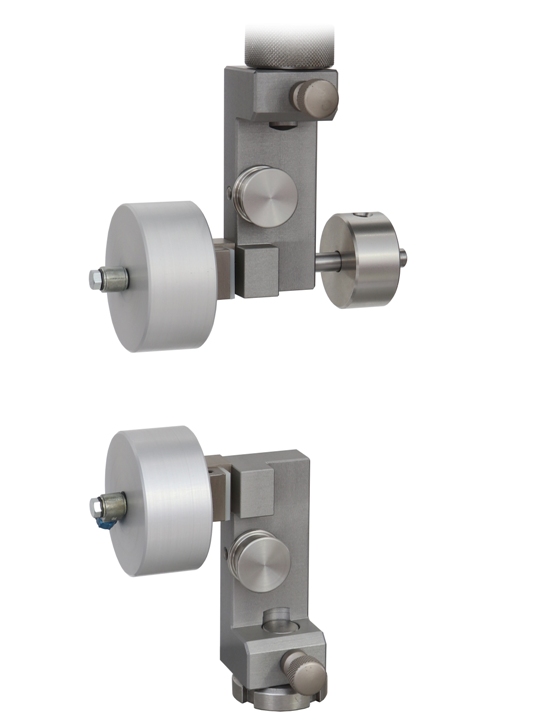

TH76-1-Af20-Ko+BGVu



With special Vulkollan coated jaws for high wear resistance

Jaw opening 0-3 mm

Temperature range 0 … +70°C

Coupling Af20

TH76-1-Af20-Ko+BGVu_Vulkollanbeschichtete_Backen_2022-08-11_02

TH76-1-Af20-Ko+BGVu
