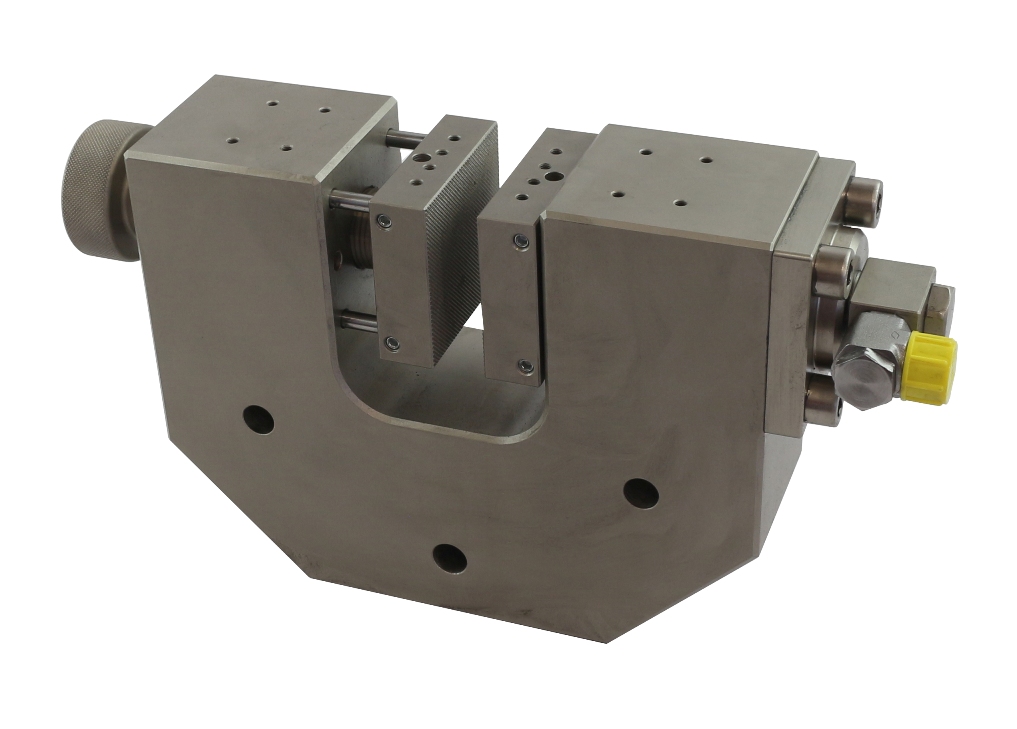

	TH135-60+BP Hydraulic clamping grip with pyramid jaws Clamping force 60 kN at 315 bar Single acting cylinder: 50 mm , with spring return Max. stroke 15 mm Steel, nickel-plated TH135-60 Datasheet.pdf TH135-60 Datenblatt.pdf Jaws

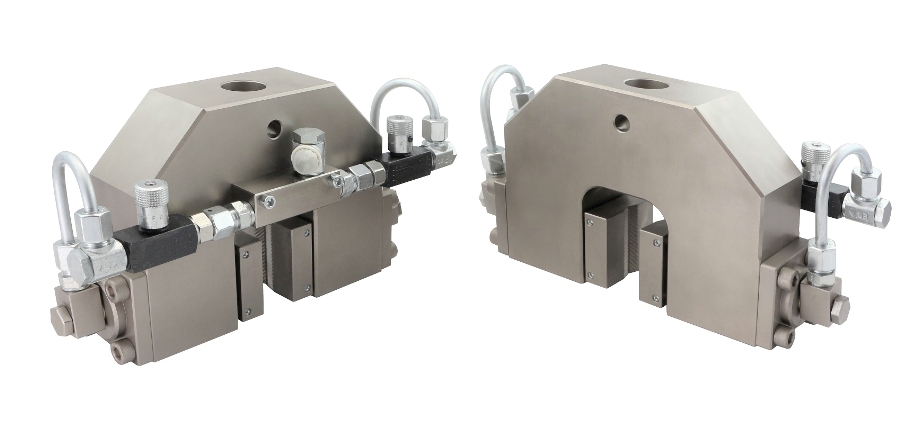

	TH135-60-2Ko+BV Hydraulic clamping grip with V-jaws symmetrical design Clamping force 60 kN / (5568psi) Opening width 0-30 mm 2 opposite pistons 50 mm with spring return, maximum lift 2x15 mm 2 throttles (blockable in any position) to Adjust symmetrical movement Hydraulisches Spannzeug mit V-Backen symmetrische Ausfhrung

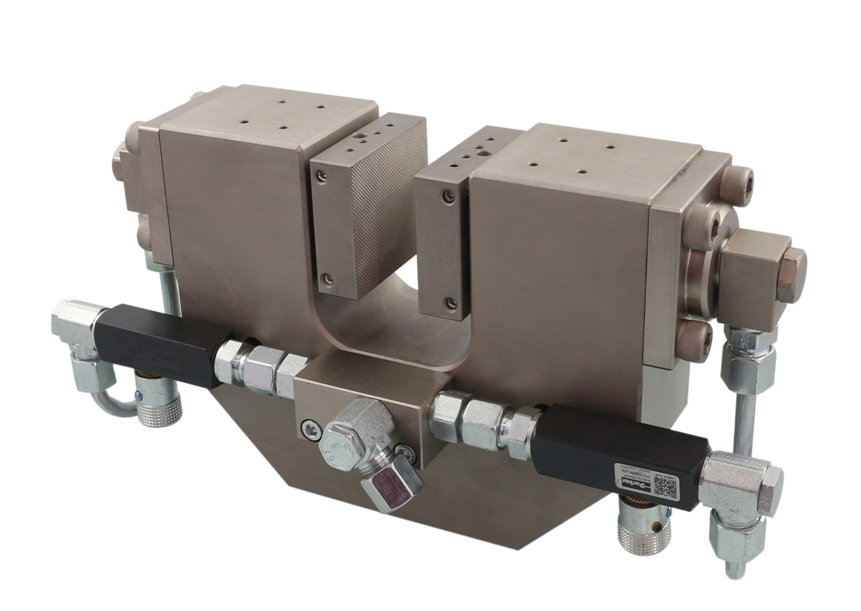

	TH135-60-2Ko-Af318 Hydraulic clamping grip with 2 pistons Coupling Af318

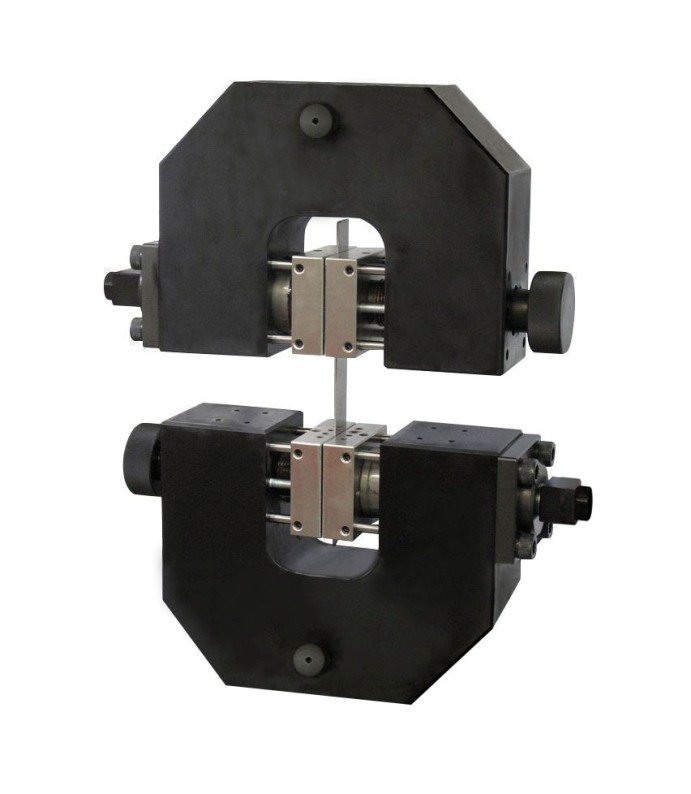

	TH135-60+BD Diamond jaws for thin hard flat samples

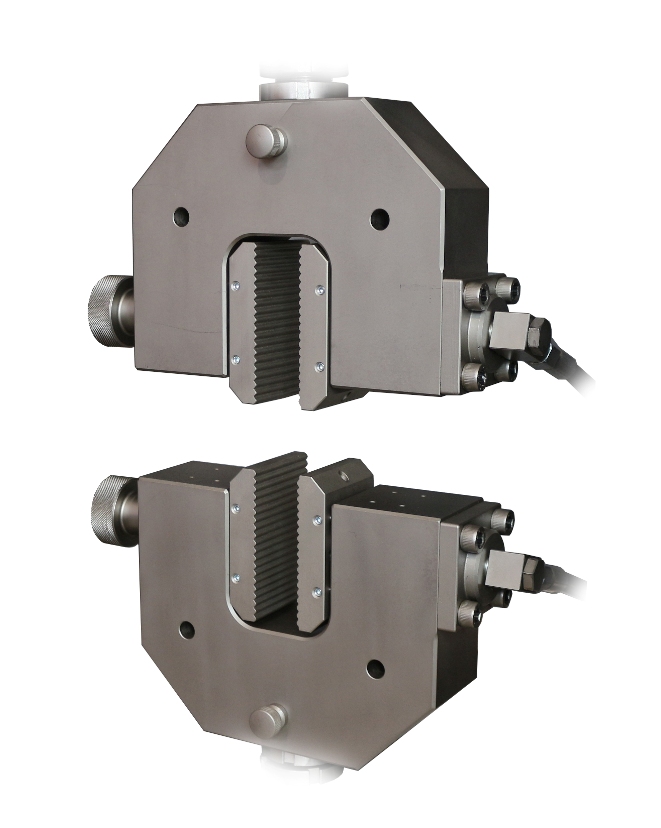

	TH135-60+BW100 Tensile test on plastic cord strap Wave jaws See video

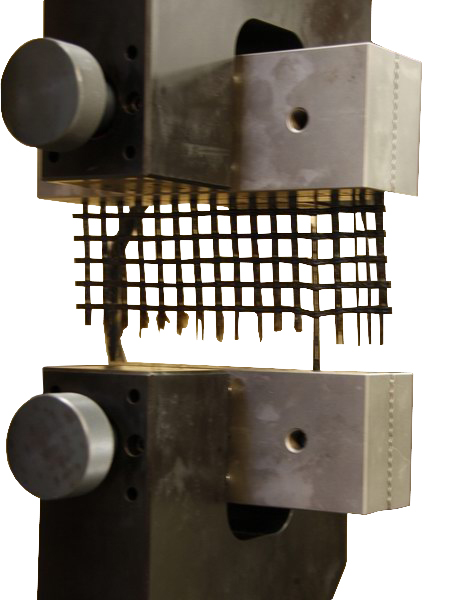

	TH135-60+BW210 Hydraulic grip to test geotextiles with wave jaws 210 mm wide according to ASTM-D4595

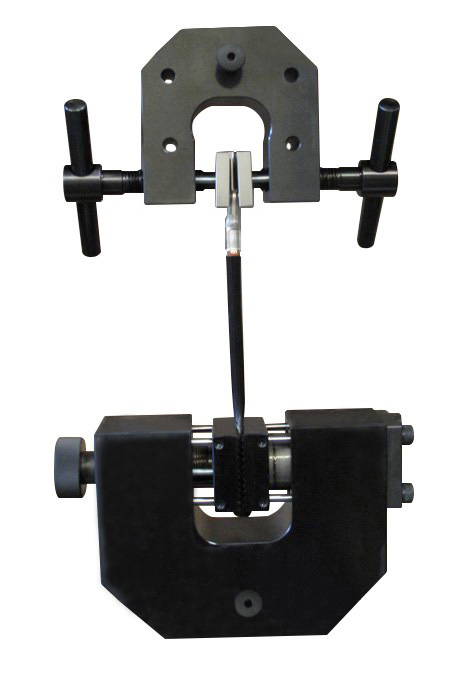

	TH135-60+BW + TH154+BP Hydraulic grip to test big terminals

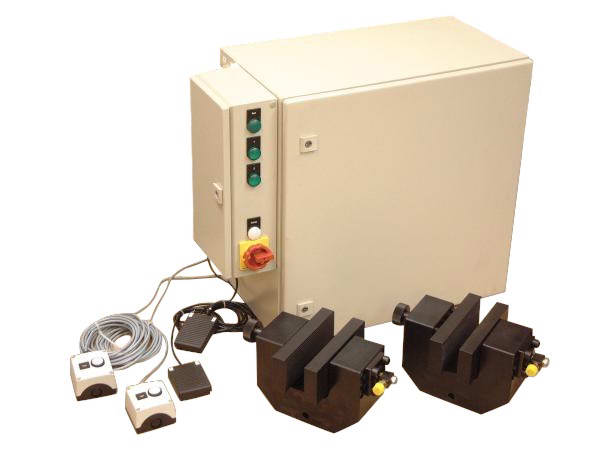

	TH135-60-a-PII-f4 Hydraulic box + feed switches + safety system to increase load
	Special versions

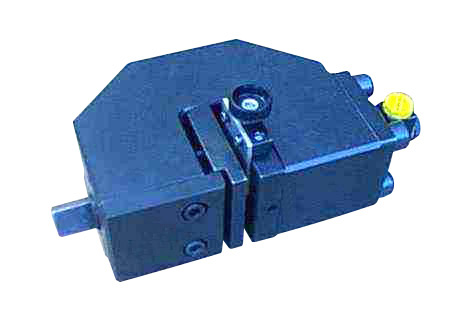

	THS377 For dynamic testing Clamping force 60 kN / 315 bar
