G14 Peel Grips



Back

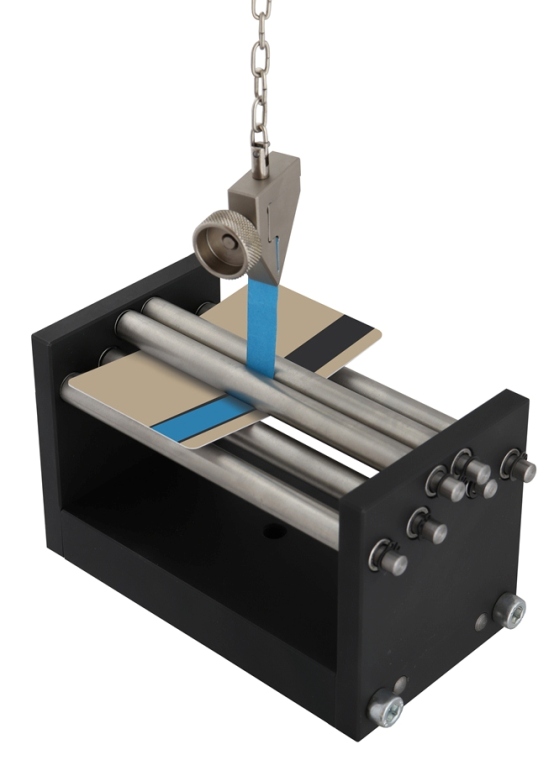

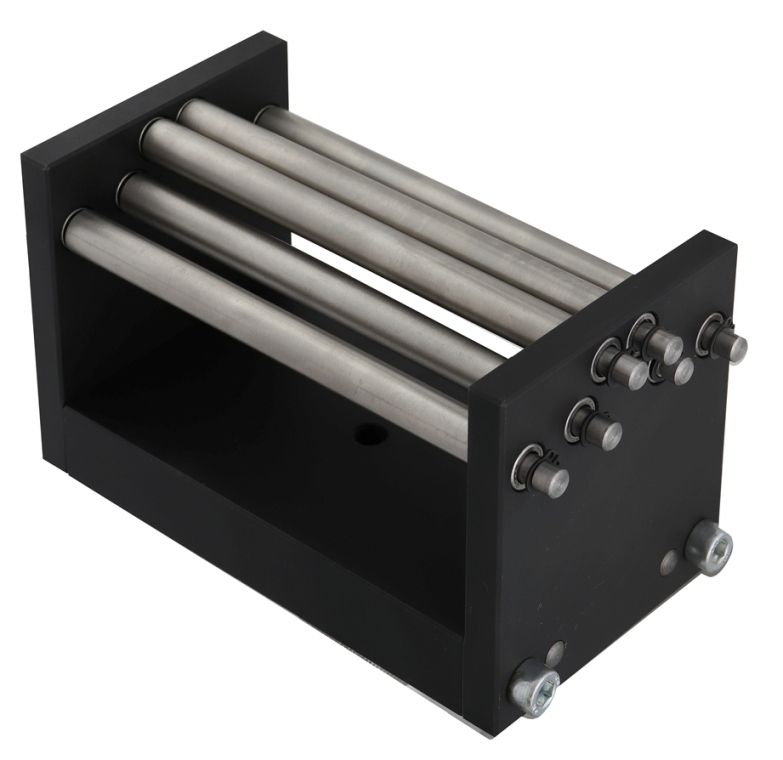

TH104-110

90° peel test fixture to test adhesive strength of identification cards
According to ISO IEC10373-1 and ISO/IEC 7810
Max. load: 2 kN
6 rollers x 10 mm Ø
1 mm distance between rollers
V2A stainless steel

Description: Description: Description: Description: Description: pdf_icon.gifTH104 Datasheet.pdf

Description: Description: Description: Description: Description: pdf_icon.gifTH104 Datenblatt.pdf

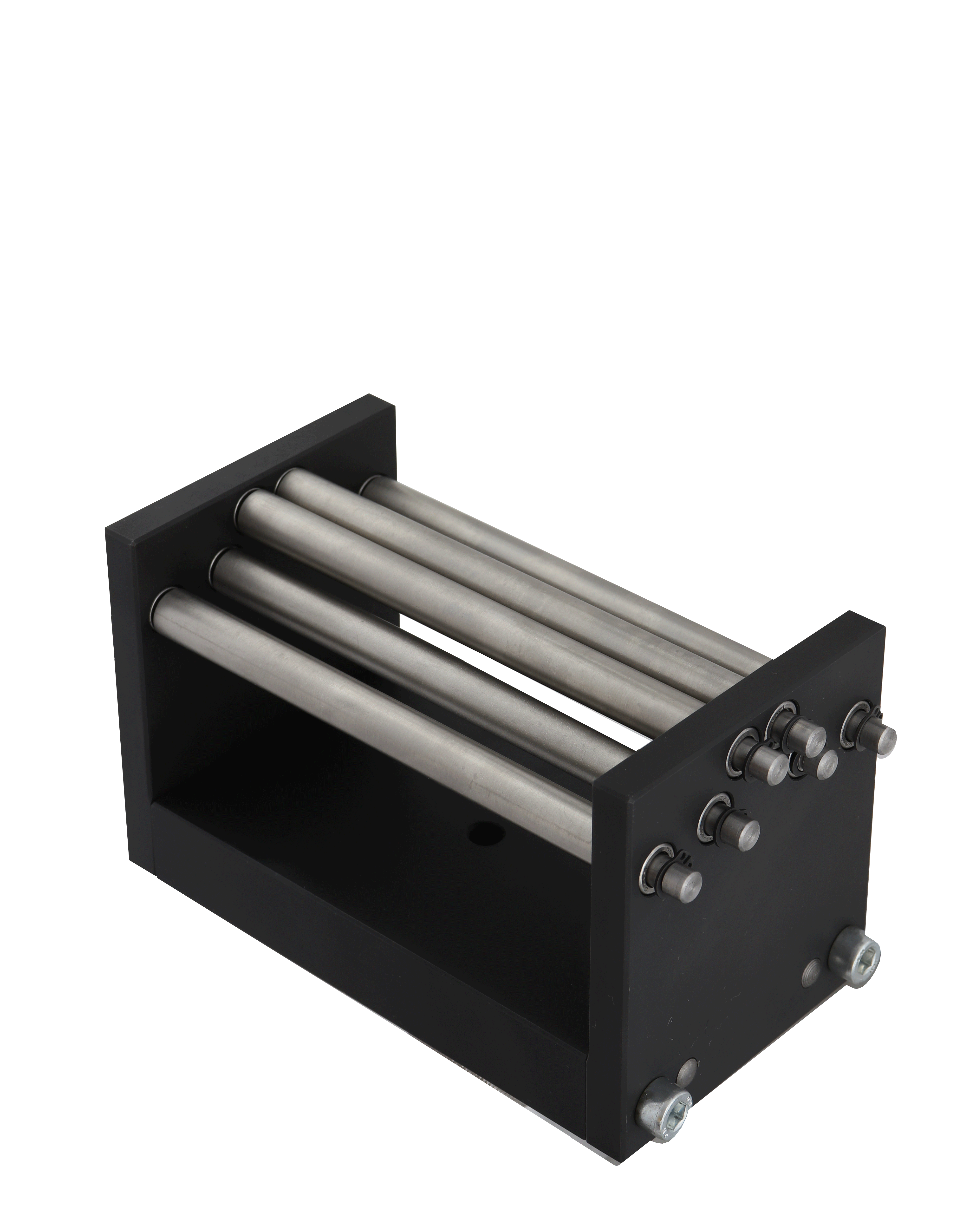

 Animation



TH104-110

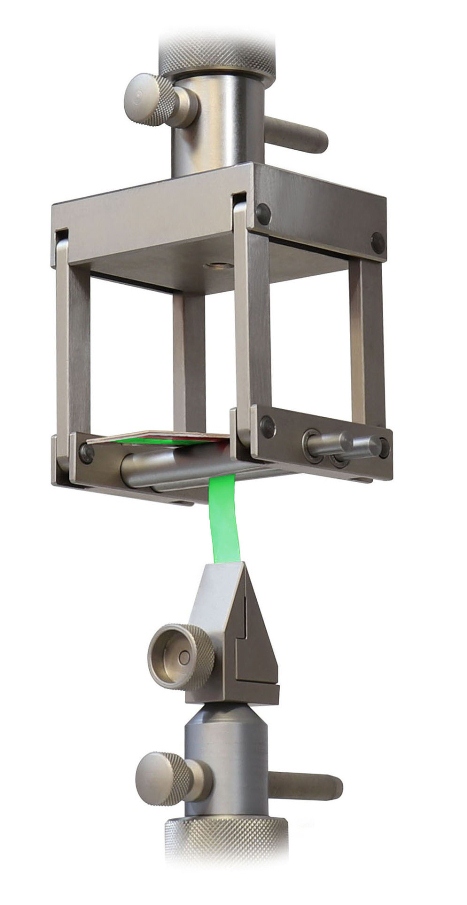

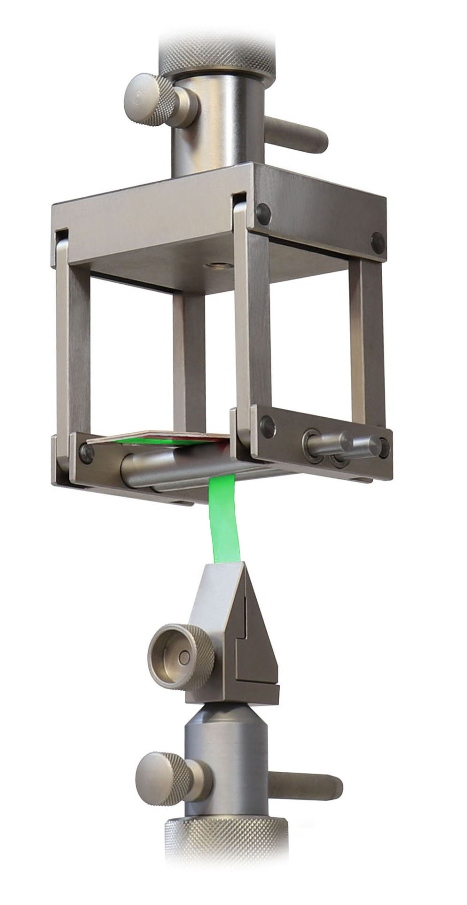

TH104-60



Articulated joints for better peel angle alignment
According to ISO IEC10373-1 and ISO/IEC 7810
Max. load: 2 kN

2 rollers x 10 mm Ø
1 mm distance between rollers
V2A stainless steel

Description: Description: Description: Description: Description: tn_TH104-90-

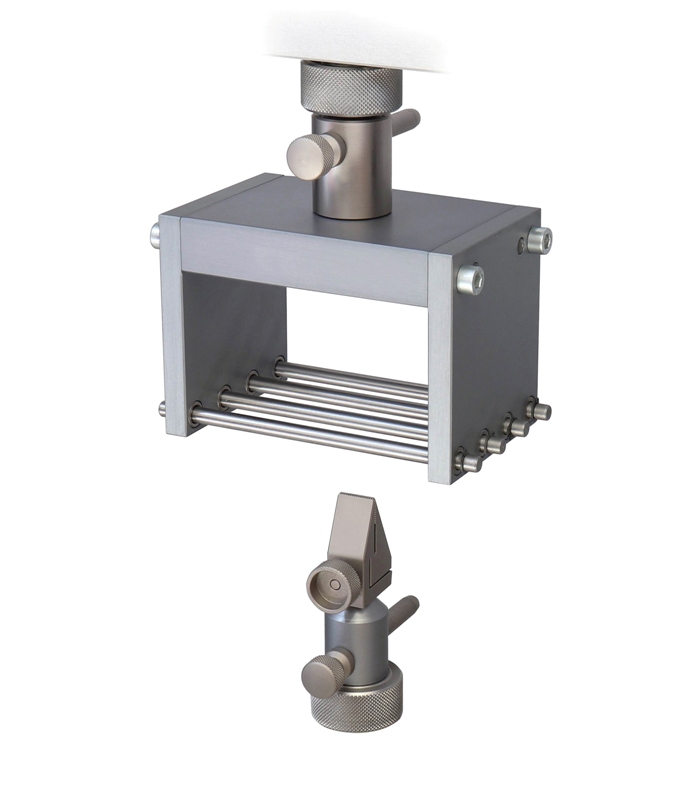

TH104-90


Can be used for thicker specimens due to larger distance between rollers
Max. load: 2 kN

4 Rollers x 6 mm Ø
14 mm distance between rollers

Steel, nickel-plated

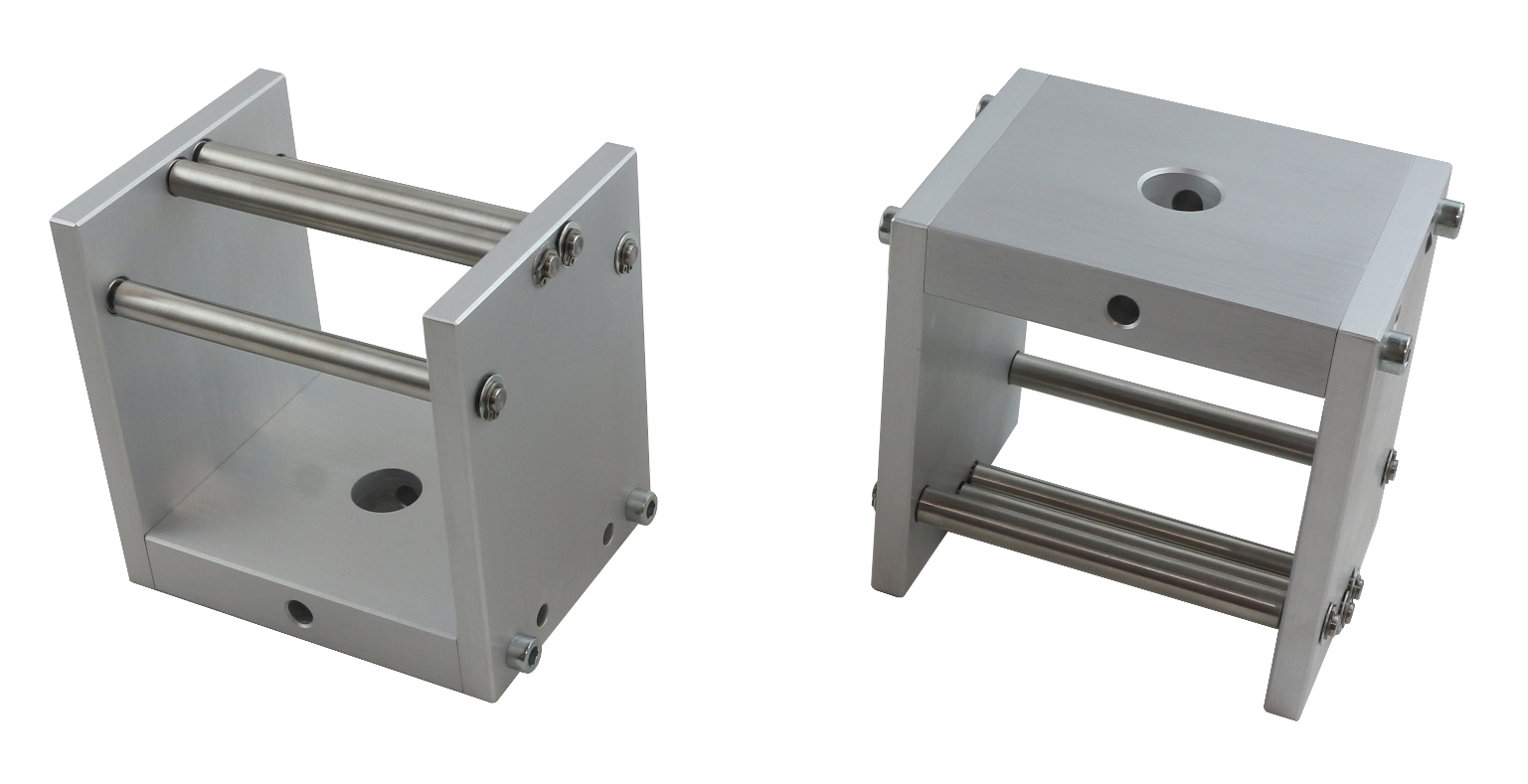

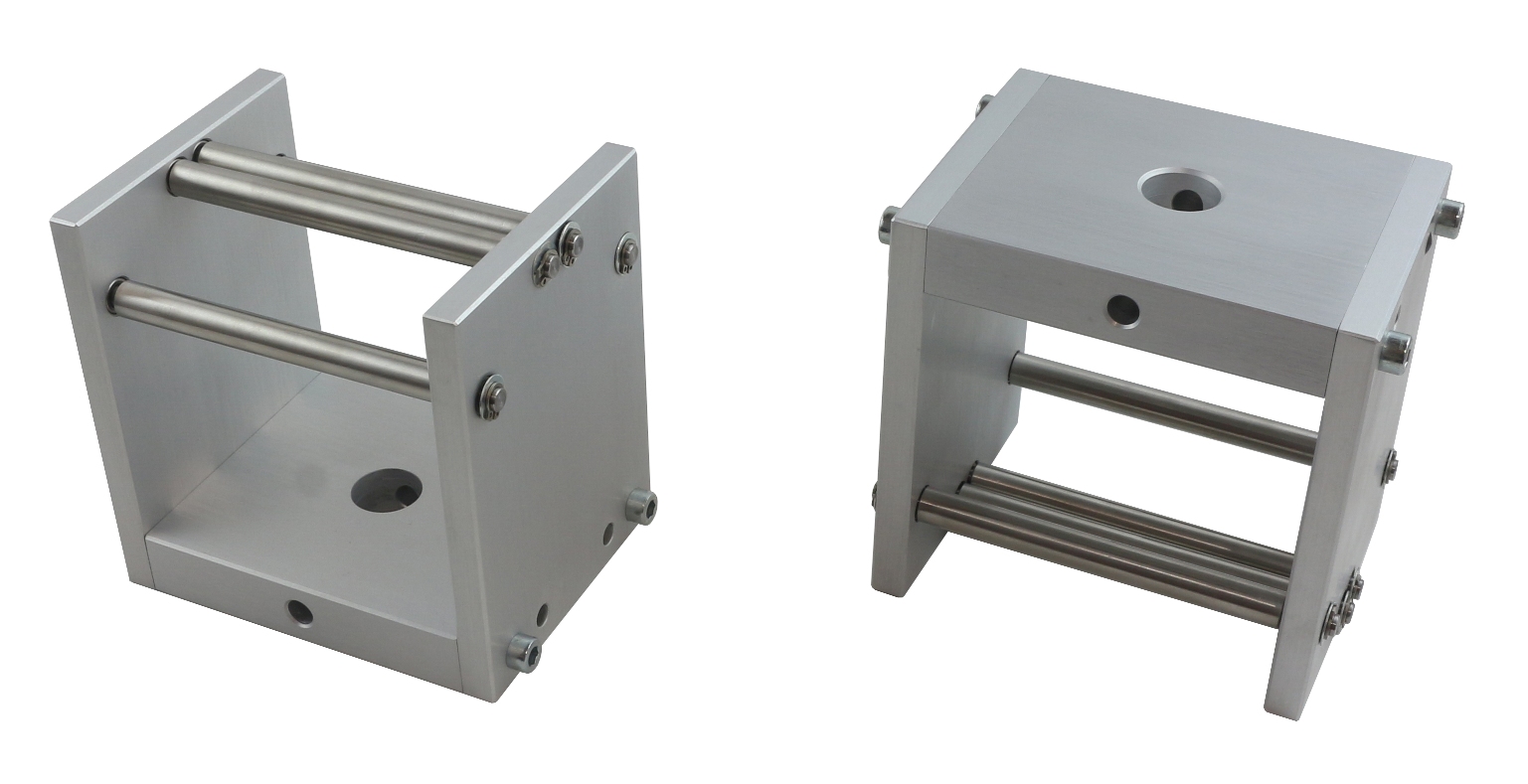

TH104-V10-100-Af20



Special peel test fixture

Incl. 4 rollers with ball bearings, 100 mm wide and 10 mm Ø

Distance between upper and lower rollers 10 mm

Slit between the 2 lower rollers 1 mm

Max. load 2 kN

Aluminium, anodized

Coupling Af20
