G15 compression cages



Back



Für die Umwandlung von
Zug in Druck

um Ausknicken im Druckversuch zu vermeiden

mit Kugelbuchsen um die Reibung zu reduzieren und die Platten präzise zueinander zu bewegen

to change tension in compression


to avoid damages in compression tests

with ball bearings to reduce frictio
and position platens more precise



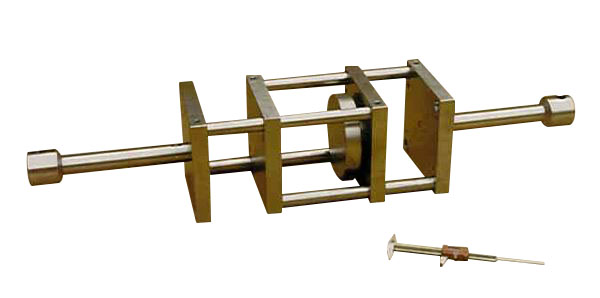

Standardauführung  TH42
Alu eloxiert
mit Kugelbuchsen
Adapter 15.9  oder 20/8
20 kN

TH42
Alu eloxated
ball bearings
Adaptersieze 15.9 or 20/8

Description: pdf_icon.gifTH42 Datasheet.pdf

TH42-160-A4-Af15,9-Am16

Description: TH42-bearings_fr

TH42-A-B-C-D

A=150, B=150mm
C=200, D=Adapter size
Optionen
St - steel
SS - stainless steel
nKB - no ball bearings
Ni - Nickel
FX - Force with value X



Description: TH42-AxB-C-D-E

Description: TH42-395x400-LW420-Af159--cage--.jpg

TH42-395x400-420-961-Af159

großer Käfig Alu Kugelbuchsen

Description: TH42-320x395-LW420-Af191-2

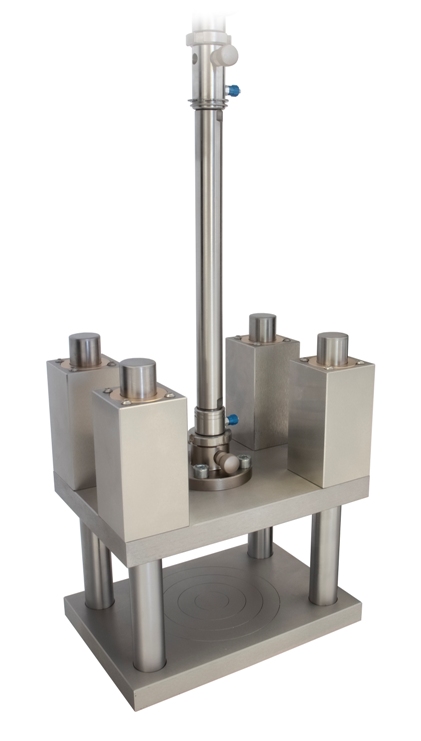

Optional Versionen

Description: tn_TH42-100x100-350-KB cage ball bearings 20kN-

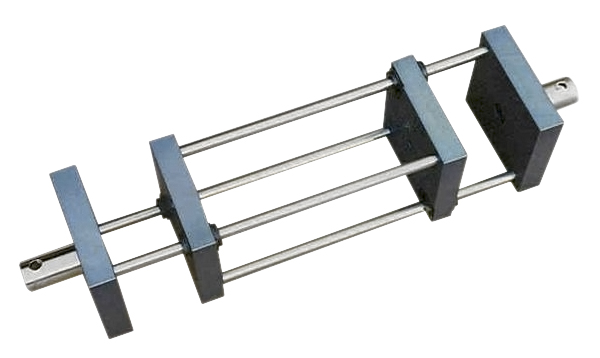

TH42-100x100-350

Cage ball bearings 20 kN

Description: tn_TH42-140x200-Am35  20,7kg  21-03-2018  02-

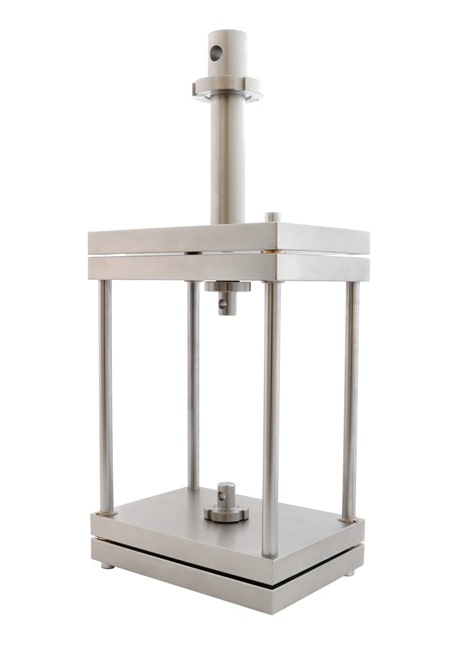

TH42-140x200-Am35

Customized compression cage,

140x200 mm, coupling Af159

With special compression platens 56 mm diameter, coupling Af159

Description: tn_TH23-056-Af15,9-ST-ISO604  260g  21-03-2018  01-

Description: tn_TH42-140x200-Am35-TH23-056-Af15,9-ST-ISO604  23,3kg  21-03-2018  01-

TH42-140x200-Am35

Customized compression cage

Description: tn_TH42-140x200-Am35-TH23-056-Af15,9-ST-ISO604  23,3kg  21-03-2018  05-

TH42-140x200-Am35

Customized compression cage

Description: tn_TH42-140-220-Am20_Zugkäfig  Edelstahl Teflonbuchsen T280°C-

TH42-140-220-Am20

T280 °C

Description: tn_TH42-140-220-Af159-

TH42-140-220-Af159

Description: TH42-V2a-special

TH42-150x150-L240-SS-Af159

For Temperature Chambers

300°C

Description: TH42-150-L200-1-

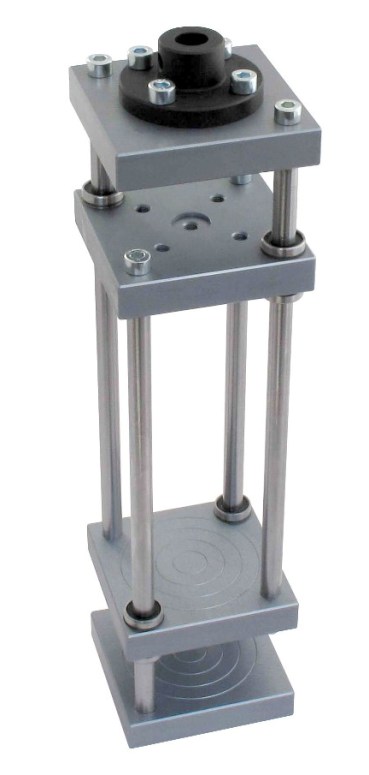

TH42-150-L200

Description: TH42-395x400-LW420-Af159--cage-.jpg

TH42-395x400-LW420-Af159-cage

Description: tn_TH42-100x100-KB-50kN Zugkäfig compression cage  ballbearings 150°C-.jpg

TH42-100x100-F50-Ni  150°C

50 kN version

100x100mm

Steel Nickel Surface

Description: tn_TH42-100x100-250-Am30-S13828-TGd  100kN Teflon guide 280°C-.jpg

TH42-100x100-250-Am30-S13828-TGd

100 kN version

Teflon guide 280°C

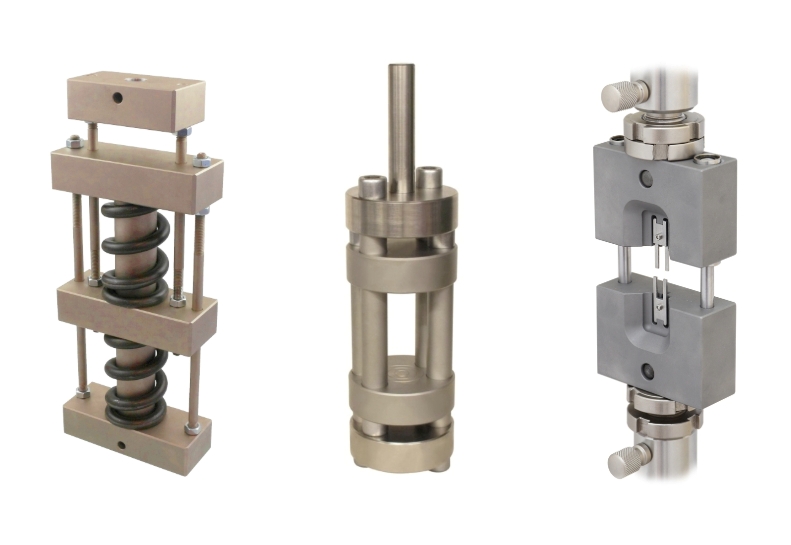

Description: TH72-8719-3-Af60-.jpg

TH72-D96-Af60-9311

Strong version

96 mm diameter

Description: TH72

TH72-116x116-AM24x2

TH72

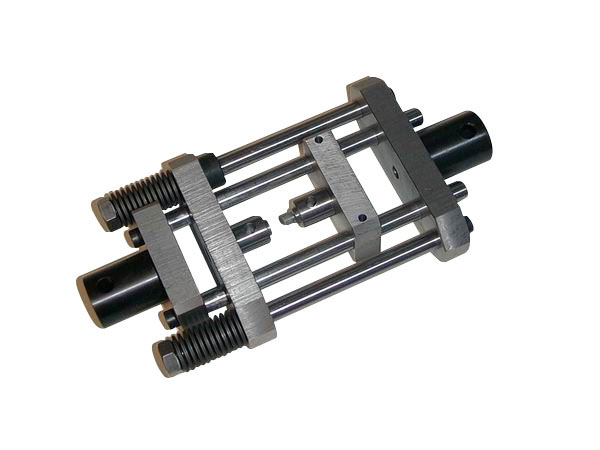

Description: THS350-MPA-spring

THS350-MPA

With plastic spring for checking load cell

Käfig mit Elastische Feder um leichter Kräfte einzustellen
MPA Prüfung

THS-350-MPA-spring

Description: TH160-big-.jpg

TH160-396-THS223-300-Af50

großer Zugkäfig mit Druckplatte auf Pfanne
100 kN

TH160-big

Description: THS392-2-1-.jpg

THS392-2-1-Af159-St

Special version steel with insert

THS392-2

Description: TH182MPA100kN

TH182-xxx

Für MPA Abnahme

Description: TH42-150-L200-KB
