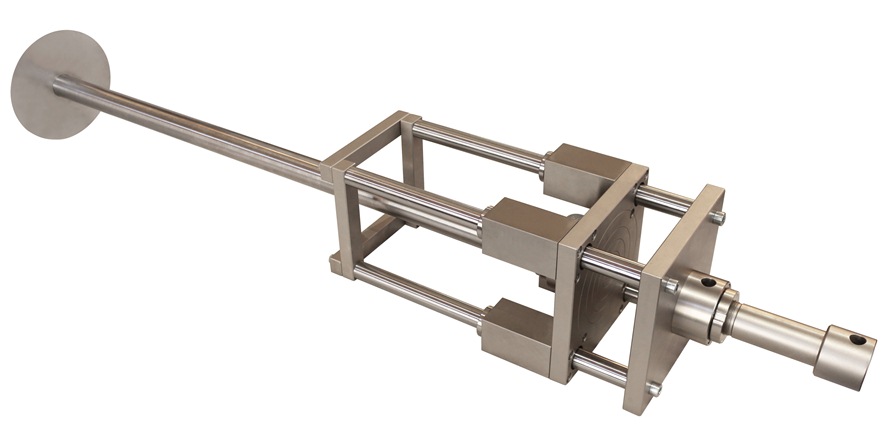

TH141-196x196-Af38-T280-St



Compression cage
Compression platens 196x196 mm

Temperature range up to 280°C

Steel, nickel-plated

Coupling Af38

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon TH141 Datasheet.pdf

Description: Description: Description: Description: Description: tn_TH141-250-THS223b-MMA-H750-ith6-xf-

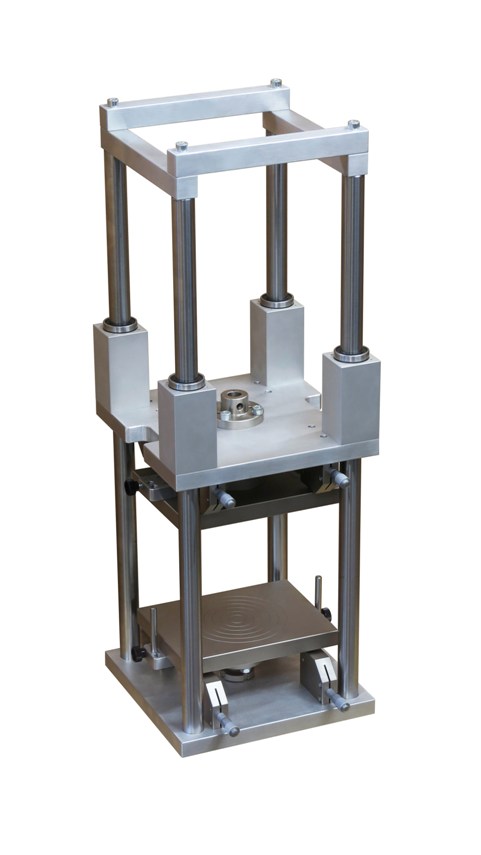

TH141-250-THS223b-MMA-H750-ith6

Compression cage
Platens 250 x 250 mm, height 750 mm

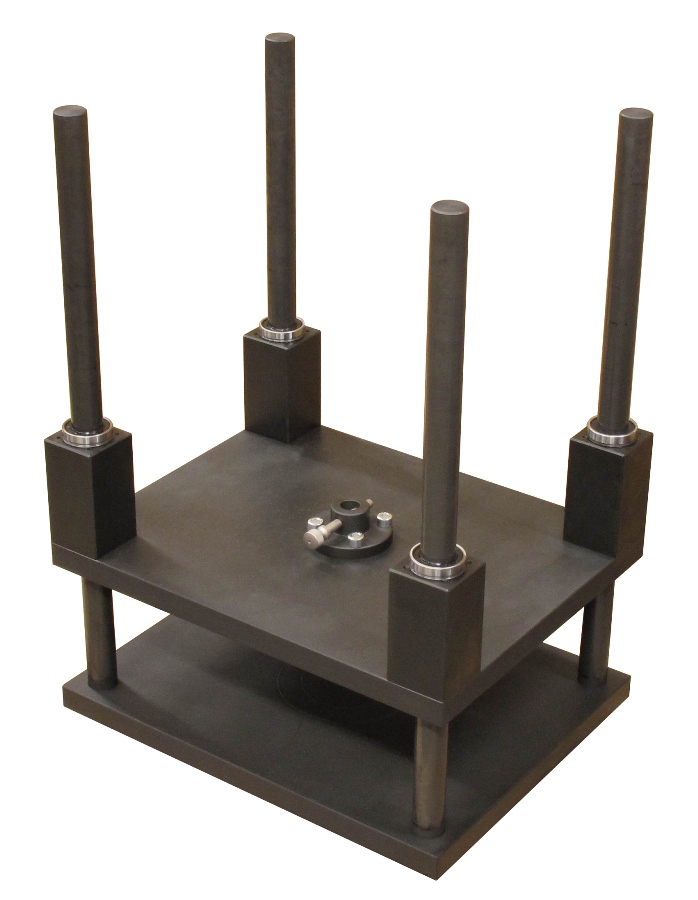

TH141-380x300-H550-Af159



Compression cage
Compression platens 380 x 300 mm
Height 550 mm, Steel

Coupling Af159

TH141-300x400-SV2.5x120-H550-Af318

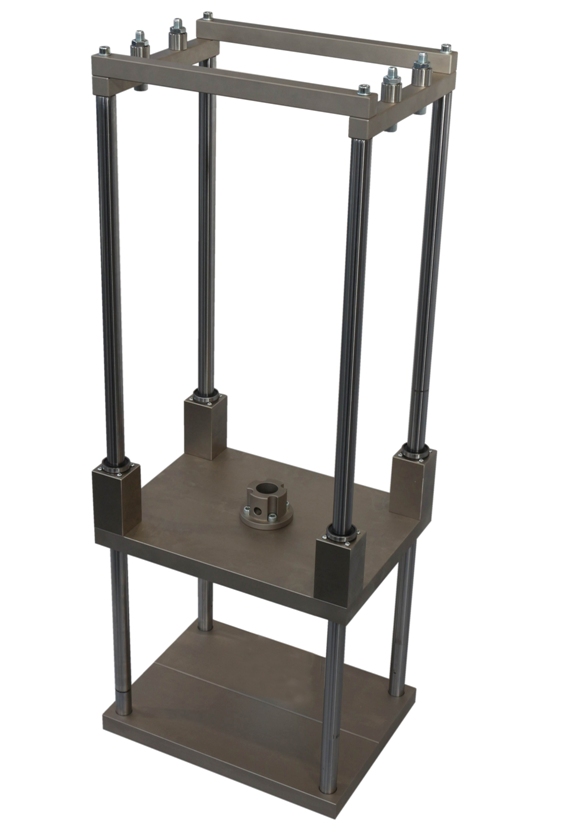

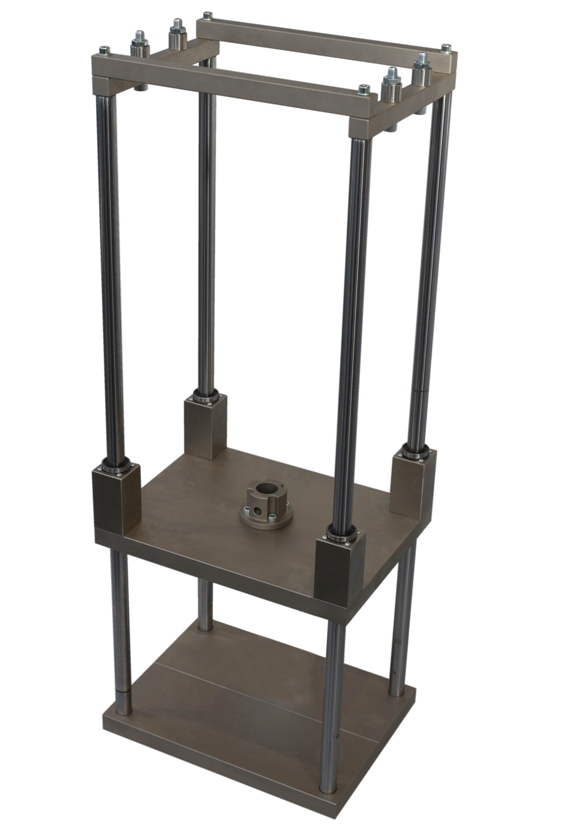

TH141-300x400-SV2.5x120-H550-Af318



Compression cage with guide system

Compression platens 300 x 400 mm
with V-groove (2.5 mm wide, 120°)

Useful distance between the plates 550 mm (upper platen is blocked at the top)

Max. load 50 kN

Coupling Af318

TH141-360x360x350-Af159-xa 2022-09-19

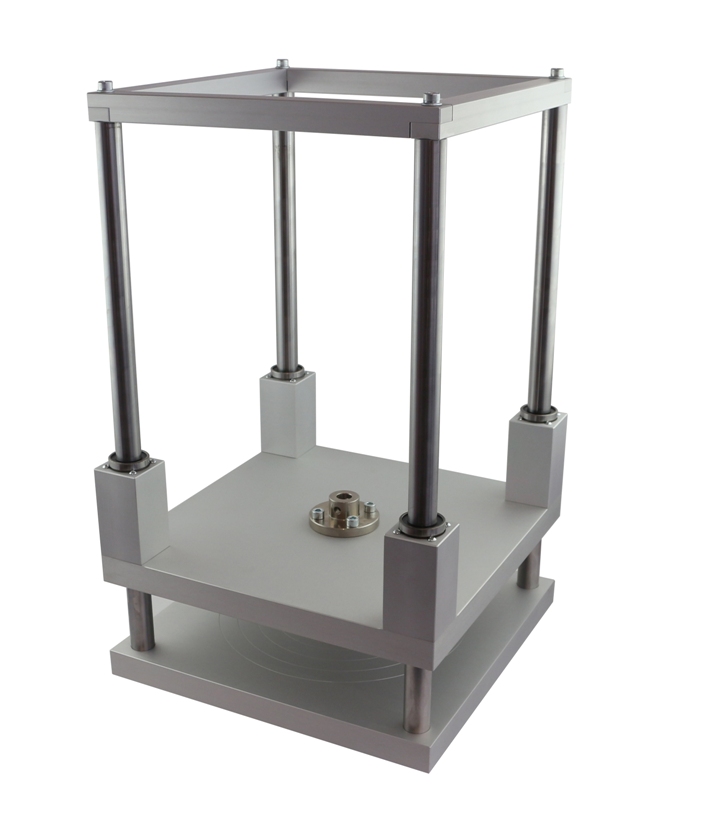

TH141-360x360x350-Af159



Compression cage with guide system
Compression platens 360 x 360 mm

Useful height 350 mm

Max. load 1 kN

Coupling Af159, Aluminium

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH141-396x600-Fr.jpg

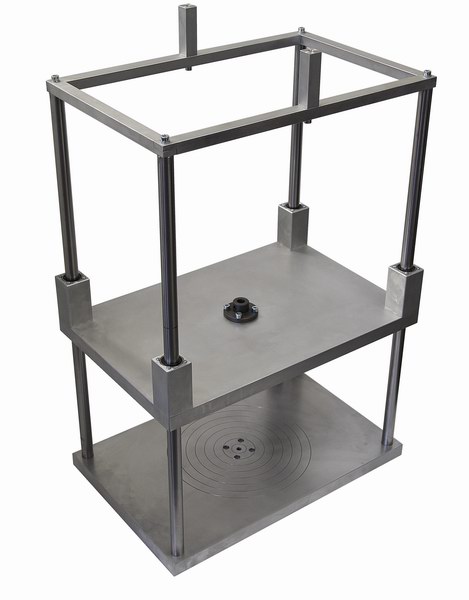

TH141-396x600

Compression cage
Compression platens 396 x 600 mm

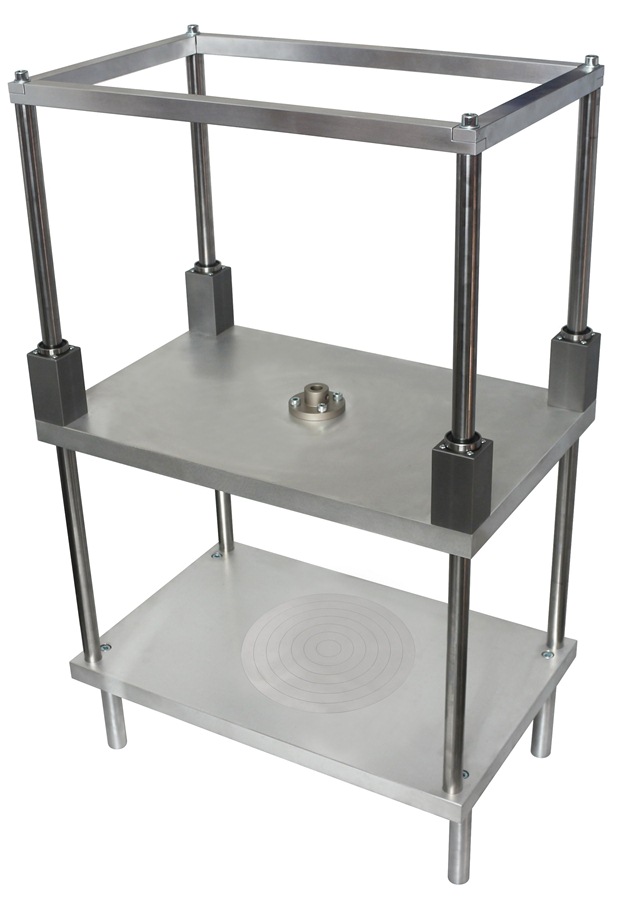

TH141-396x624-Af159



Compression cage
Compression platens 396 x 624 mm

Steel, nickel-plated
Coupling Af159

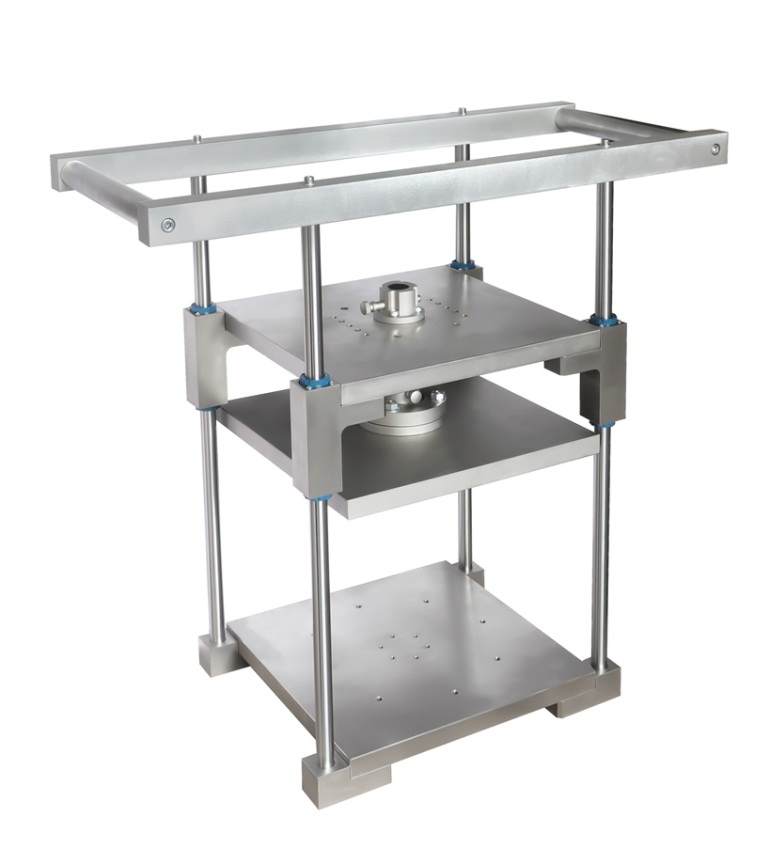

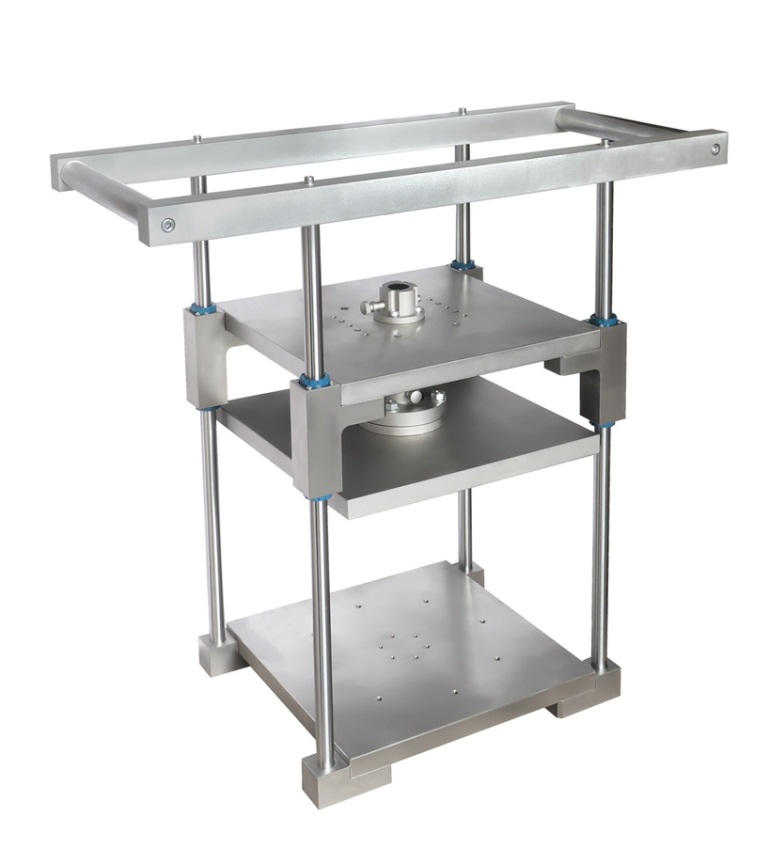

TH141-430x430-LZ5+LZ50



Compression cage with guides,
Compression platens 430 x 430 mm

For load cells 5 kN and 50 kN

Steel + aluminium

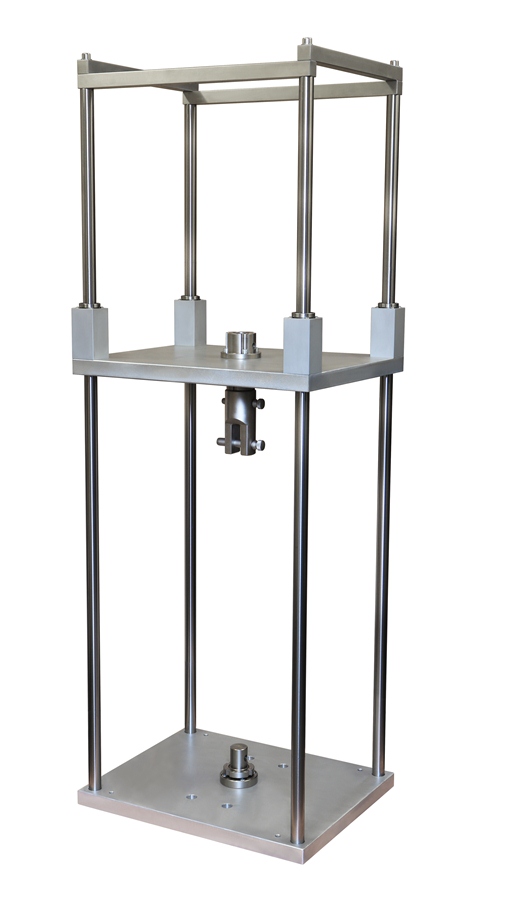

TH141-400x500-H1340



Special compression cage with guides

Compression platens 400 x500 mm
Height 1340 mm
Max. load 50 kN

Aluminium, anodized

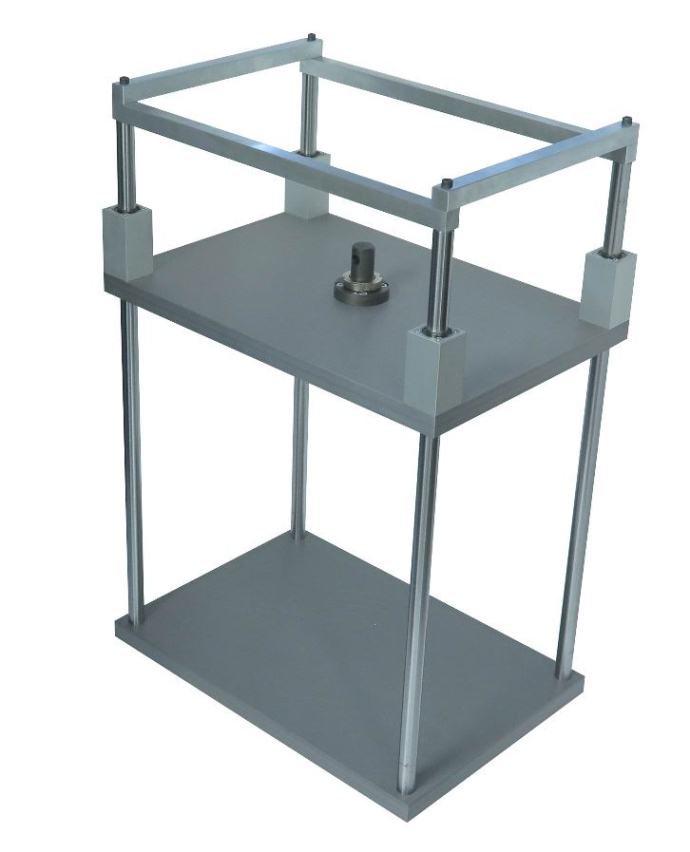

TH141-410x600-Am317

Compression cage
Compression platens 410 x 600 mm
Coupling Am317

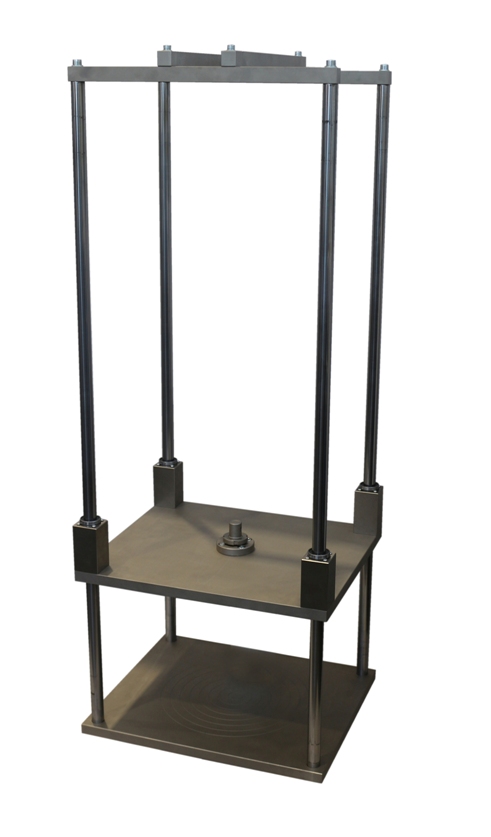

TH141-420x500-Am25_01

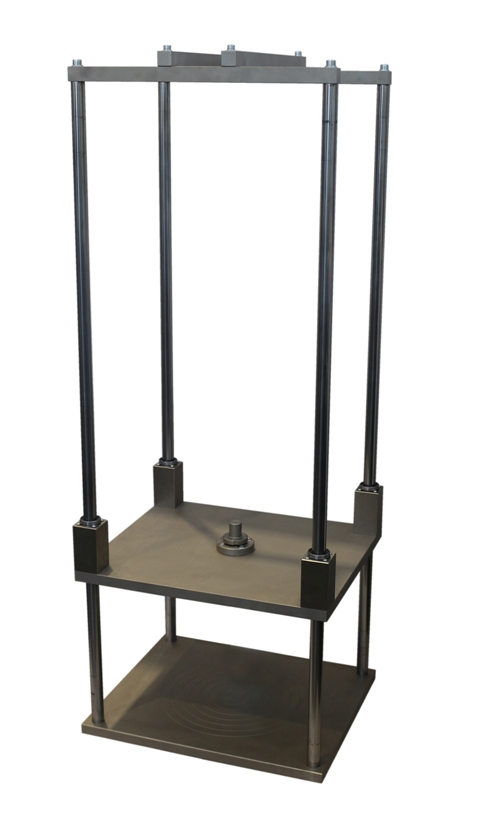

TH141-420x500-Am25



Special compression cage with guides

Compression platens 420 x 500 mm

Coupling Am25

Max. load 20 kN

Steel, nickel-plated

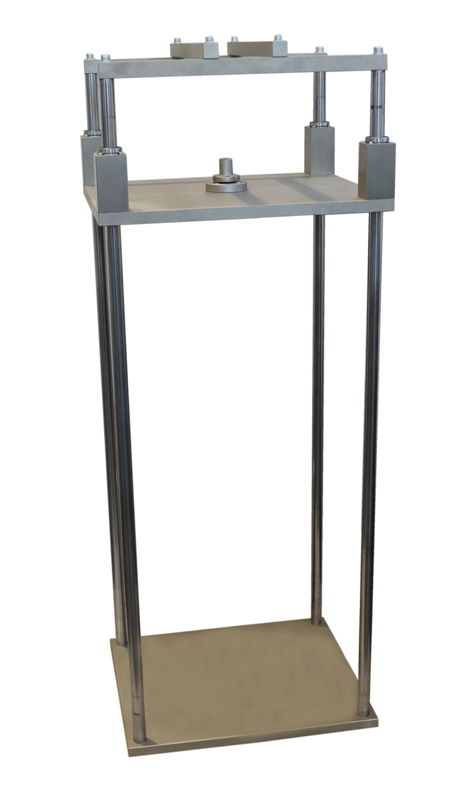

TH141-420x500-Am25_02

TH141-420x500-Am25

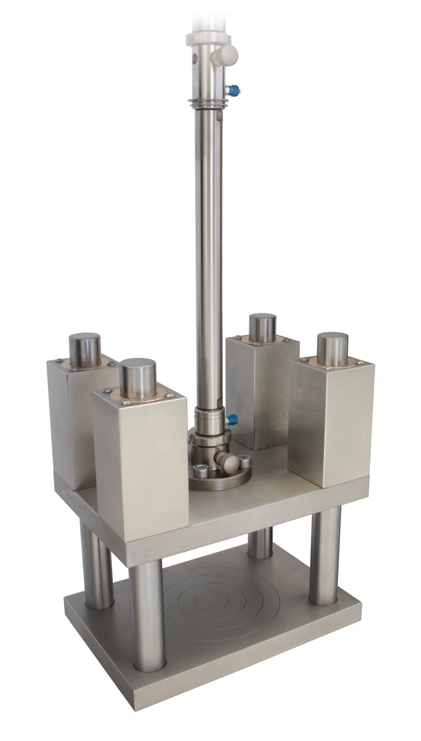

THS86-120x200-Af159-4G-St- T280C  20kg guided compression platen

THS86



Compression platen with guides
