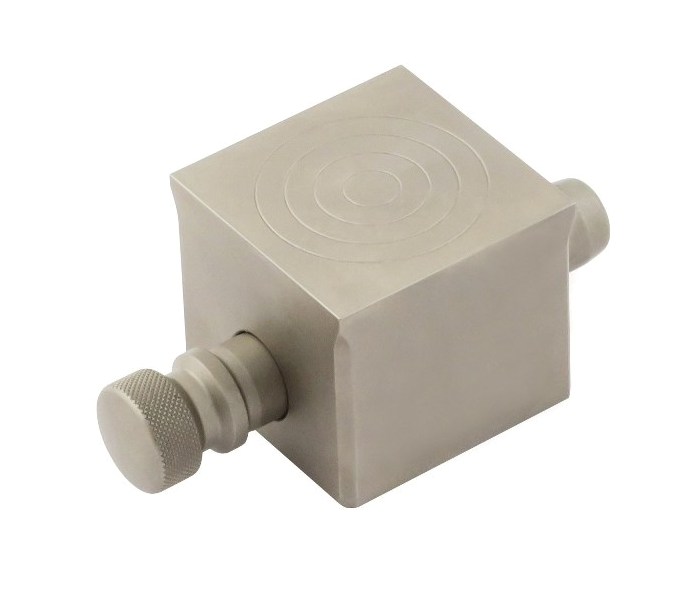

tn_TH36-050-Af3616-St- 0.74 kg

TH36-50-Af3616-St

Special compression plate
Dimensions: 50x50 mm
Steel, hardened, nickel-plated
Coupling Af36/16

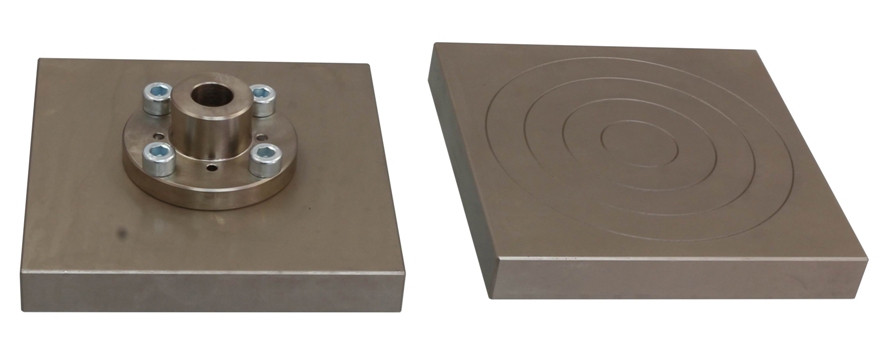

tn_TH36-110-Af159-St  special platen steel hardened nickel coated

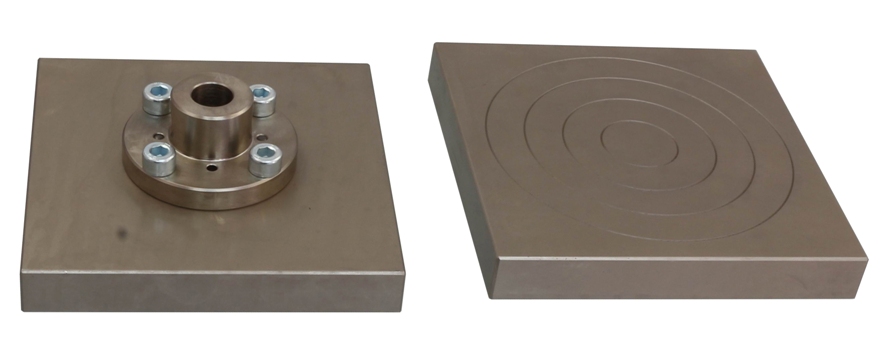

TH36-110-Af159-St

Special compression platens
Dimensions: 110x110 mm
Steel, hardened, nickel-plated
Coupling Af159

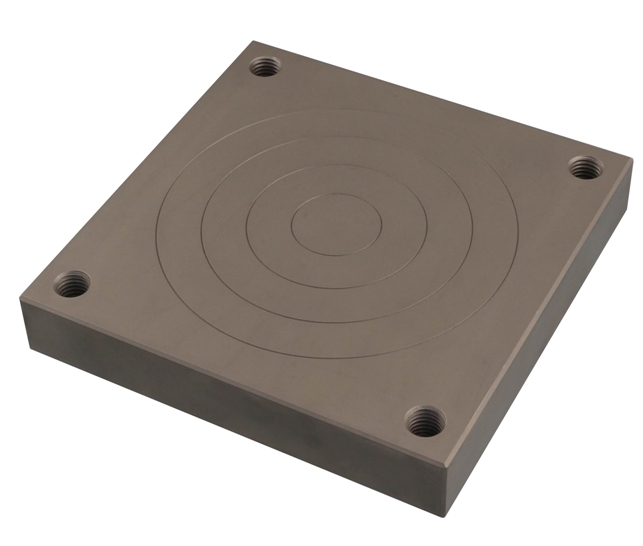

tn_TH36-152.4x152.4x25.4-St  special platen steel hardened nicckel coated

TH36-152.4x152.4x25.4-St

Special compression platen
Dimensions: 152.4x152.4x25 mm
Steel, hardened, nickel coated
Coupling Af318

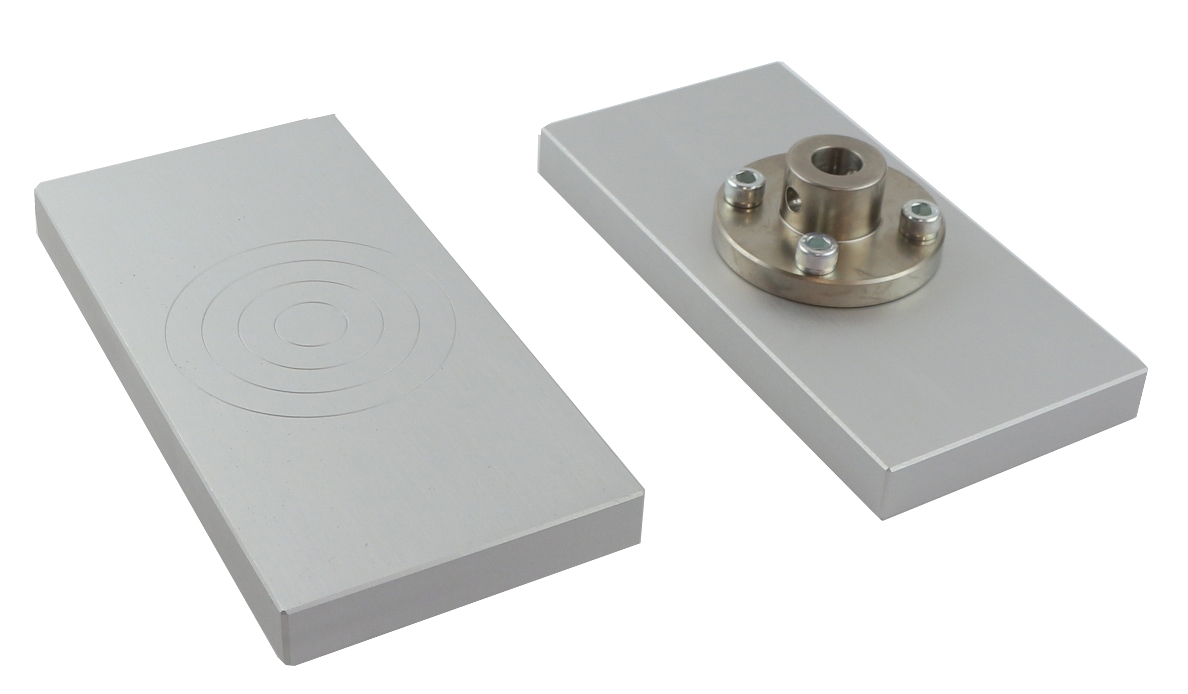

TH36-100x200-Af159-AL_2022-11-18

TH36-100x200-Af159-Al

Special compression platen
Dimensions: 100x200 mm
Aluminum, anodized

Coupling Af159

Description: Description: Description: Description: TH36-150+THS327-Km8-Am25-.jpg

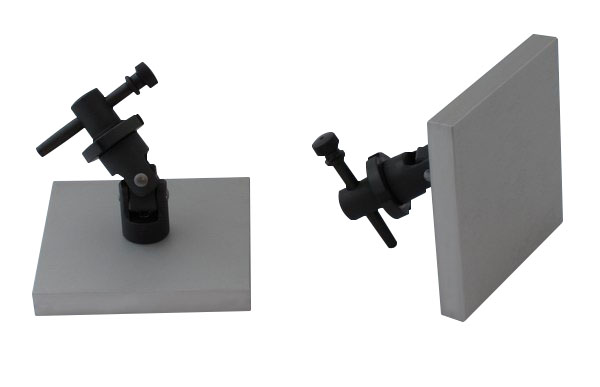

TH36-150-Al + THS327-Km8-Am25



Compression platens with universal joint adapters
Dimensions: 150x150 mm
Aluminum, anodized
Coupling Am25

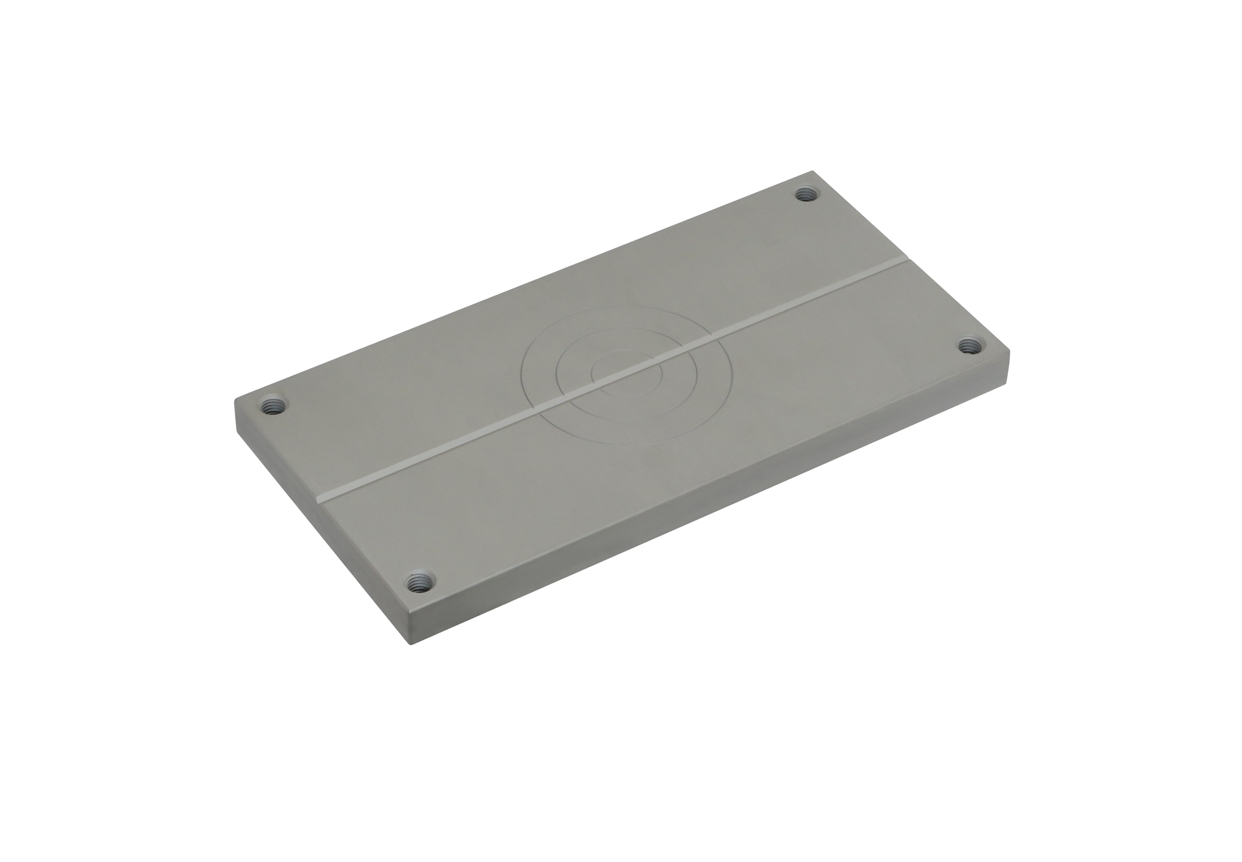

Description: Description: Description: Description: tn_TH36-150300-SV1.5x120-Al 2.4kg-

TH36-150x300-Al



Compression platen with central V-groove
Dimensions: 150x300 mm
Aluminum, anodized

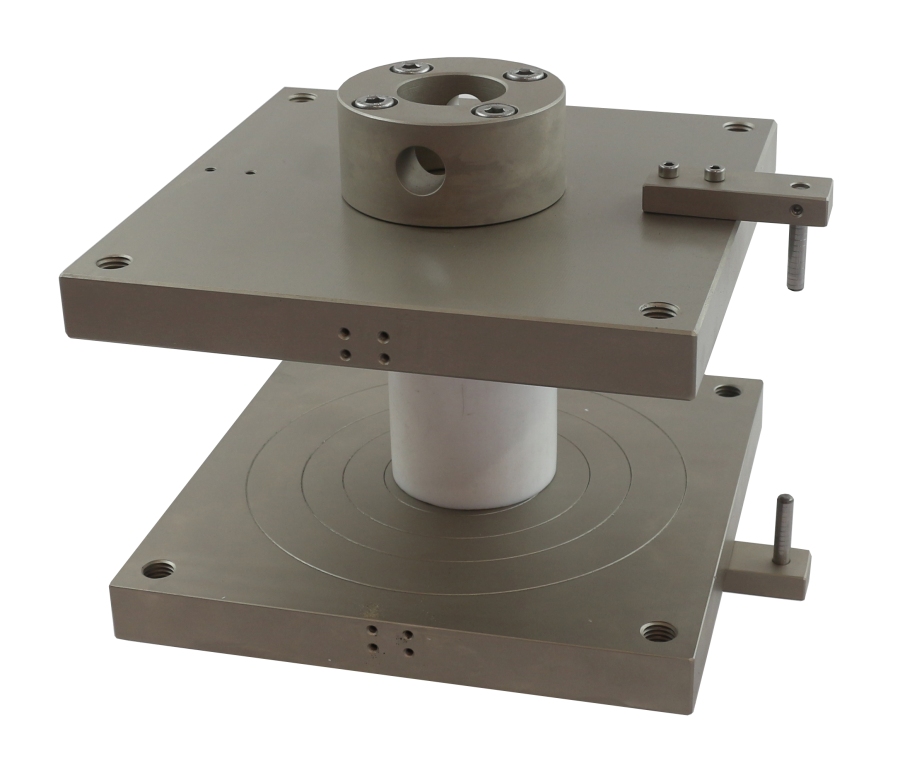

TH36-196-Af3616-4xM3-15kg

TH36-196-Af3616-4xM3



Special steel platen, 196x196 mm

Coupling Af3616

With holder for extensometer

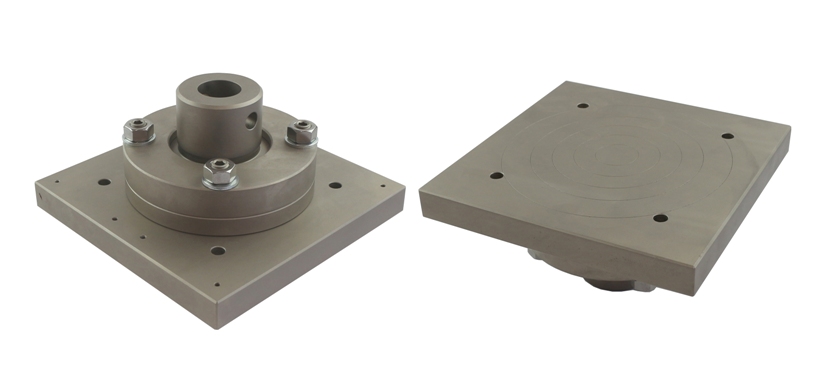

TH36-196+4xD9-8xM4+THS223g-P138-TH36-Af30_11.1kg_01

TH36-196+4xD9-8xM4
+
THS223g-P138-TH36-Af30



Special steel compression platen

Dimensions: 196x196 mm

Swiveling upper part 1.5

Max. load 50 kN

Coupling Af30

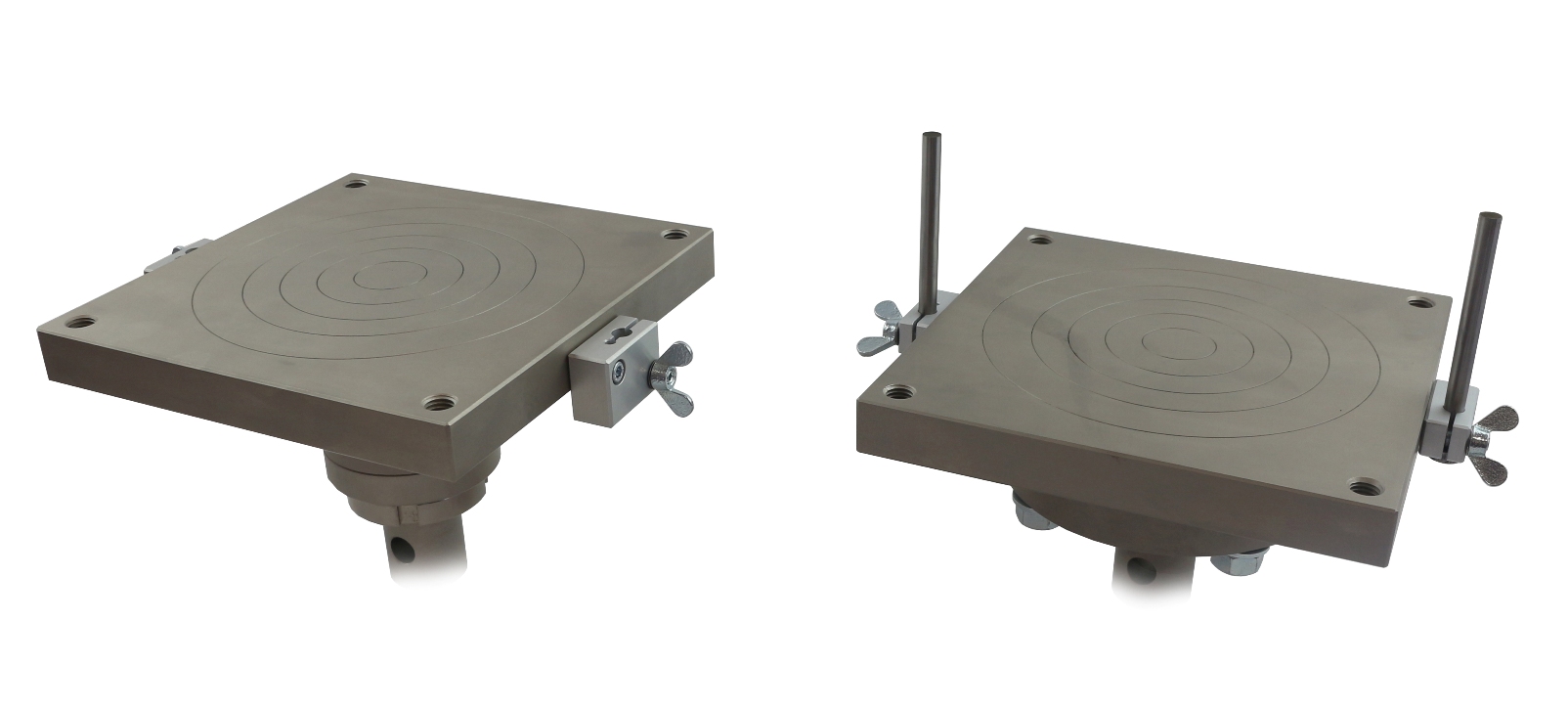

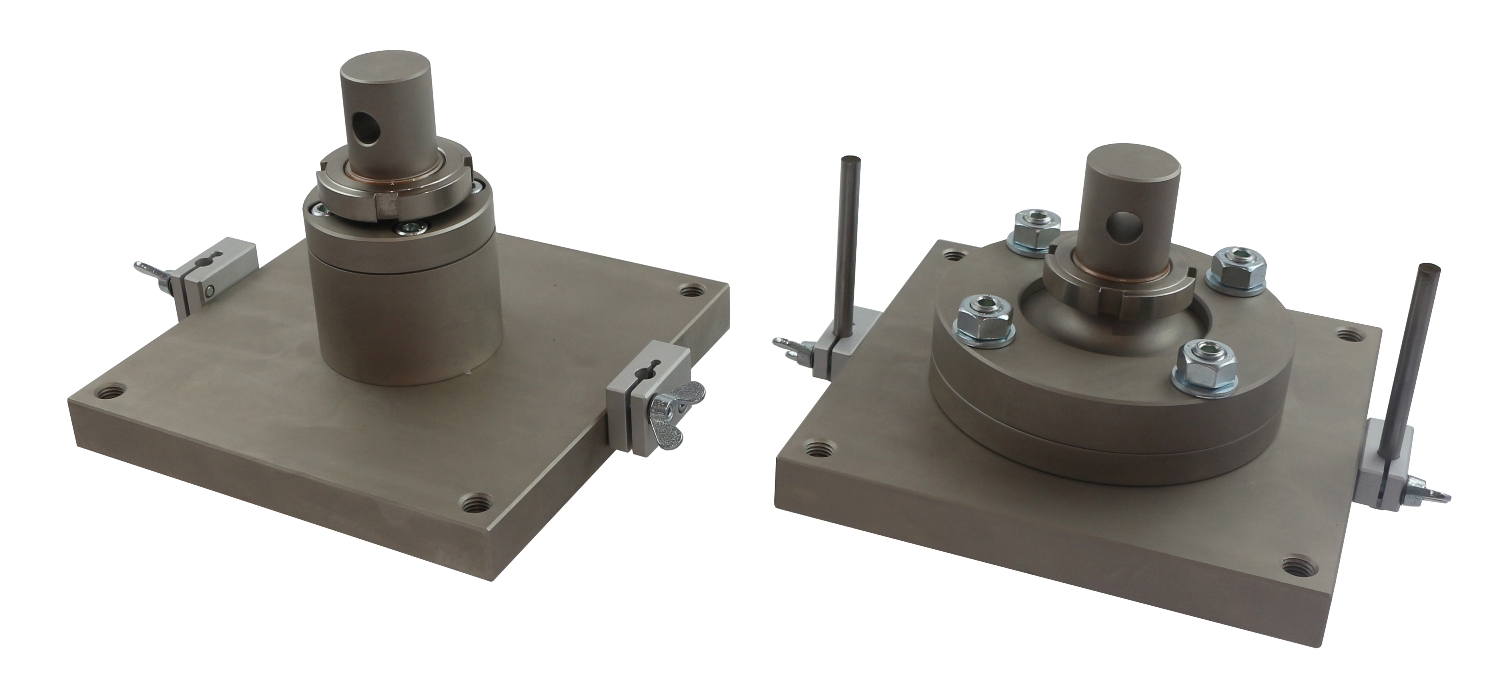

TH36-200+ith6+THS223g-Am35+THS628-35-40xKm8-H50-xd 2023-02-03

TH36-200-ith6
+

THS223g-Am35
+
THS628-35-4xKm8x40-H50

Special compression platen with concentric rings
Special size 200x200x22 mm

Max. load 50 kN
Steel, hardened, nickel coated
Coupling: flange holes 4xM8x40

For the top platen, see THS223g

For the lower adapter, see THS628

TH36-200+ith6+THS223g-Am35+THS628-35-40xKm8-H50_ 2023-02-03

TH36-200-ith6
+

THS223g-Am35
+
THS628-35-4xKm8x40-H50

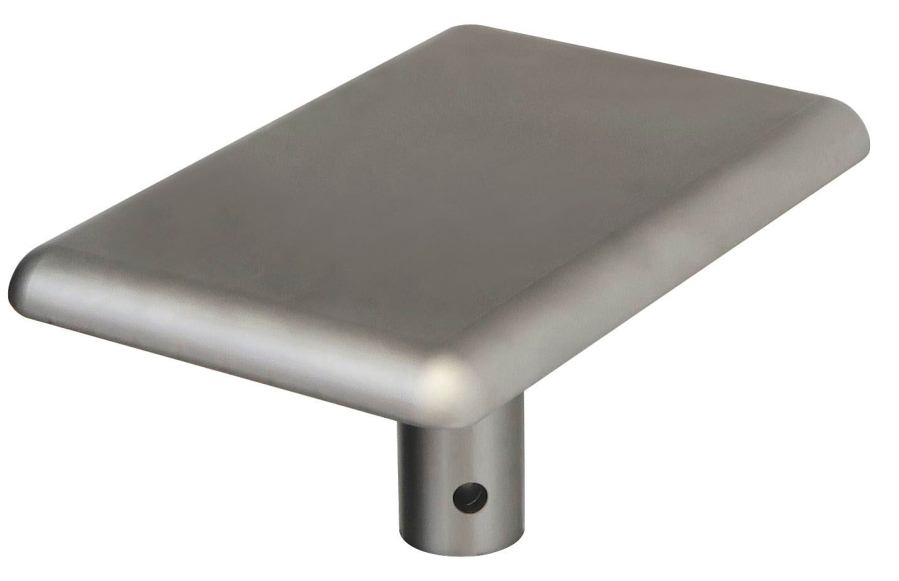

tn_TH36-200x300-oZR-St-R20-rep  rechteckige Druckplatte mit abgerundeten Kanten -

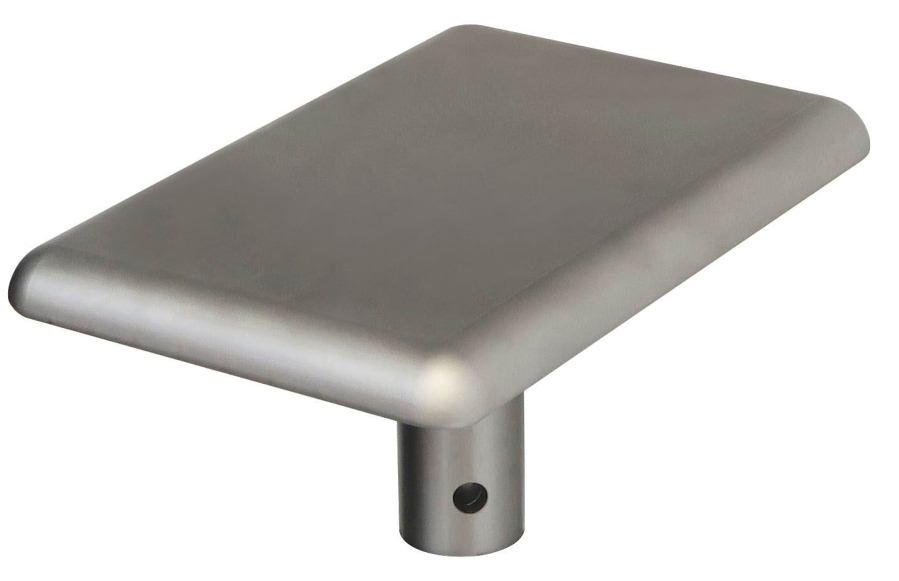

TH36-200x300-oZR-St-R20



Square Platen with rounded corners
Dimensions: 200x300 mm

Rechteckige Druckplatte mit

abgerundeten Kanten

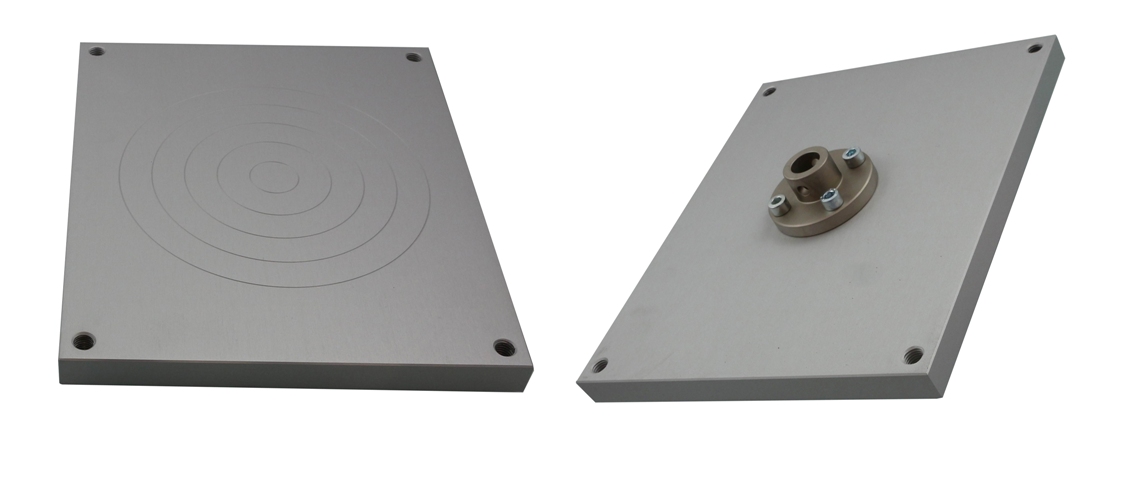

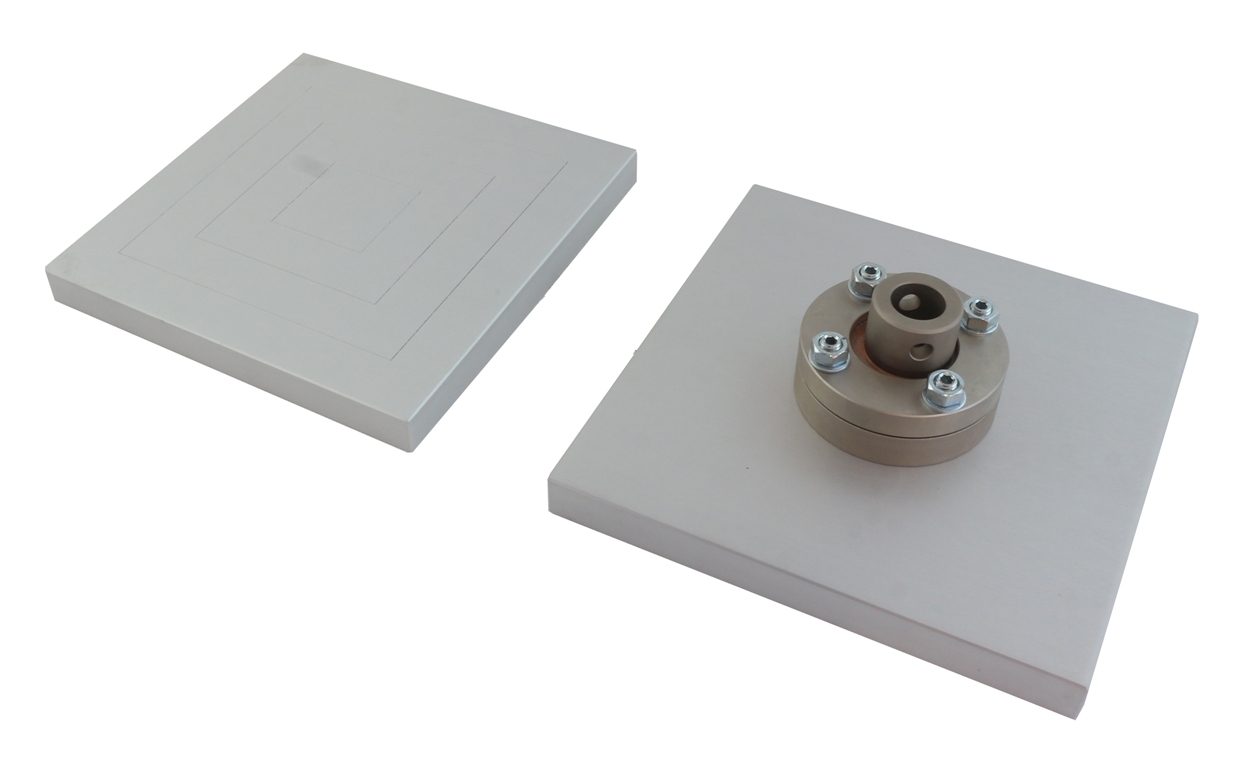

TH36-250x300-Af20-Al 4.7kgdd

TH36-250x300-Af20-Al



Compression platen

Special size 250x300 mm
Aluminium, anodized

Coupling Af20

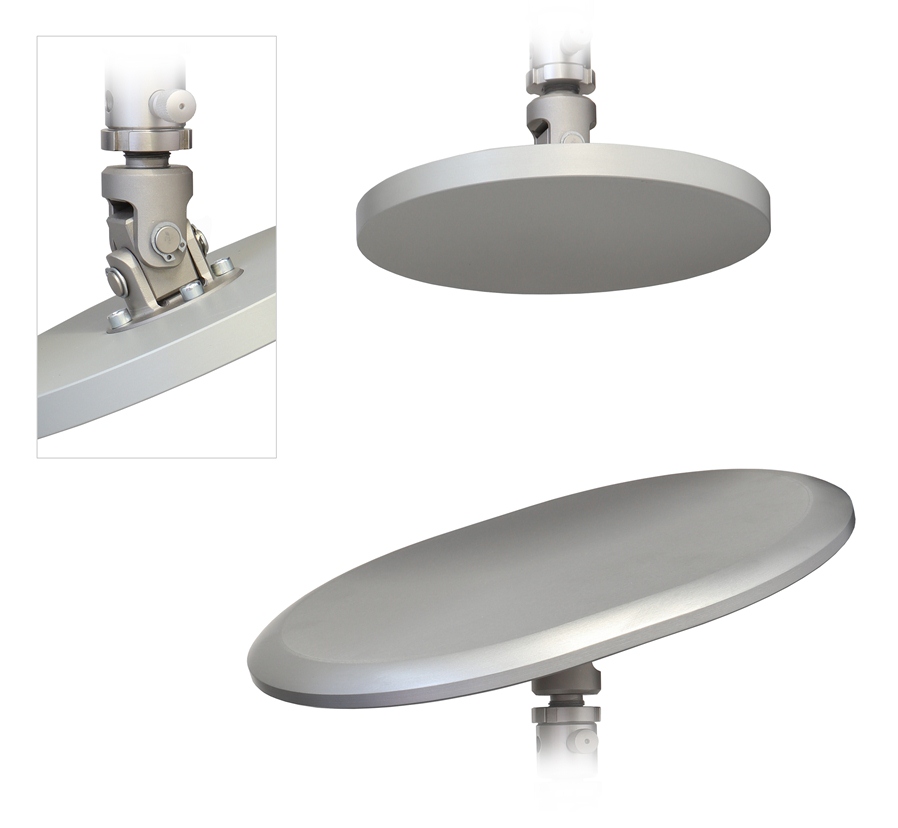

tn_TH36-D200-Al-4xm6 + TH36-250x300-R125-Al-4xM6-TK44 + THS327-Am1665-M6  4kg  Druckplatte Kardanadapter  2020-01-14  02 -

TH36-D200 + TH36-250x300-R125 + THS327



Special compression Platens with universal joints Upper Platen 200 mm diameter, Lower Platen 250x300 mm Aluminium, anodized

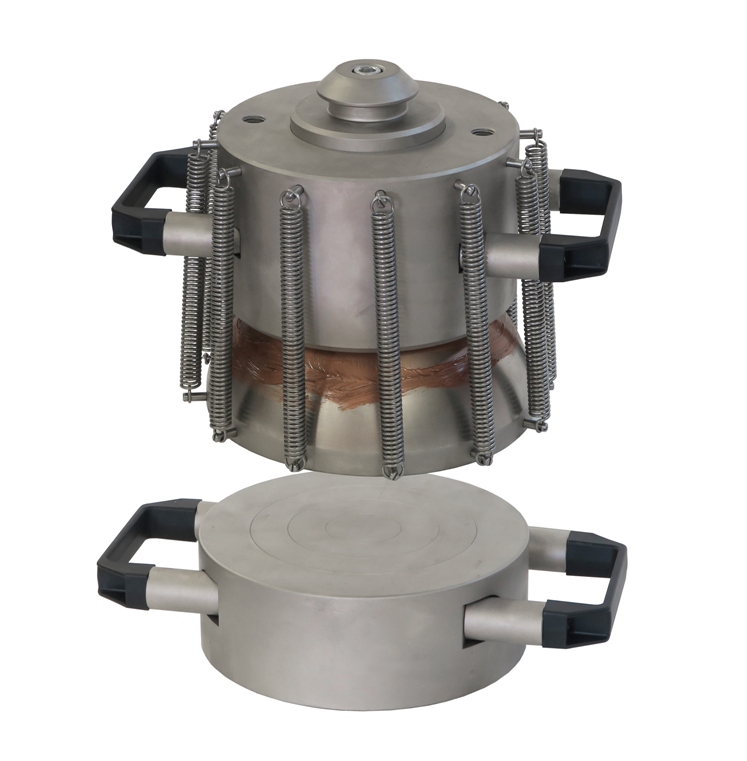

tn_THS223b-220-Am66+100-hdl +TH23-220+hdl 49.2+24.25kg 7 wire strand sompression 02

THS223b-220-Am66+100-hdl+TH36- D220x80-Am25+hdl



Special compression test fixture to test 7 wire steel strand for reinforcement and prestressing of concrete 220 mm

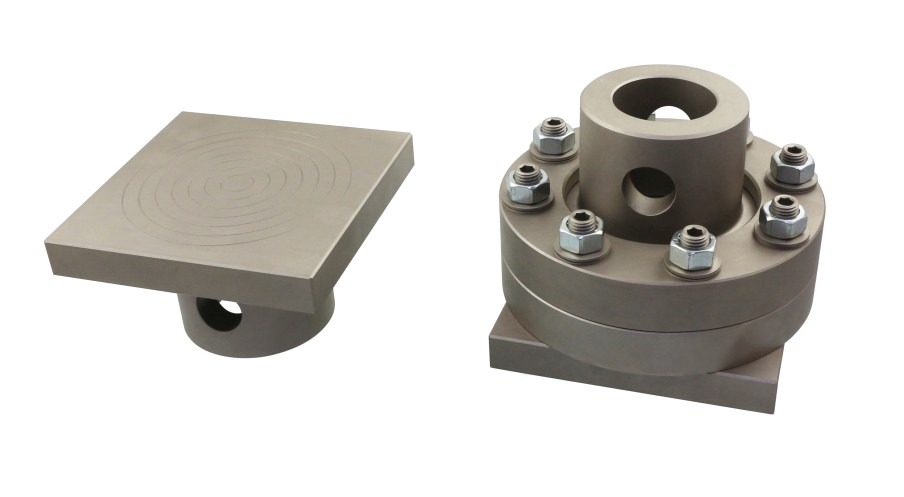

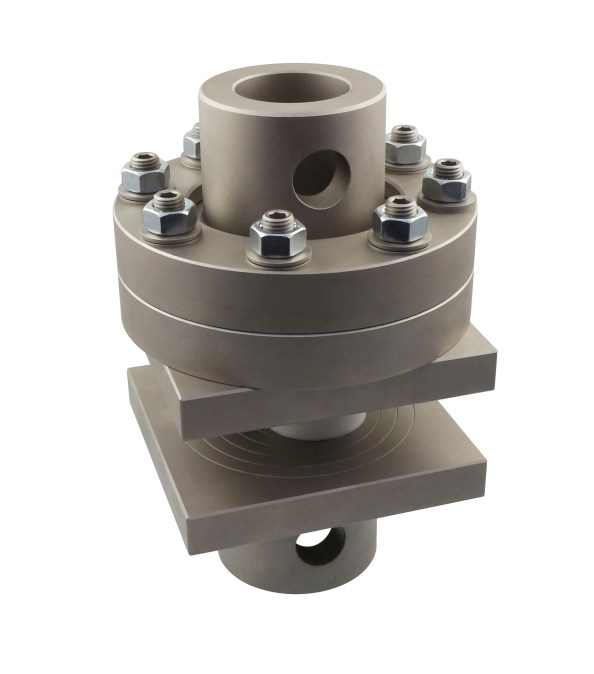

tn_THS223w-170x170-Af603035-St TH36-170-Af603035-St-xa 2020-12-19 21 21.9+9kg

THS223w-170x170-St
+
TH36-170-Af603035-St



Special platens

Dimensions: 170x170 mm and 170 mm

Steel, nickel-plated

tn_THS223w-170x170-Af603035-St TH36-170-Af603035-St-xd 2020-12-19- 21.9+9kg

THS223w-170x170-St
+
TH36-170-Af603035-St

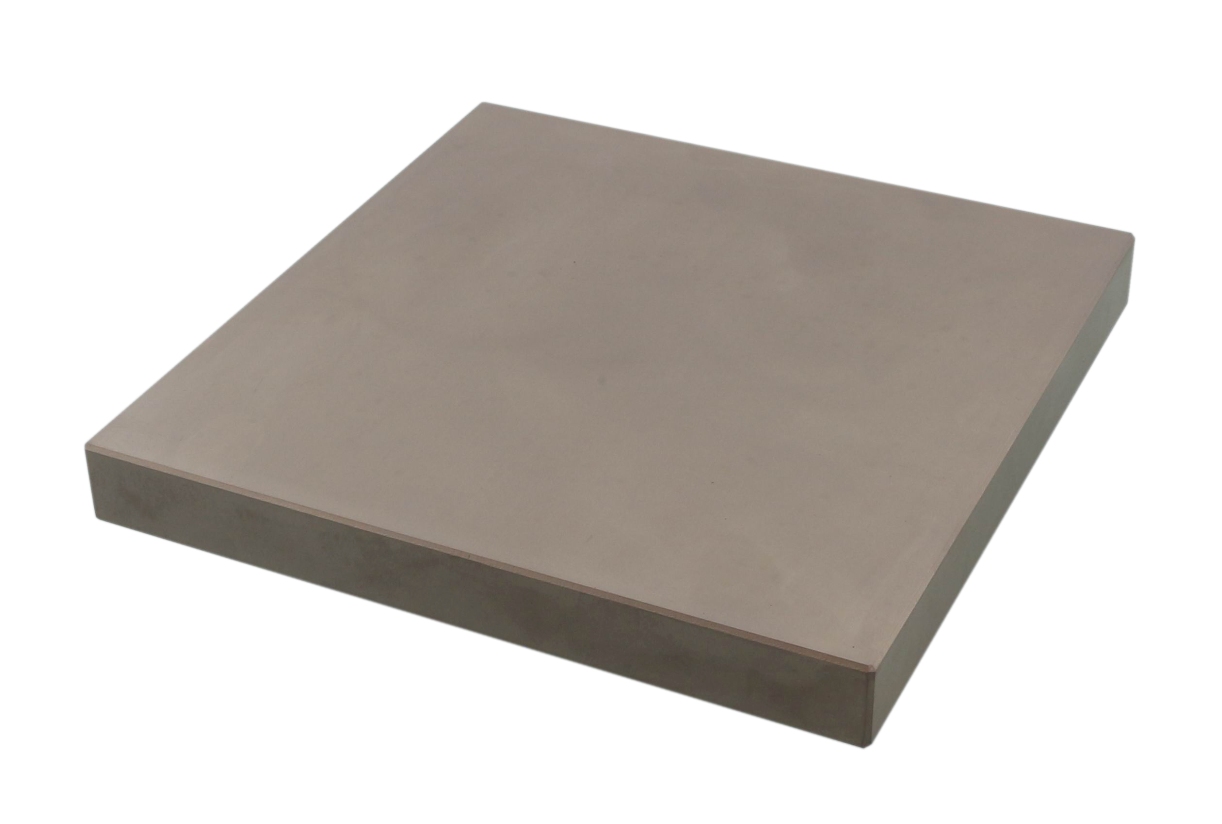

TH36-200-oZR-St-Af3816

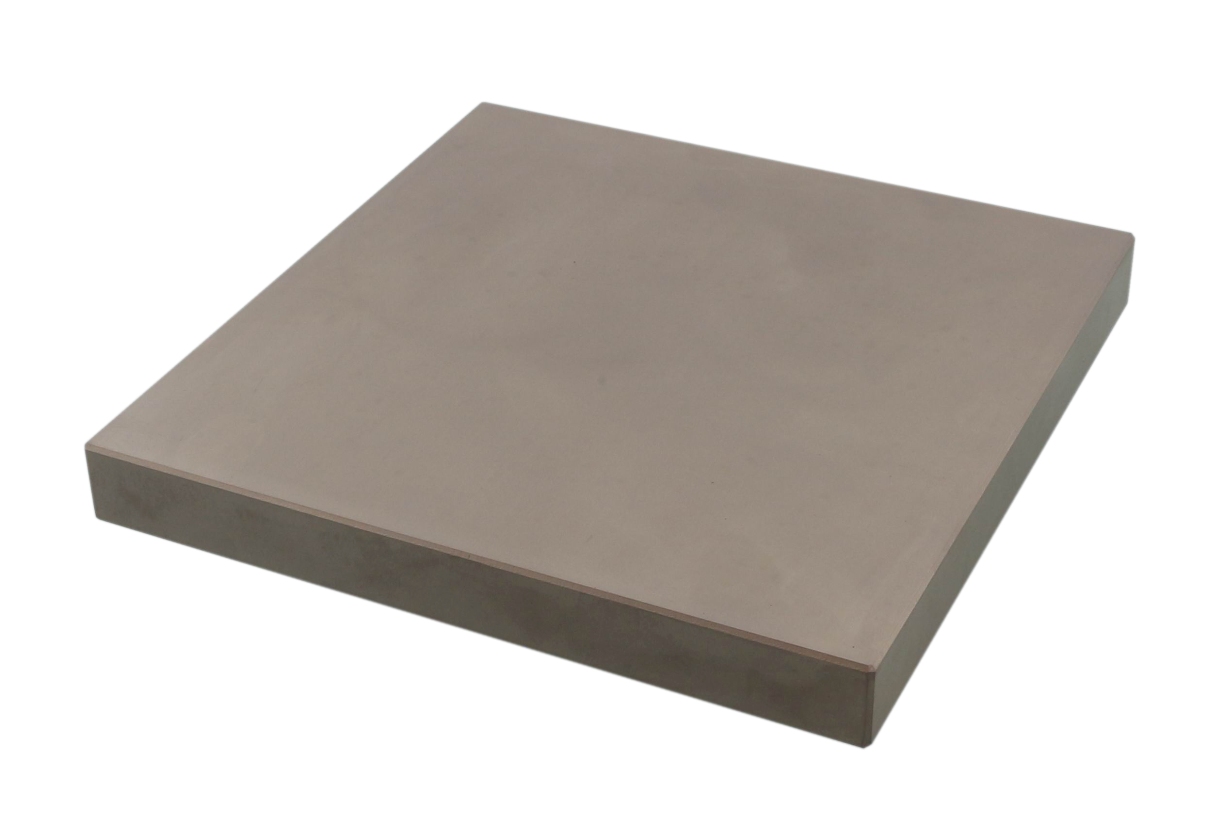

TH36-200-oZR-St-Af3816



Square compression platen
Dimensions: 200x200 mm

Without concentric grooves

Untreated steel

Coupling Af38/16

TH36-D344-R1-4xKm8x40-AL+THS223b_ASTM-F1566-Fig1_4,65kg_2022-10-14 04

TH36-D344 + THS223b-Af159

Special round compression platen
Upper platen spherical seated with 15 flexibility

According to ASTM-F1566 Fig1
Diameter 344 mm, coupling Af159
Aluminum, anodized

For the top platen, see THS223b
