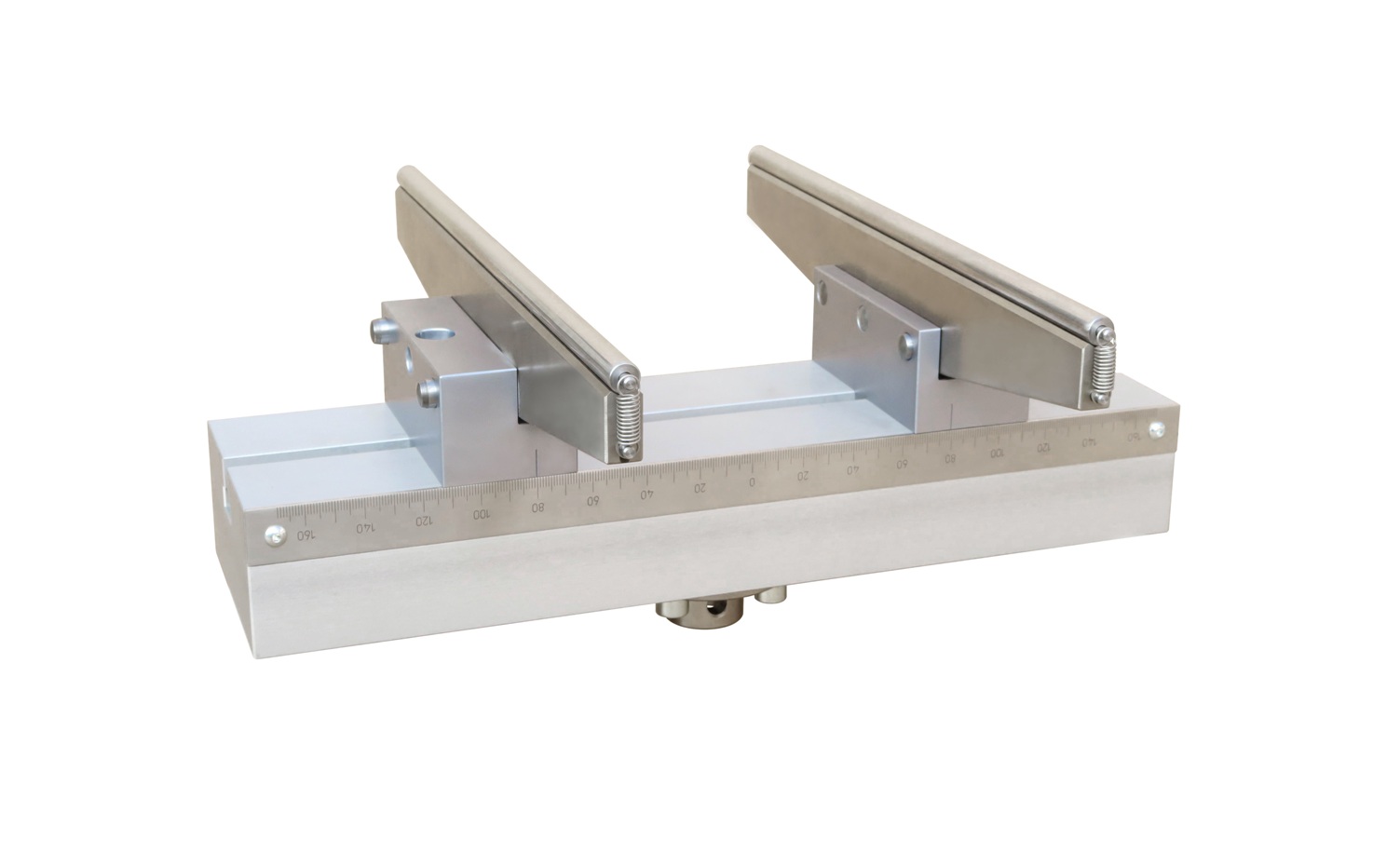

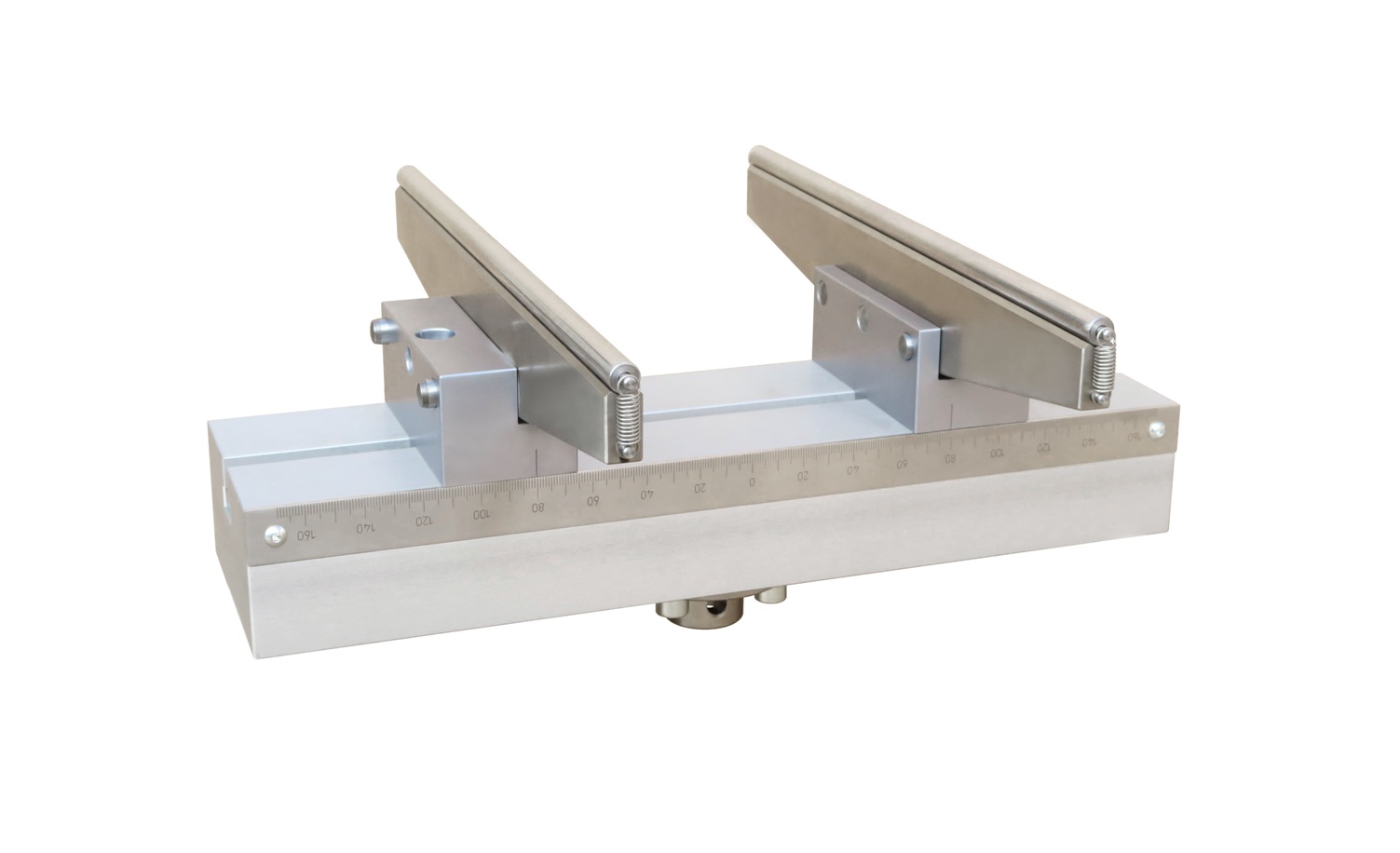

TH22-360-AL

TH22-360-AL

Bend test fixture
Max. load 50 kN
Lower bar 360 mm long
Rollers 10 mm, 20 mm and 30 mm
Aluminium

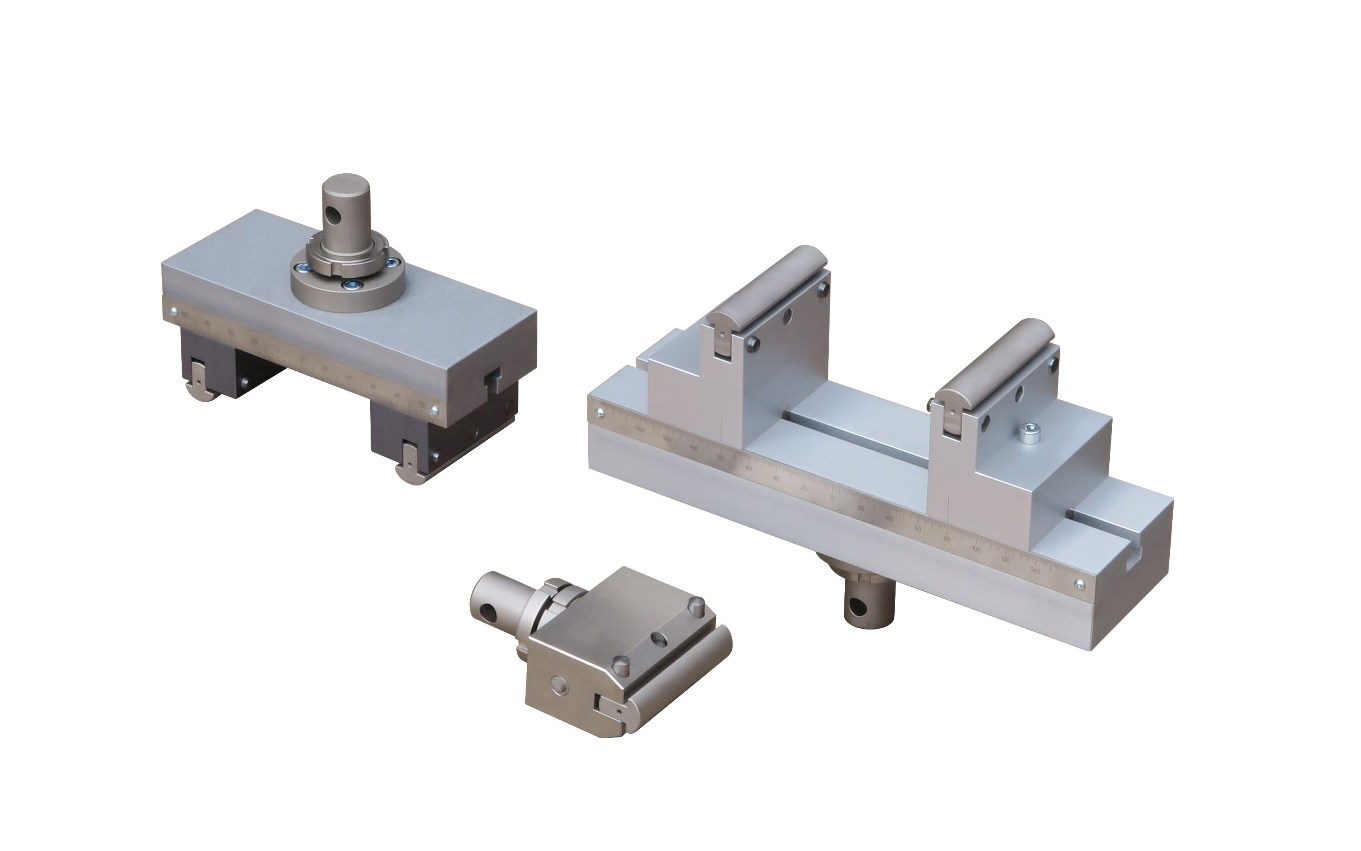

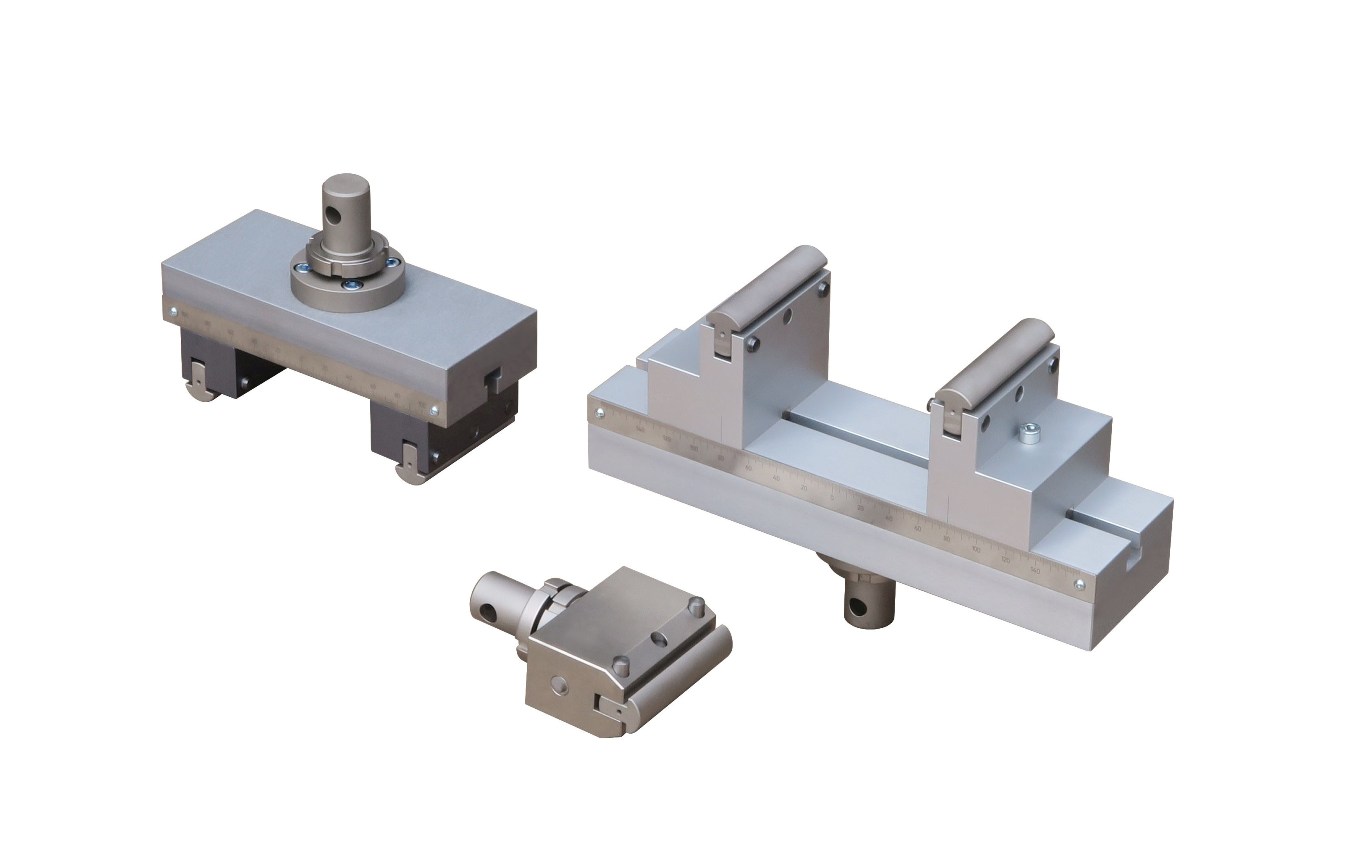

Description: tn_TH22-5P-360-CWR15-Am317-

TH22-360-CWR15-5P



5-point bending fixture with 360 mm long lower bending bar and 240 mm upper bending bar

Max. load 20 kN

Aluminium, anodized

Temperature range 0C - +70C



Description: tn_TH22-360 cwex10x300 upper part of  4p bending jig alu-

TH22-360-CWEX10x300



Upper part of 4-point bending jig

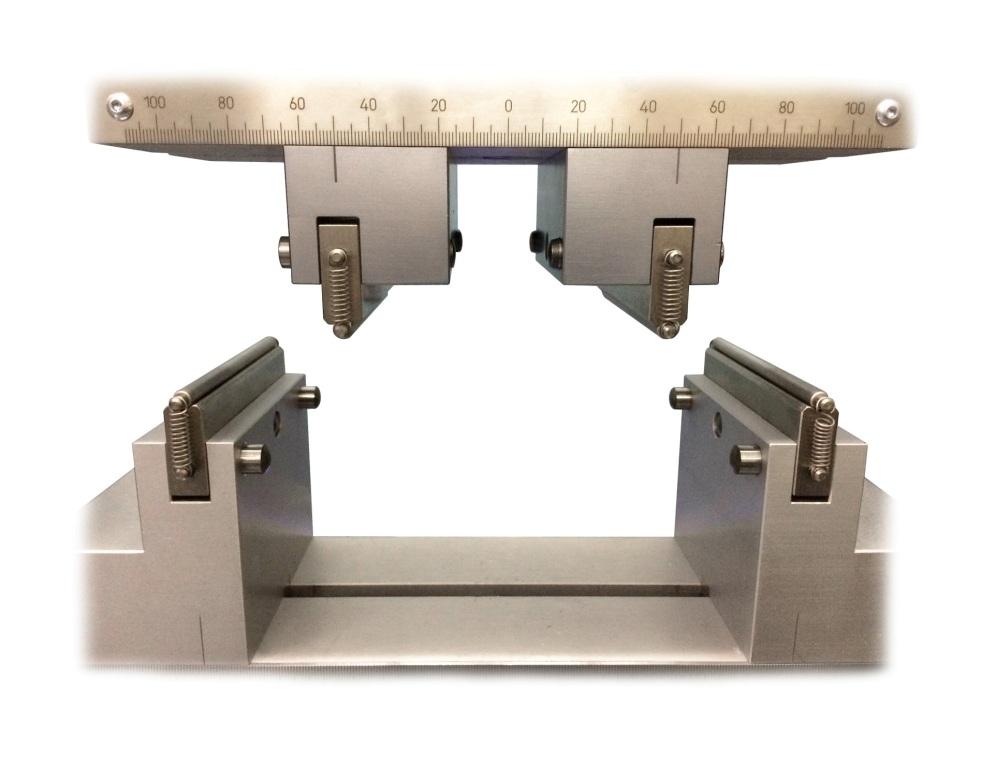

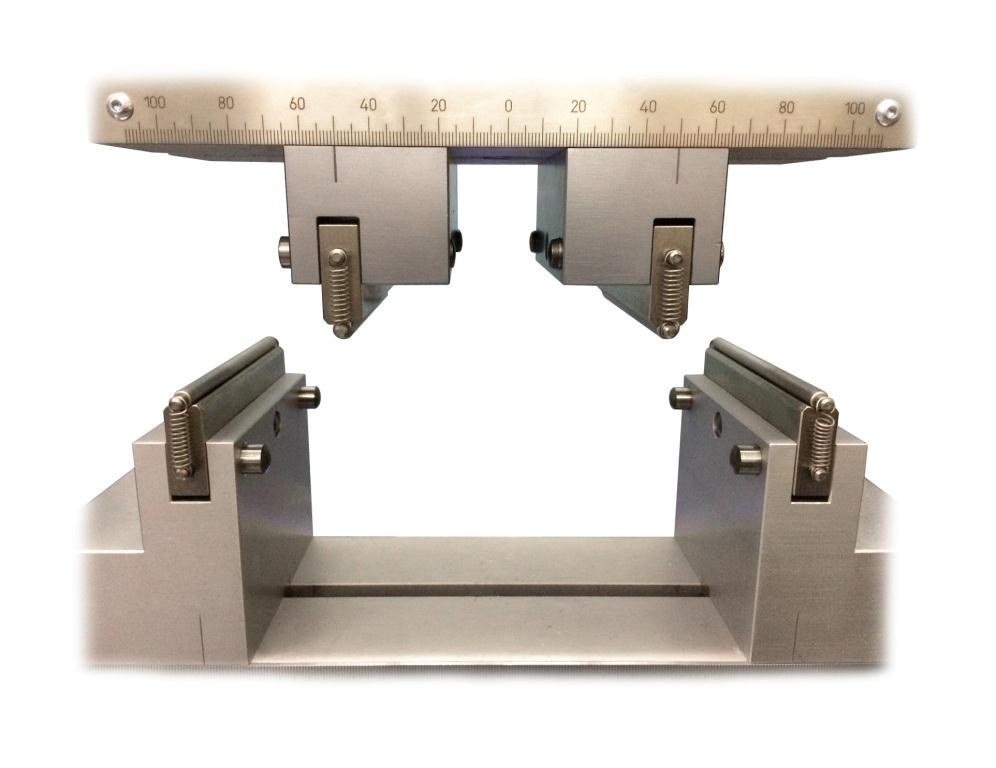

TH22-360-4P-CW+CWEX+D6-

TH22-360-4P-CW+CWEX+D6



4-point bend test fixture

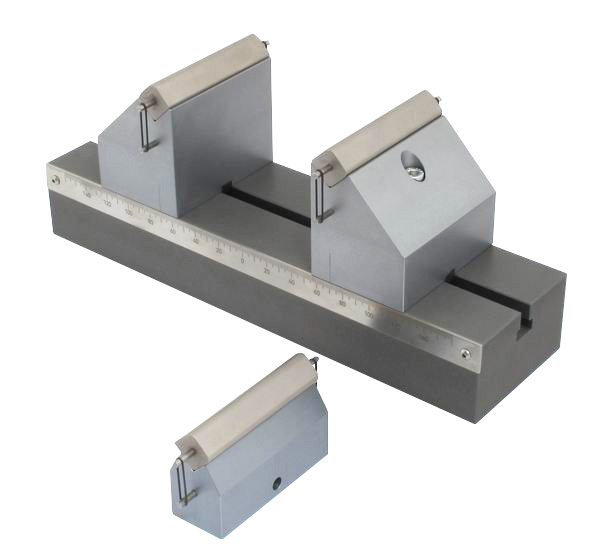

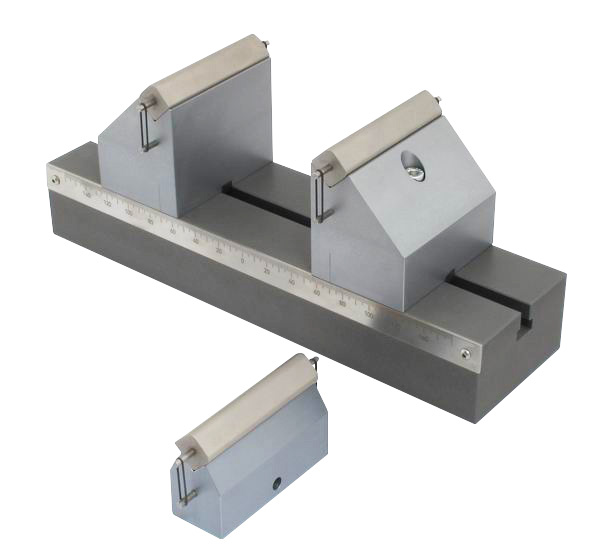

TH22-360-CFR-2-3-4-6

3-point bending grip
Max. load 50 kN, Aluminium

Turnable radi 2+3+4+6
Coupling Am20/22

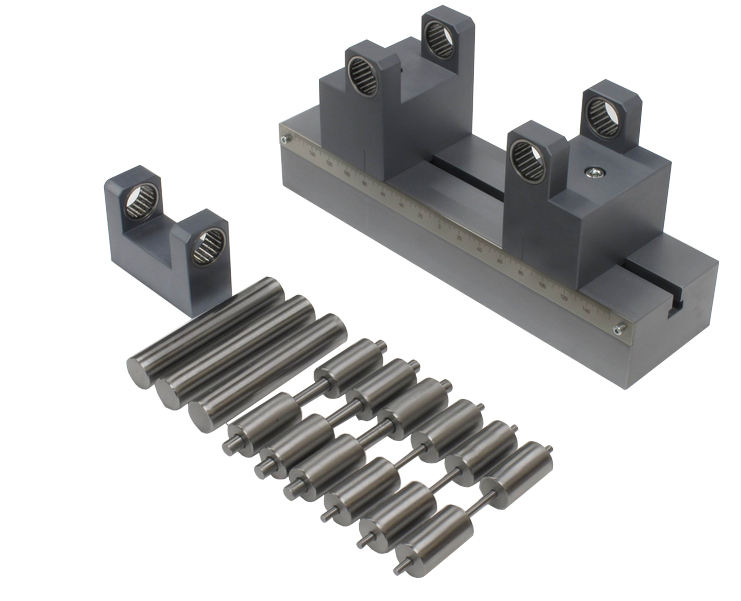

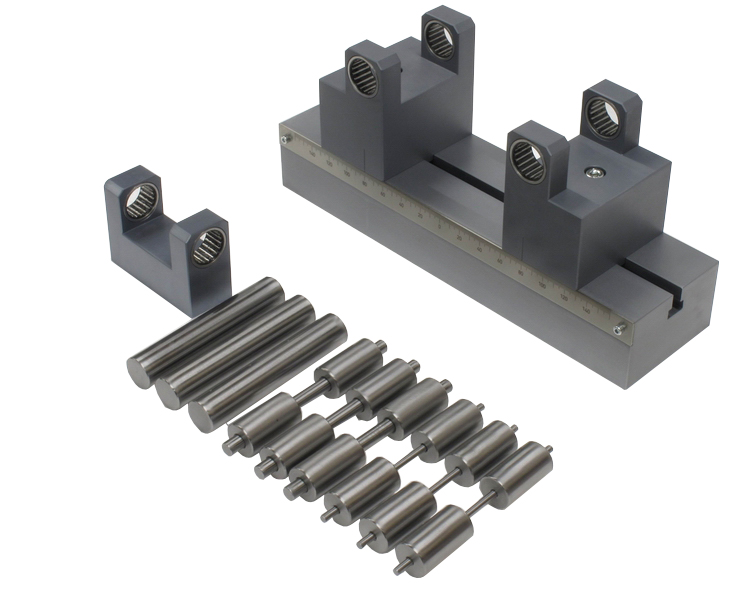

TH22-360-Rx-IF-2

TH22-360-Rx-IF-2
