TH154-20-Af159_2024-04-20

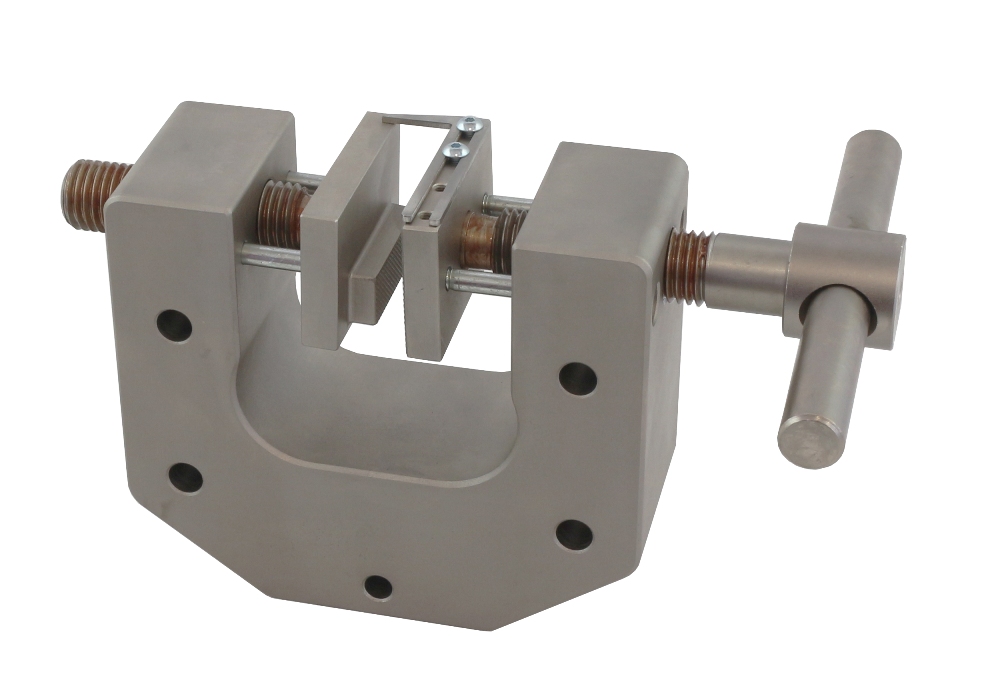

TH154-20+BP15x40-AS-Af159

With special pyramid (serrated) jaws
Clamping surface
15 x 40 mm (h x w)
Coupling Af159

TH154-10+EBGVu_Vulkollanbeschichtete_Einsatzbacken_0.5kg_01

TH154-10+EBGVu



With special Vulkollan covered insert jaws

High wear resistance

Clamping surface 50 x 60 mm (H x W)

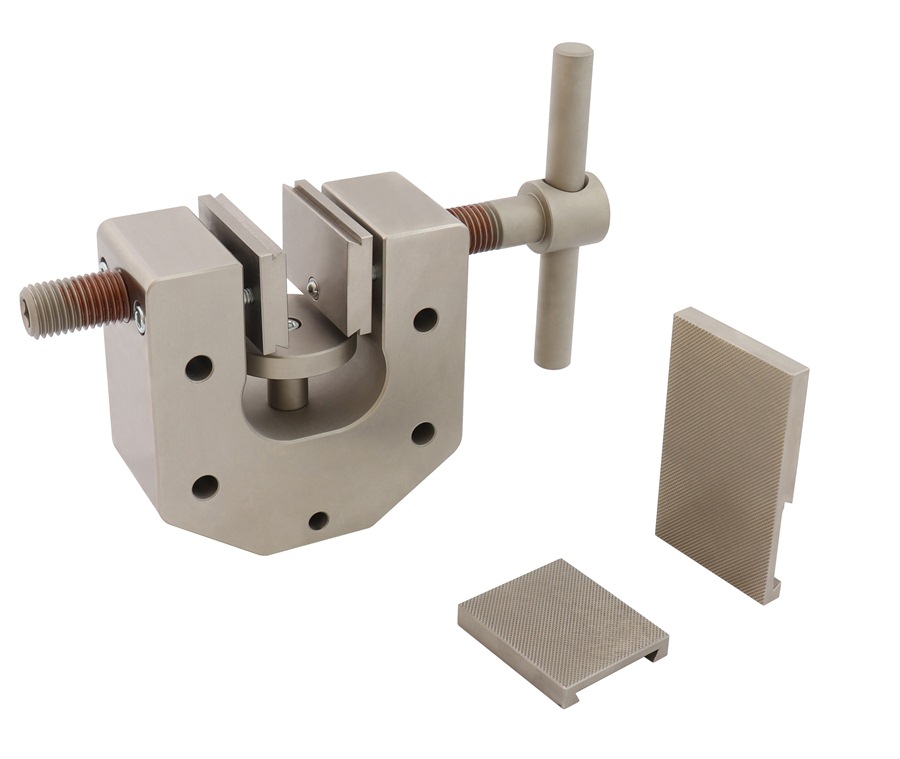

TH154+EBP100x60



With special serrated insert jaws of different height to perform adhesive joint lap shear strength type tests

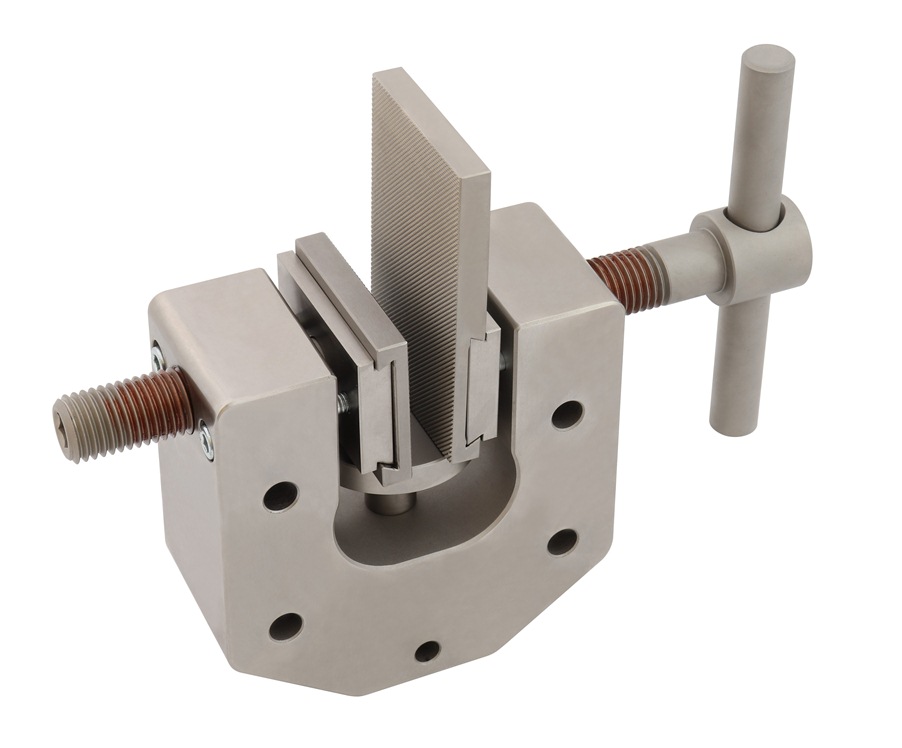

TH154+EBP100x60

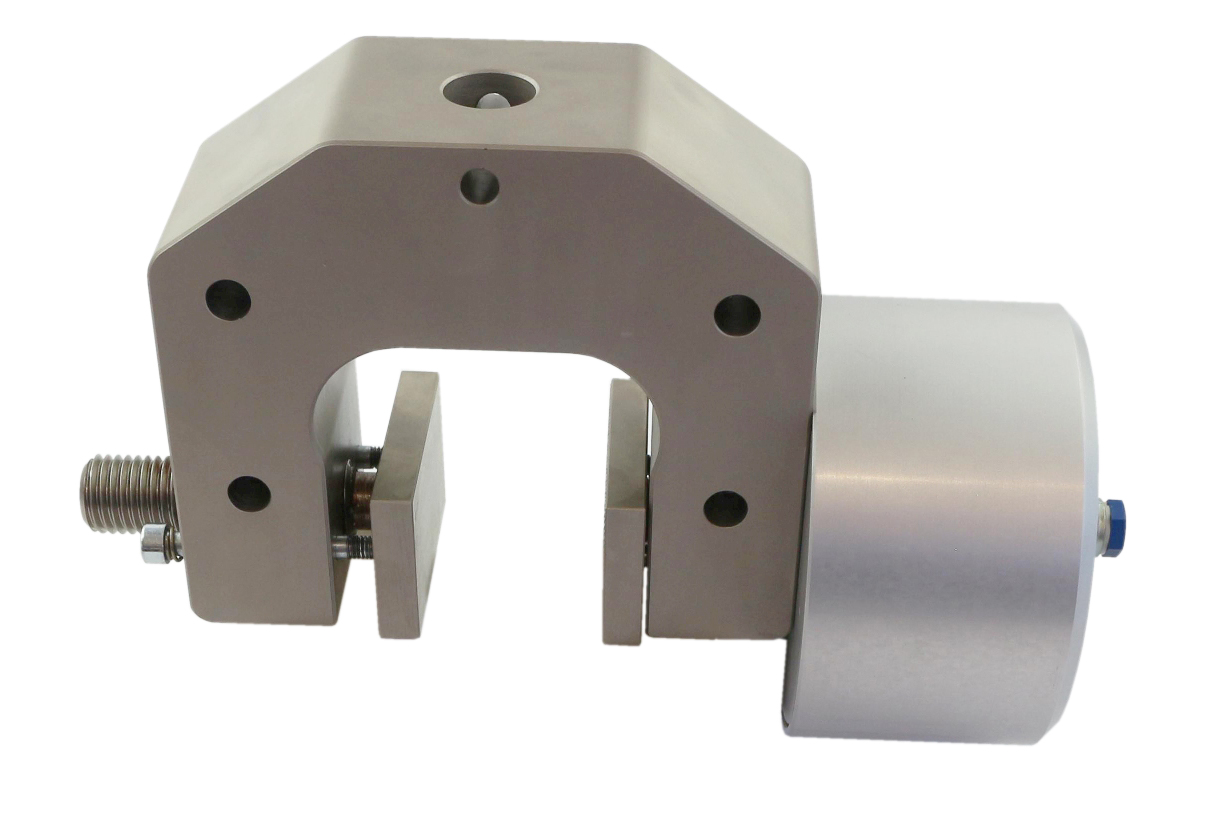

TH154-20-S50-Af20+Ko+BP100

Special pneumatic vise grip
Max. Clamping force: 5 kN at 7 bar,
11 kN at 16 bar

Max. Tensile force: 2.5 kN at 7 bar,
5.5 kN at 16 bar

Jaw opening 0-50 mm
Pyramid (serrated) jaws 100 x 40 mm (L x W)
Coupling Af20

Description: Description: Description: TH154-S50 DKSK Af38+B-blank-12.jpg

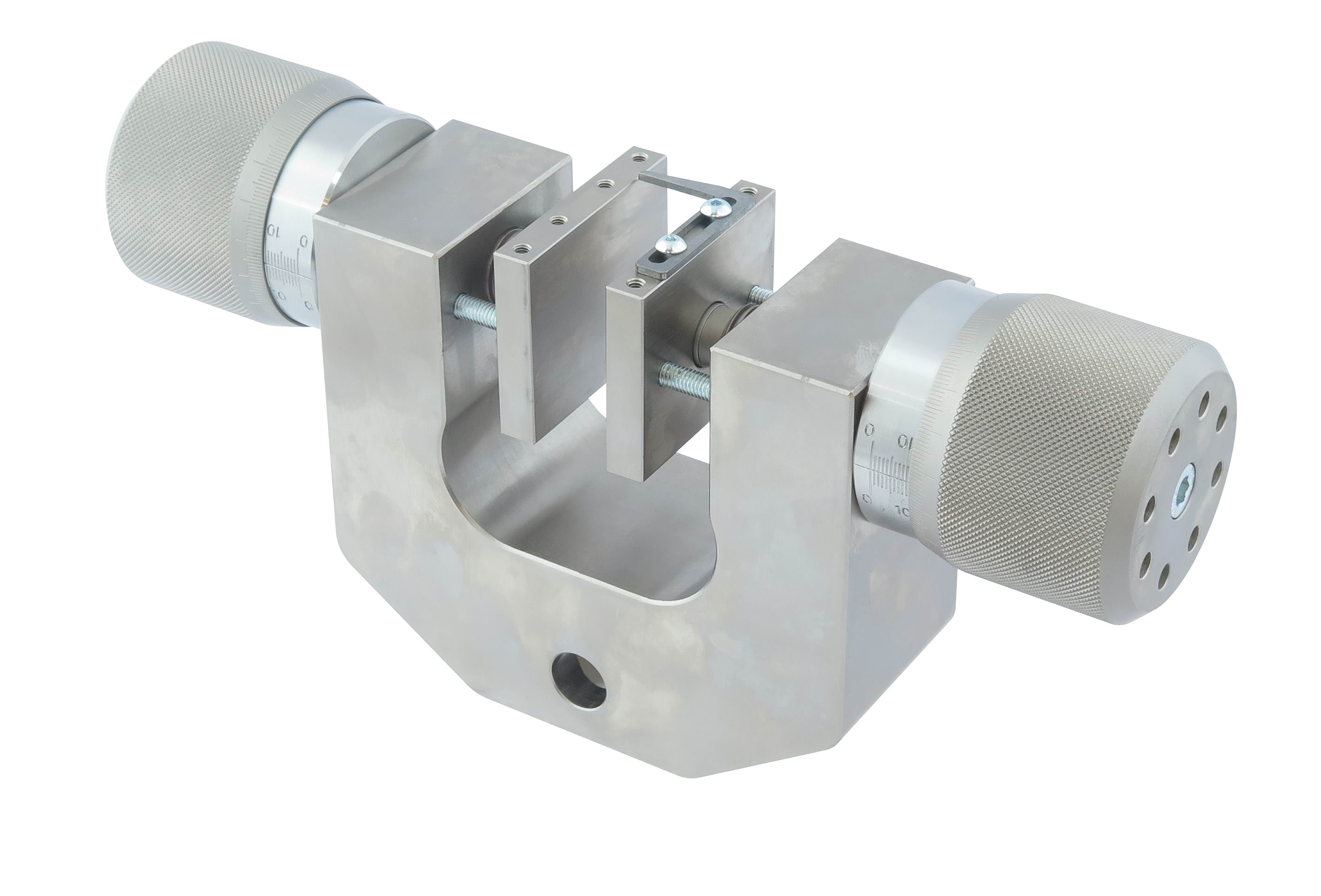

TH154-20-S50-DKSK+ctd



Special version of TH154-20-S50 with scaling knobs

Description: Description: Description: tn_TH154-S100 special  please adjust jaws symetric.jpg

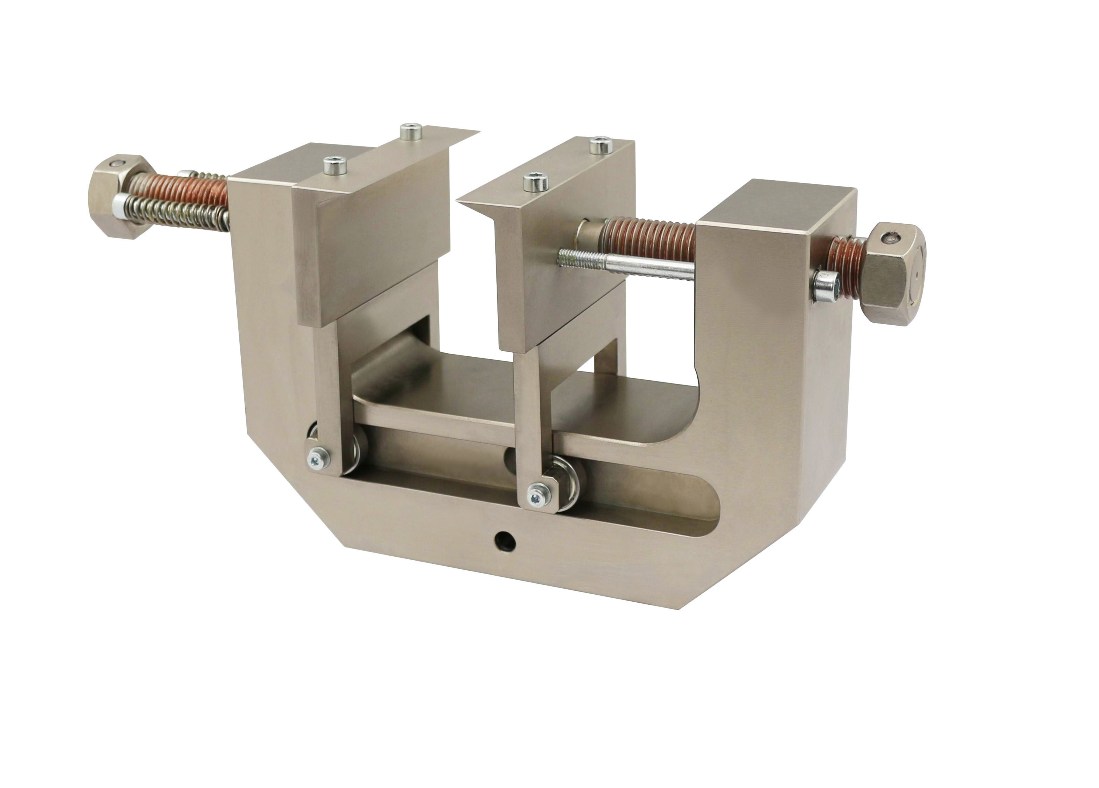

TH154-S100-T180


Special vise grip, w
ith special jaws
Max. load 20 kN

Jaws opening 100 mm
Chamber usage up to 180C
Steel nickel coated

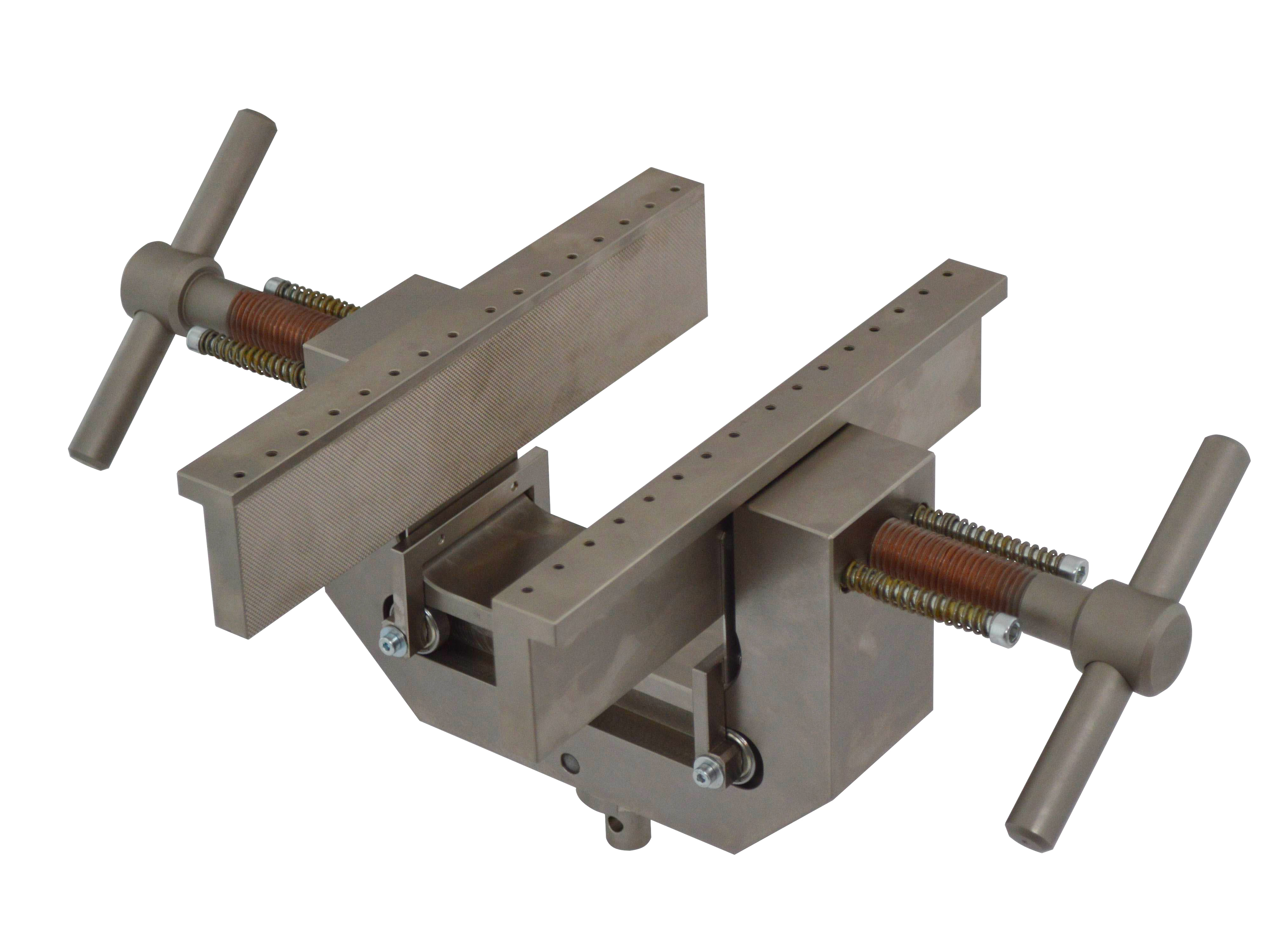

TH154-S100-BP250

With special jaws

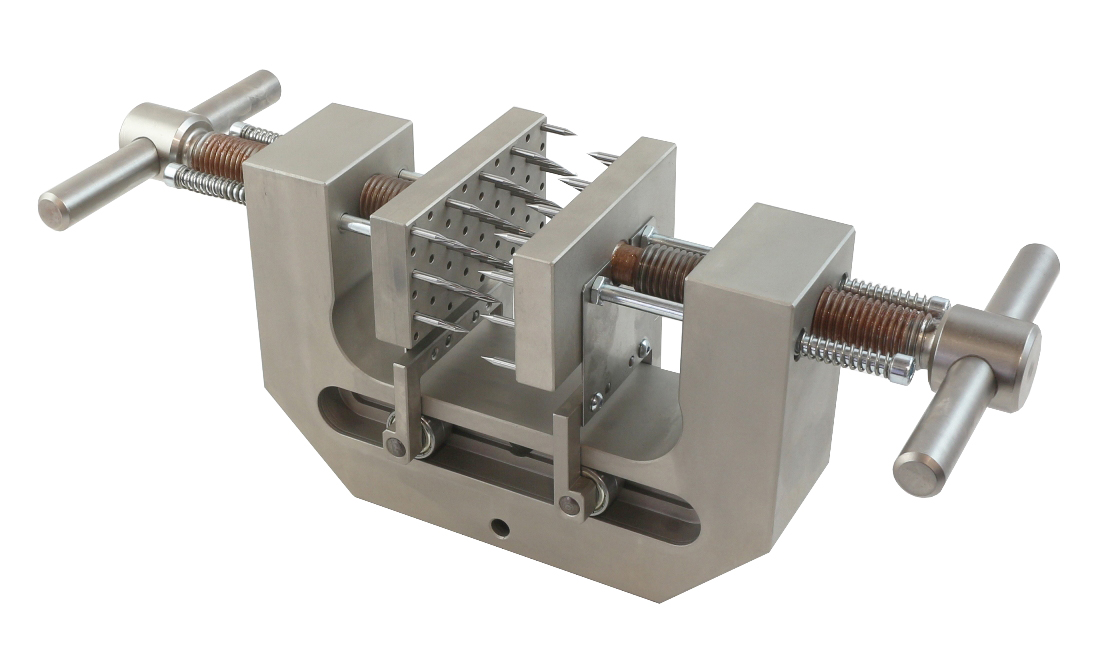

TH154-20-S100+BN50x100

With special jaws with needles for testing thick samples, like insulation foam, non-woven insulation, etc.

Description: Description: Description: TH154-BWC.jpg

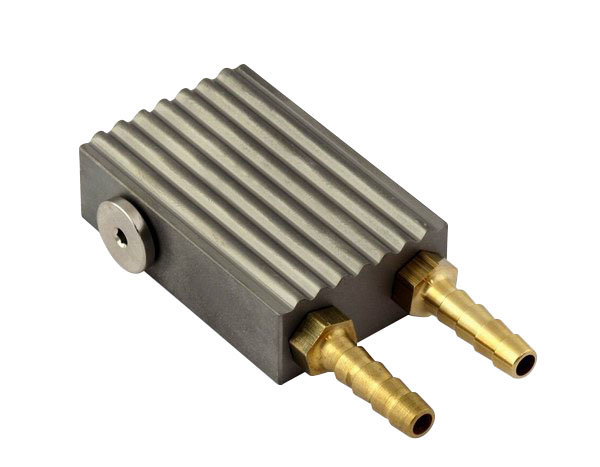

TH154-BWC



Special jaws to test bitumen (with water-cooling)

Description: Description: Description: TH154-BWC-.jpg

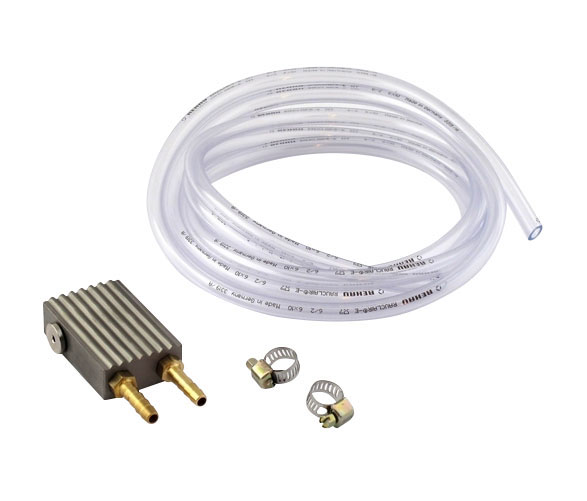

TH154-BWC

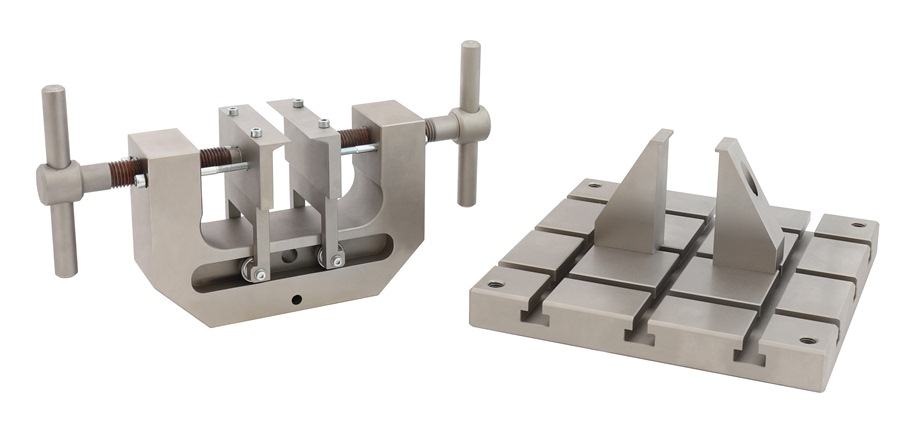

TH154 + TH36T



TH154-20-S100 with custom jaws in combination with a TH36t T-slotted platen with special inserts to test tensile properties of car batteries
