G07 Ribbon grips



Back



THS252-40-25-20kN



TH252-40x25-10

Ribbon grip

Diameter of the roller 40 mm Ø

Max. sample width: 25 mm
Max. force 10 kN
Anodized aluminium
Coupling Af159
Temperature range: 0...+70°C

Description: Description: Description: Description: pdf_icon.gif TH252 Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gif TH252 Datenblatt.pdf

tn_TH252-40-25-20kN-Af159 2,64kg 2021-11-27-

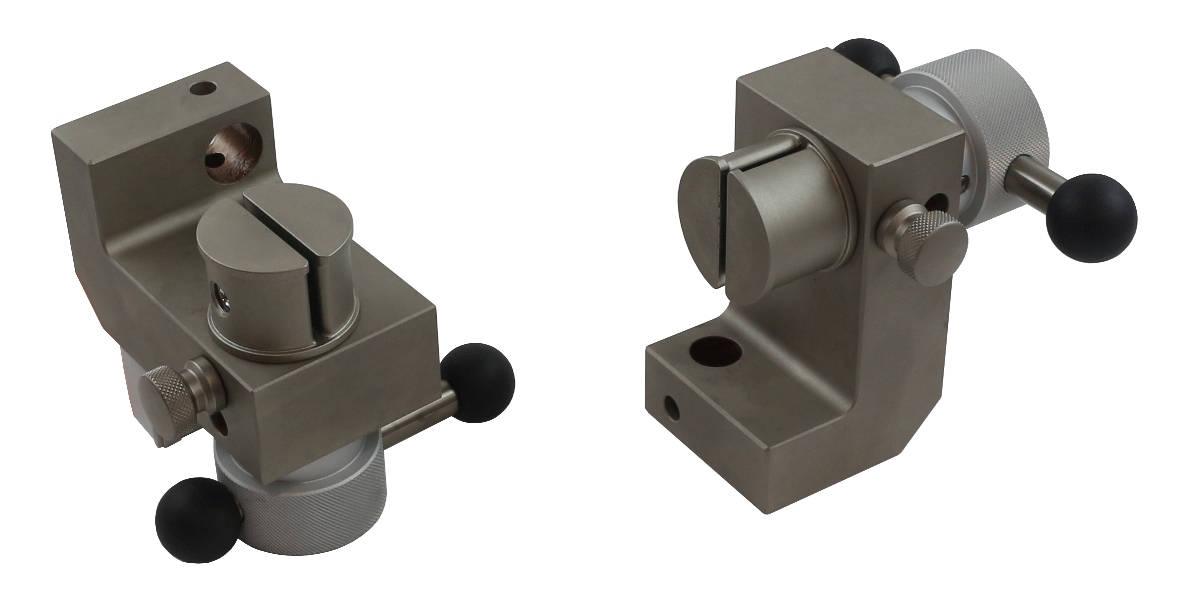

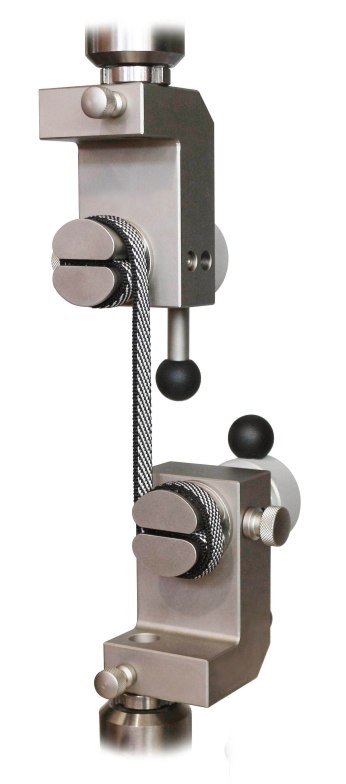

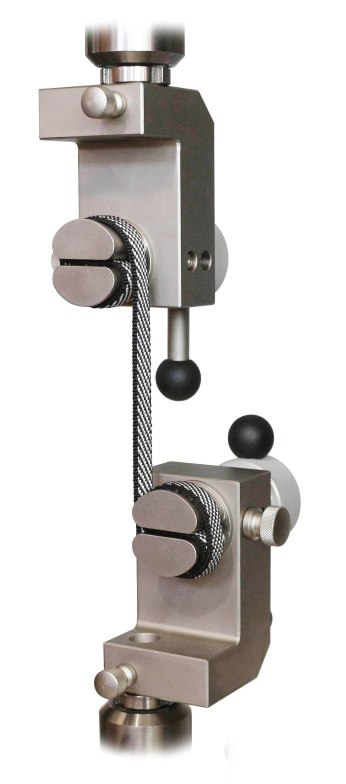

TH252-40x25-20

Ribbon grip
Diameter of the roller 40 mm Ø

Max. sample width: 25 mm
Max. force 20 kN

Steel, nickel-plated
Coupling Af159
Temperature range: 0...+70°C

See video

tn_TH252-40-25-20kN-Af159 2,64kg xc 2021-11-27-

TH252-40x25-20

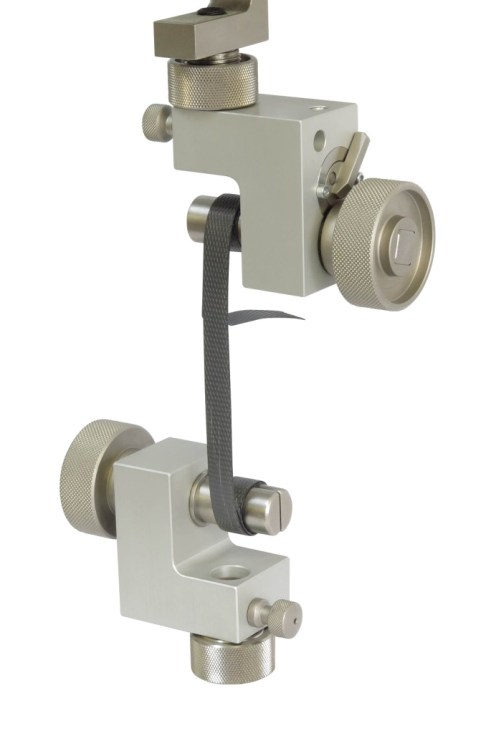

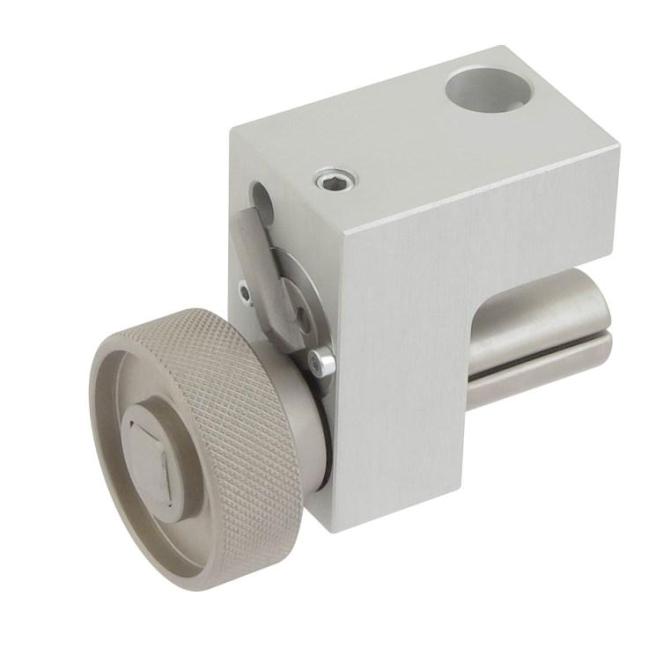

TH252-20x35-RTCH-5



Ribbon grip with ratchet mechanism to test thin ribbons
Max. force 5 kN
Anodized aluminium
Coupling Af159
Temperature range: 0...+70°C

See video

TH252-20x35-RTCH-5

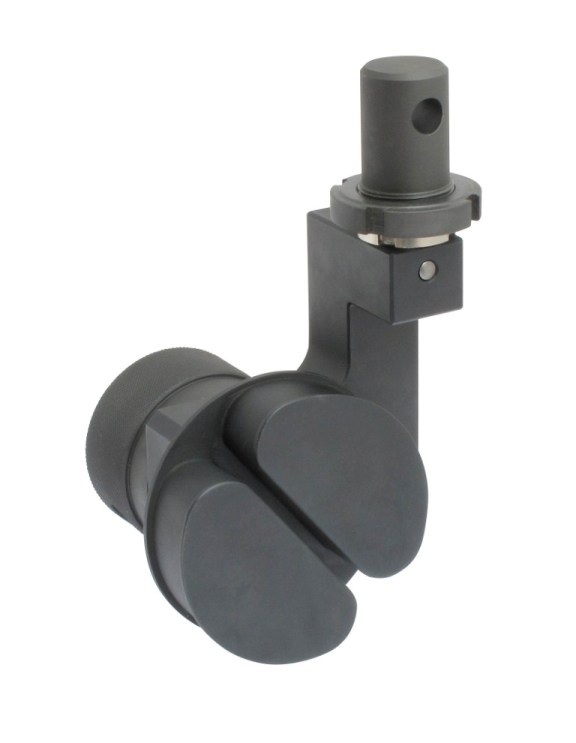

TH252-100x25-20


Ribbon grips to test thin narrow webbing, straps and ribbons
Diameter of the roller 100 mm Ø

Max. sample width: 25 mm
Max. force 20 kN
Coupling Am317
Steel, manganese phosphate
Temperature range: 0...+70°C
