G08 Wedge grips

Back



tn_THS321-100-Am317-L150-L400

THS321-100-pn

Pneumatic wedge grip for temperature chambers

With a separate controlled piston for chambers
Clamping force with 100 kN load 172 kN



Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon THS321_Datasheet.pdf

Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon THS321_Datenblatt.pdf

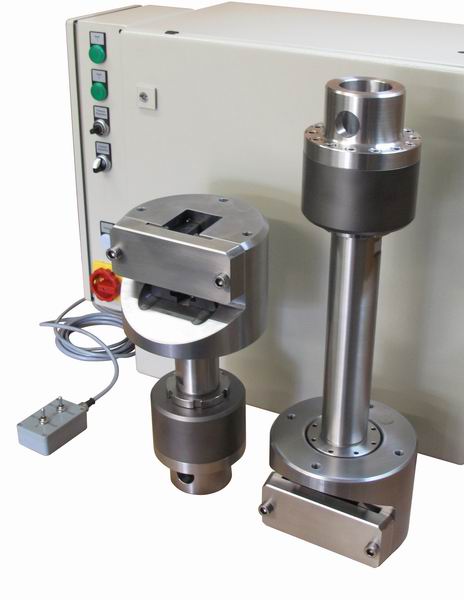

tn_THS321-100-Hy..A. hydraulic

THS321-100-Hy



Hydraulic grip

Clamping force with 100 kN load 390 kN

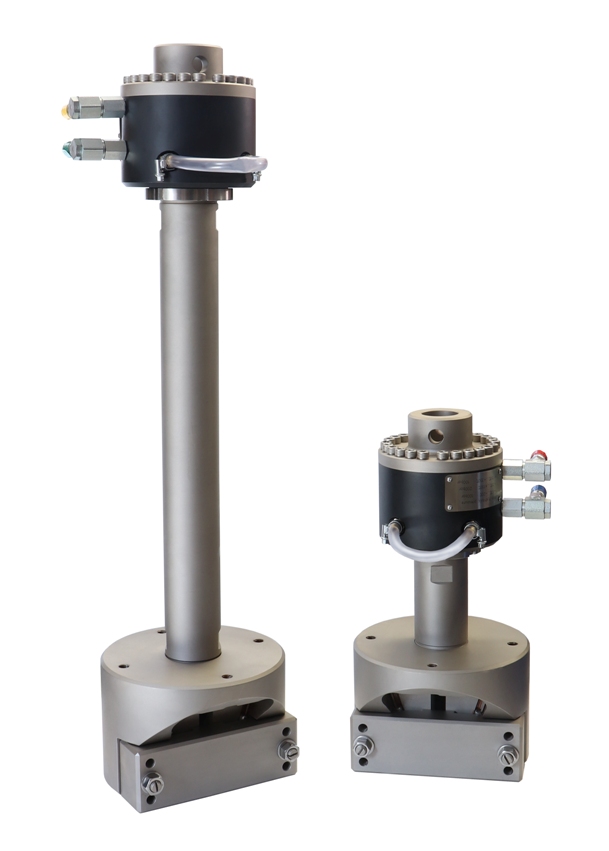

THS321-100-Hy+BP15_2023-05-30

THS321-100-Hy+BP15

Hydraulic grips
With pyramid jaws
Tensile force 100 kN
Steel nickel-plated
Coupling Af40
High temperature range  -180°C up to 600°C

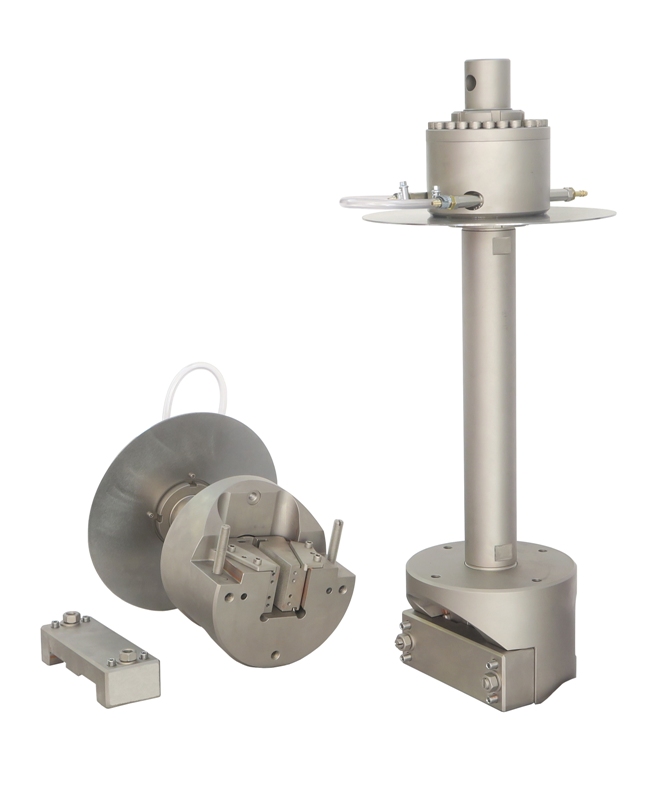

tn_THS321-100-Hy+BP-Am50175 100 kN -70...350C 39 + 44 kg IMG_2466

THS321-100-Hy+BP-Am50175



Hydraulic wedge grip

With pyramid (serrated) jaws

Coupling Am50/17.5

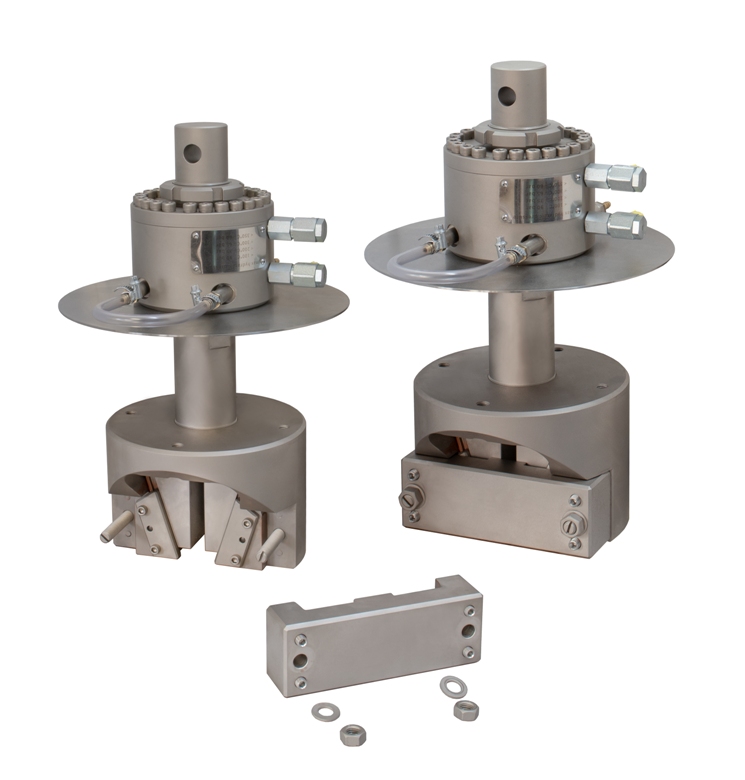

tn_THS321-100Hy-V30-Am50175-T350-L110 + L390-70+350C-P150 2020-11-16 02

THS321-100Hy-V30-Am50175-T350-L110 + L390-70+350C-P150

Hydraulic wedge grip
Coupling Am50/17.5

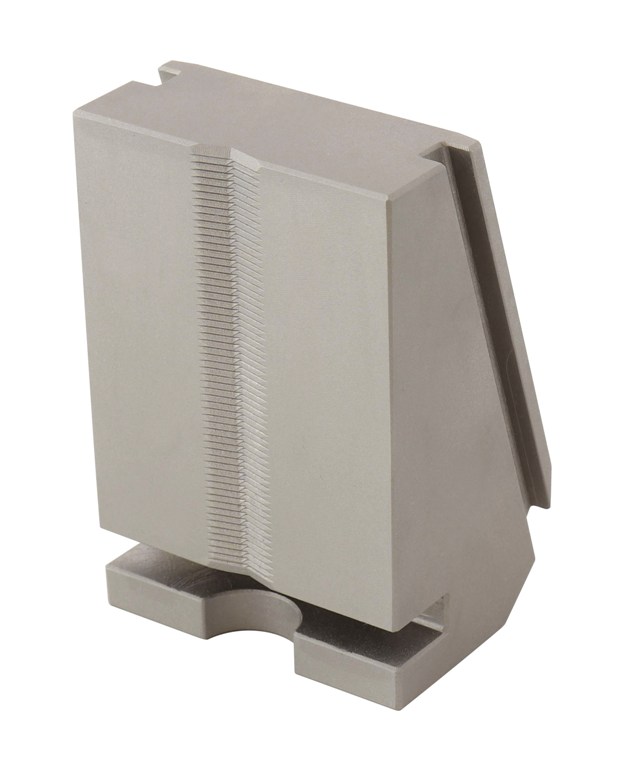

tn_THS321-100-BV15 26-01-2018 003-

THS321-100-BV15

V-jaws for round samples Ø 5-15 mm

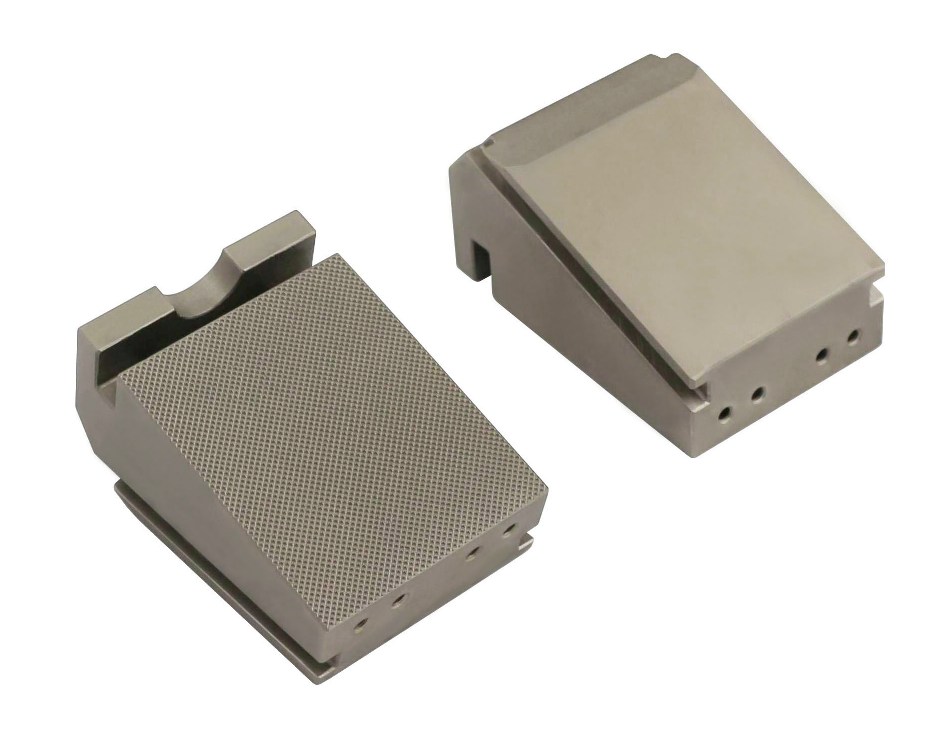

tn_THS321-100-BP25 BP15 0-15 2379a-2018

THS321-100-BP25

Pyramid jaws for flat samples

Sample thickness 15-25 mm

75x60 mm (h x w)
