G09 Chuck & Button Head Grips

Back

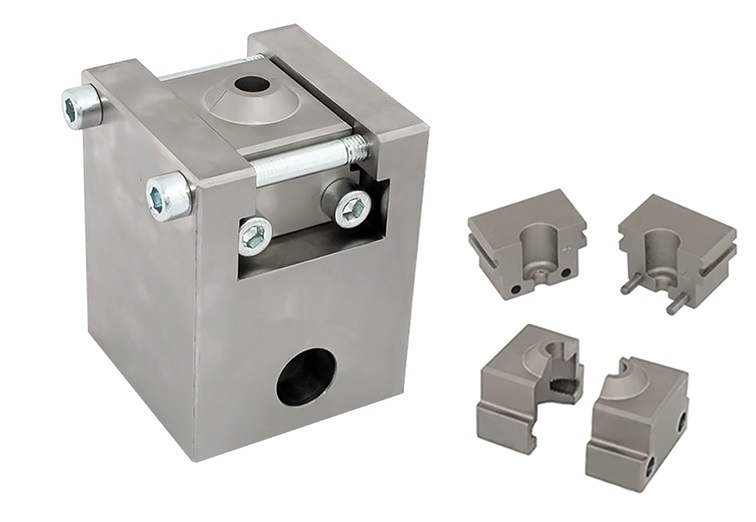

TH4-60-GT holder for inserts

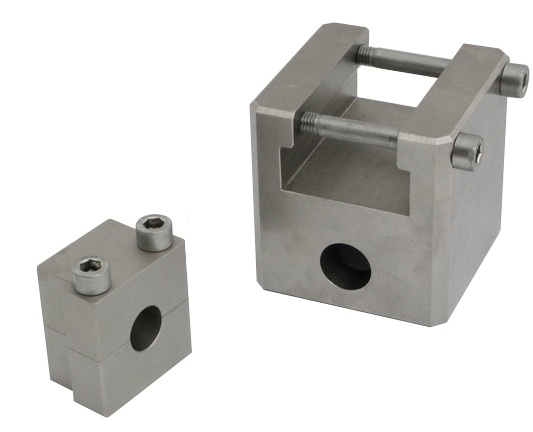

TH4-48

Button-head grips with interchangeable split inserts for tensile tests on button-head and shoulder-end specimens.

pdf_icon.gif TH4-48 Datasheet.pdf
pdf_icon.gif TH4-48 Datenblatt.pdf

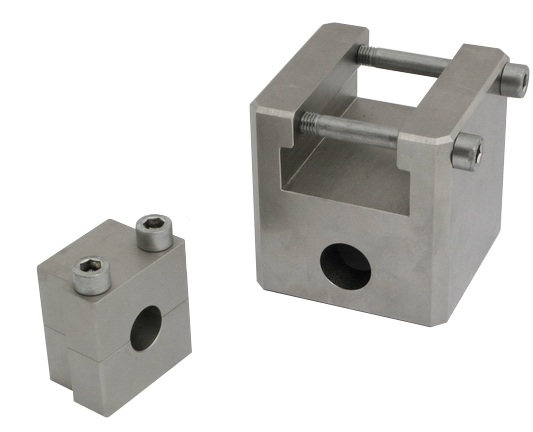

Special-TH4-60-nickel 25.01.2020

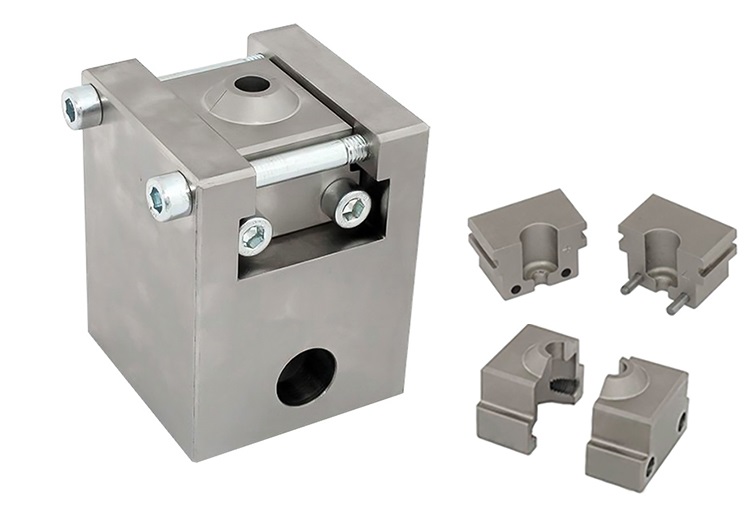

TH4-48-GT (carrier) +

TH4-48-Ex-Ry (insert)

TH4-60-GT holder for inserts 24.01.2020

TH4-48-GT + TH4-48-E12.5R6

+ TH4-48-E4R1.5

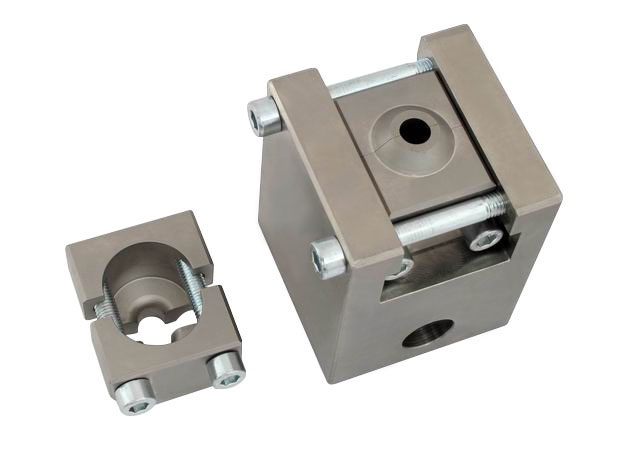

TH4-60-6025+E125R6D40-2 G11.4- (1)

TH4-48-GT + TH4-48-E12.5R6

TH4-60-E4R1.5

TH4-48-E4R1.5

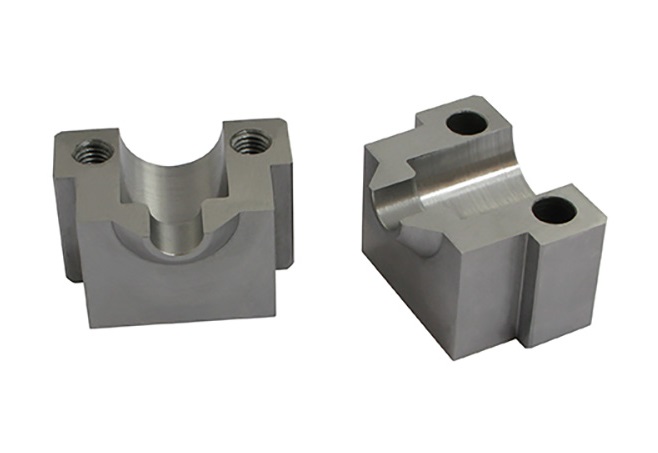

Special-TH4-60-inset-nickel-

TH4-48-E12.5R6

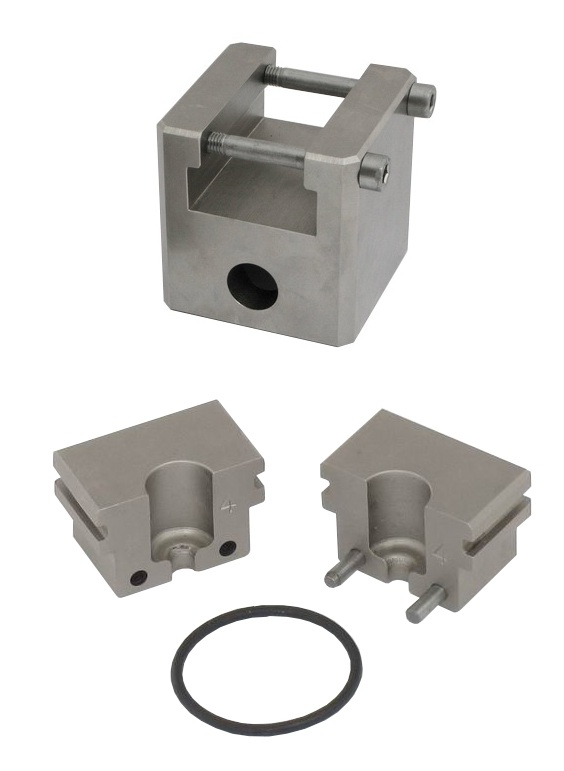

TH4-60-nickel-s

TH4-30+E4R1.5

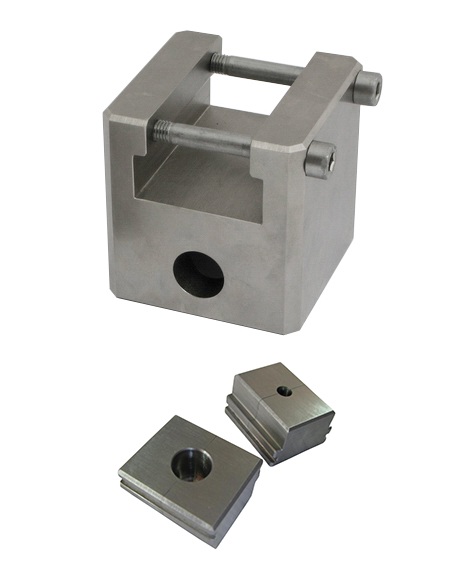

TH4-S26

TH4-S26+D14-D6



Special version

tn_TH4-42x200-Am70-xa 2021-07-09

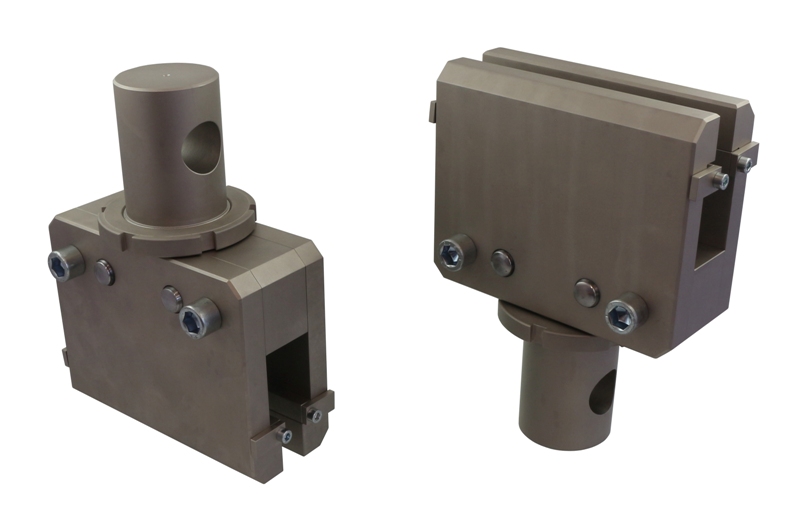

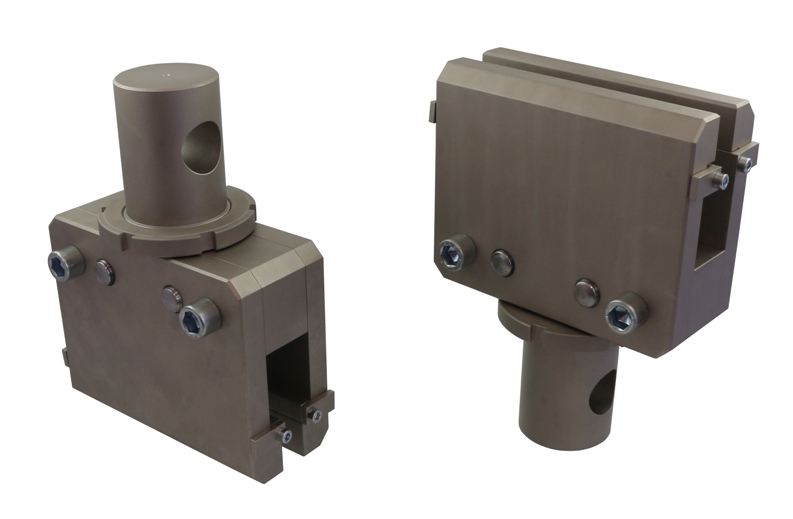

TH4-42x200-Am70

Special chuck grip for tensile tests on welded specimens
Max. load 300 kN
Inner jaw opening 42 mm
Jaw length 200 mm
Width between the tips of the jaws 22 mm
Coupling Am70
Steel, nickel-plated



TH4-48-GT-Af318+E6+E10-GOST1497 Tensile test metals 8.4kg

TH4-48-GT-Af318+E6+E10-GOST1497



Button-head grip for tensile test on metals according to GOST1497 Type III N4 and N6

Incl. 1 pair of carriers and 2 pairs of inserts (for samples 6 mm Ø and 10 mm Ø)

Coupling Af318

Steel, nickel-plated, 60 HRC hardened

Max. load 50 kN



TH4-48-GT-Af318+E6+E10-GOST1497 Tensile test metals 8.4kg

TH4-48-GT-Af318+E6+E10-GOST1497

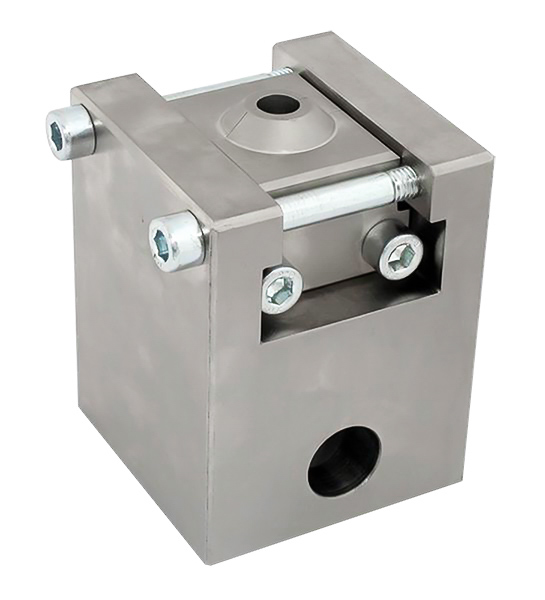

TH4-48-GT-Af6025+E15D30 6.26kg

TH4-48-GT-Af6025+E15D30



Button-head grip for testing tensile properties of shoulder-end specimens

Consists of 1 pair of carriers (TH4-48-GT) and 1 pair of inserts (TH4-48-E15D30)
