G13 Hydraulic grips



Back



Description: Description: tn_TH135-60+BP 27.9.2018 IMG_6880-

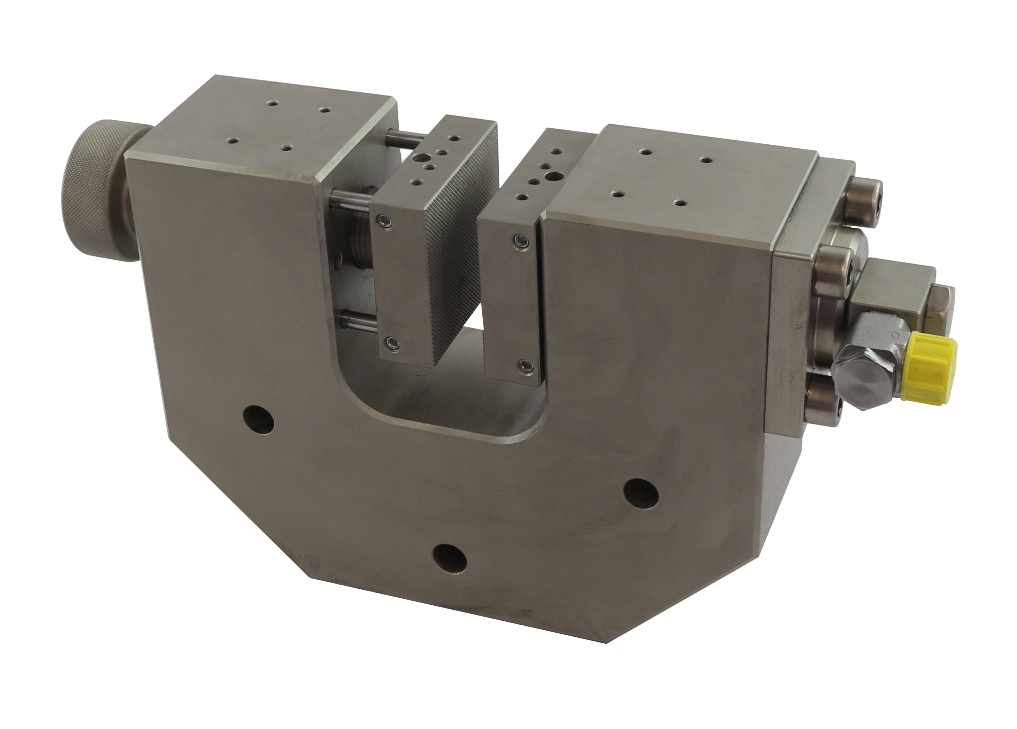

TH135-60+BP

Hydraulic grip

Fc 60 kN / 315 bar

1 piston 50 mm Ø with spring return

Hydraulisches Spannzeug
Fc 60 kN / 315 bar
1 Hydraulikkolben Ø 50 mm mit Federrückzug

Description: Description: pdf_icon.gifTH135-60 Datasheet.pdf
Description: Description: pdf_icon.gifTH135-60 Datenblatt.pdf

Description: Description: pdf_icon.gifTH135-PX_Datasheet.pdf
Description: Description: pdf_icon.gifTH135-PX_Datenblatt.pdf

Description: Description: tn_TH135-60+BP 27.9.2018 IMG_6880-

TH135-60+BP



Hydraulic clamping grip with pyramid jaws
Clamping force: 60 kN / (5568psi) Opening width 0-30mm  15mm rod 15mm screw

Piston Ø 50 mm with spring return,


Hydraulisches Spannzeug mit V-Backen
Spannkraft: 60 kN / 315 bar   Öffnungsweite 0-30mm
1 Kolben Ø 50 mm mit Federrückzug, maximaler Hub 15mm

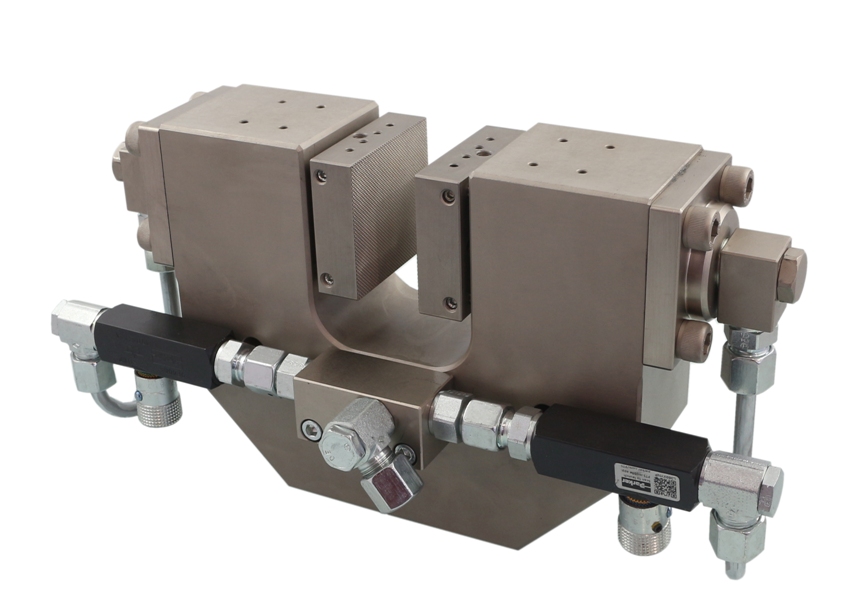

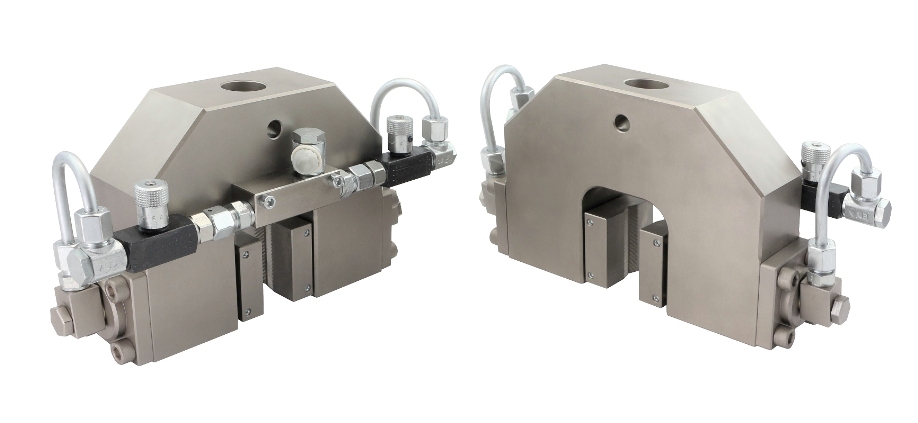

Description: Description: tn_TH135-60-2Ko edited

TH135-60-2Ko+BV



Hydraulic clamping grip with v-jaws
symmetrical design

Clamping force: 60 kN / (5568psi) Opening width 0-30mm

2 opposite pistons Ø 50 mm with spring return, maximum lift 2x15mm

2 throttles (blockable in any position) to Adjust symmetrical movement

Weight: 17 kg per piece without jaws


Hydraulisches Spannzeug mit V-Backen

symmetrische Ausführung
Spannkraft: 60 kN / 315 bar   Öffnungsweite 0-30mm
2 gegenüberliegende Kolben Ø 50 mm mit Federrückzug, maximaler Hub 2x15mm
2 Drosseln (blockierbar in jeder Position) zur Einstellung der symmetrischen Bewegung
Gewicht: 17 kg pro Stück ohne Backen

Description: Description: tn_TH135-60-B-Ni  blank jaws 2015-10-17-

TH135-60-B



Blank jaws, 60x66 mm (h x w)

Description: Description: tn_TH135-60-BP-62HRC-2017-01-26-

TH135-60-BP





Pyramid jaws 1.2x45°, 60x66 mm (h x w) 60 HRC

Description: Description: tn_TH135-60-BV-NA-2017-04-14-

TH135-60-BV



V-serrated jaws for round samples

8-30 mm Ø

60 HRC

Description: Description: tn_TH135-60-BVD THS872-BVD  560g-

TH135-60-BVD



Diamond-coated V-jaws

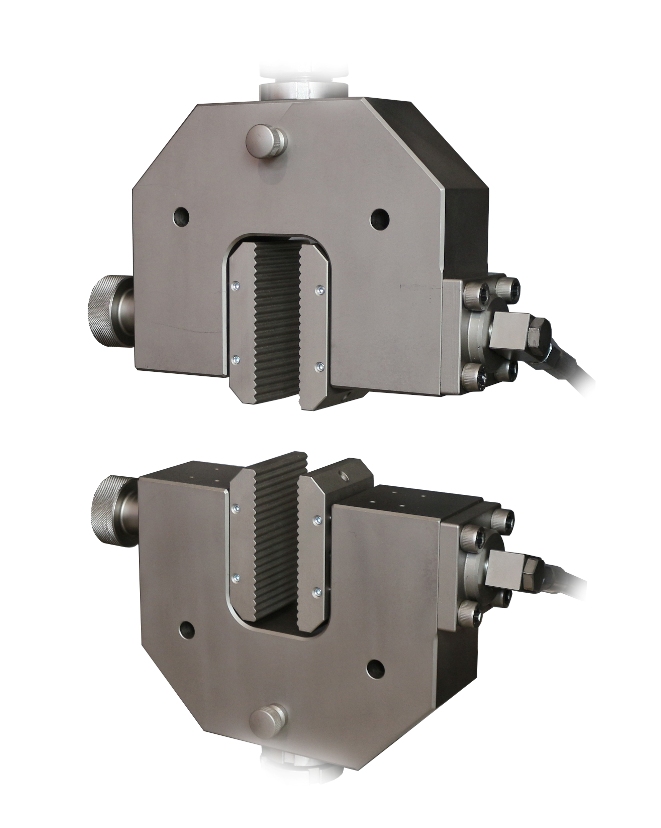

Description: Description: tn_TH135-60-BW-re-2016-10-14-

TH135-60-BW



Wave jaws for textiles, 60x66 mm (h x w)

58 HRC

Description: Description: tn_TH135-60-BW260a-2016-12-19-

TH135-60-BW260



Wave jaws, 260 mm width

56 HRC

Description: Description: tn_TH135-60-BD-

TH135-60-BD



Diamond coated jaws, 60x66 mm (h x w)

Description: Description: TH135-60-plus-BW210.jpg

TH135-60+BW210

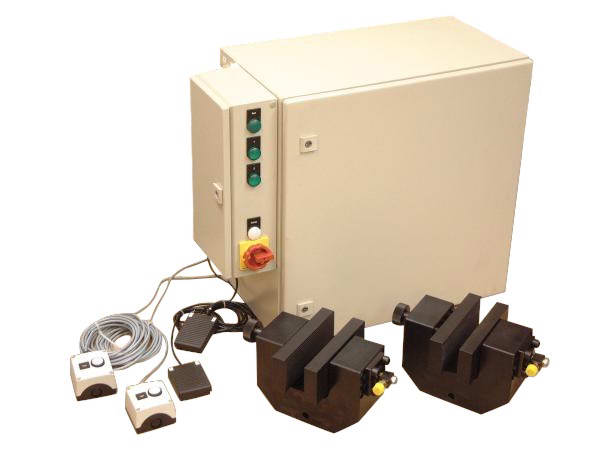

Description: Description: TH135-60-a-PII-Box-f4.JPG

TH135-60-a-PII-f4



Hydraulic box + feed switches

+ safety system to increase load

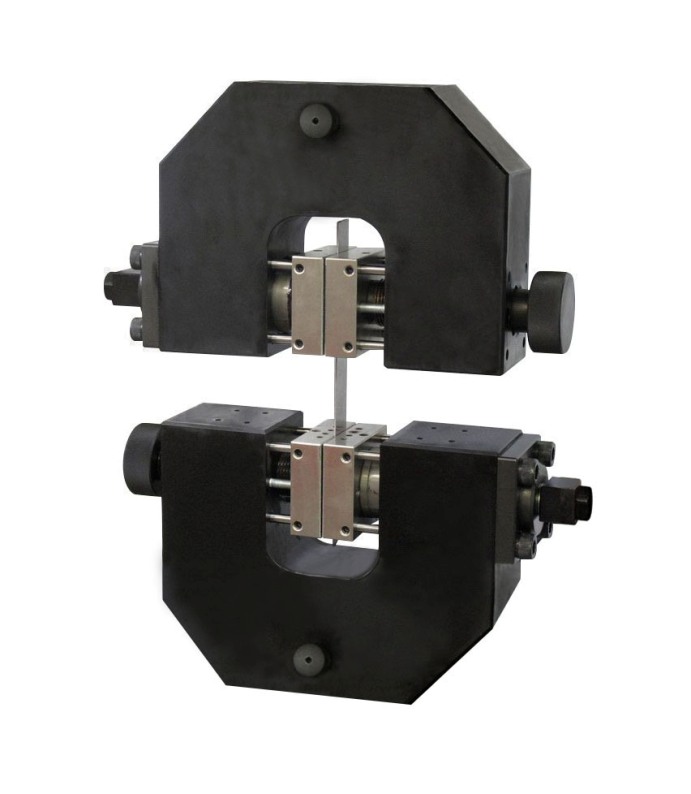

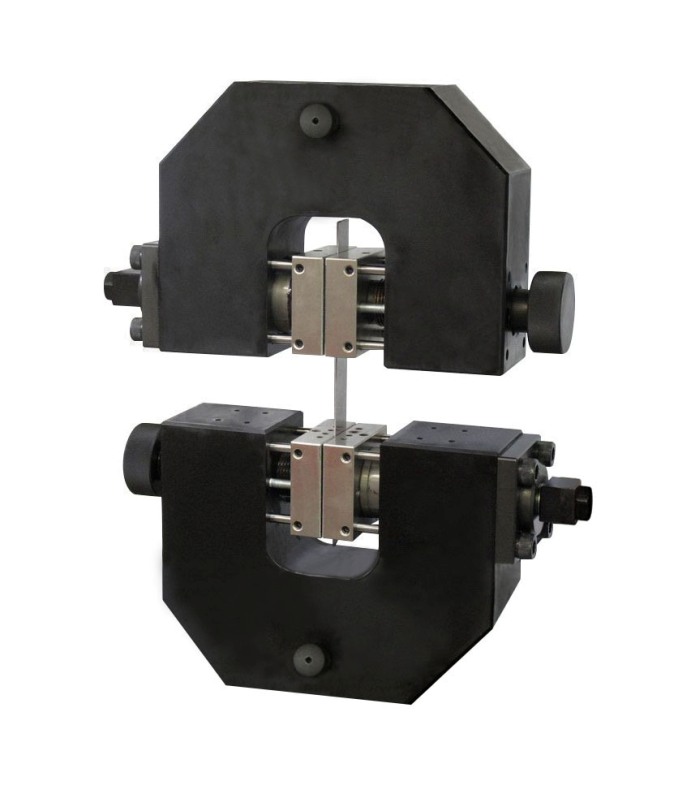

tn_TH135-60+BD-in-machine-closed+sample-

TH135-60+BD



Diamond jaws for thin hard flat samples

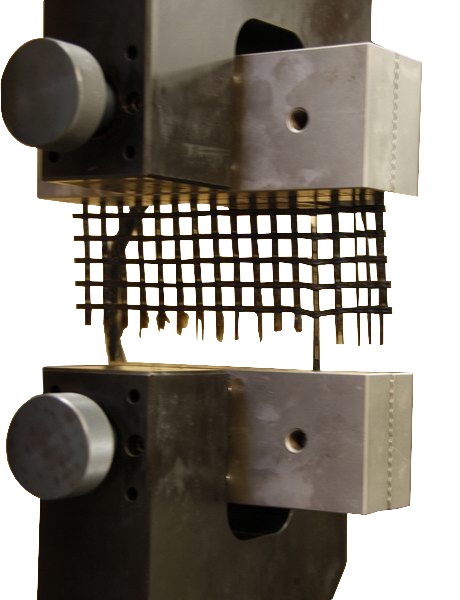

TH135-60+BW210-ASTM-D4595 Geotextiles . 015

TH135-60+BW210



Hydraulic grip to test geotextiles According to ASTM-D4595.

Wave jaws 210 mm wide.

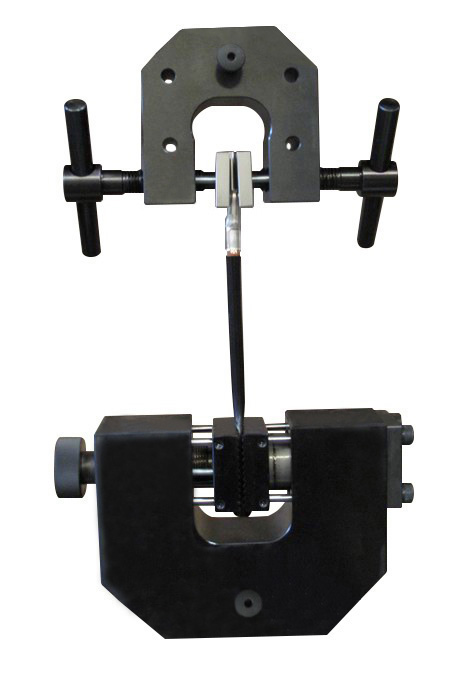

Description: Description: TH135-60+BW TH154-BV

TH154+BP



TH135-60+BW

To test big terminals



Zur Prüfung von Kabelenden

Special versions

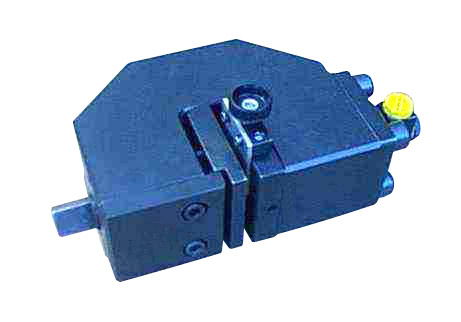

Description: Description: THS377-dynamic-

THS377



For dynamic testing

Clamping force 60 kN / 315 bar
