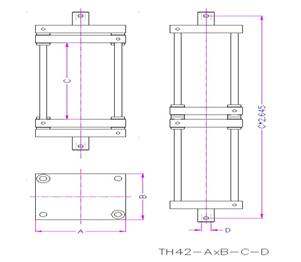

TH42-AxB-C-D    28.5.2020MT

TH42-100x100-150-ST--Animation--2019-10-17

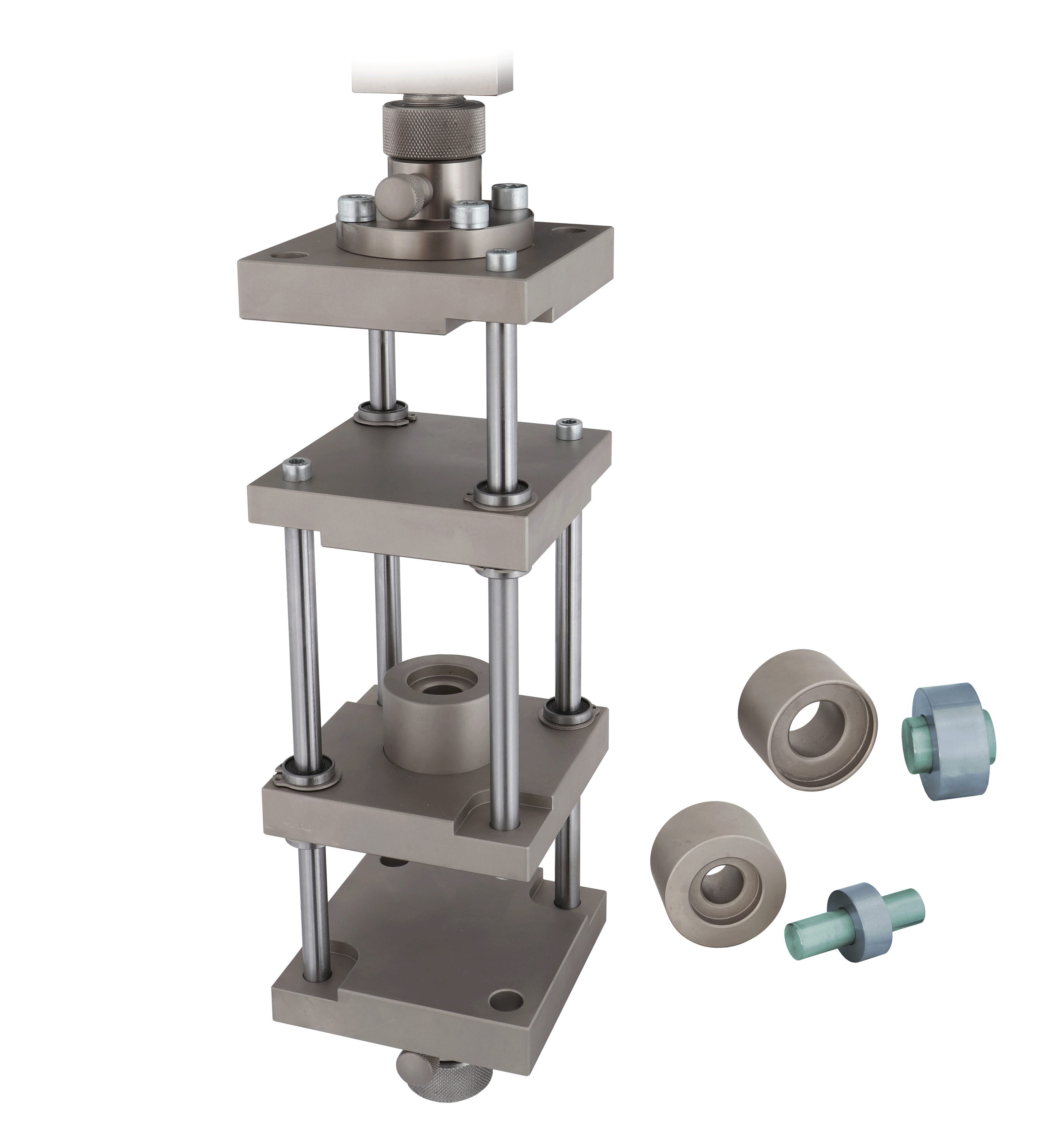

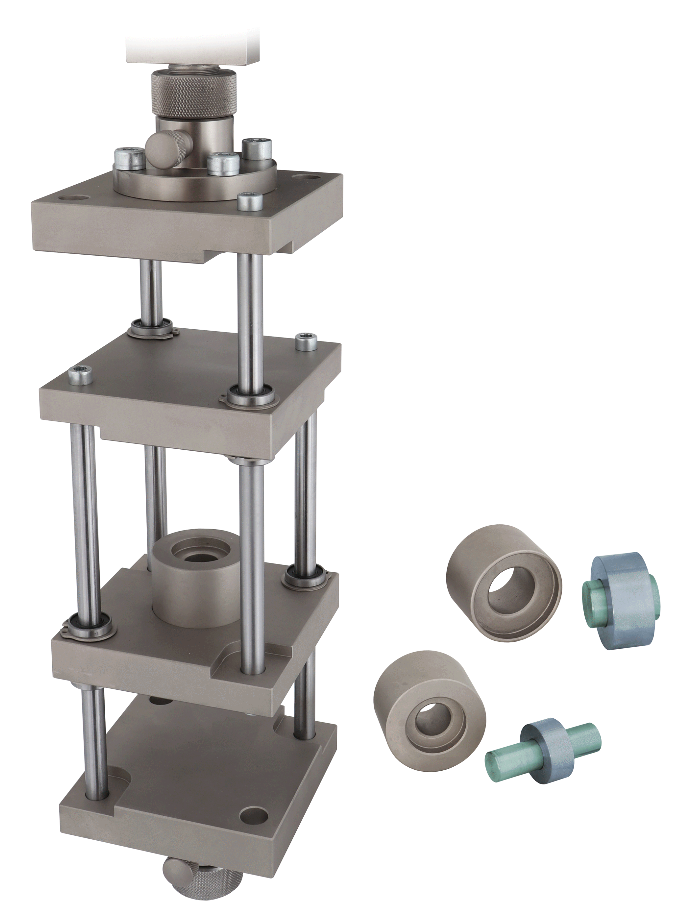

TH42-100x100-150-ST

Pull cage 100x100 mm
Height 150 mm , Steel


Animation

tn_TH42-100x100-350-KB cage ball bearings 20kN-

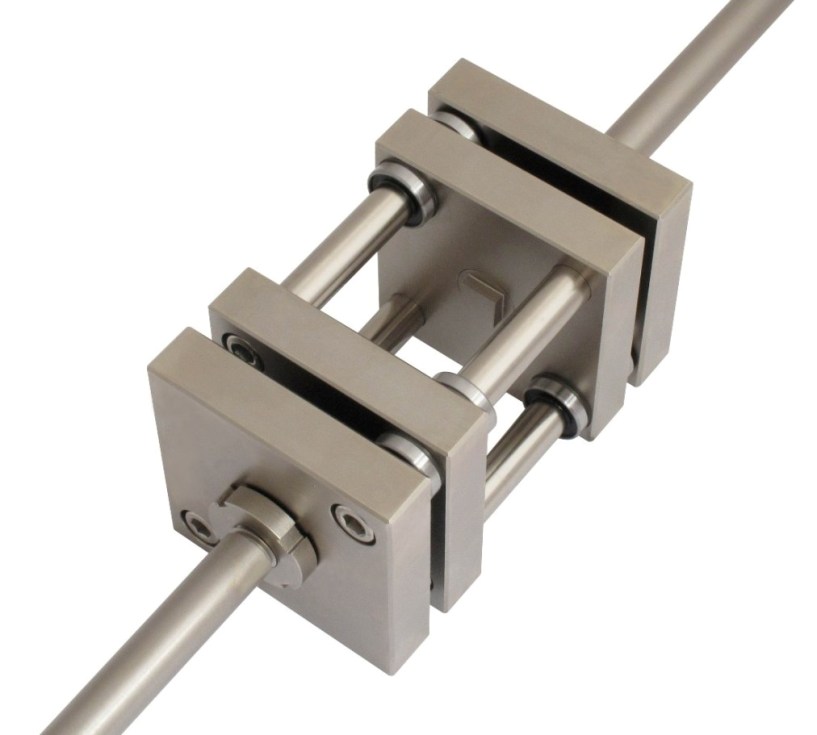

TH42-100x100-350-KB

Cage ball bearings
Max. Force: 20 kN

tn_TH42-100-bearings_fr

TH42-100x100-350-KB

Cage ball bearings
Max. Force: 20 kN

tn_TH42-100x100-250-Am30-S13828-TGd  100kN Teflon guide 280°C-

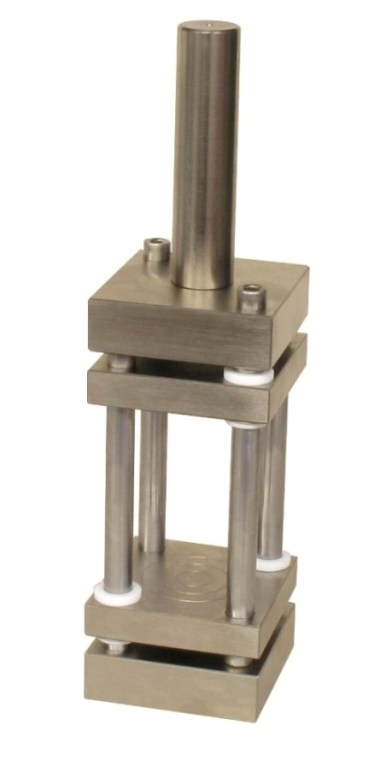

TH42-100x100-250-Am30-S13828-TGd



Max. Force: 100 kN

Teflon guide 280°C
Coupling Am30 mm

tn_TH42-100x100-KB-50kN Zugkäfig compression cage  ballbearings 150°C-

TH42-100x100-F50-Ni-150°C



Special compression point
Max. Force: 50 kN
Steel 100x100 mm

Chamber usage

tn_TH42-140-220-Af159-

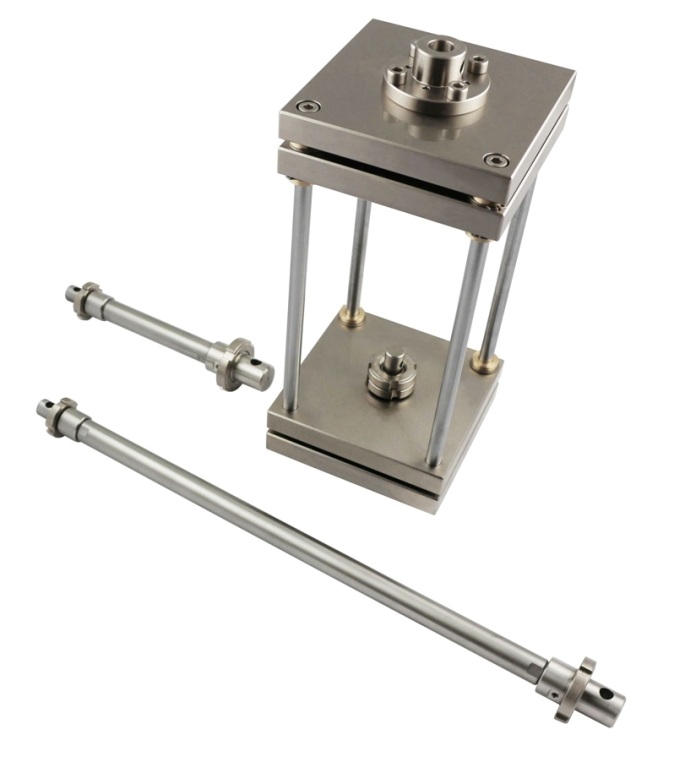

TH42-140-220-Af159


tn_TH42-140-220-Am20_Zugkäfig-

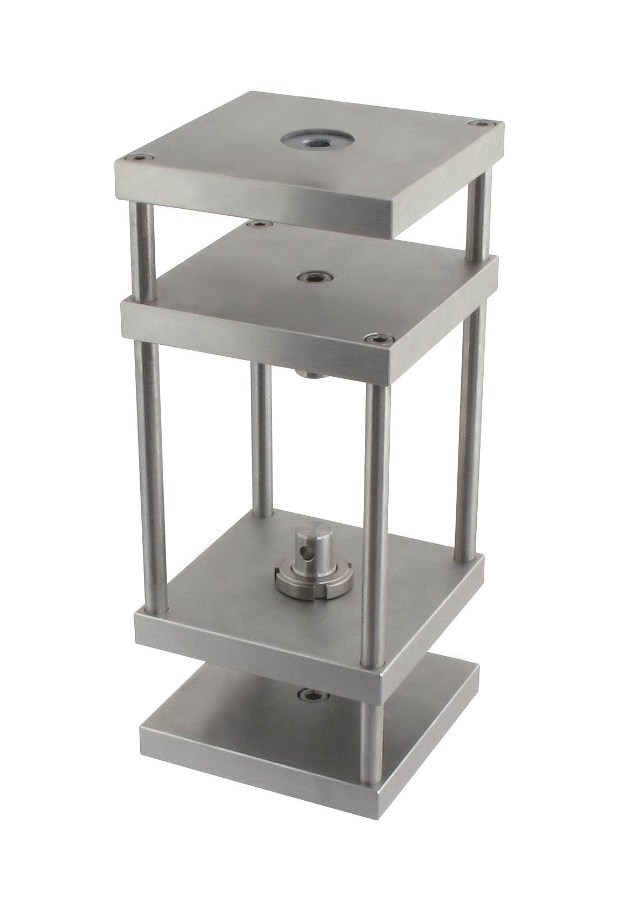

TH42-140-220-Am20

For chamber without bearings

tn_TH42-140-220-Am20_Zugkäfig  Edelstahl Teflonbuchsen T280°C-

TH42-140-220-Am20

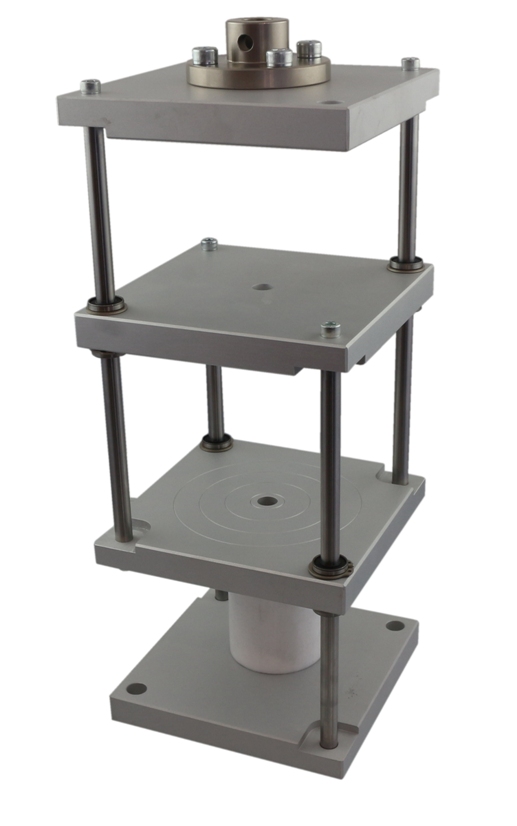

TH42-150x150-200+D12-Af159-x hqp 2021-04-06

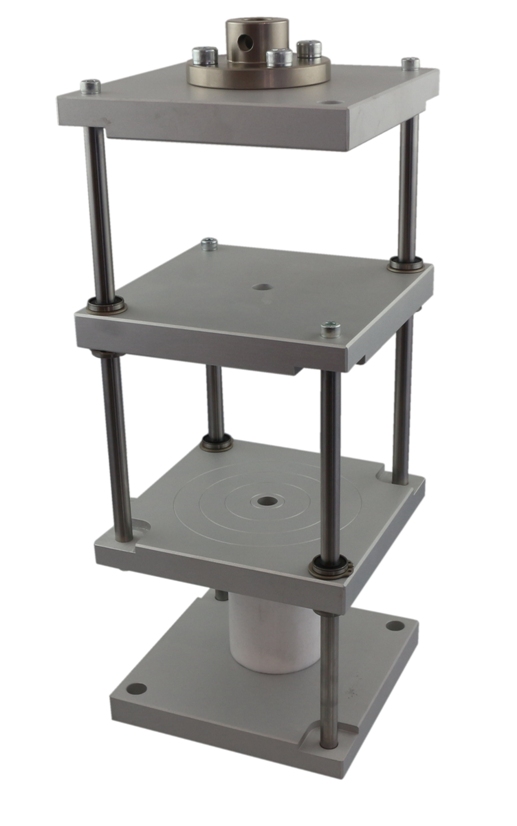

TH42-150x150-200+D12-Af159

Tension and compression cage with ball bearings

Max. force: 10 kN
Height 200 mm , hole 12 mm

Aluminum platens 150x150 mm
Coupling Af15.9/8  mm

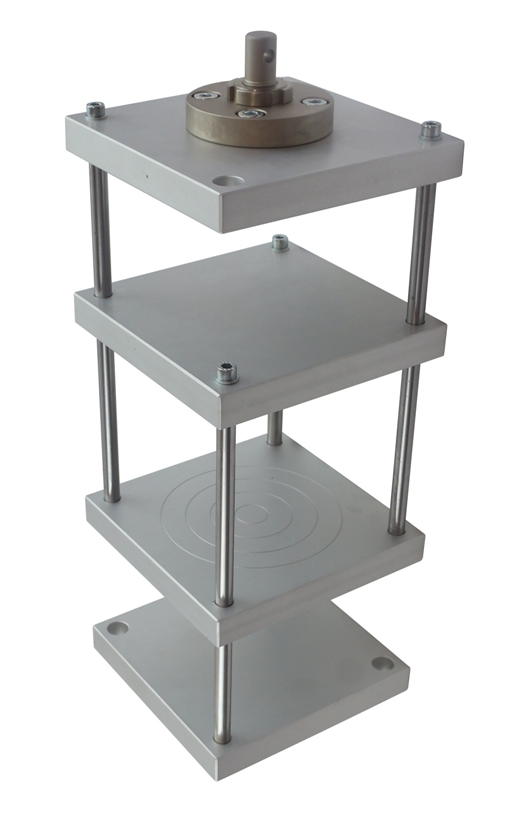

TH42-150x150-200-okB-Al-Am1665_Compression_cage_6.46kg_2023-01-26

TH42-150x150-200-okB-Al-Am1665

Compression cage, without ball bearings
Max. force: 5 kN
Distance between the 2 middle
platens 0-200 mm
Aluminium platens 150x150 mm

Coupling Am16/65 mm

Upper adapter THS628

TH42-150-L200-1-

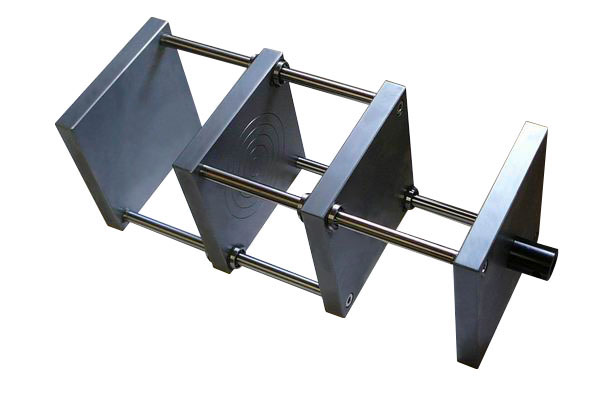

TH42-150-L200

Special fixture

Compression cage

Aluminium Platens 150x150 mm

Coupling Af15.9/8 mm

Description: TH42-150-L200-KB

tn_TH42-V2a-sonder-IZ1

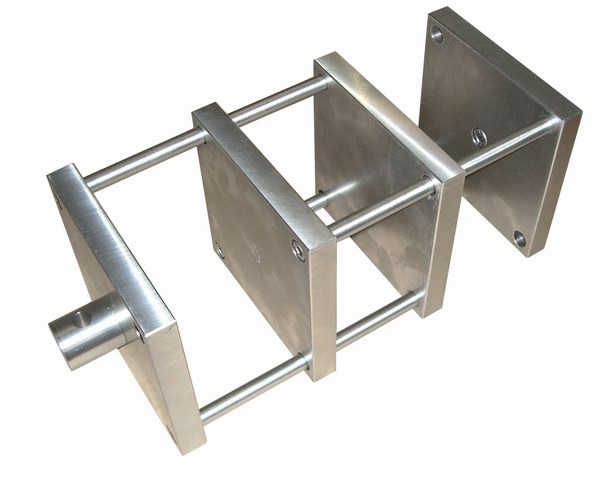

TH42-150x150-L240-SS-Af159


For Temperature Chambers
300°C

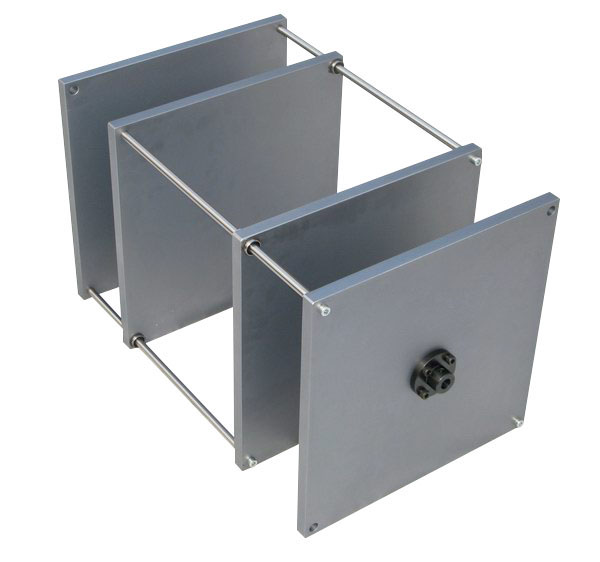

TH42-395x400-LW420-Af159--cage--

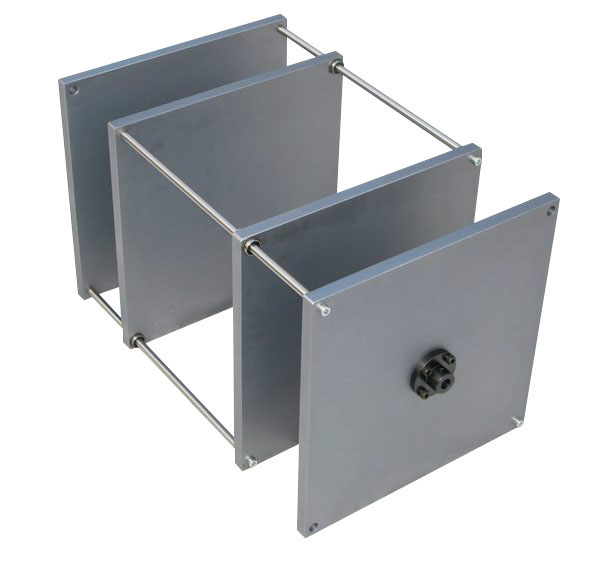

TH42-395x400-LW420-Af159

Pull cage 395x400 mm
4 ball bushings, to reduce friction and to move the plates precisely to each other
Coupling Af159 mm
