Biomedical



Back



Description: Description: Description: Description: pdf_icon.gifBiomedical test fixtures Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gifMedizinprüfvorrichtungen Datenblatt.pdf

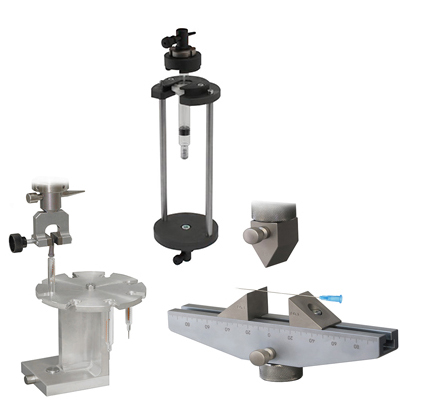

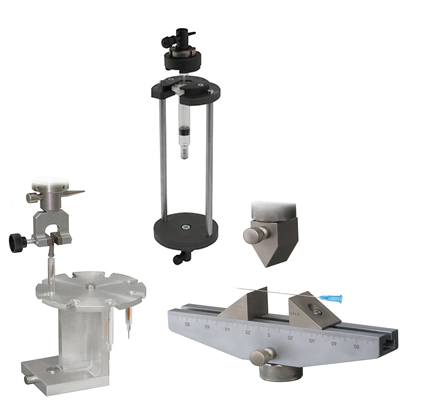

Description: THS727-80 Spritzenhalter Syringeholder 1

Fixtures to test syringes, needle tubings



Vorrichtungen zum Testen von Spritzen, Kanülenrohren



more

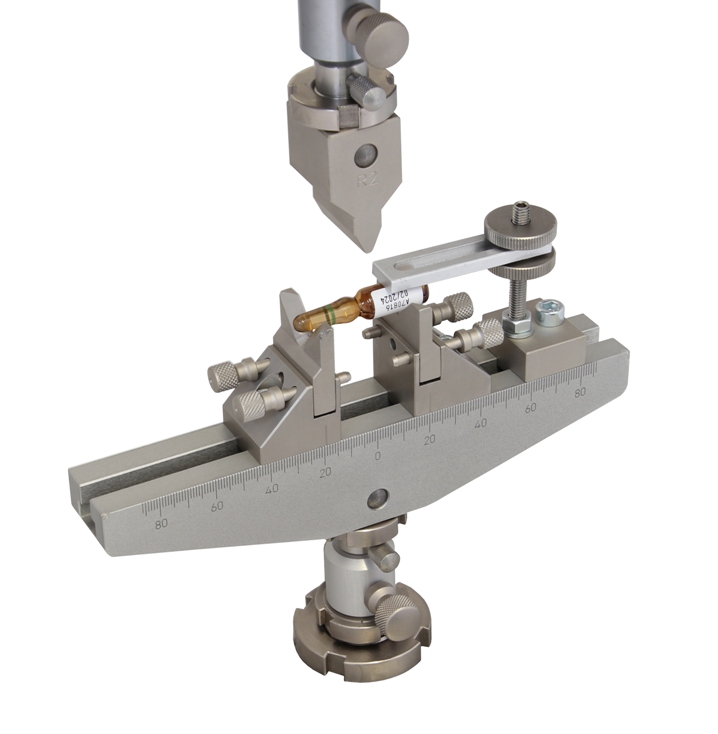

Description: tn_TH238-B200-OR2-CWX-ISO9187-1  Ampulen Medizin Midicine  07  A1  G02

TH238-ISO9187-1



Bend test fixture to test medical ampoules for injectables according to DIN EN ISO9187-1



Biegevorrichtung zum Testen von Ampullen für Injektionspräparate gemäß DIN EN ISO9187-1

more

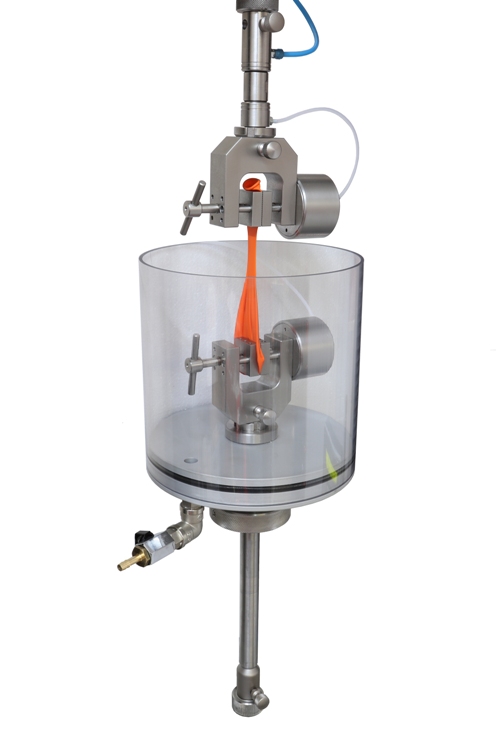

tn_THS648-D200xH300-RMV  + TH240k-S20-Ko-A4+BP30  2021-05-03  014

THS648-D200xH300-RMV
+
TH240k-S20-Ko-A4+BP30



Cyclic and creep loading test on human flexor tendons

Special Plexiglas container with tensile grips



more

THS648-V54-oA+THS1447-V2_ISO14801_01


THS1447-V2-ISO14801 + THS648-V54



Dynamic loading test fixture for testing dental implants

according to DIN EN ISO14801

more

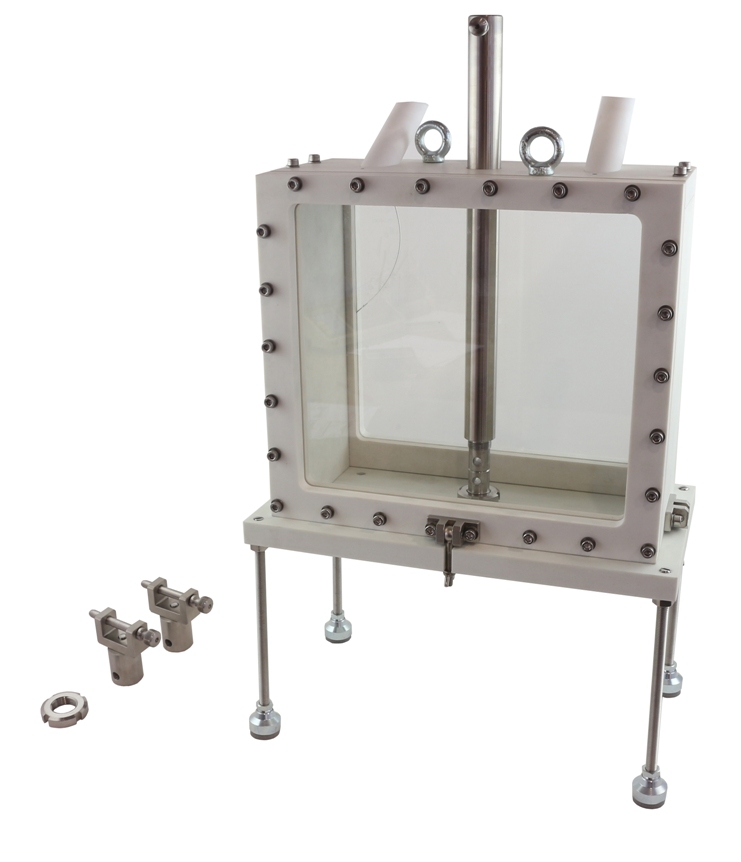

THS1485-40+THS1485-40-10

THS1485-40 + THS1485-40-10



Special tensile test fixture for testing glass ionomer cement (GIC) samples under cryogenic conditions

Temperature range -180°C…+20°C

Teflon body and tubes

Incl. pull rods, connection Af20 to Am20, length 380 mm

tn_THS879-30-ISO7206-4 19kg  hüftknochenprüfvorrichtung Hip joint protheses #Biomedical  #A1   2021-02-15  02

THS879-30-ISO7206-4



Special fixture to test hip prostheses according to ISO7206-4

more

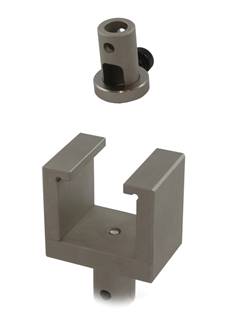

THS1156-GT-Af159-1.25kg_2023-09-23 02

THS1156-GT-Af159 + TH89-159-3



Pullout strength test fixture for metallic medical bone screws
According to
 ASTM-F543 Fig. A3.1

Bottom holder: slot opening 35 mm, inner height 55 mm, inner width 52 mm

Upper grip: hole 3.2 mm Ø for sample

Max. load 10 kN

Steel, nickel coated

Coupling Af159



For upper grip, see TH89

Description: tn_THS1180-Af159 ISO7864 ASTM-F2878 ASTM-F1342 needle penetration force test 2.8kg  02

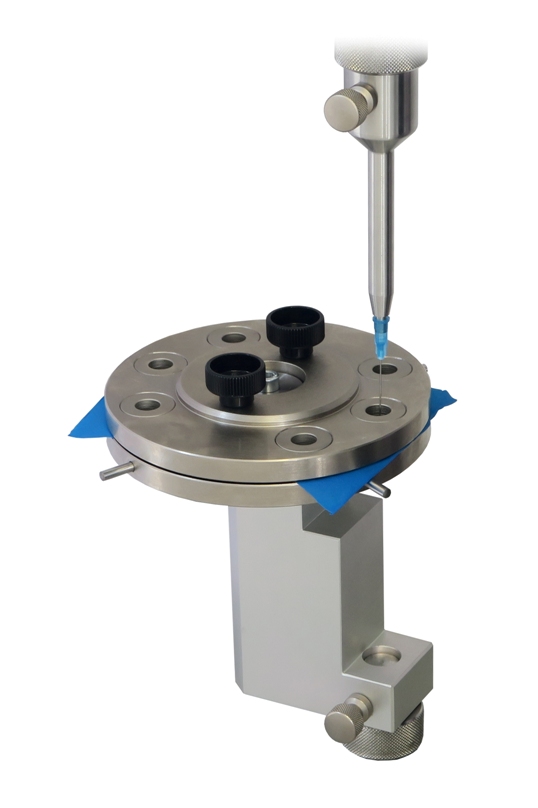

THS1180



Needle puncture fixture to test protective clothing material according to

DIN EN ISO7864, ASTM-F1342 and ASTM-F2878



Nadeldurchstoßvorrichtung zum Testen von Schutzkleidungsmaterial gemäß DIN

EN ISO7864, ASTM-F1342 und ASTM-F2878.



more

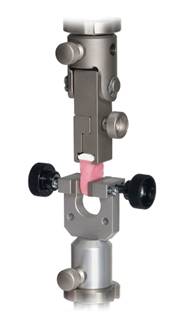

Description: tn_THS1447 + TH227+BP25-Af20 DIN EN ISO22112 DIN EN ISO20795-1 dental prostheses Dentalprothesen 0.325+0.12kg  02

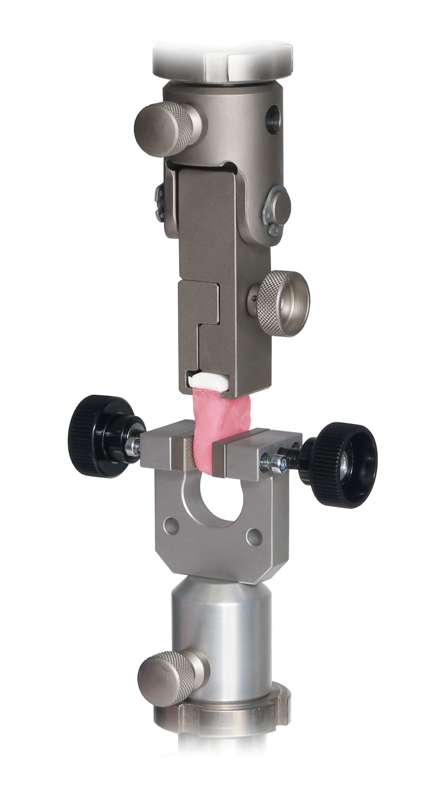

THS1447-S12 + TH227+BP25-Af20

Fixture to test dental prostheses according to DIN EN ISO22112 and DIN EN ISO20795-1



Vorrichtung zum Testen von Dentalprothesen gemäß DIN EN ISO22112 and DIN EN ISO20795-1



more

tn_THS1447-V2 4.,kg ISO-TS19736.22

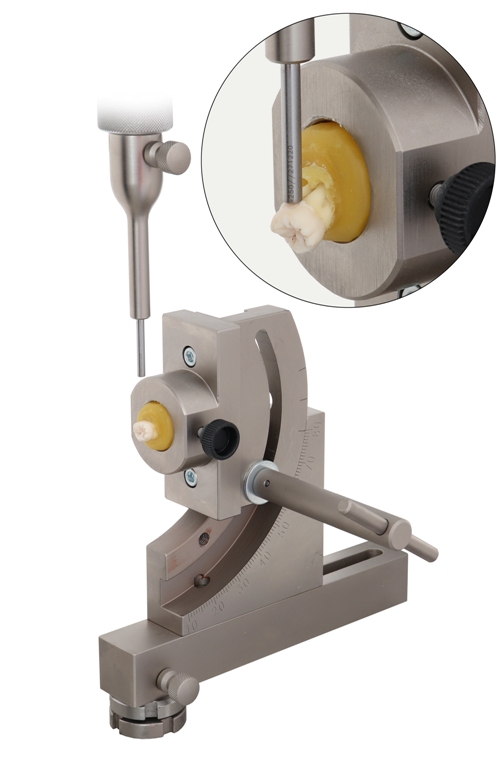

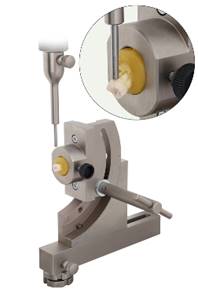

THS1959-ISO19736

Bonding test between polymer teeth and denture base materials
according to DIN ISO/TS19736



more

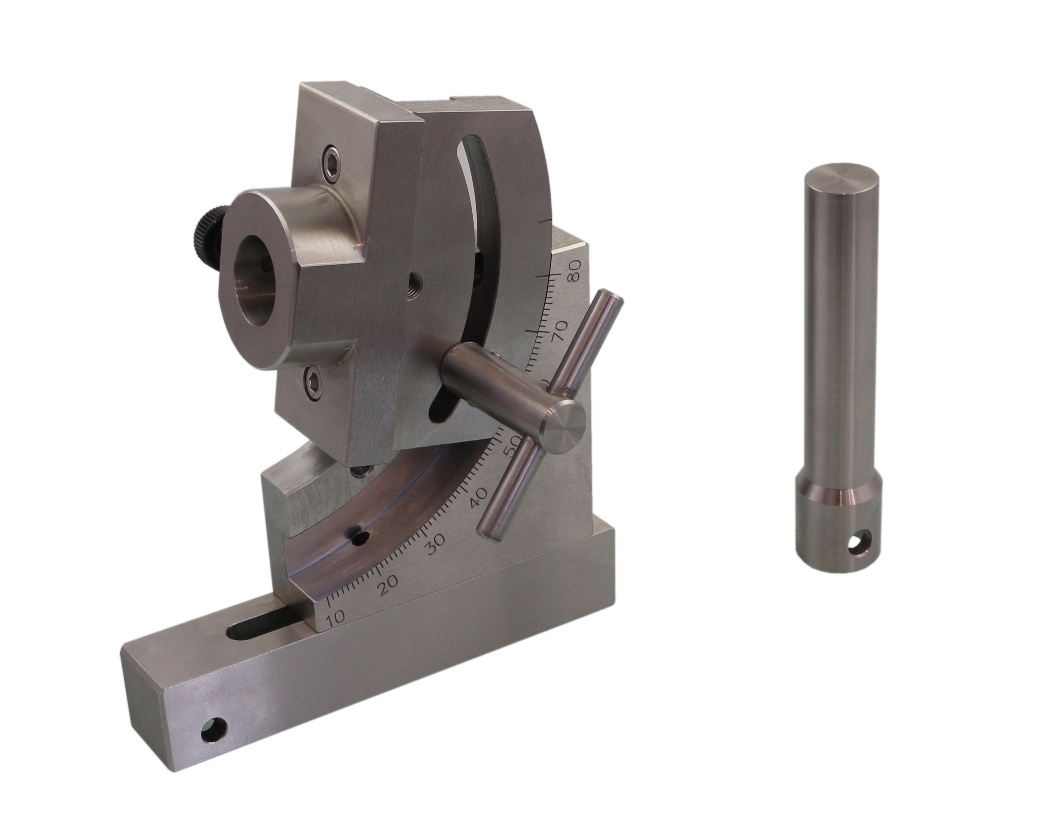

THS1447-V2-ISO14801-V2a Dental implants Dynamic loading test

THS1959-ISO14801-V2a



Dynamic loading test fixture for testing dental implants

according to DIN EN ISO14801

Adjustable test angle 0-90°

Max. load 2 kN. Coupling Af159

Stainless steel

Can be used in a liquid bath, see G24

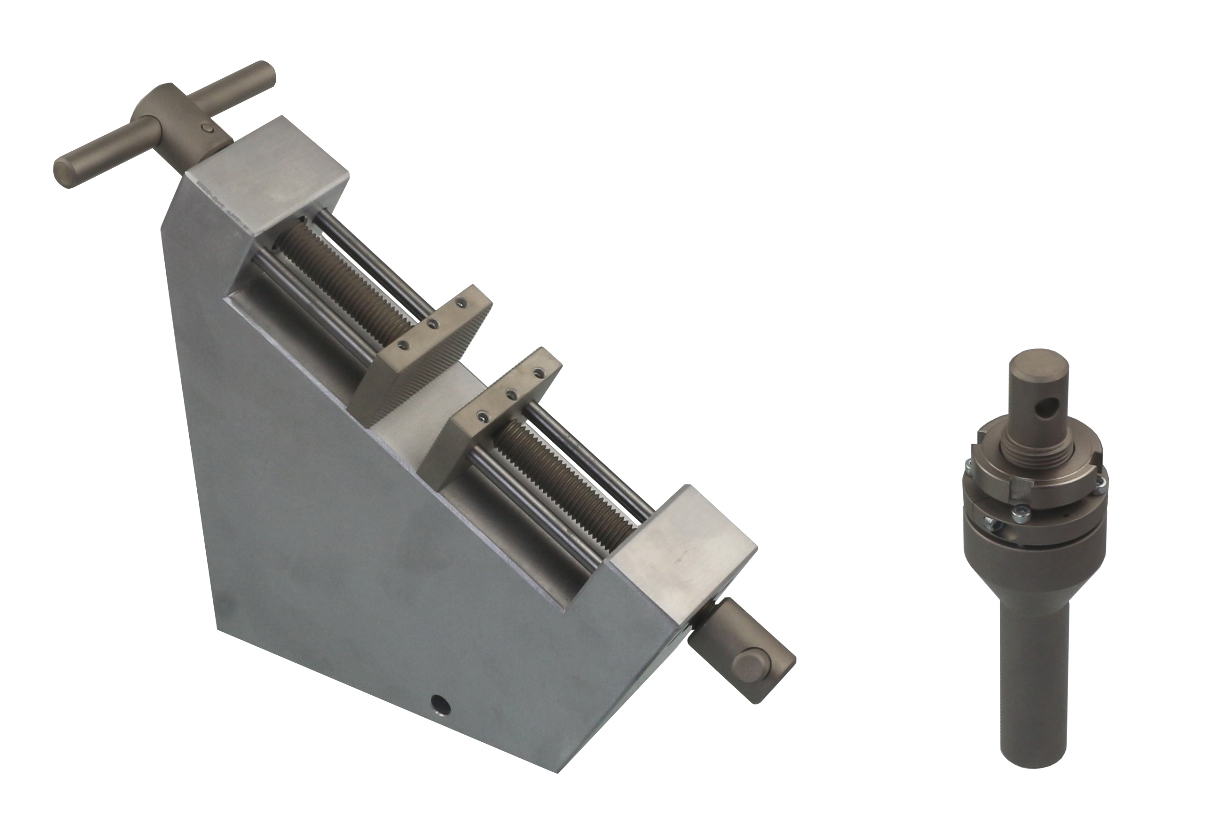

THS543-170-Am1665-KUG-ISO14801_3.8kg

THS543-170



Special fixture for dynamic loading test for endosseous dental implants
according to ISO14801


more

THS543-190-D10x30-Af15.9_ISO_TS11405_adhesion_to_tooth_structure_2.2kg

THS543-190

Shear test fixture to measure adhesion to tooth structure according to ISO/TS11405

more

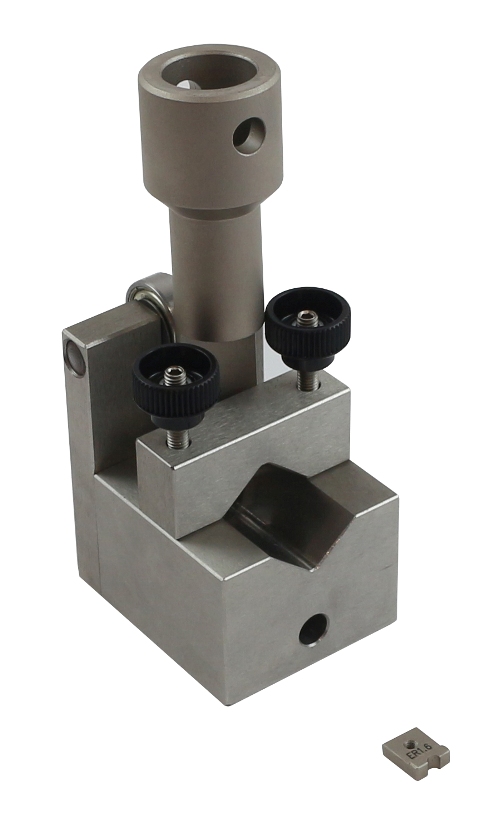

THS633-540-V5_similar_ISO29022_adhesive_bond_strength_dentistry_1.21kg_01

THS633-540-V5-ISO29022-Af20



Shear test fixture to determine the adhesive bond strength between dental restorative material and tooth similar to DIN EN ISO29022



more

Description: tn_TH238-ISO9187-1 Ampullen Medizin

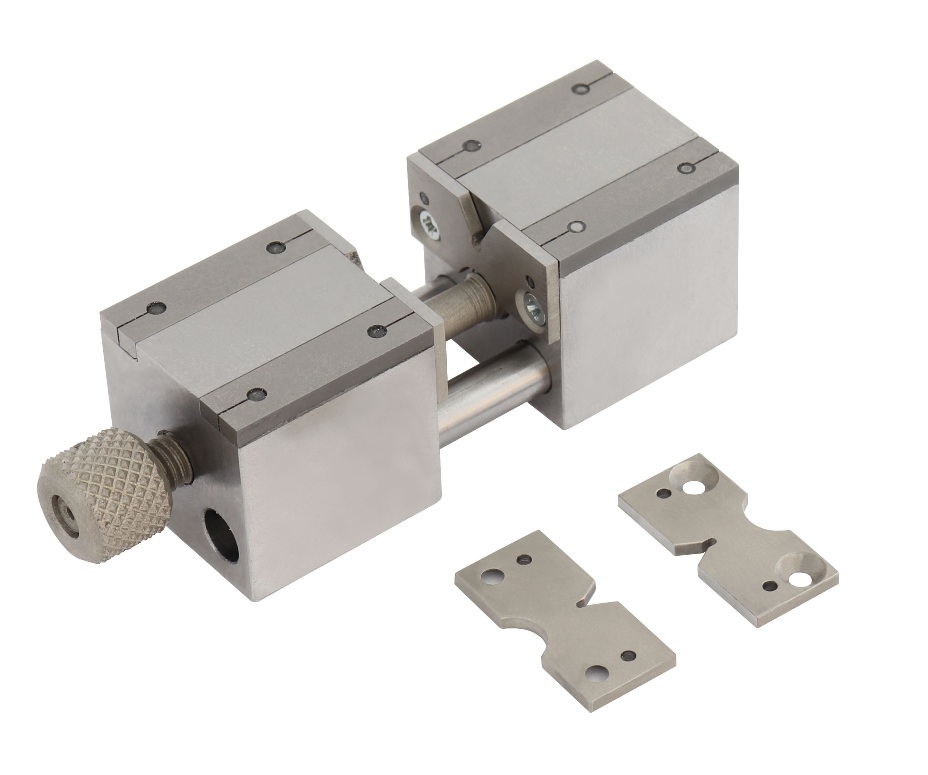

THS1461-10-E4x4x4



Special fixture to test dental implants

with tungsten carbide flat bars
Max. load 20 kN

Opening 3.3 - 22 mm
Steel, tungsten carbide flat bars



Sonder Vorrichtung zum Testen von Zahnprothesen

mit Flachstäben aus Wolframcarbid
Max. Kraft 20 kN

Öffnungsweite 3,3 - 22 mm
Stahl, Wolframcarbid

Description: Description: Description: Description: pdf_icon.gif THS1461 Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gif THS1461 Datenblatt.pdf

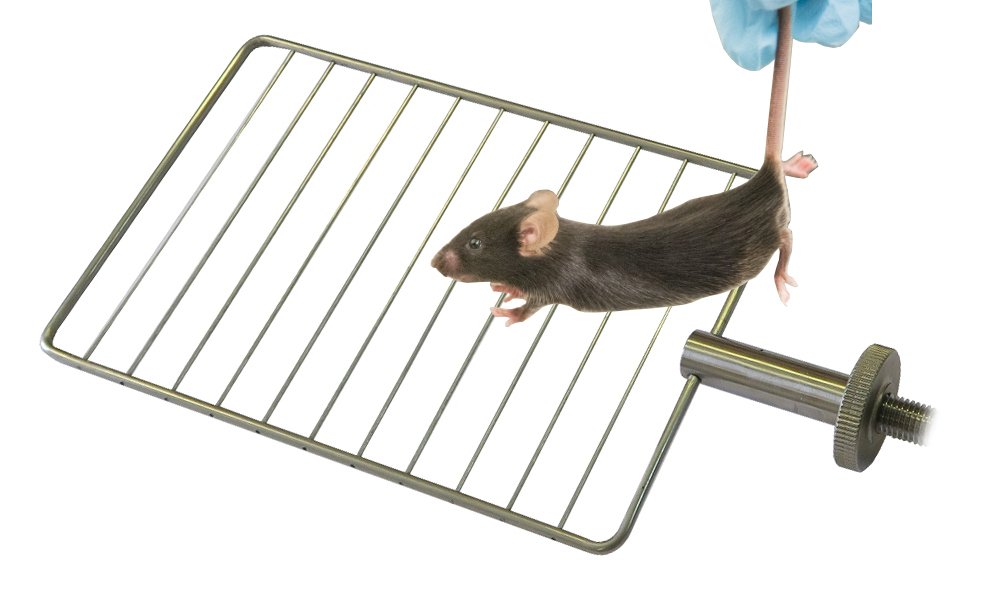

THS727-260-Am5-16-24_0.09kg_mice_grip_strength_A1

THS727-260-Am5/16-24



Special mice grip strength fixture to measure the muscular strength of mice

Max. load 10 N

136x90 mm (height x width)

1 mm bars spaced at 10 mm distance

Threaded connection 5/16-24 UNF

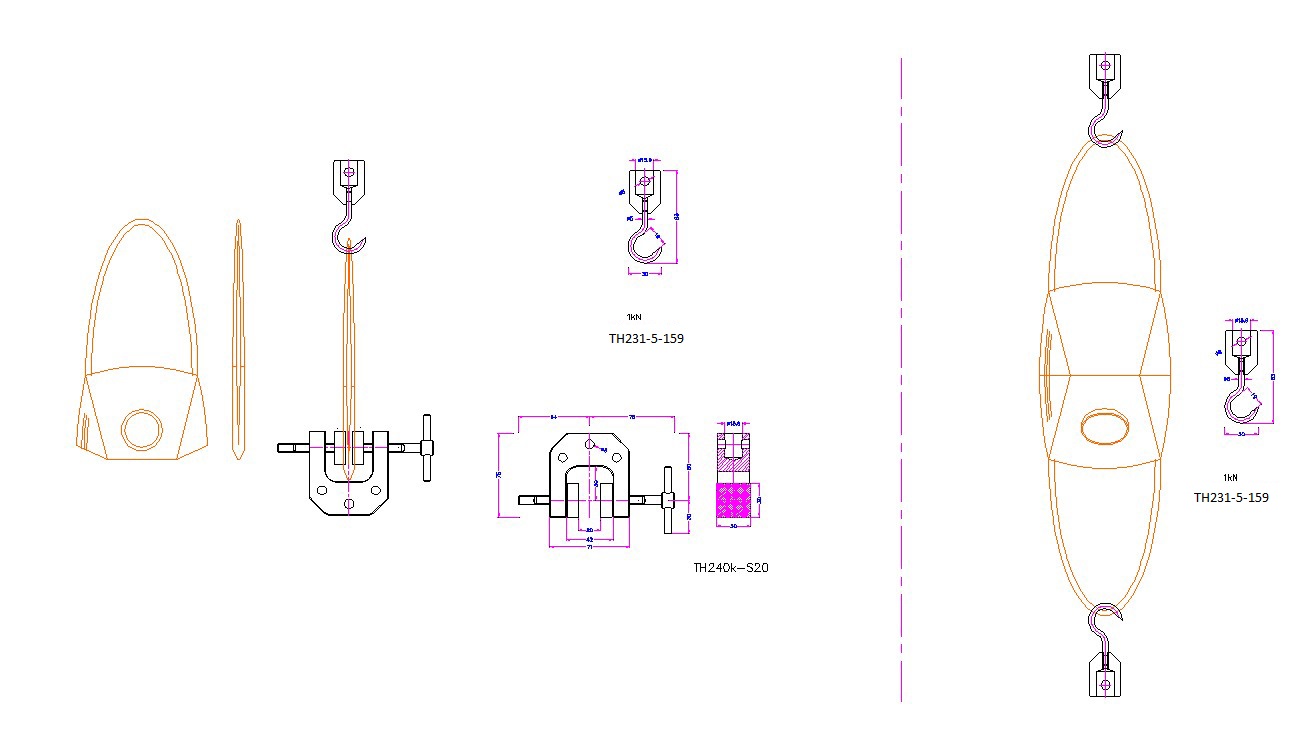

TH240k-S20 TH231-5-159

TH240k-S20 + TH231-5-159



Face Mask Loop Test with FFP2

according to EN149



Zugversuch an FFP2 Masken

TH240-S20
TH231

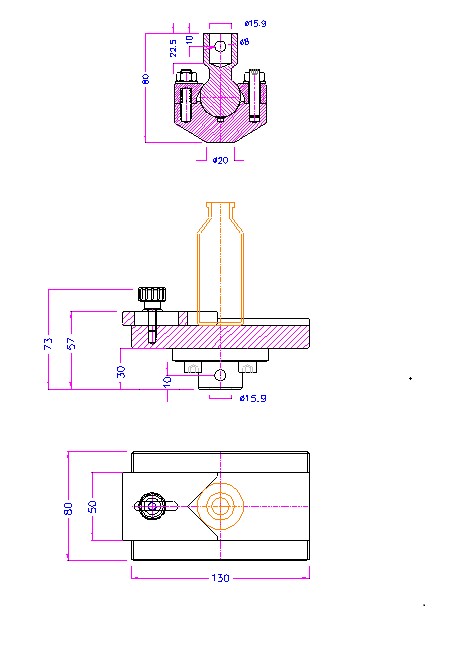

THS1741-RSF-Af159 medical Residual Seal Force

THS1741-RSF-Af159



Special compression test fixture to determine the residual seal force of the vial cap to evaluate closure integrity

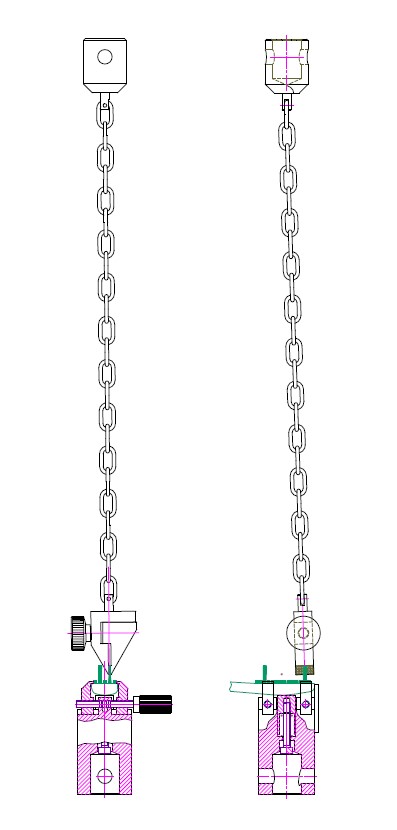

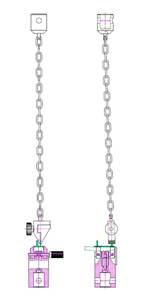

THS341-10-K + THS63-10

THS341-10-K + THS63-10



Testing of toothbrush according to
DIN EN ISO20126
-5.4.1

Pincer grip with chain

Jaw width 10 mm

Opening 0-3 mm

Bottom holder for toothbrush head with adjustable opening

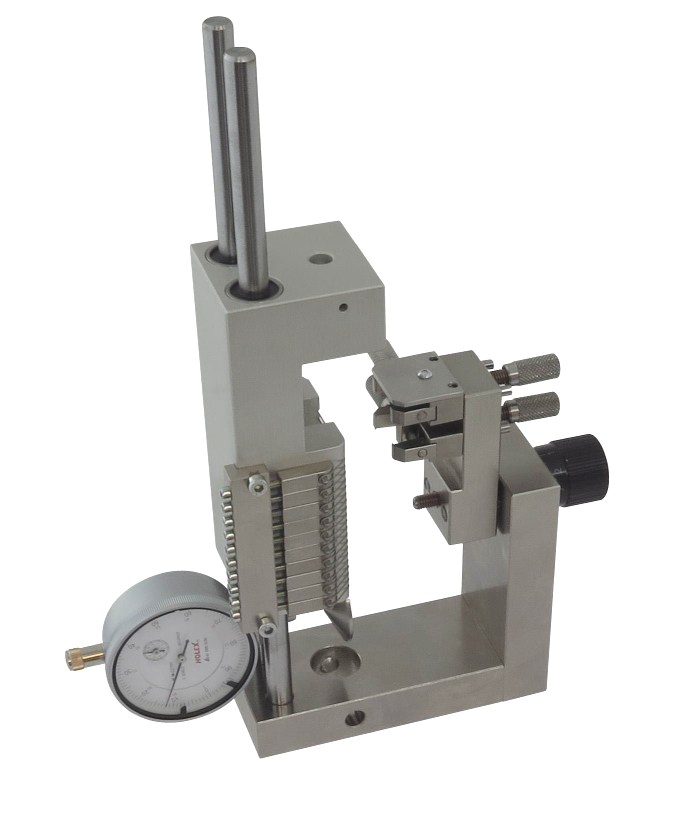

THS63-2-Af20-Af8-ISO8627

THS63-2



Toothbrush testing fixture according to ISO8627, ISO22254, BS5757

more
