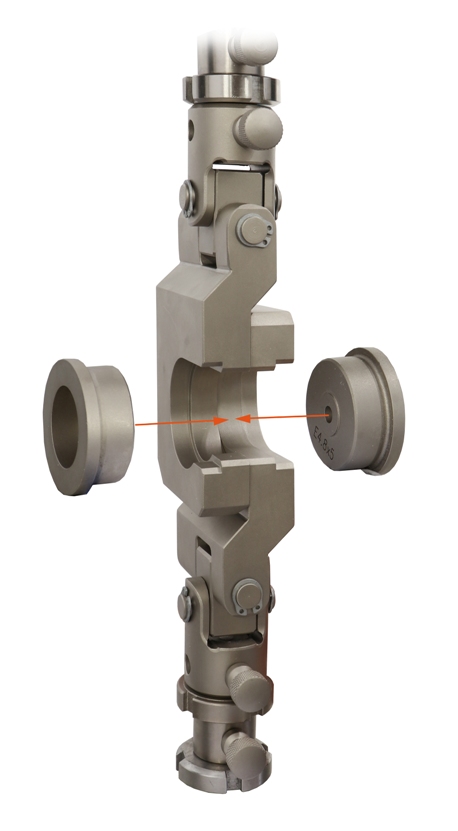

Referee shear test fixture for blind rivets

according to ISO14589 Fig. 3

more

THS871-10-ISO14589-Fig5_Blind_rivets_referee_tensile_testing_2,2kg_02

THS871-10-ISO14589-Fig5

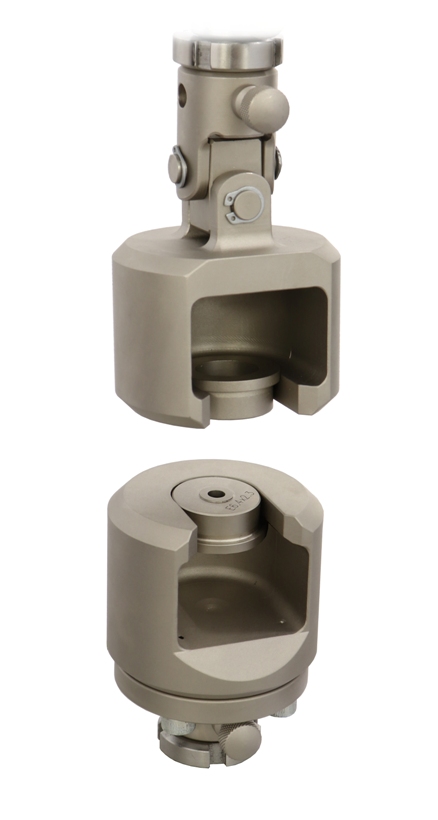

Referee tensile testing for blind rivets

according to ISO14589 Fig. 5

Max. load 20 kN

Universal joint adapter with
coupling Af159

Steel, nickel-plated

THS871-50-ISO14589-Fig8+THS527-20+BV10_Blind_rivet_mandrel_break_load_test_4,2kg_02

THS871-50-ISO14589-Fig8
+
THS527-20+BV10



Mandrel break load test fixture  for blind rivets

according to ISO14589 Fig. 8


more

THS871-30-ISO14589-Fig6+Fig7+TH23-96-Af20_Blind_rivets_mandrel_head_retention_capability_test(6)_mandrel_push_out_resistance_test(7)_3.5kg_03

THS871-30-ISO14589-Fig6+Fig7
+
TH23-96-Af20



Mandrel head retention capability test fixture for blind rivets

according to ISO14589 Fig. 6 and 7



more

THS871-Exx-ISO14589-Fig2_1kg

THS871-Exx-ISO14589-Fig2

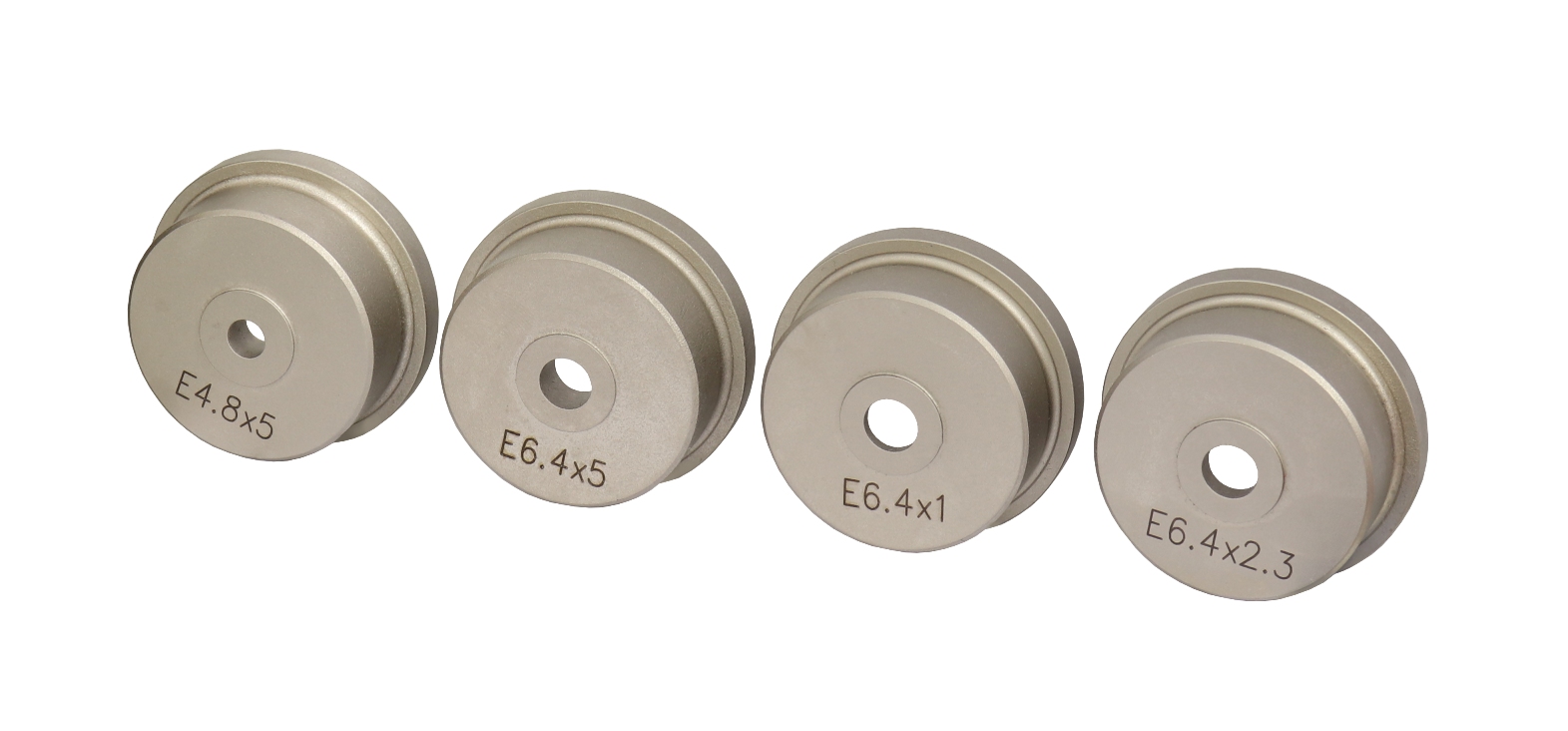

Inserts for THS871 fixtures

E4.8x5: for 4.8 mm rivet, 5 mm height

E6.4x5 for 6.4 mm rivet, 5 mm height

E6.4x1 for 6.4 mm rivet, 1 mm height

E6.4x2.3 for 6.4 mm rivet, 2.3 mm height
