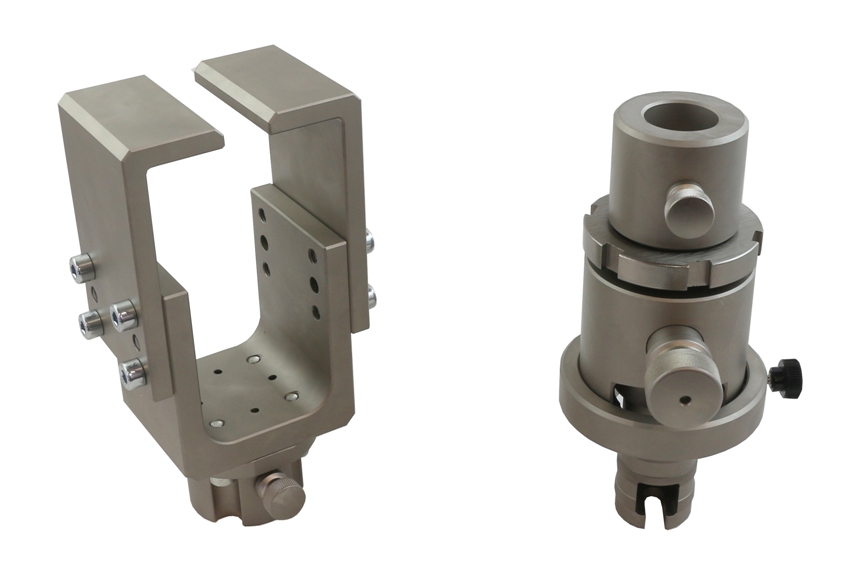

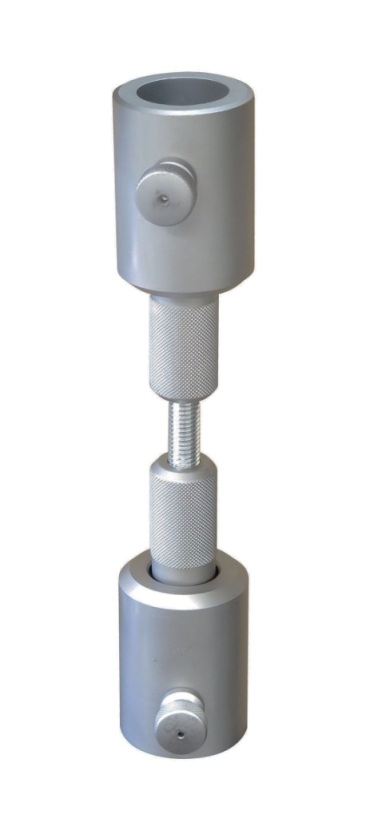

TH179-A-EB fastener testing

TH179



Fastener testing grips for studs, bolts, screws, etc

more

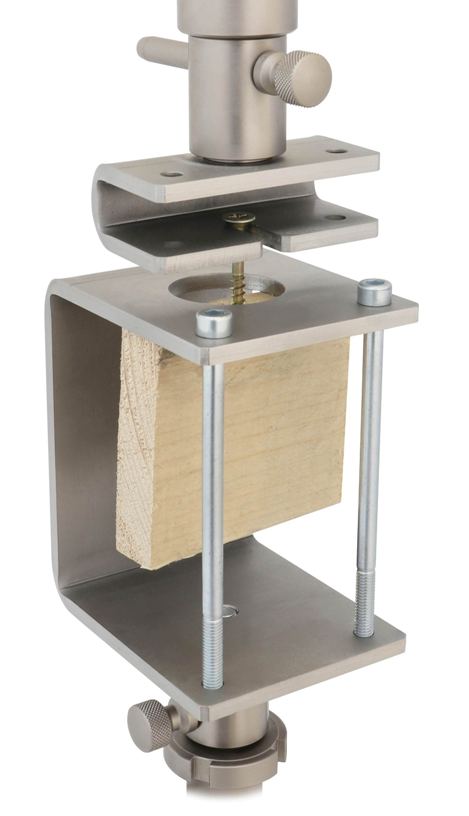

THS325-2 EN320-15917

THS325-2-EN320-Fig.3

Fixture to test resistance to axial withdrawal of screws for wooden samples

according to DIN EN320-Fig.3



more

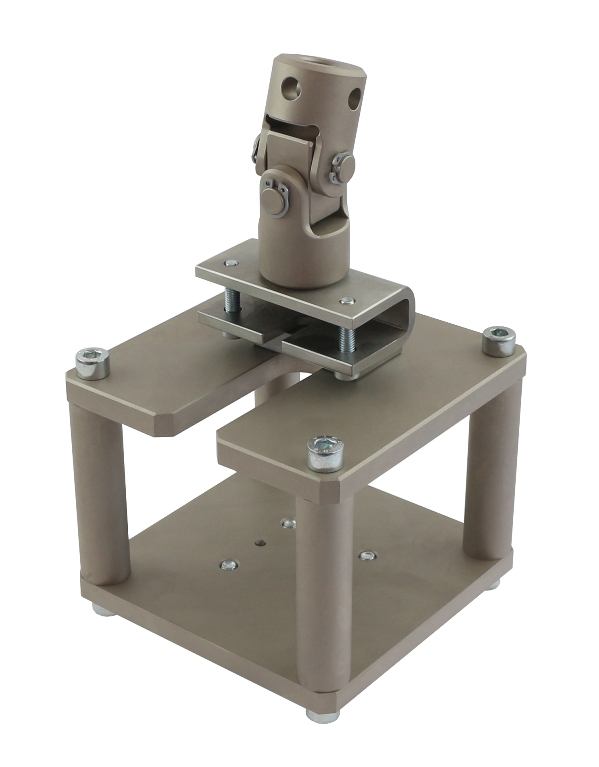

THS325-Af20+THS235-20-130x130-Af20_4.5kg_DIN-EN13446_wood_fasteners_withdrawal_force

THS325-Af20
+
THS235-20-130x130-Af20



Fastener withdrawal force test fixture for wood-based panels
according to DIN EN13446

Upper fixture: slit width 8.5 mm

Bottom fixture: slit width 20 mm

Steel, nickel-plated

Coupling Af20

more

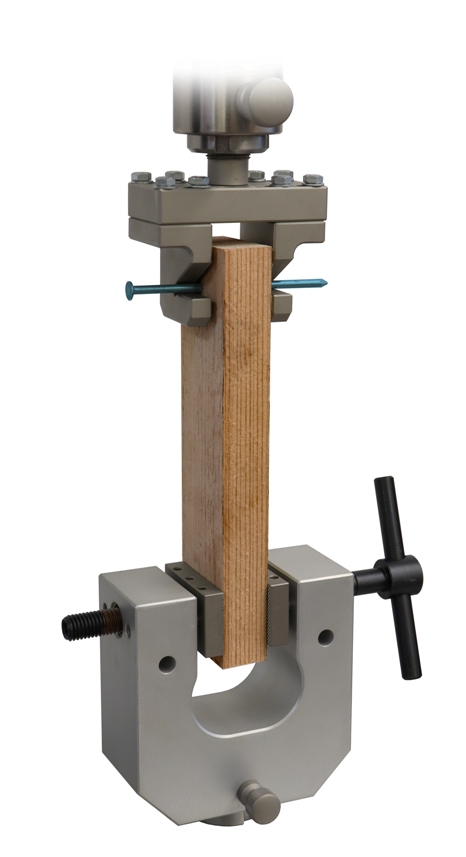

THS1669+TH154-10+BP-Am25-ASTM-D1037-Fig.11_0,85kg_Nail_Direct_Withdrawal_Resistance_Test_ 02

THS1669 + TH154-10+BP-Am25-ASTM-D1037-Fig.11



Special fixture to measure resistance of nails to direct withdrawal according to ASTM-D1037-Fig.11



more

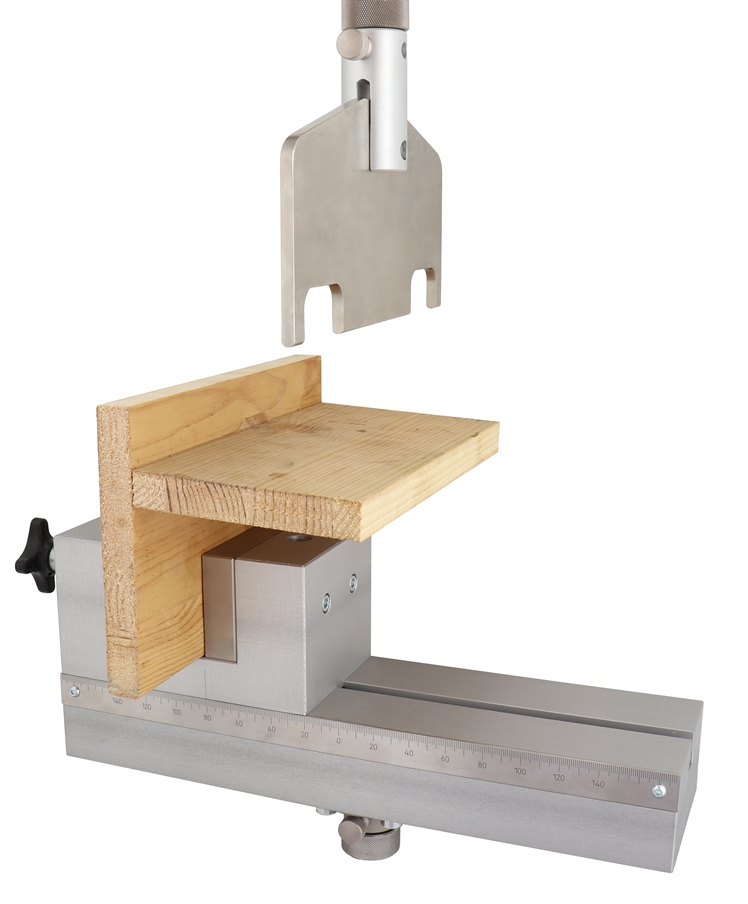

THS1576



Special fixture to determine strength and stiffness of furniture connectors according to DIN68501 Fig.5-2



Sondervorrichtung zur Bestimmung der Festigkeit und Steifigkeit von Korpuseckverbindern gem DIN68501 Fig.5-2



more

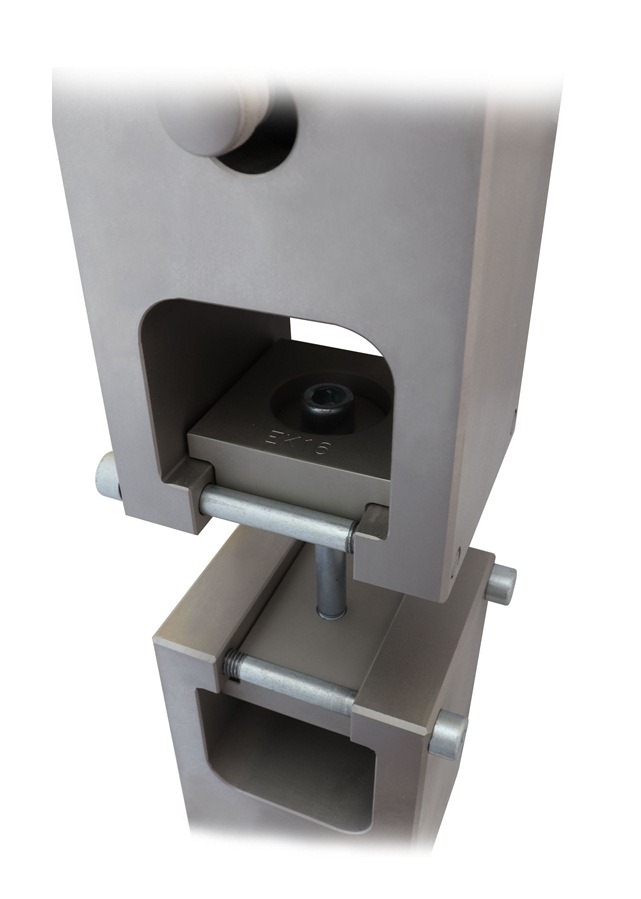

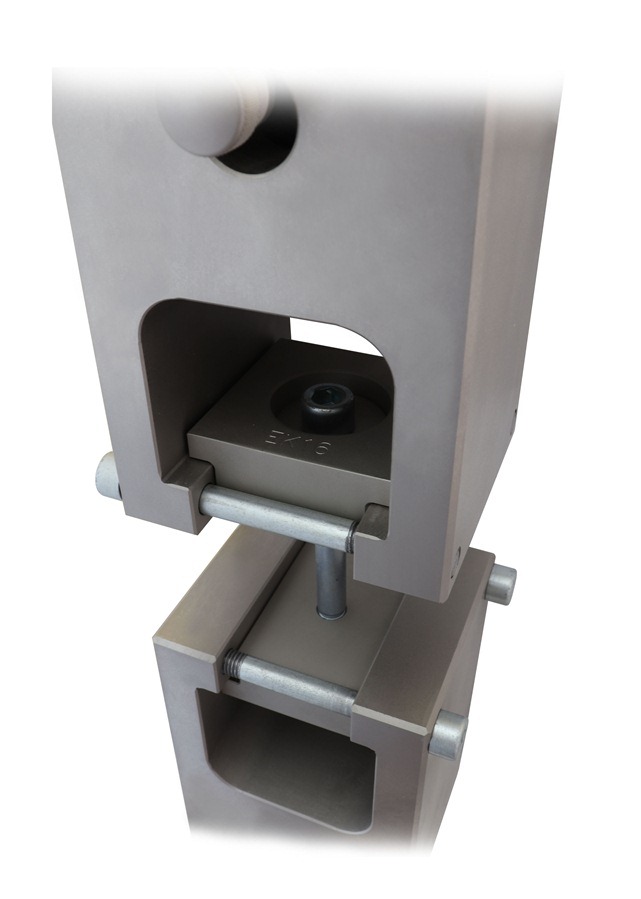

THS786-70-Af5025 DIN EN ISO 898-1  21,kg (total)   19-07-2018  03-

THS786-70


Tensile test on steel fasteners according to DIN EN ISO 898-1


more

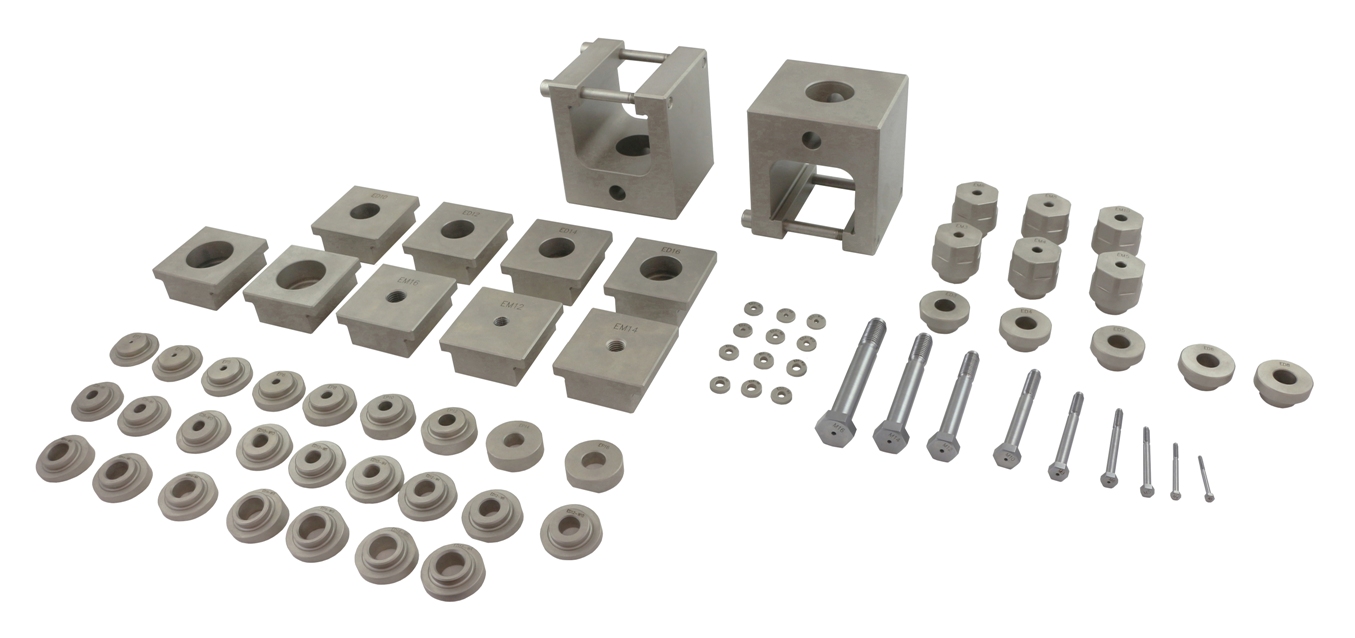

THS786-70-V31-GT-Af40+EDxxx-W10_6_4+EMxxx+EDxxx+tb_ISO898-1-Test-9.1_fasteners

THS786-70-V31-GT-Af40 + EDxxx-W10/6/4 + EMxxx + EDxxx + tb



Tensile test on steel fasteners according to DIN EN ISO898-1 (Test 9.1)

Incl. carrier and inserts for testing screws, bolts and nuts.

Coupling Af40

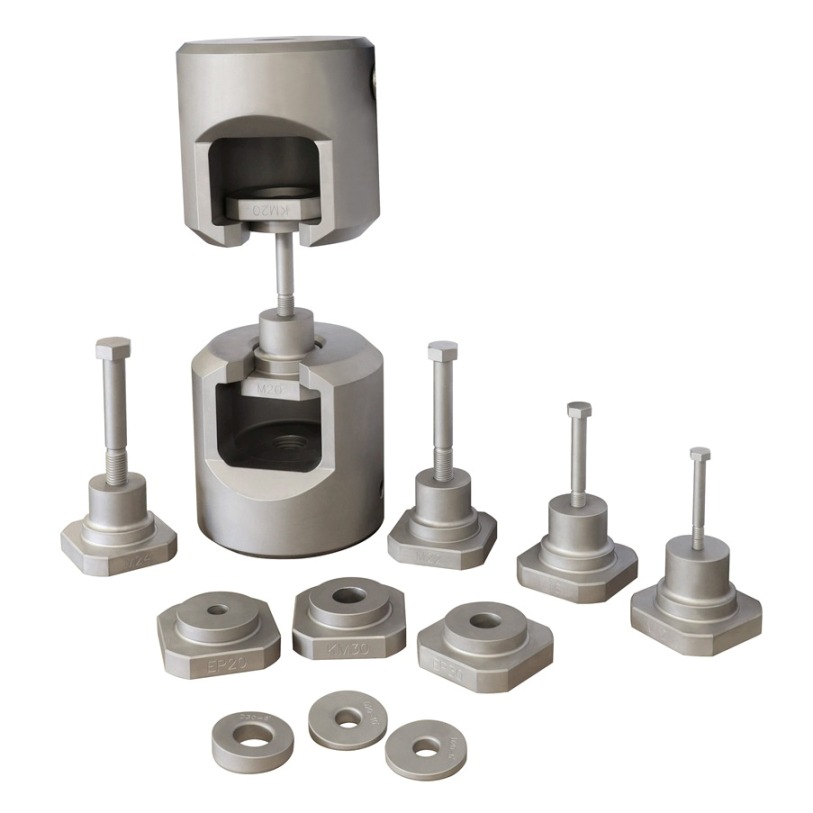

THS659-1000  DIN EN ISO 898-1-Fig.1,2 163kg  18-07-2018  05-

THS659-KR50-Af50x2



Special chuck grip

Coupling Af50x2



more

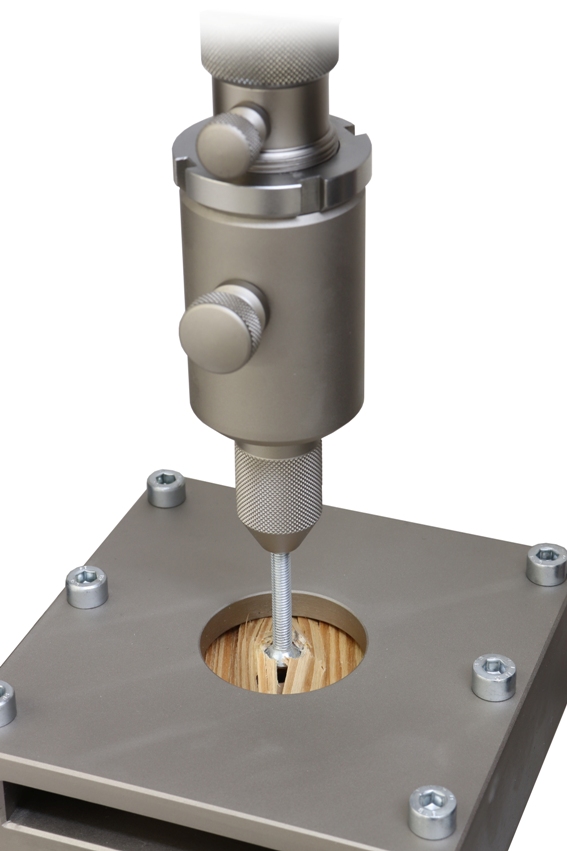

THS839-30-SH6-Am25_ASTM-D7332-Method-B_Fastener_Pull-Through_Test_Fixture_9,5kg_03



THS839-30-SH6-Am25-ASTM-D7332-Method-B



Fastener pull-through test fixture

for measuring the fastener pull-through resistance of a fiber-reinforced polymer matrix composite

according to ASTM-D7332 Method B



more

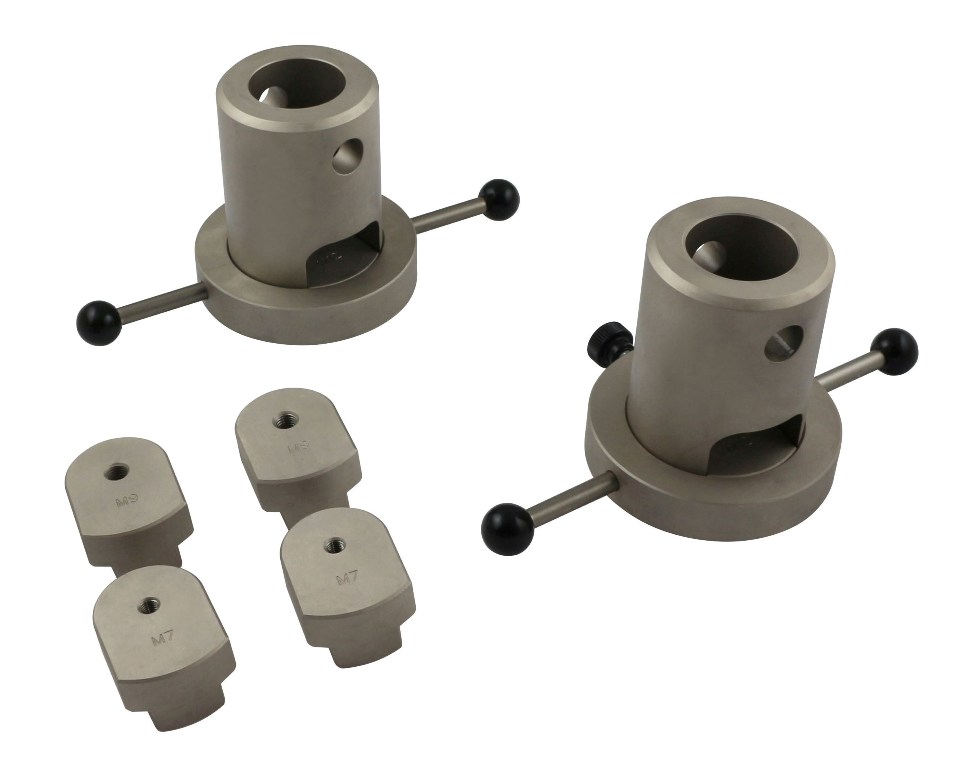

THS885-40-Af4016 EM7 EM9 EM12-xa 2019-10-22-


THS885

Chuck grip with easy changeable inserts



more

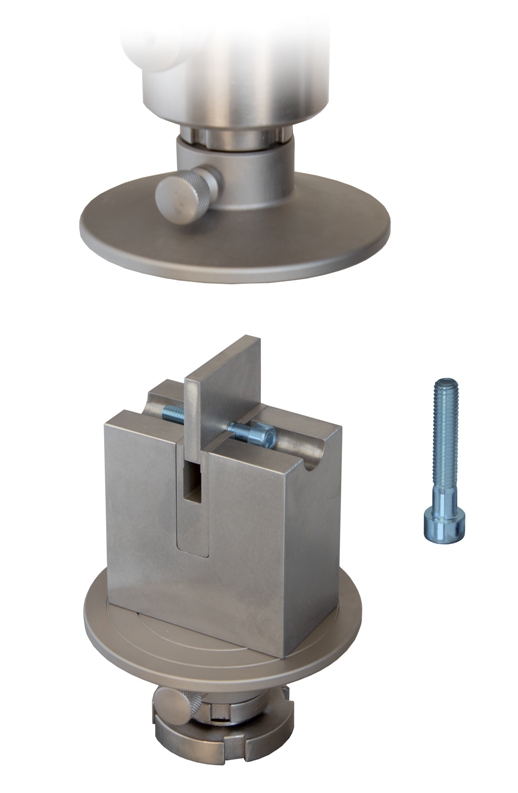

THS890-UC6.4  TH23-96  2,6kg    Schrauben test  Werkverbundstoffe  A19  2020-04-22  02


THS890-UC6.4 + TH23-96


Double shear test fixture for fasteners according to NASM1312-13



Doppelschervorrichtung zum Testen von Schrauben gem NASM1312-13

more

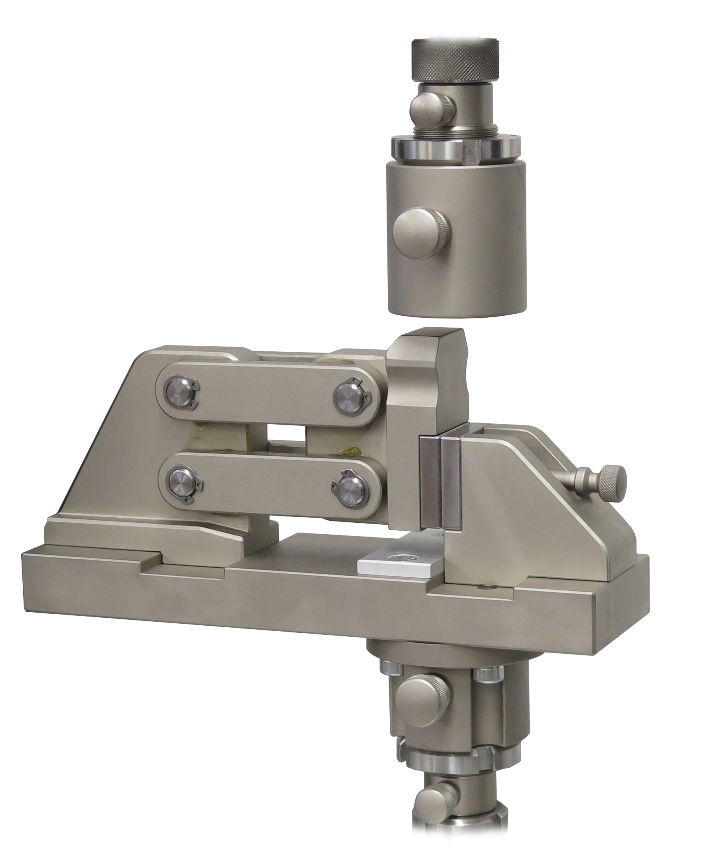

THS1223-50-Af318-MIL-STD-1312-20 Fig.3a and NASM1312-20

THS1223-50 + TH23-56-Af318-ST



Special single shear fixture for testing fasteners

according to MIL-STD-1312-20 Fig.3a and NASM1312-20 Fig.3a


more

THS235-Sl25.4-Q170-H100-Af318-ASTM-D1037-Fig.13 (16) + THS325-6K80-W25-Af318 Screw Withdrawal Resistance - Wood


THS235



Withdrawal resistance test fixtures

According to ASTM-D1037-Fig. 13,

EN1382



more

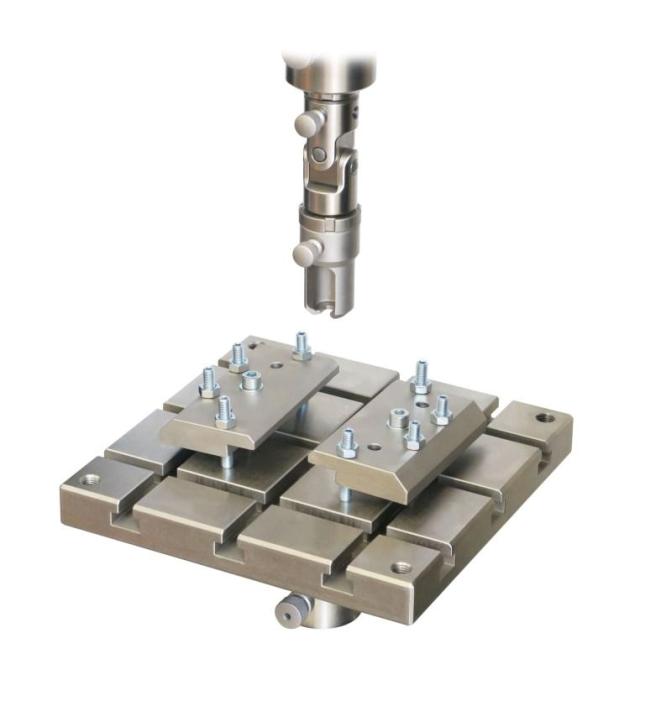

THS1449-30 IKEA IOS-TM-0057-Fig.3 Surface screw holding 0.9+14.6 kg 15042019 003-


THS1449-30



Fixture to test screw holding in boards according to IKEA IOS-TM-0057



more

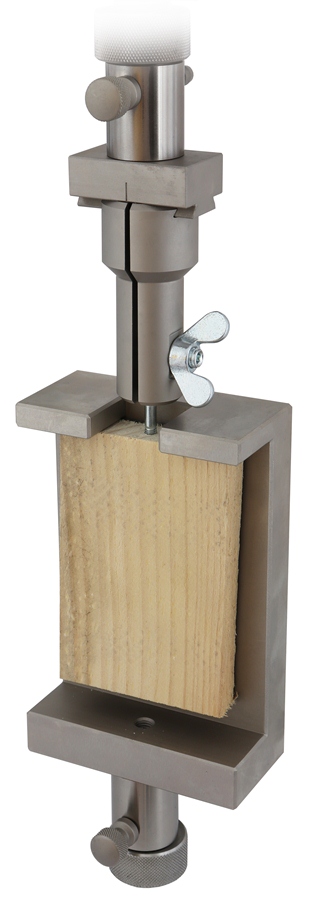

THS1449-40  3,9kg  2019-11-11  01

THS1449-40



Special fixture to test resistance to axial withdrawal of screws for wooden samples
Similar to THS325-2

more

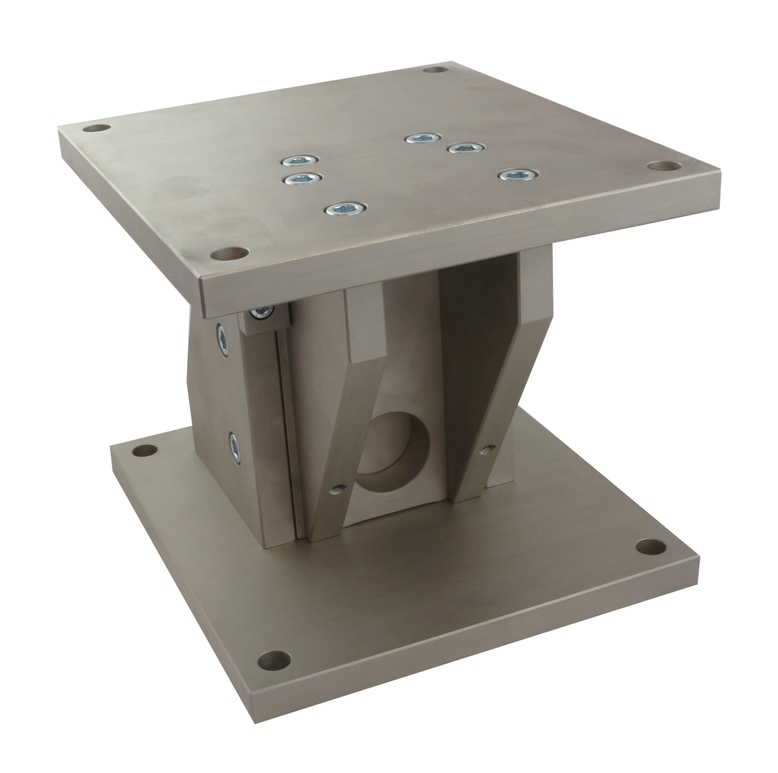

THS1534-400+ED6-8-10-12-16-20-24_bolt_fastener_shear_test_fixture_02

THS1534-400 + ED6-8-10-12-16-20-24



Special shear test fixture for fasteners

Max. load 400 kN


more

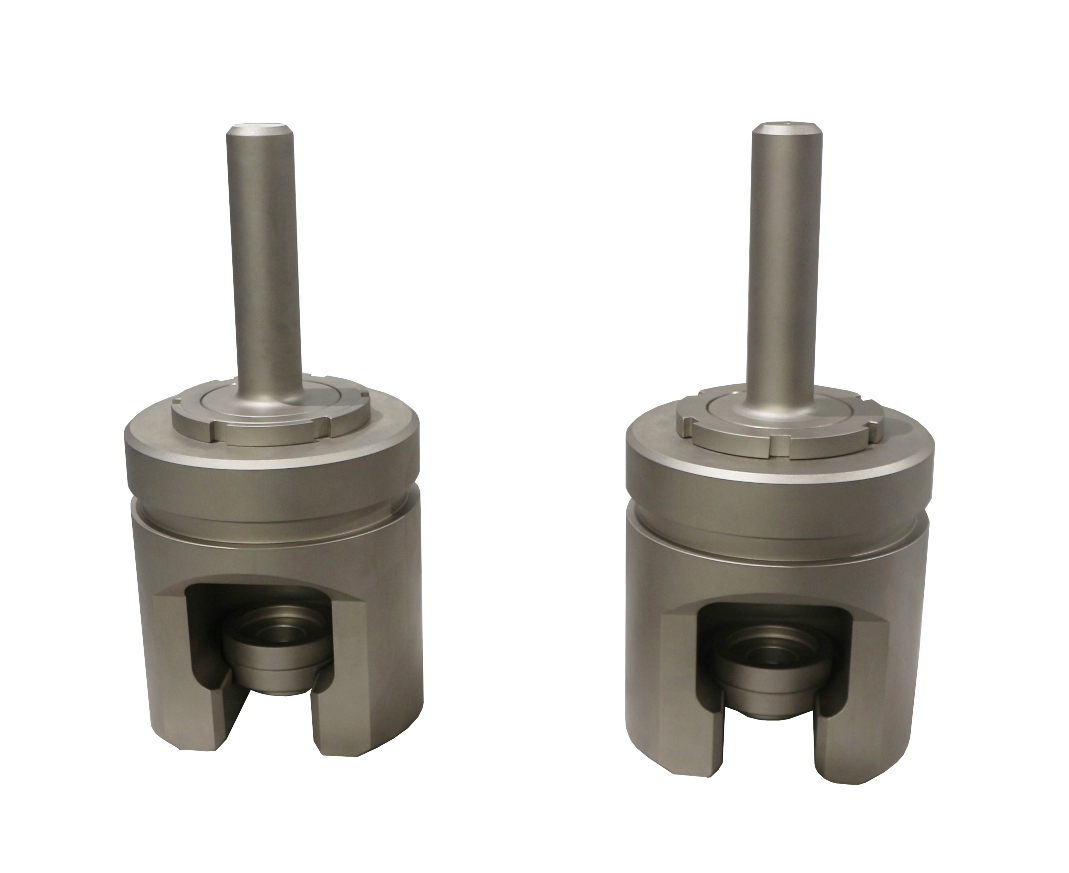

THS765-V21-1000-AfM110x2-D50_2020-12-01

THS765-V21-1000-AfM110x2-D50


Special holder for inserts
According to ASTM-F606
Max. load 1000 kN
Steel, hardened, nickel coated

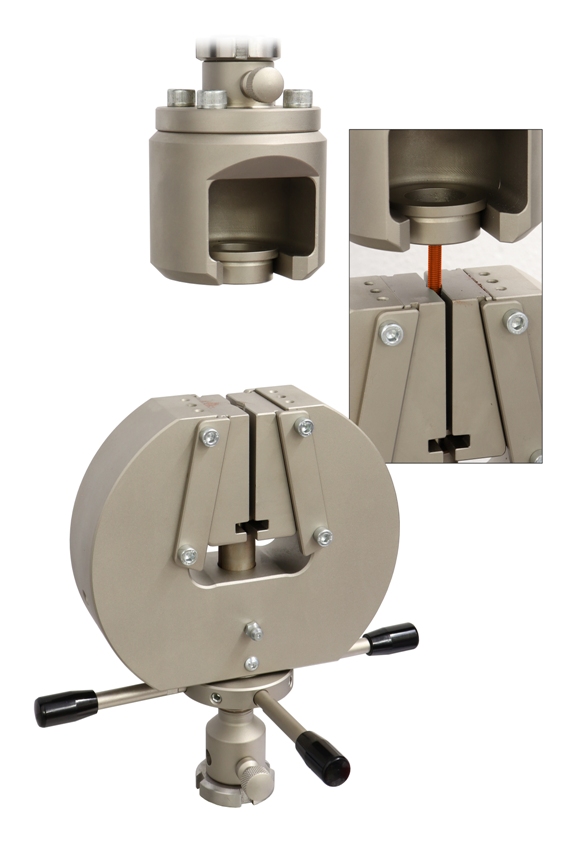

THS871-50-ISO14589-Fig8+THS527-20+BV10_Blind_rivet_mandrel_break_load_test_4,2kg_02

THS871



Test fixture for blind rivets

according to ISO14589



more
