Adapters

Back

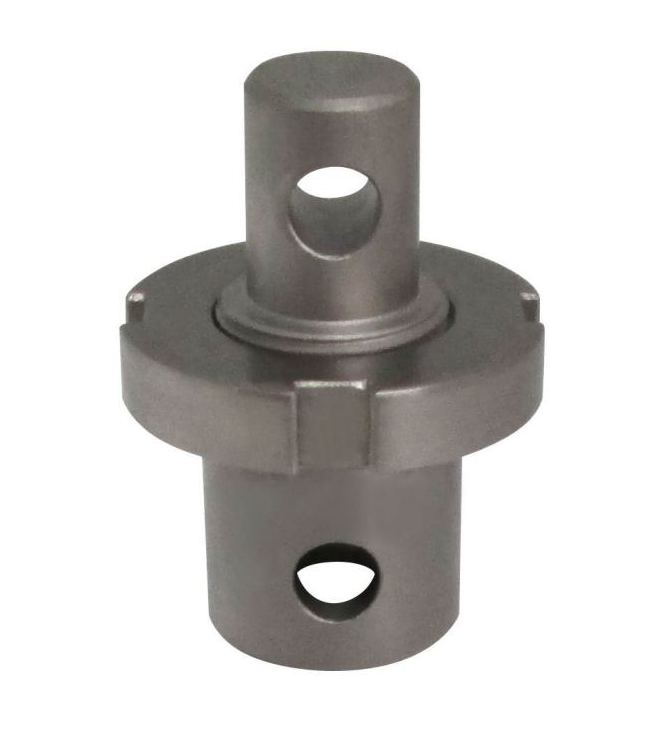

TH187-158-M-159 Adapter male female with counter nut







TH187-A-B



A: male diameter
M: with lock nut
B: female diameter

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: pdf_icon.gif TH187 Datasheet.pdf
Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: pdf_icon.gif TH187 Datenblatt.pdf

Screenshot_1

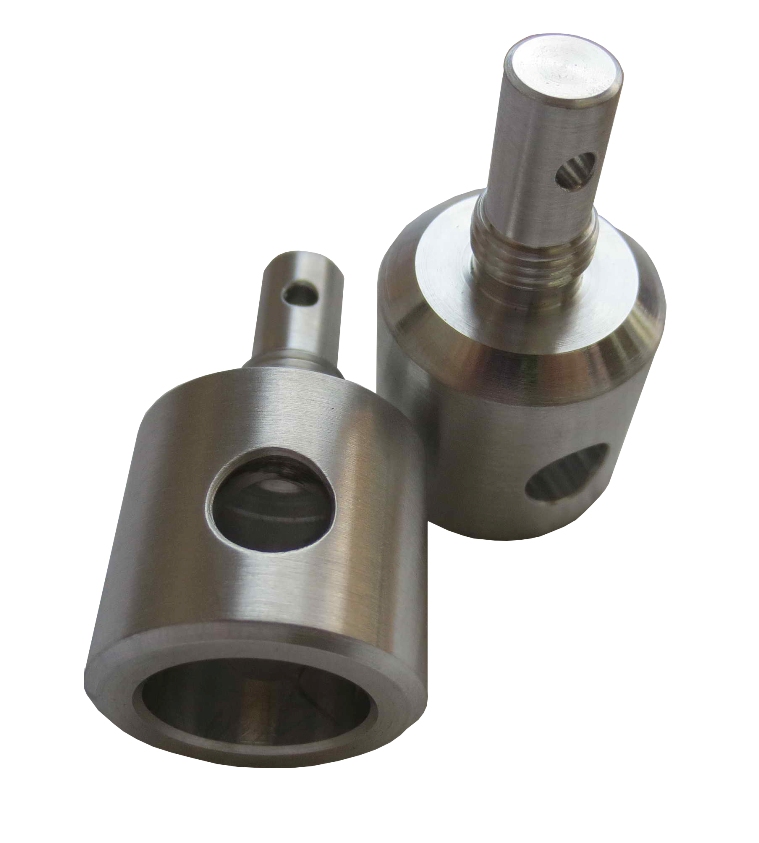

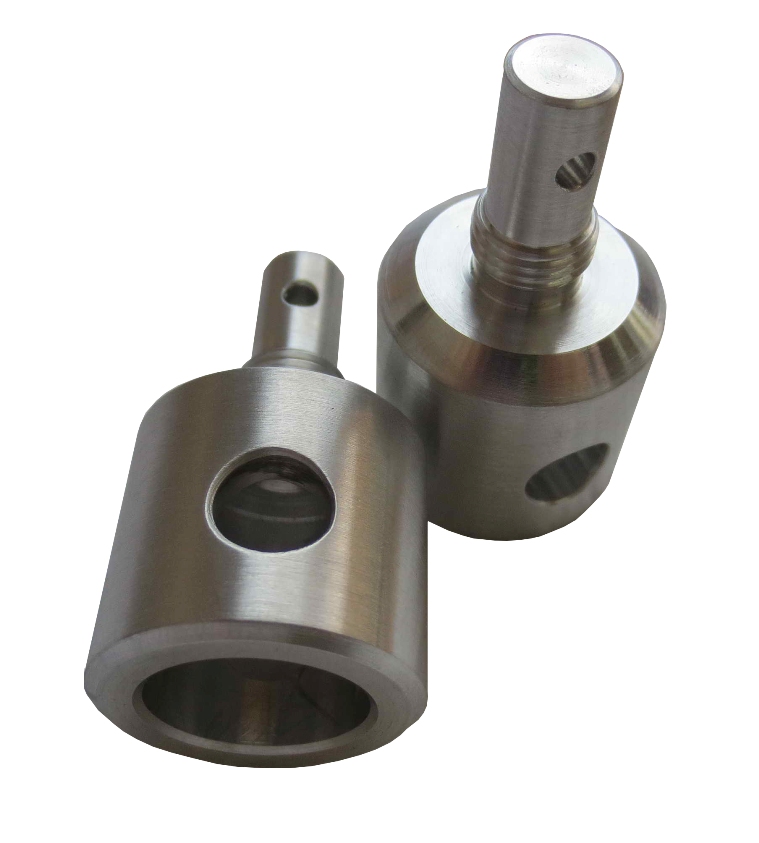

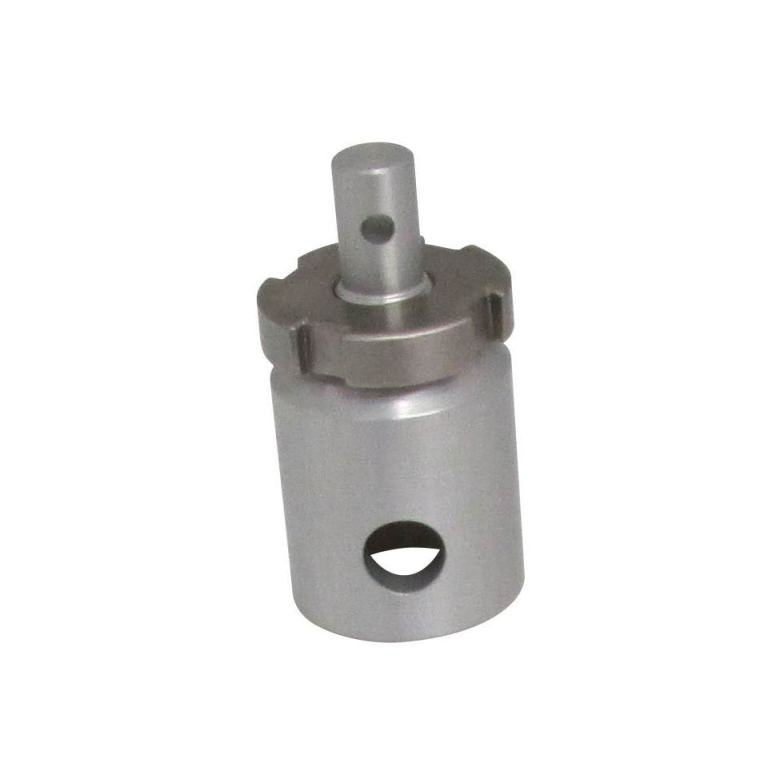

TH187-8-M-159-2013-08-071











TH187-Am8-M-Af159

Adapter male Ø 8 mm with pin
hole Ø 3 mm - thread with 1 nut
female Ø 15.9 mm with pin hole Ø 8 mm Aluminum.

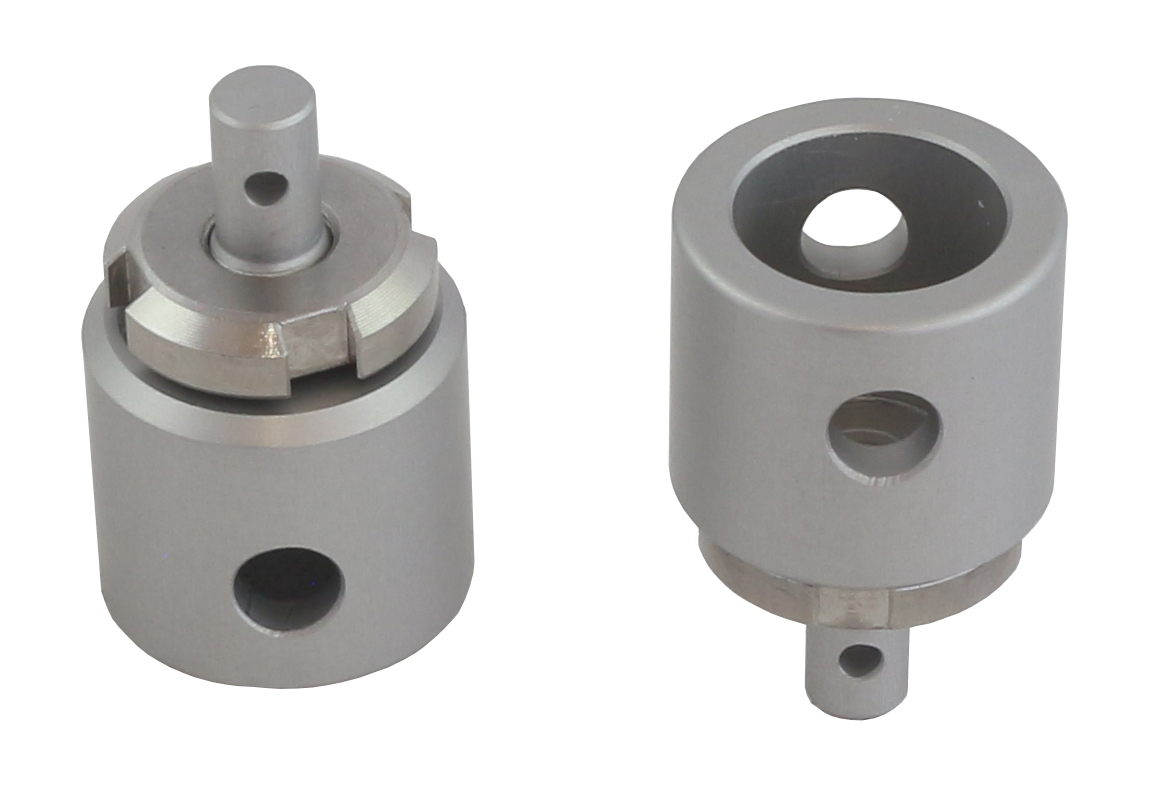

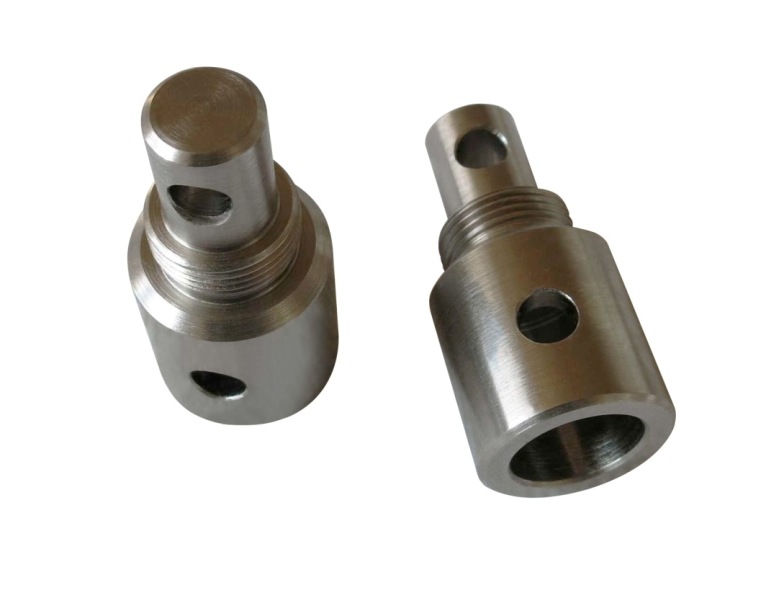

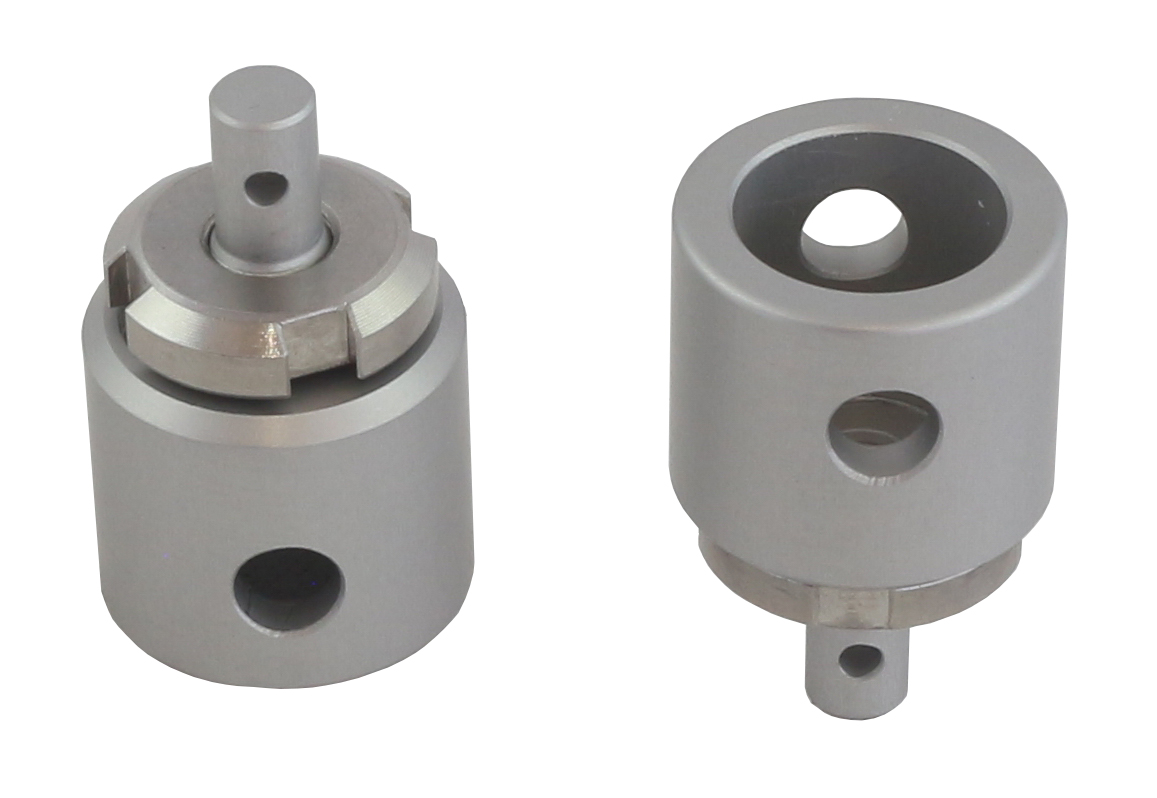

TH187-8-M-20-Alua-2016-09-271













TH187-Am8-M-Af20-Al

Adapter male Ø 8 mm with pin
hole Ø 3 mm - thread with 1 nut
female Ø 20 mm with pin hole Ø 8 mm. Aluminum.

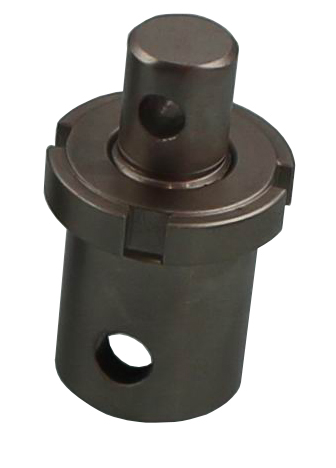

TH187-14-M-159 2021-10-161

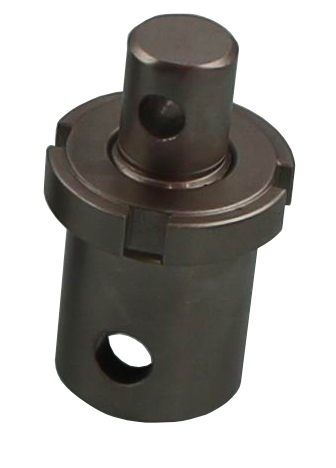

TH187-Am14-M-Af159

Adapter male Ø 14 mm with pin
hole Ø 6 mm

female Ø 15.9 mm with pin hole Ø 8 mm
incl. 2x pins, without locking nut

Aluminum.

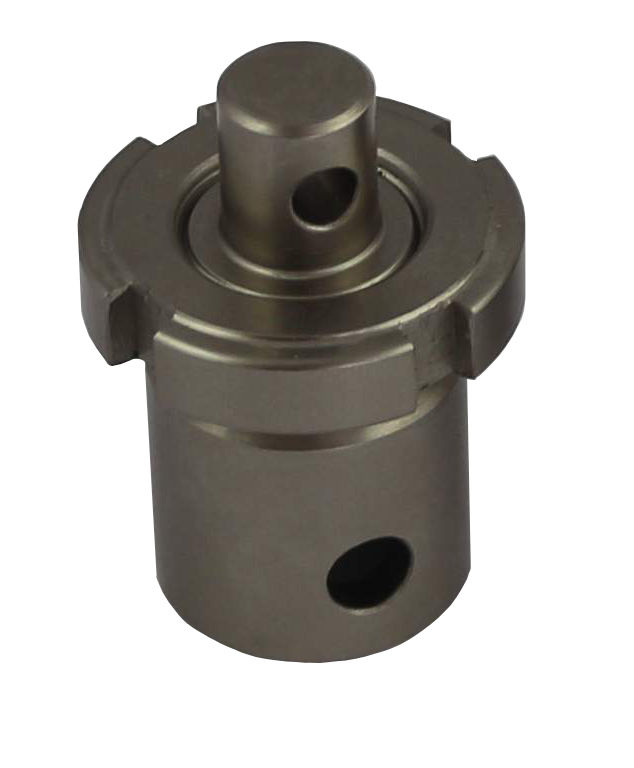

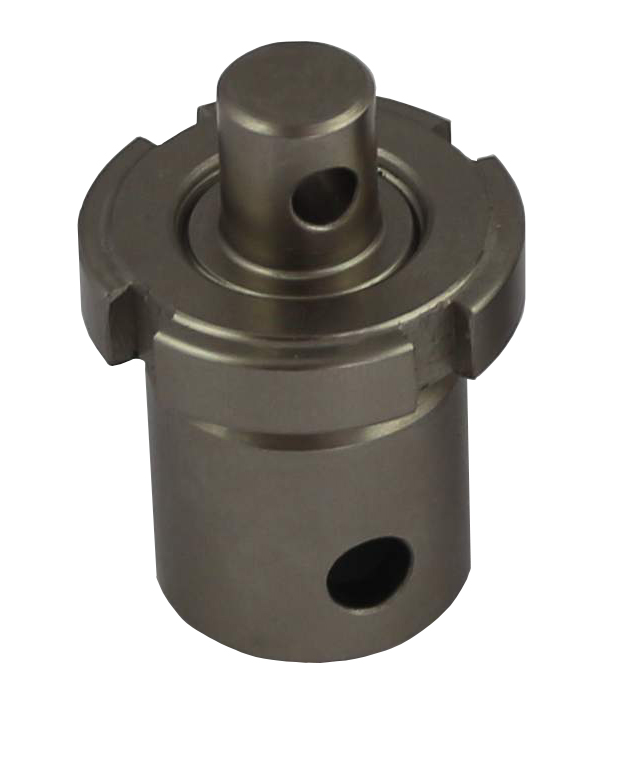

TH187-14-M-20 2018-07-131















TH187-Am14-M-Af20

Adapter male Ø 14 mm

female Ø 15.9 mm.





TH187-158-M-8032a 2018-09-1511









TH187-Am158-M-Af8

Adapter male Ø 15.8 mm with pin
hole Ø 8 mm

female Ø 8 mm with pin hole Ø 3 mm,

incl. 2x pins, without locking nut

Steel,nickel-coated.

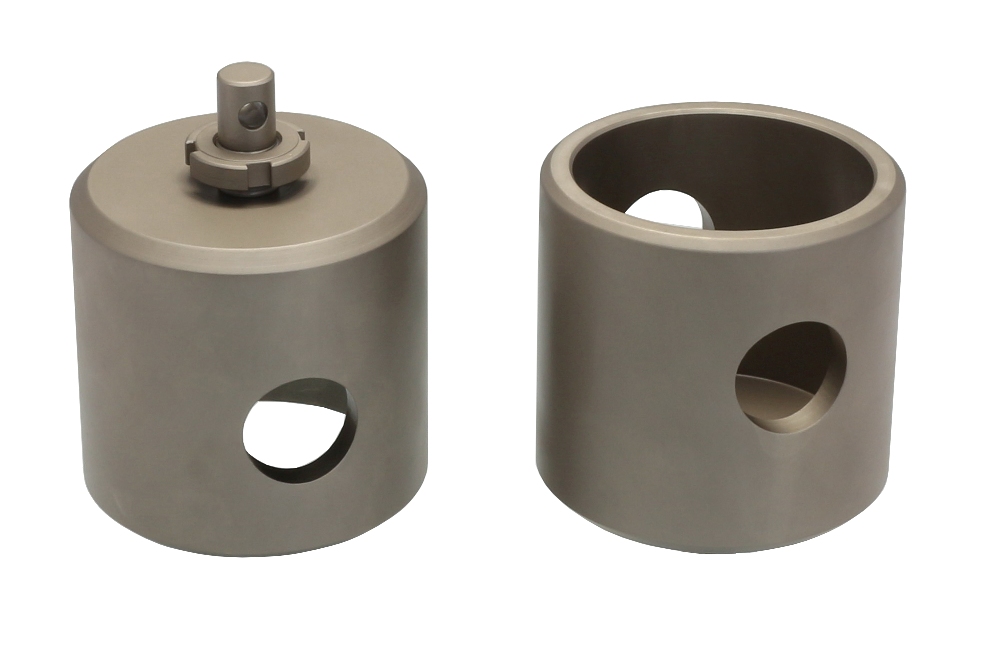

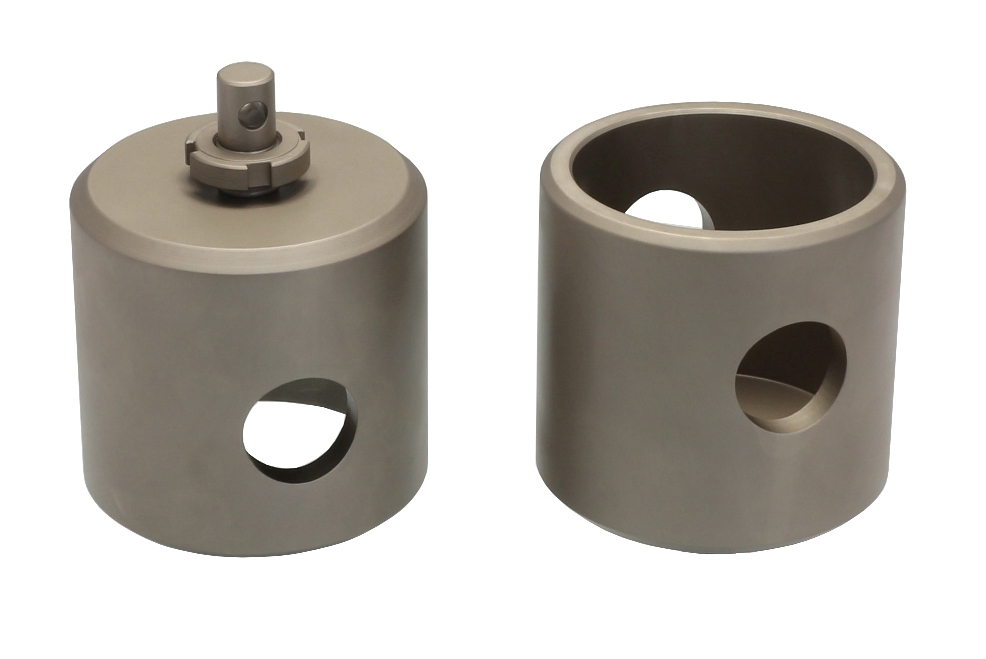

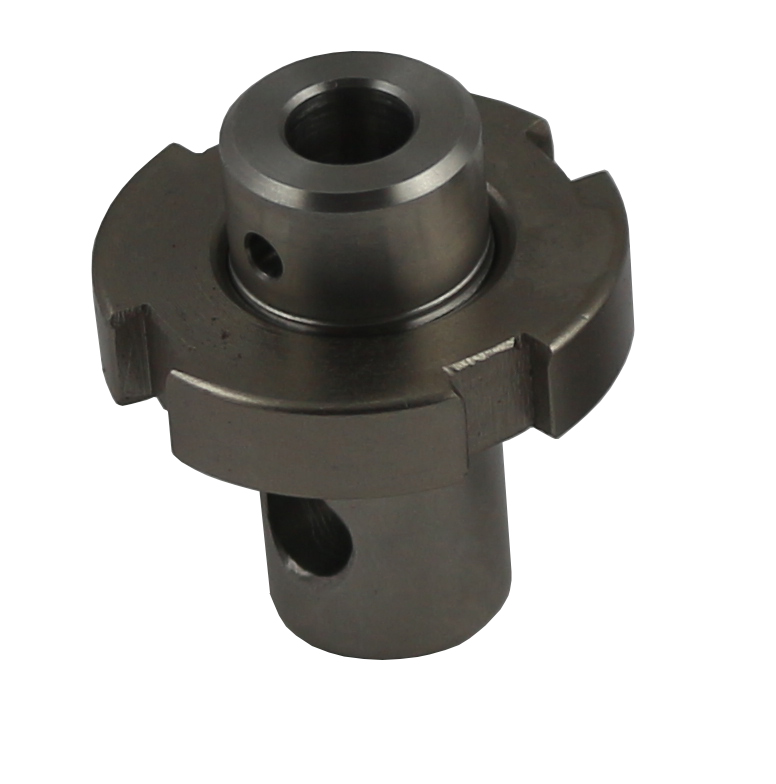

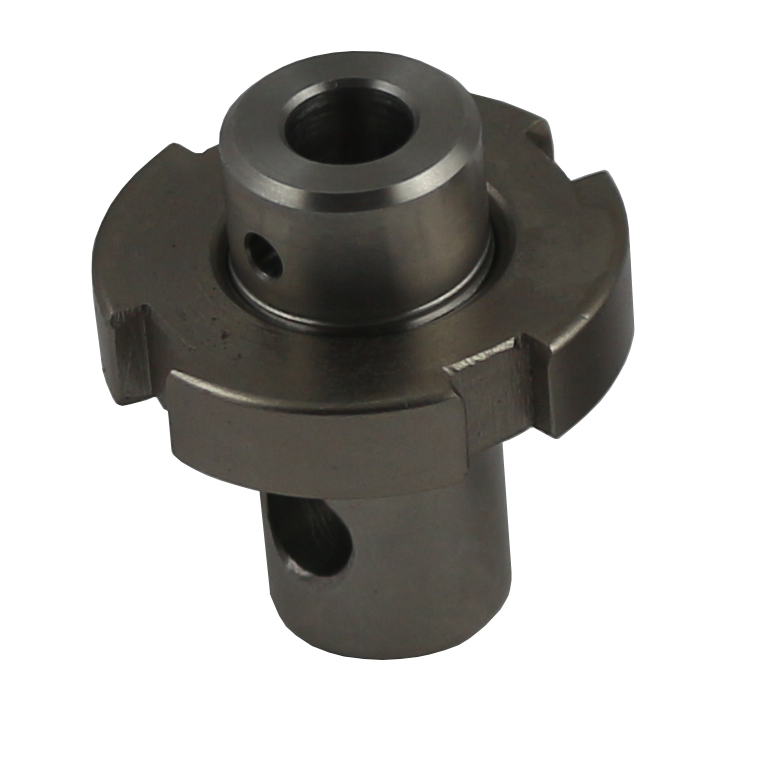

TH187-158-M-8-V2aa-2017-12-141











TH187-Am158-M-Af8-V2a

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm

female Ø 8 mm with pin hole Ø 3 mm,

incl. 2x pins, without locking nut.

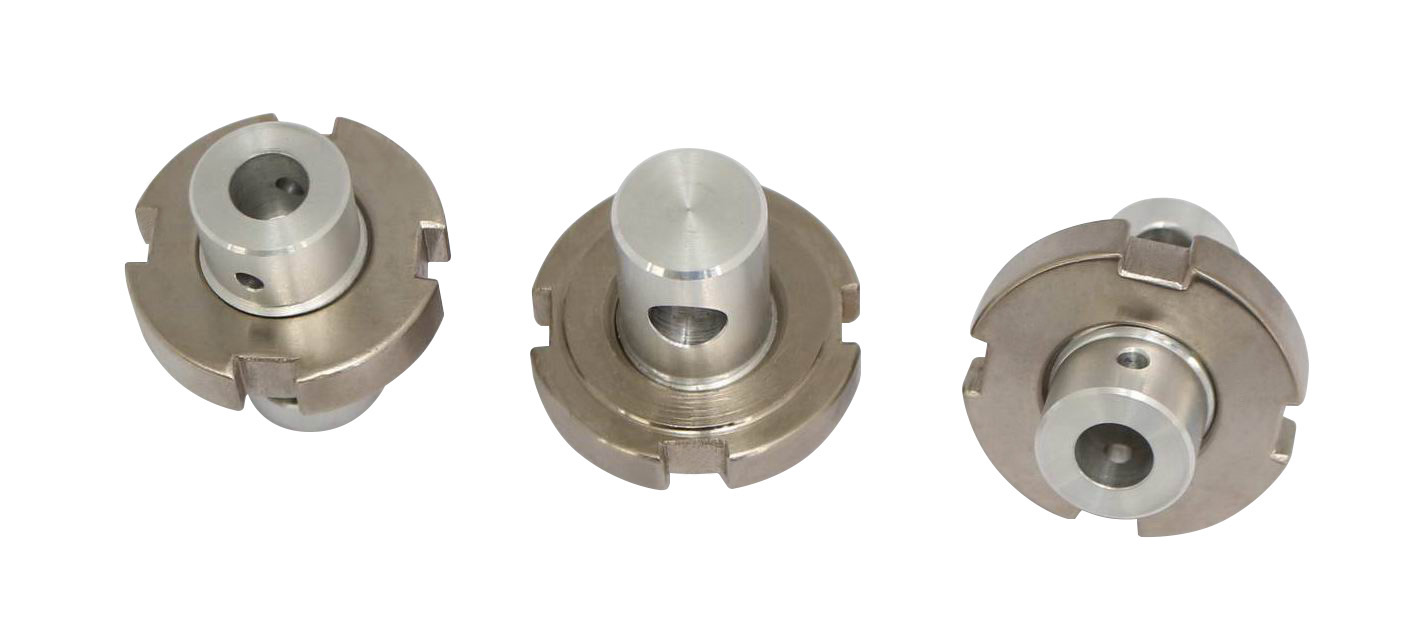

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-8-.jpg

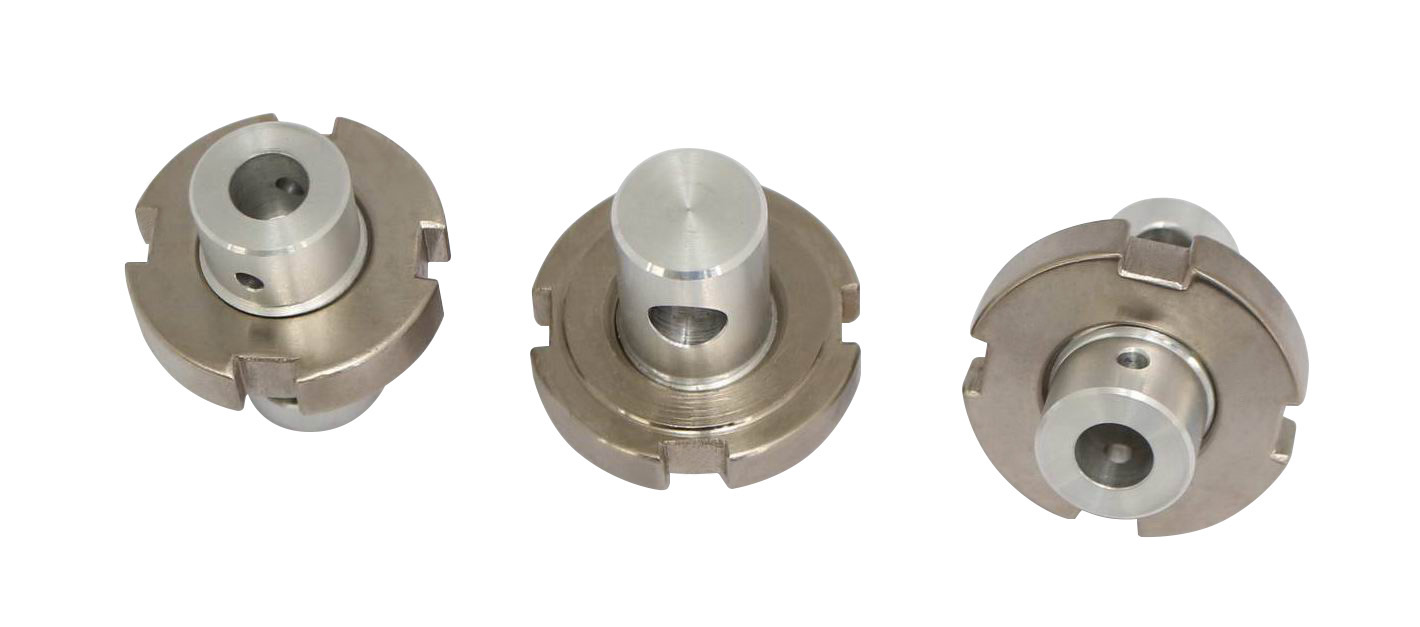

TH187-Am158-M-Af8-Al



Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 8 mm with pin hole Ø 3 mm Aluminum.

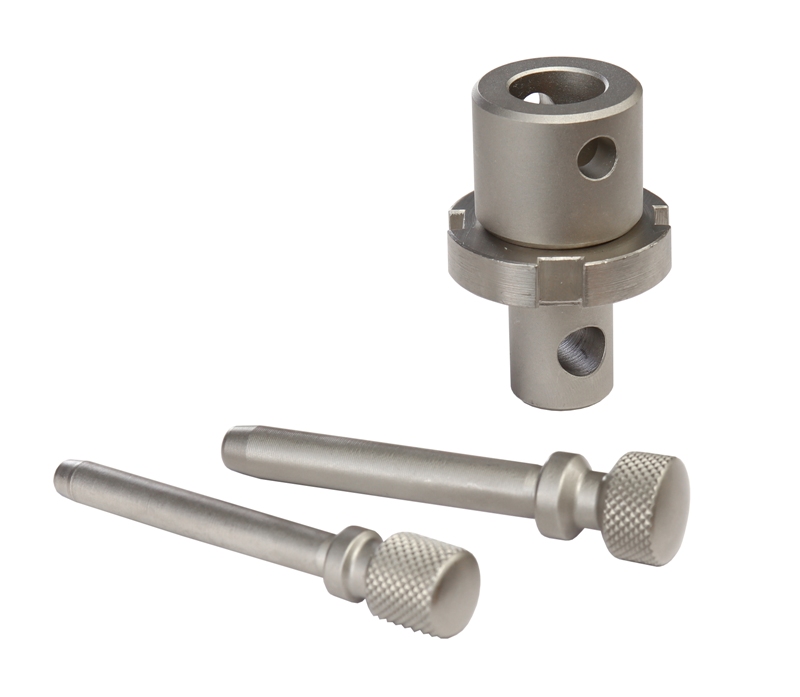

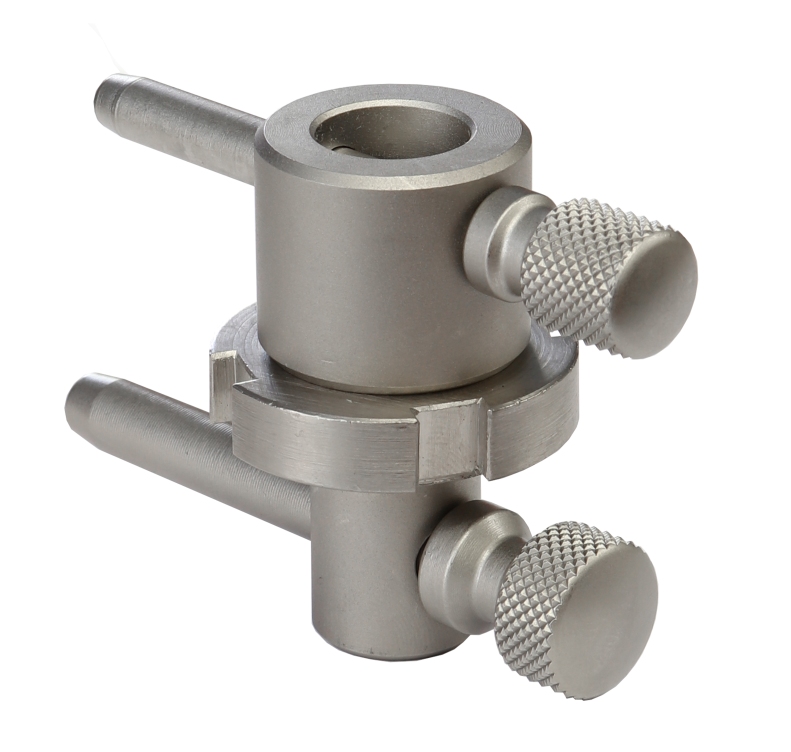

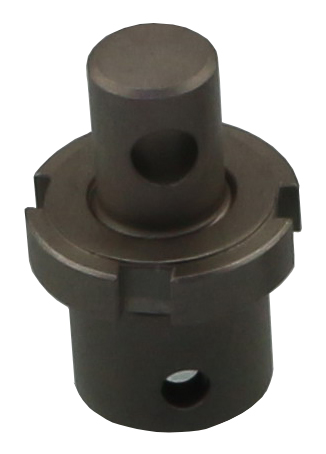

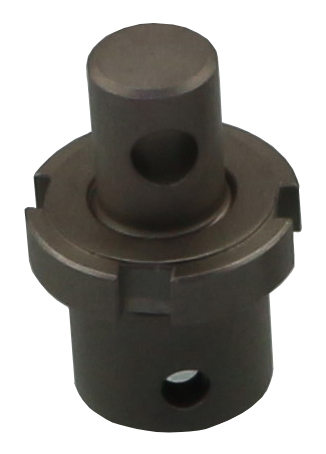

TH187-158-M-14_6 2020-12-16 ready 16h20x1











TH187-Am158-M-Af14/6


Adapter male Ø 15.8mm with
pin hole Ø 8 mm

female Ø 14 mm with pin hole Ø 6.3 mm

Incl. 1x locking nut and 2x pins.

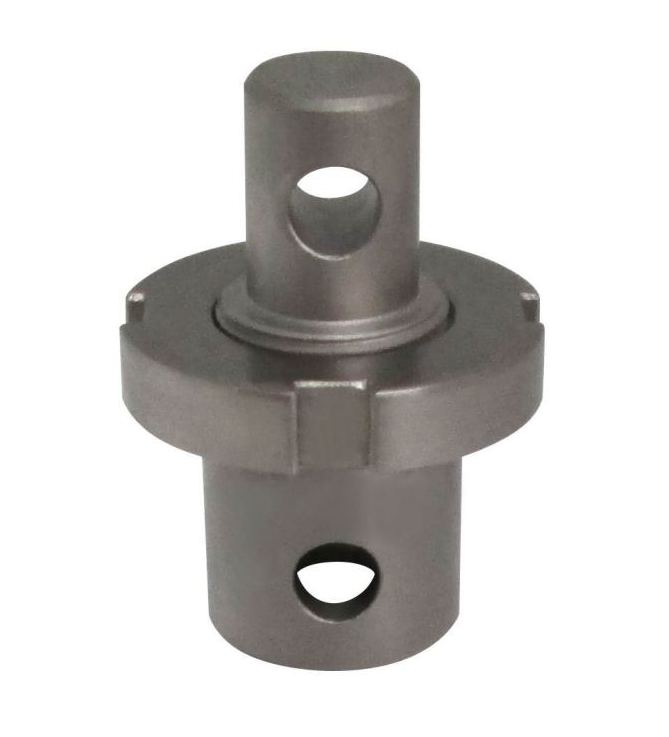

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-159-.











TH187-Am158-M-Af159

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm

female Ø 15.9 mm with pin hole Ø 8 mm,

1x locking nut and 2x pins.

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-208515-2014-03-21-

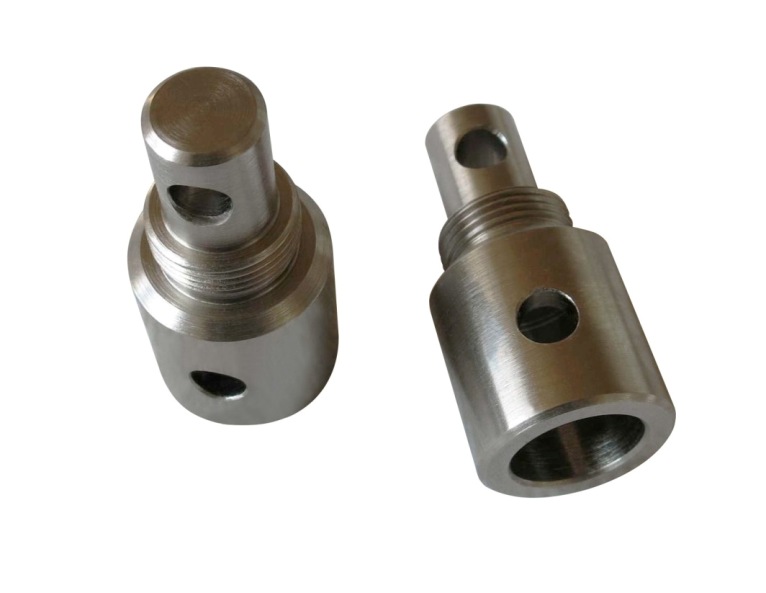

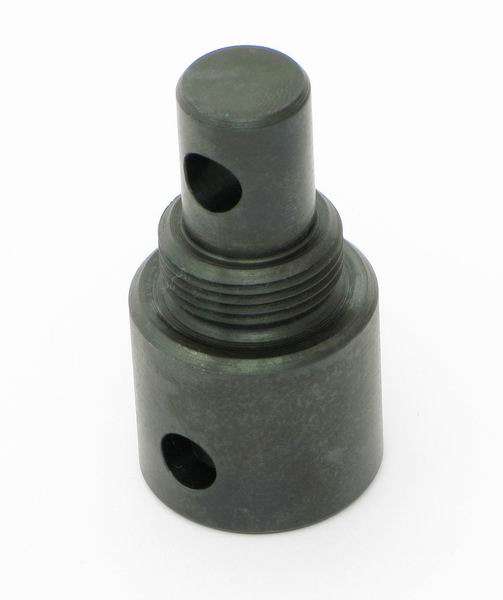

TH187-Am158-M-Af20

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 20 mm with pin hole Ø 8 mm Steel, nickel-coated.



TH187-158-M-318-25-2L 2019-11-30 ready 134h120x(450x)1

TH187-Am158-M-Af318-25-2L

Adapter male Ø 15.8 mm, thread
with 1 nut - female Ø 31.8 mm
Steel, nickel-coated.

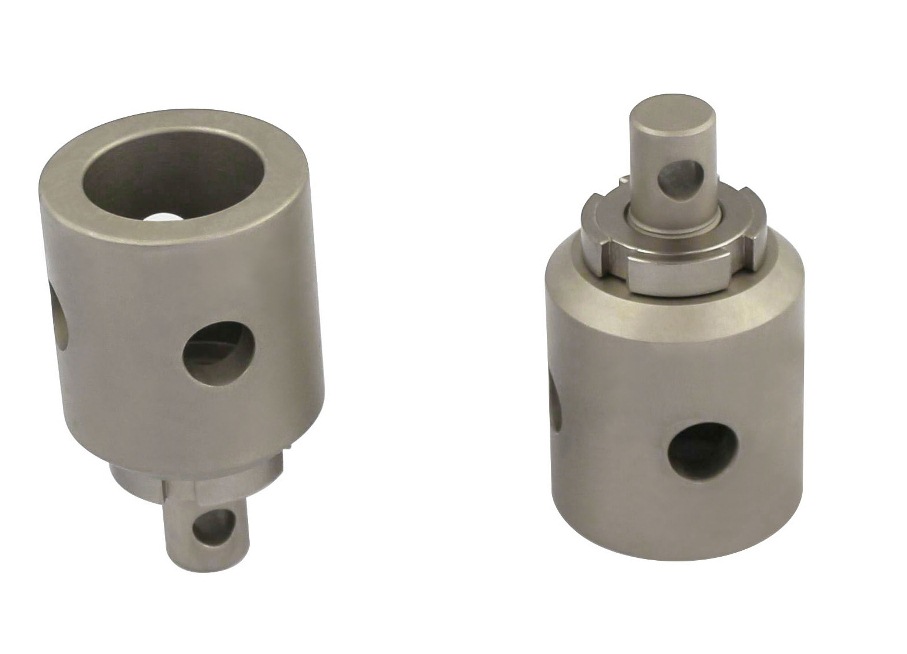

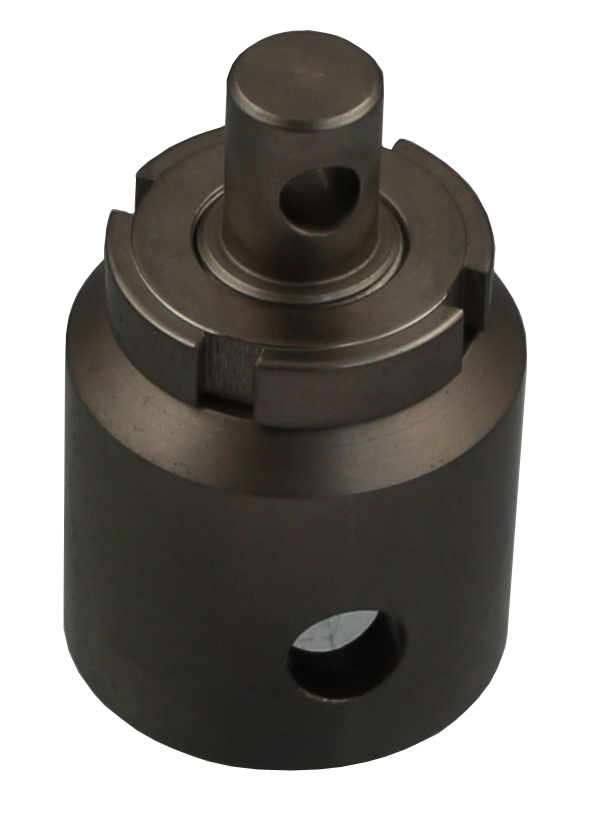

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-318-2L

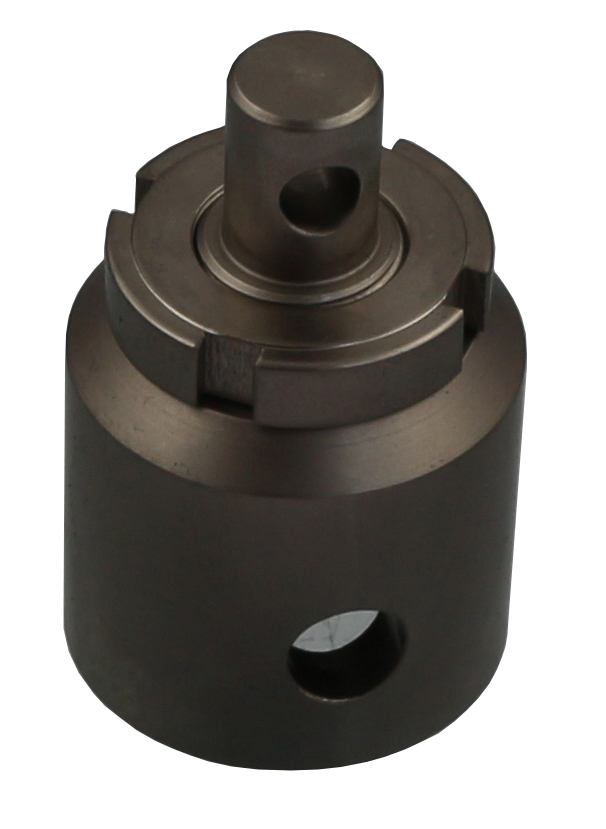

TH187-Am158-M-Af318-2L

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 31.8 mm with pin hole Ø12.8 mm
Steel, nickel-coated.



TH187-158-M-32_12.45 2018-11-06 ready 4h1x1

TH187-Am158-M-Af32/12.4

Adapter male Ø 15.8 mm ,
female Ø 32 mm.

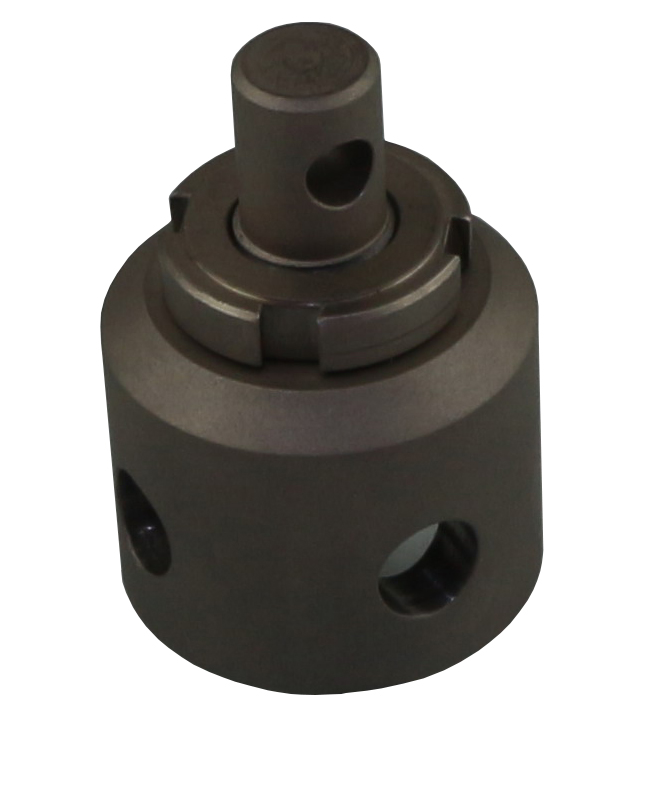

TH187-158-M-32_12.4-2L 2020-05-29 ready 21h7x1

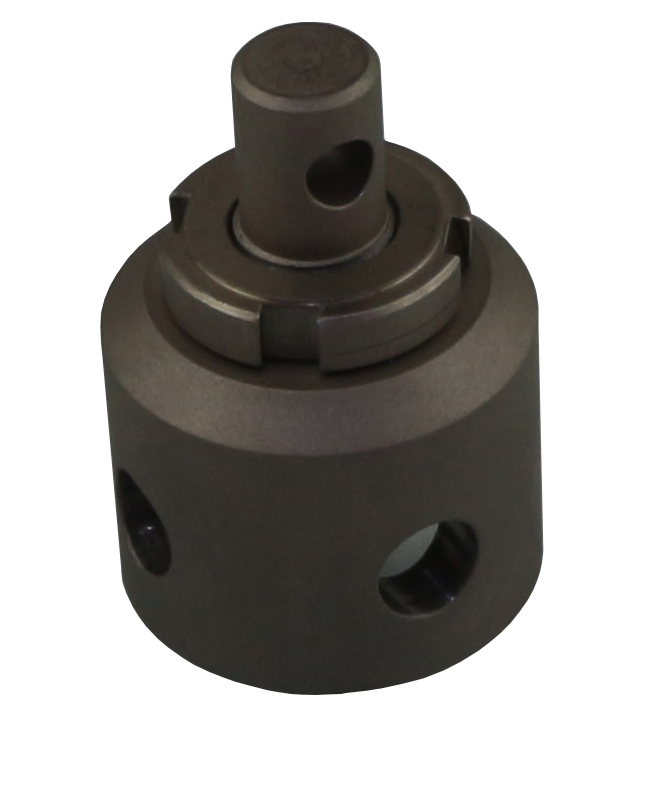

TH187-Am158-M-Af32/12.4-2L

Adapter male Ø 15.8 mm ,
female Ø 32 mm.

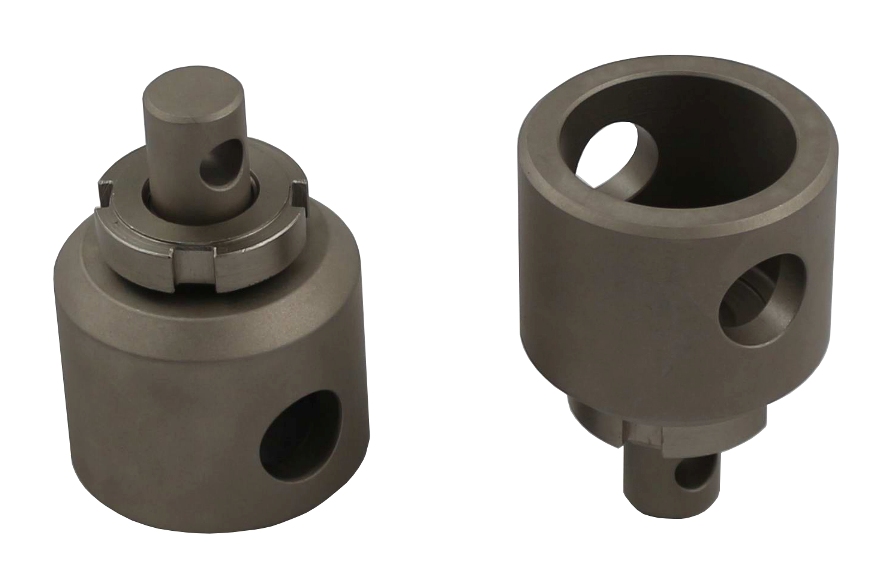

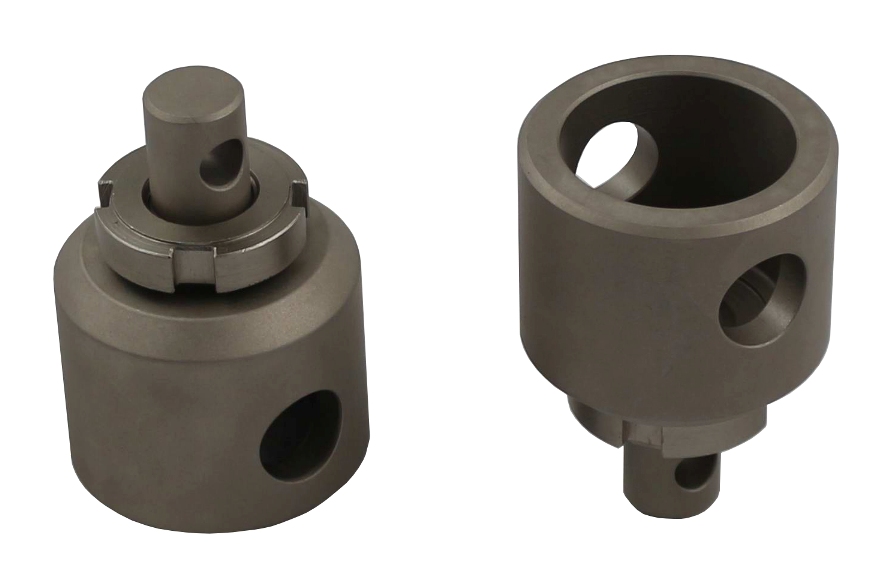

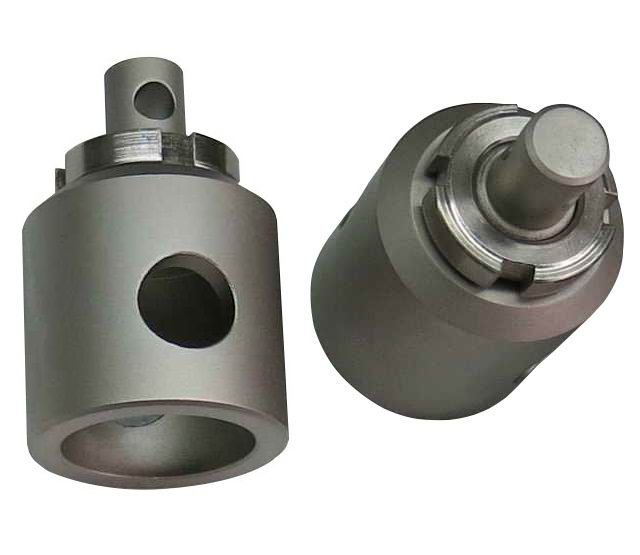

TH187-158-M-3616a-2018-01-2522

TH187-Am158-M-Af36/16

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 36 mm with pin hole Ø 18 mm
Steel, nickel-coated.

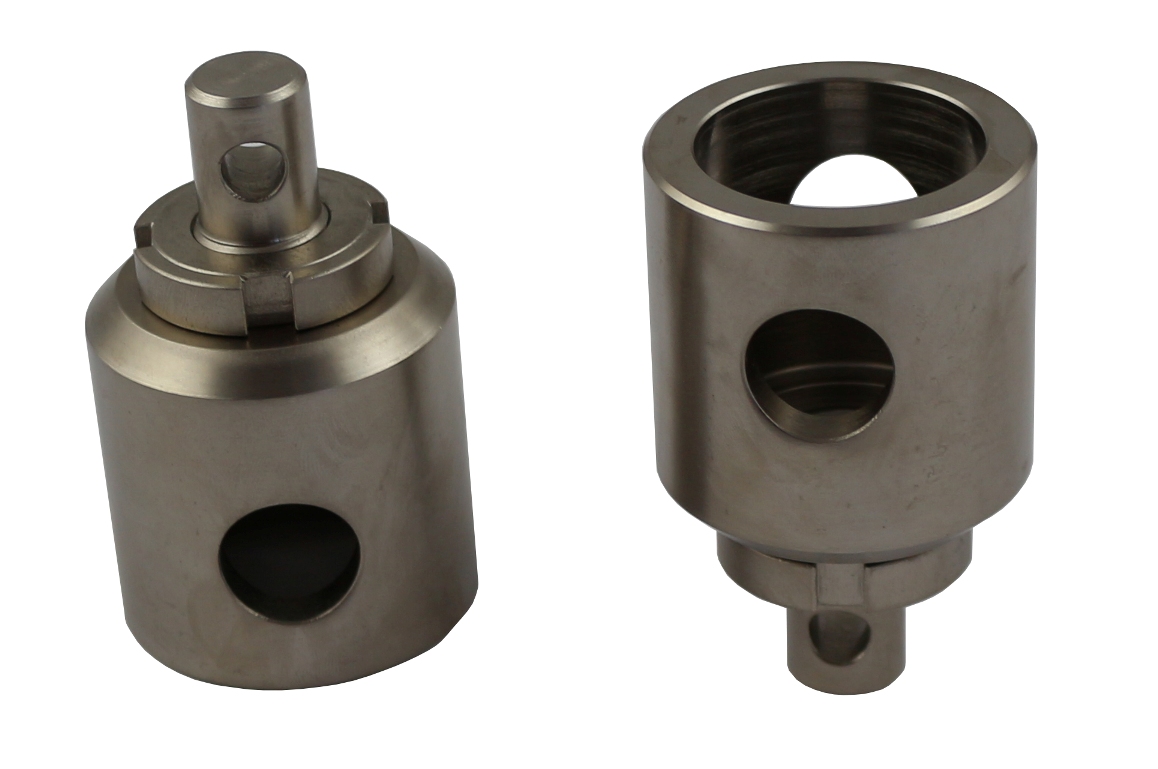

TH187-158-M-3618a-2017-08-3022

TH187-Am158-M-Af36/18


Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 36 mm with pin hole Ø 18 mm
Steel, nickel-coated.



TH187-Am158-M-Af318-2L-NA

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 31.8 mm with pin hole 12.8 mm Steel, nickel-coated.

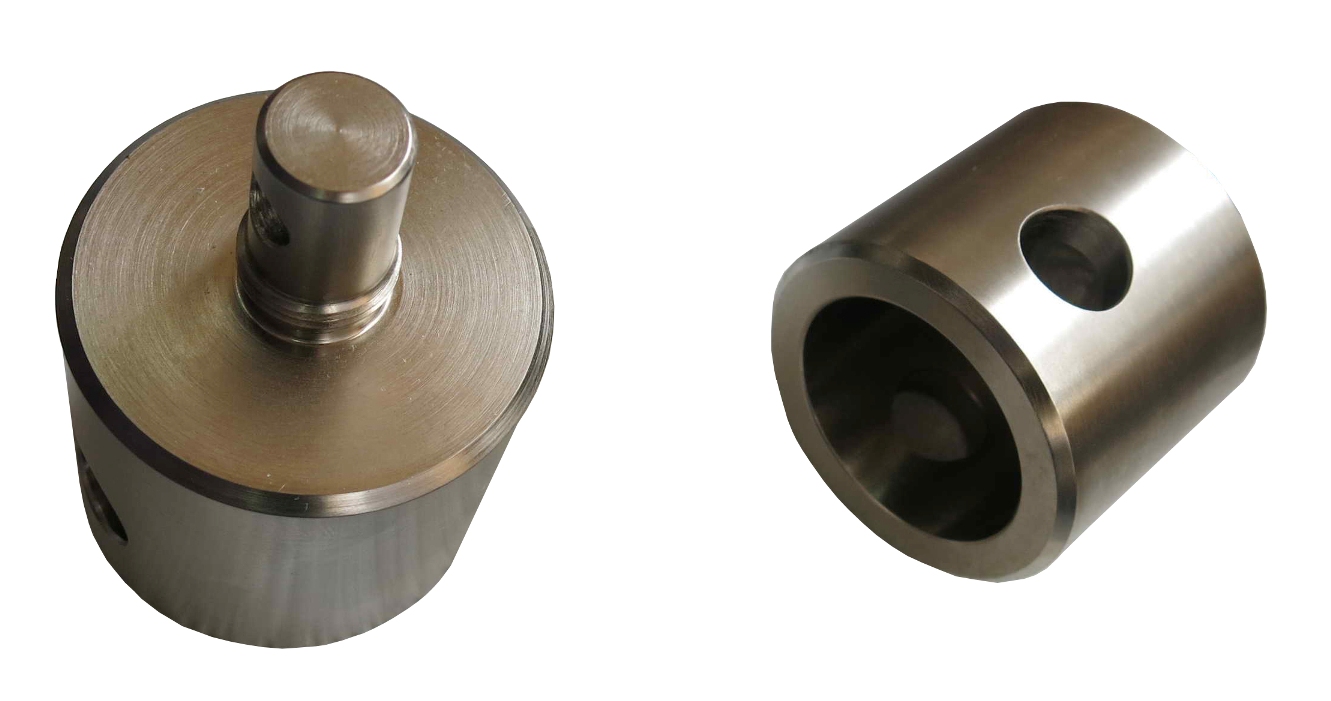

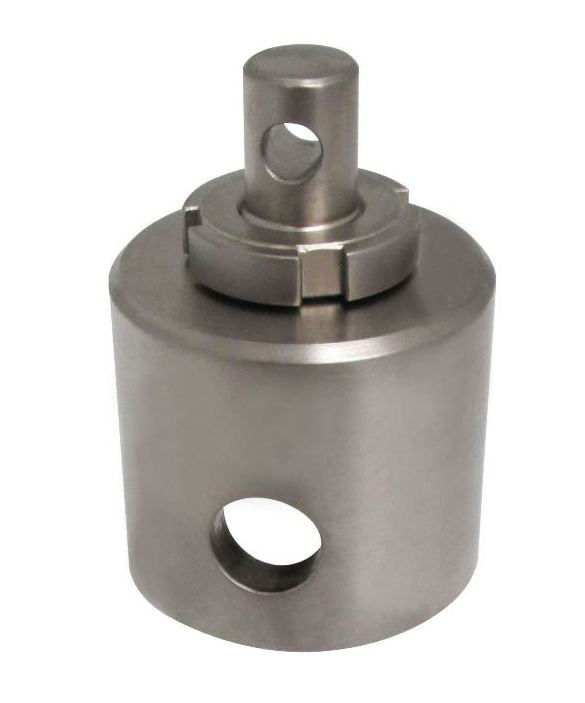

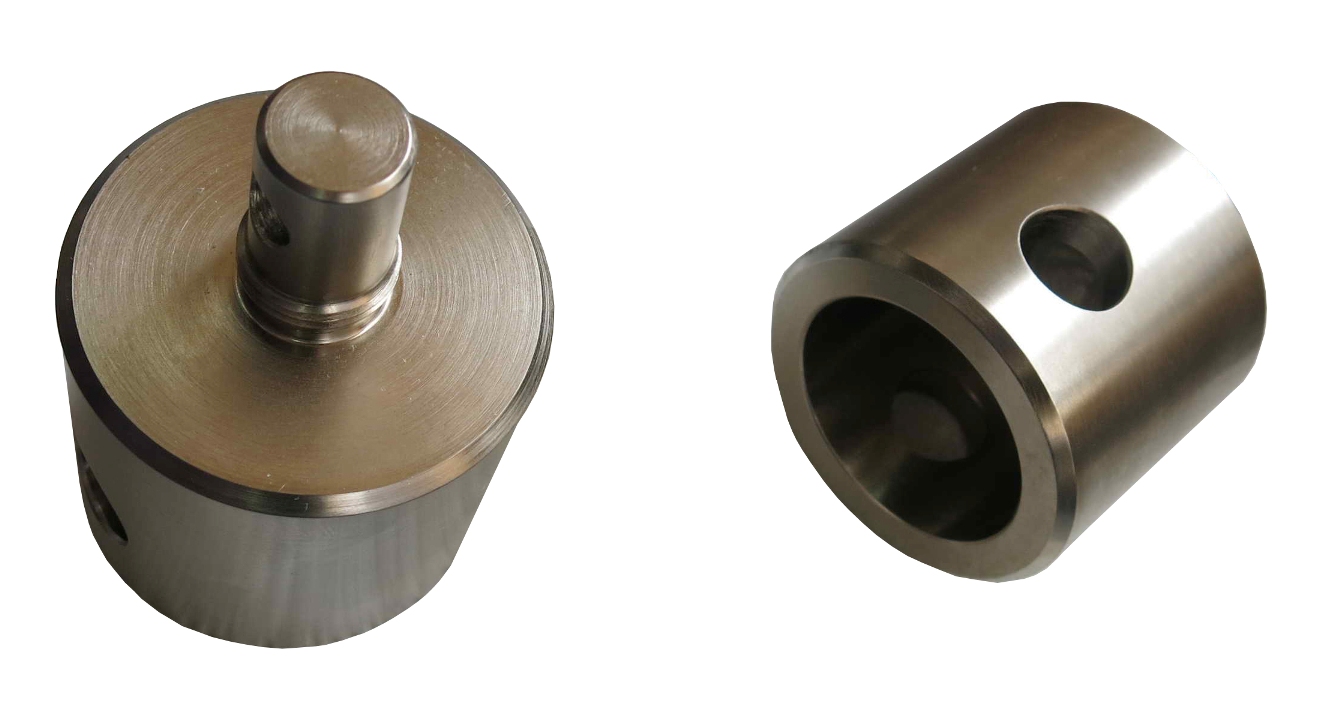

TH187-158-M-40-2014-02-0611

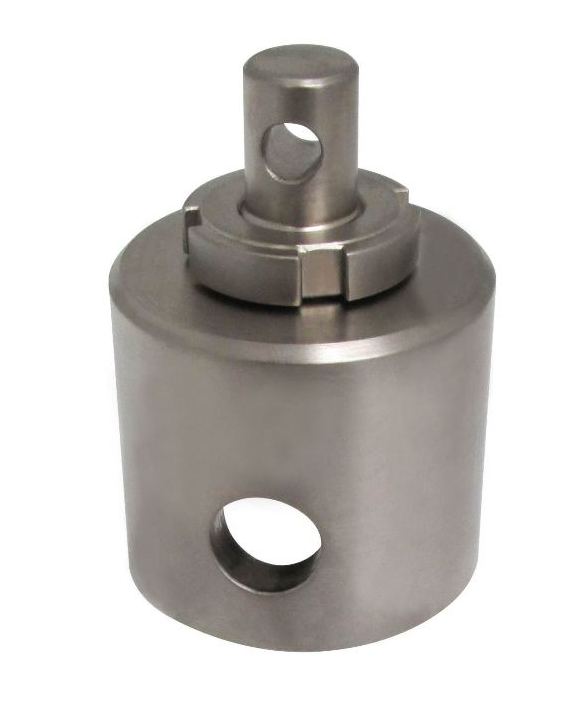

TH187-Am158-M-Af40

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 40 mm with pin hole Ø 16 mm. Steel, nickel-coated.



Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-40-

TH187-Am158-M-Af40

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 40 mm with pin hole Ø 16 mm
Steel, nickel-coated.

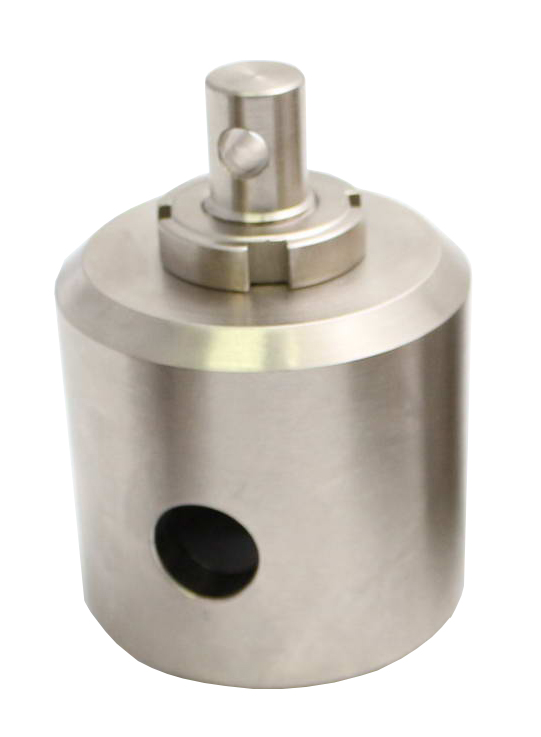

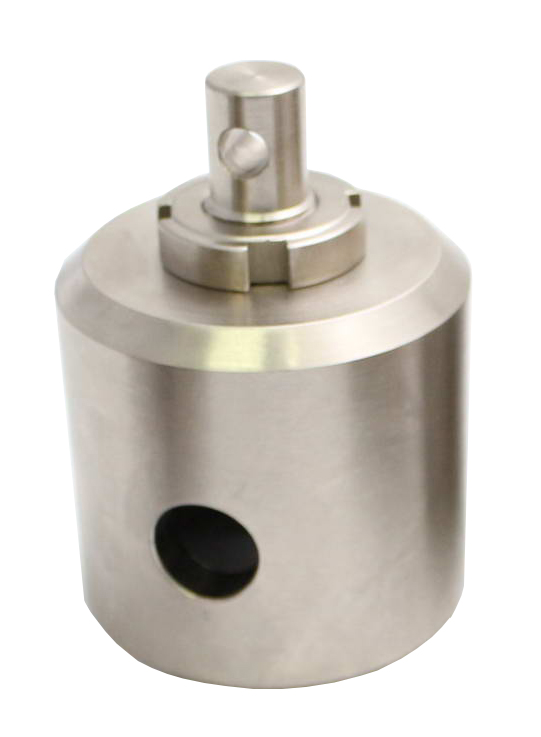

TH187-158-M-50175 2016-02-161

TH187-Am158-M-Af50/175-St

Adapter male Ø 15.8 mm - Thread
female Ø 50/17.5 mm

Incl. 1x locking nut and 2x pins
Steel, nickel-coated.

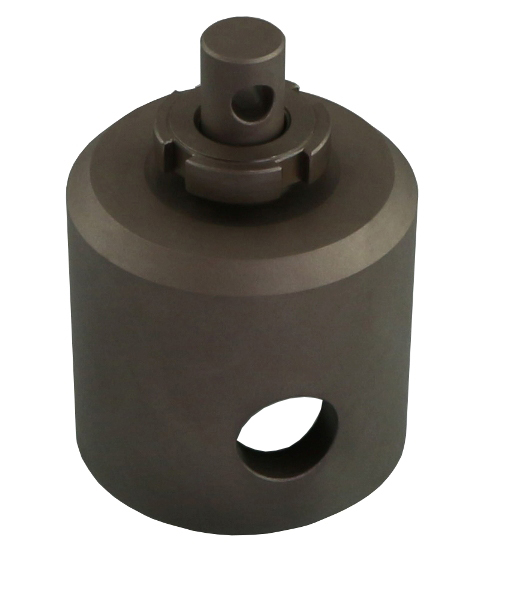

TH187-158-M-50_20 2020-06-23 ready 9.5h4x(17x)1

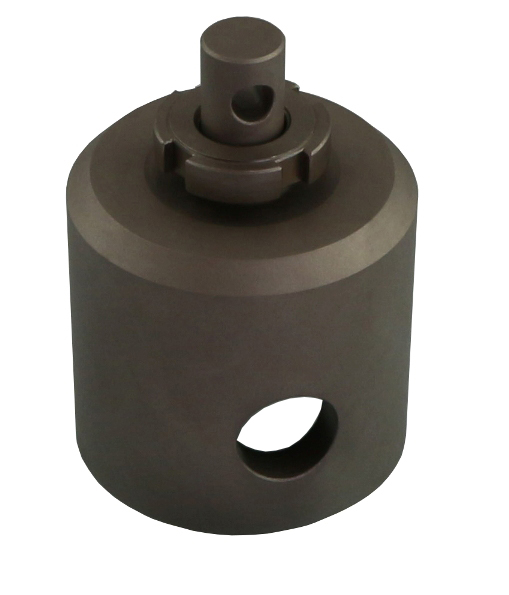

TH187-Am158-M-Af50/20-St


Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 50 mm with pin hole Ø 25 mm Steel, nickel-coated.

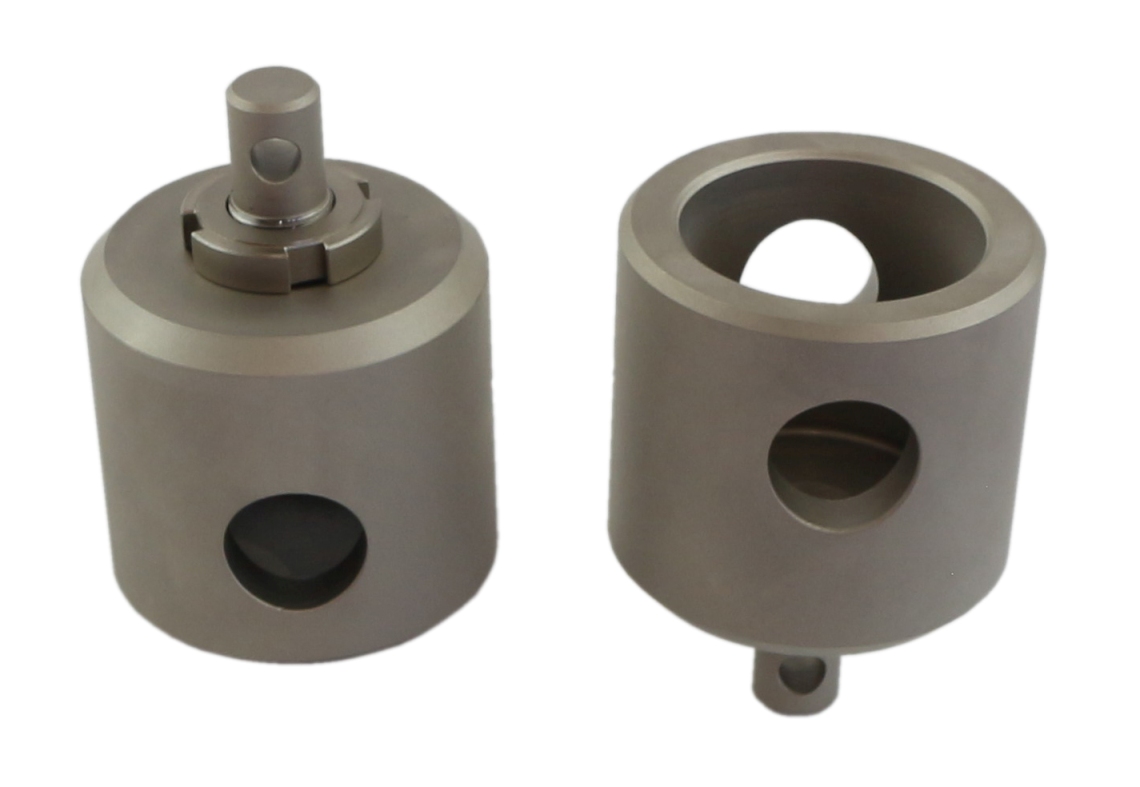

TH187-158-M-5024 2022-06-04

TH187-Am158-M-Af50/24-St

Adapter male Ø 15.8/8 mm - Thread female Ø 50/24 mm

Incl. 1x locking nut and 2x pins.

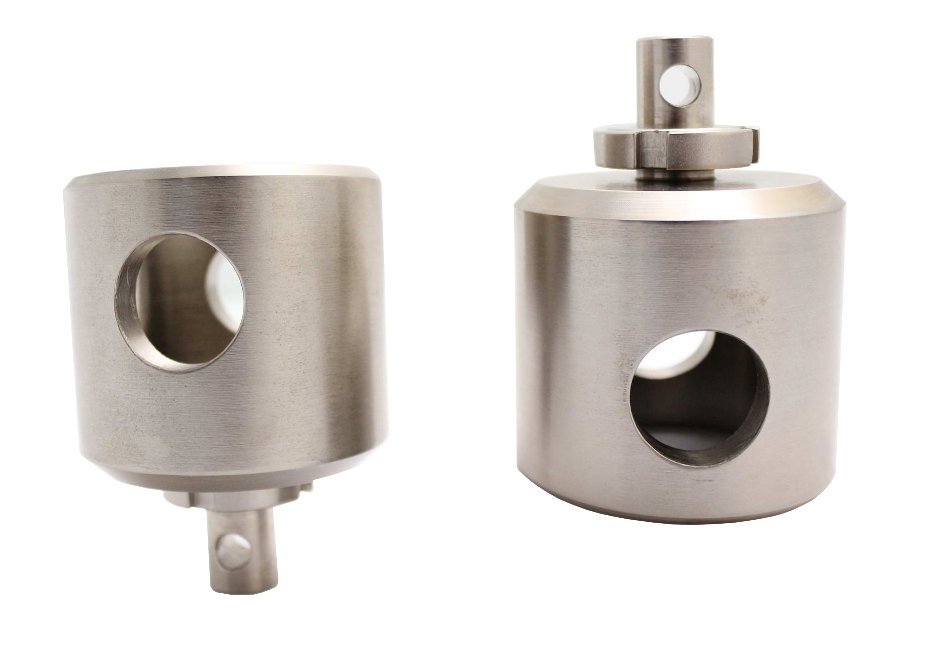

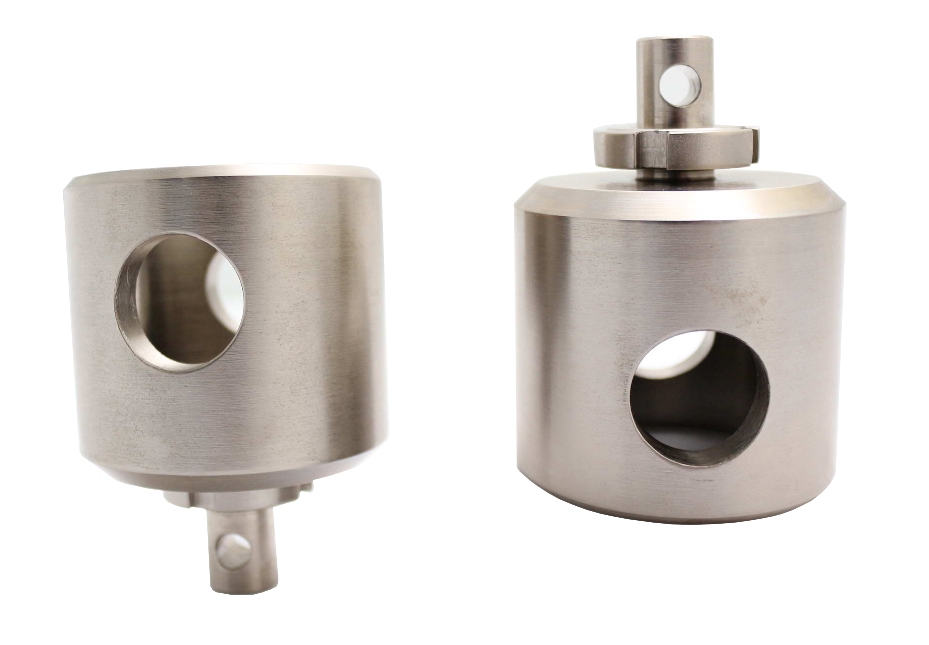

TH187-158-M-5025b 2016-02-1611

TH187-Am158-M-Af50/25-St

Adapter male Ø 15.8/8 mm - Thread female Ø 50/25 mm

Incl. 1x locking nut and 2x pins.

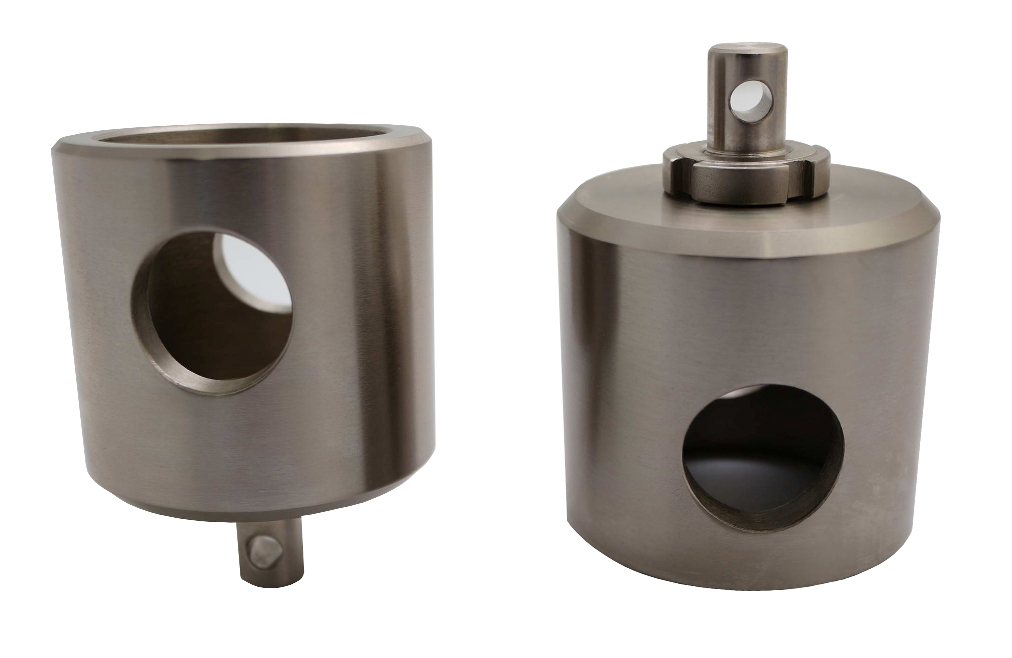

TH187-158-M-603030 2016-02-161111

TH187-Am158-M-Af6030-30-St

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 60 mm with pin hole Ø 30 mm Steel, nickel-coated.

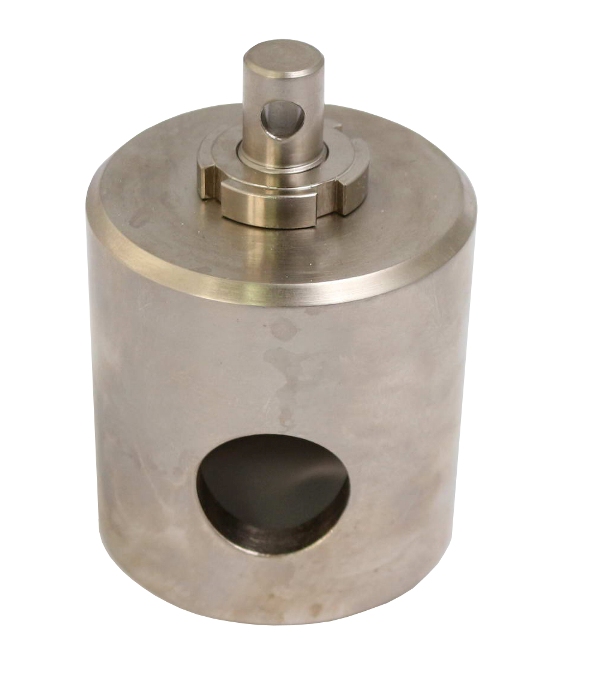

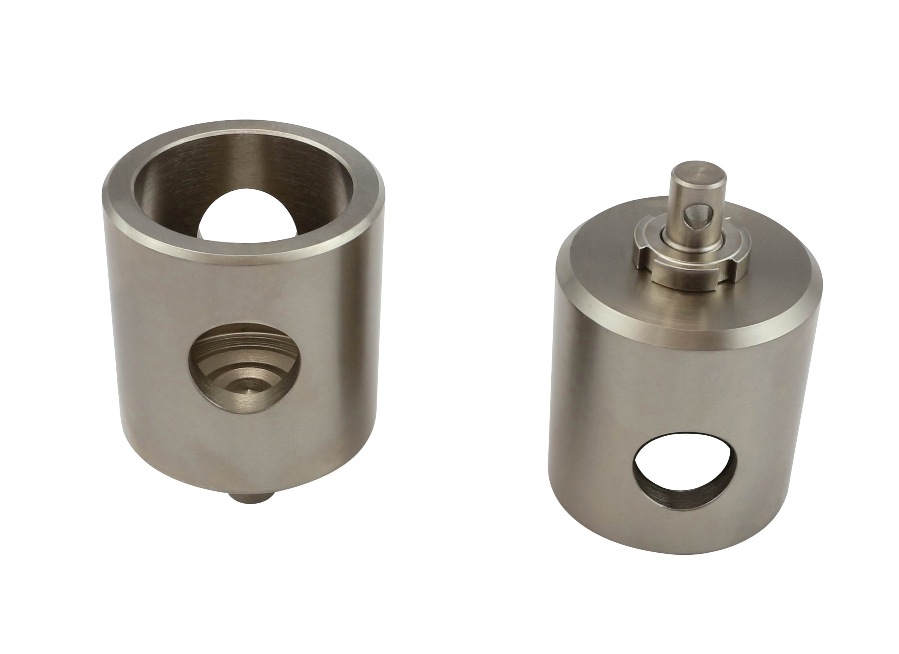

TH187-158-M-603035 2015-12-121

TH187-Am158-M-Af6030-35-St

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 60 mm with pin hole Ø 30 mm Steel, nickel-coated.



Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-158-M-603035-.jpg

TH187-Am158-M-Af6030-35-St

Adapter male Ø 15.8 mm with
pin hole Ø 8 mm - thread with 1 nut
female Ø 60 mm with pin hole Ø 30 mm Steel, nickel-coated.

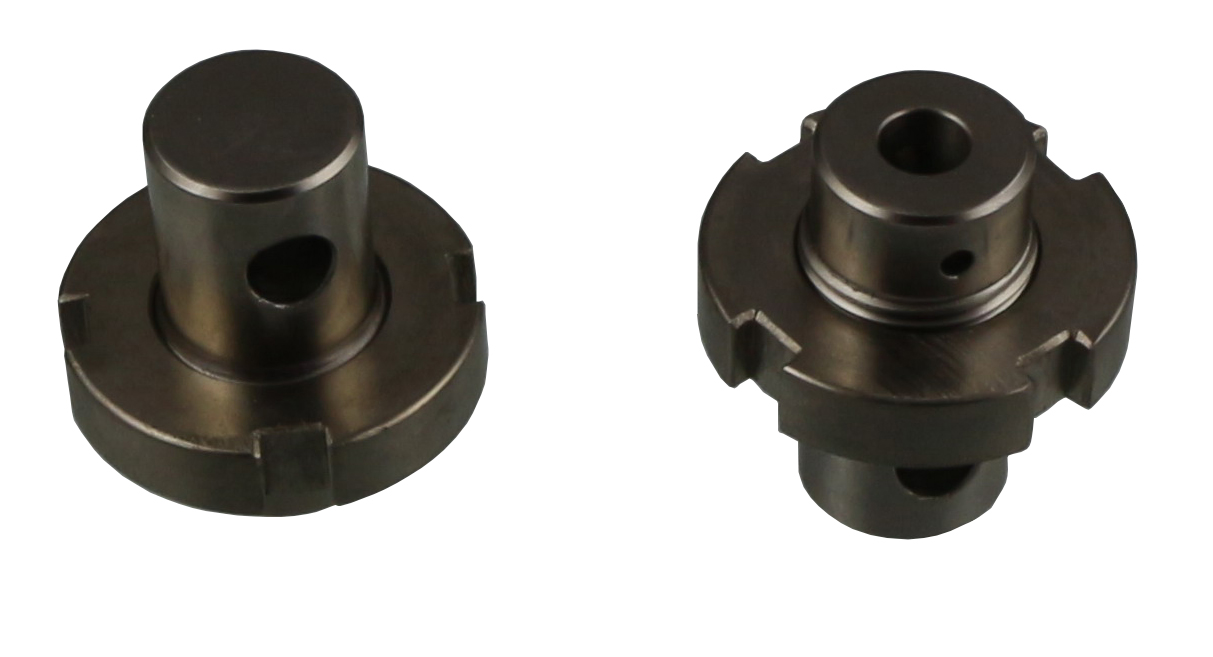

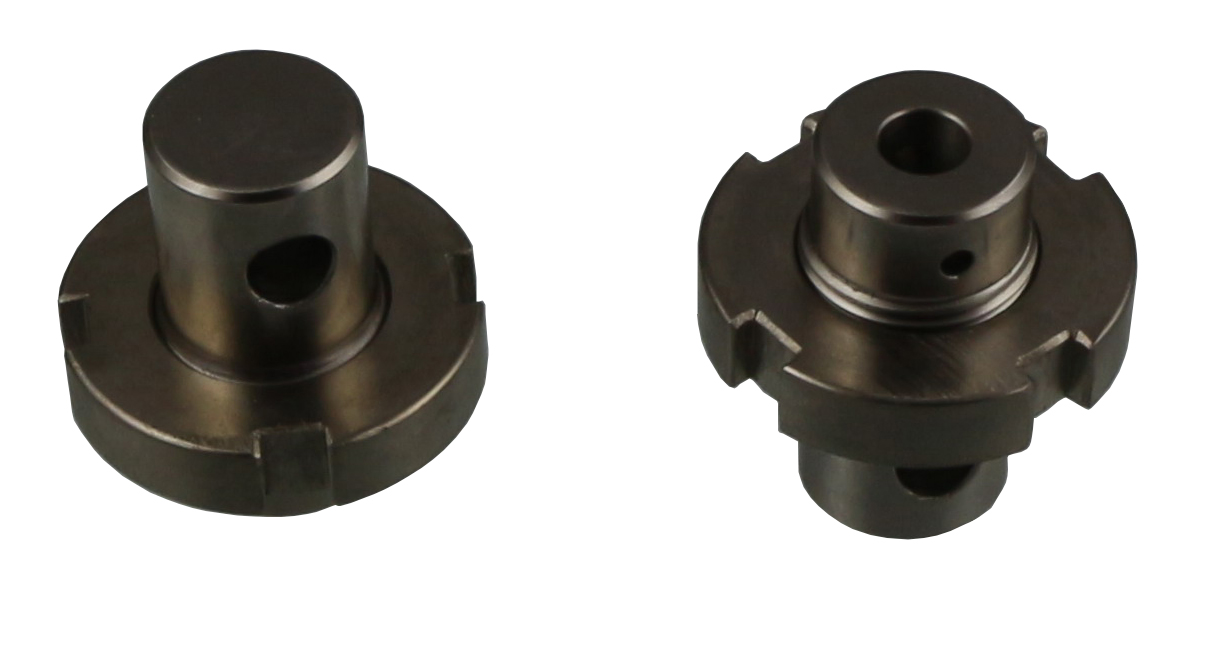

TH187-20-M-8 2019-11-28 ready 11h10x - Copy124

TH187-Am20-M-Af8

Adapter male Ø 20 mm with
pin hole Ø 8 mm

female Ø 8 mm with pin hole Ø 3 mm

1x locking nut and 2x pins.

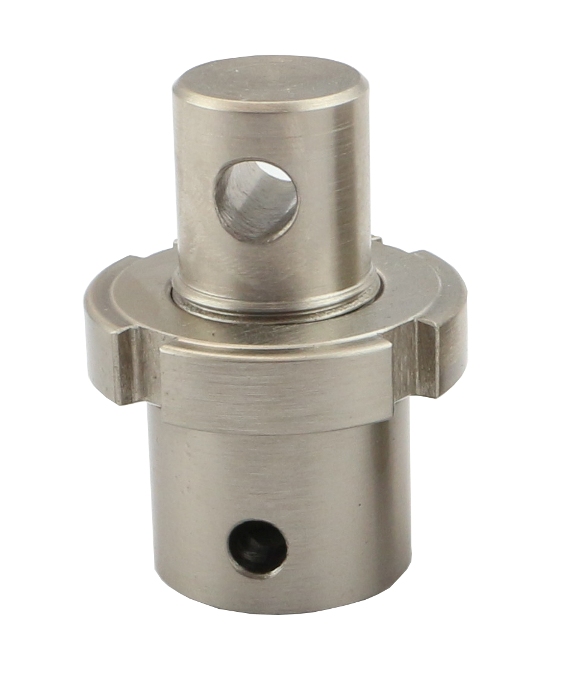

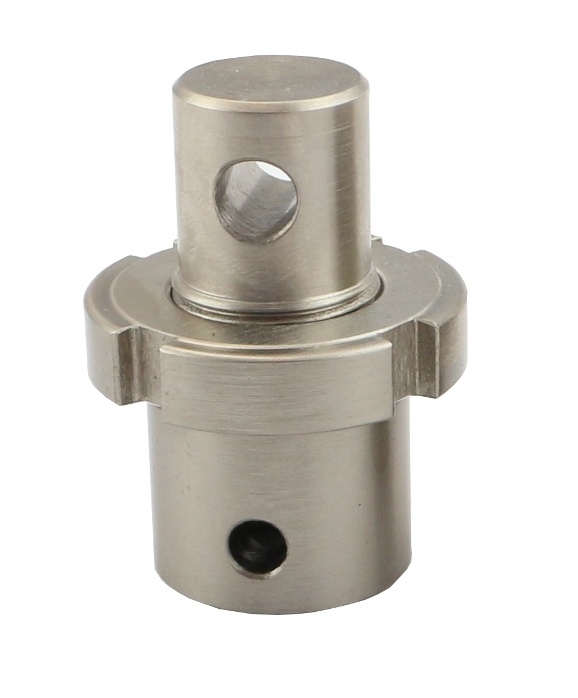

TH187-20-M-14a-2016-10-281

TH187-Am20-M-Af14

Adapter male Ø 20 mm with
pin hole Ø 8 mm

female Ø 14 mm with pin hole Ø 6 mm

incl. 2x pins, without locking nut

Steel, nickel-coated.

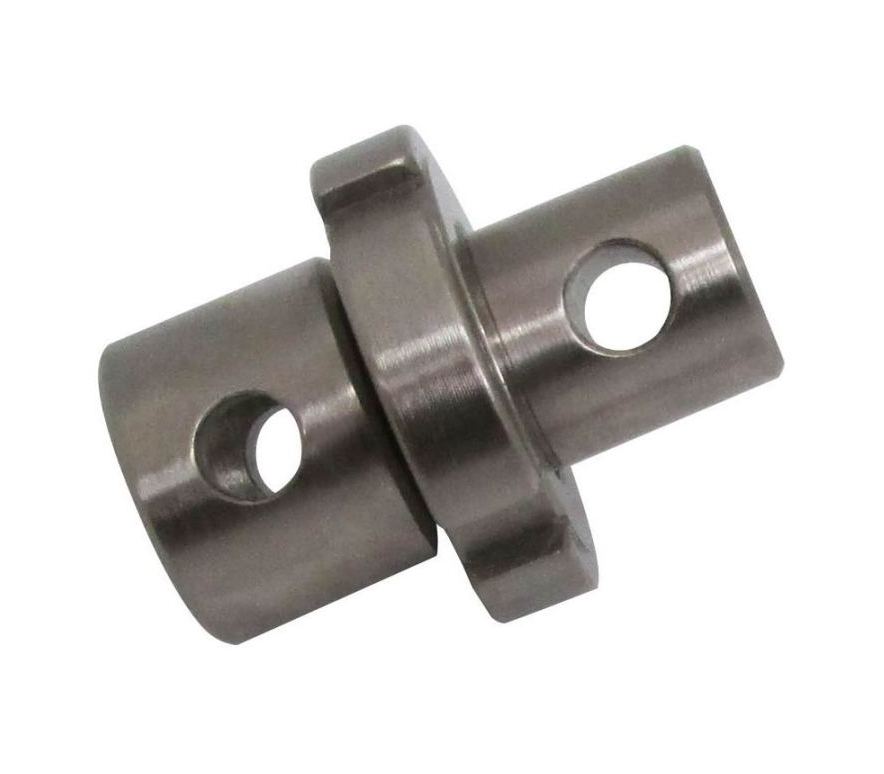

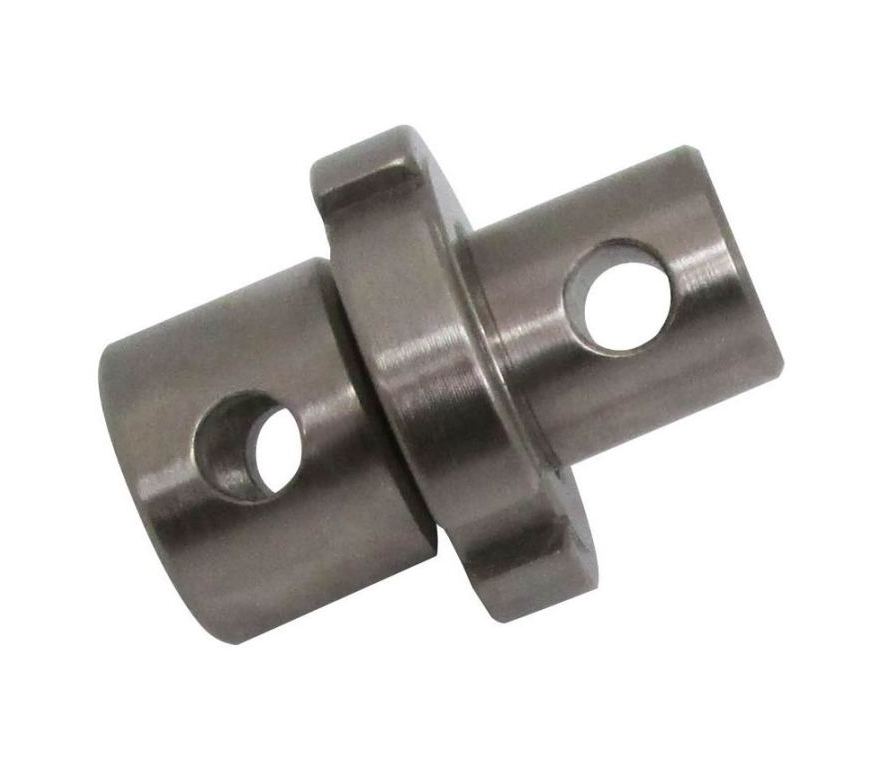

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH187-20M-159-

TH187-Am20-M-Af159



Adapter male Ø 20 mm with
pin hole Ø 8 mm

female Ø 159 mm with pin hole Ø 8 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

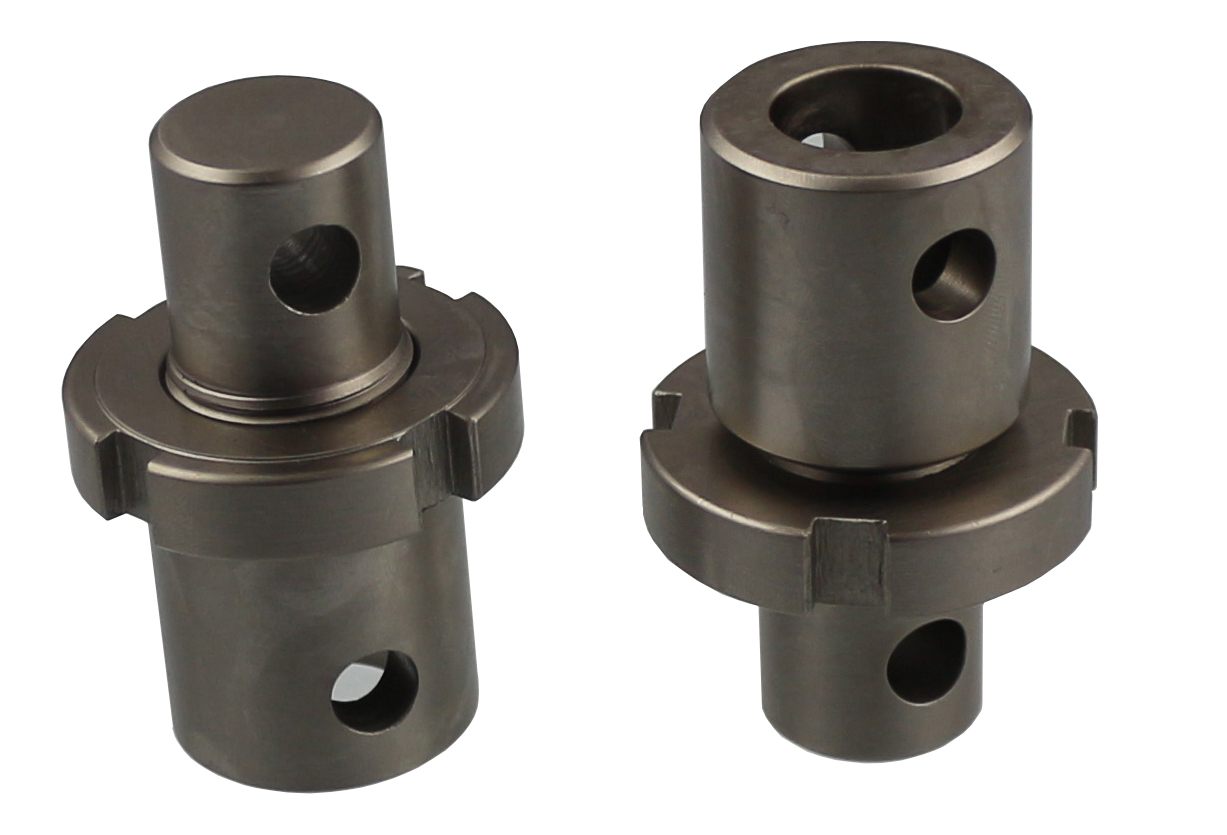

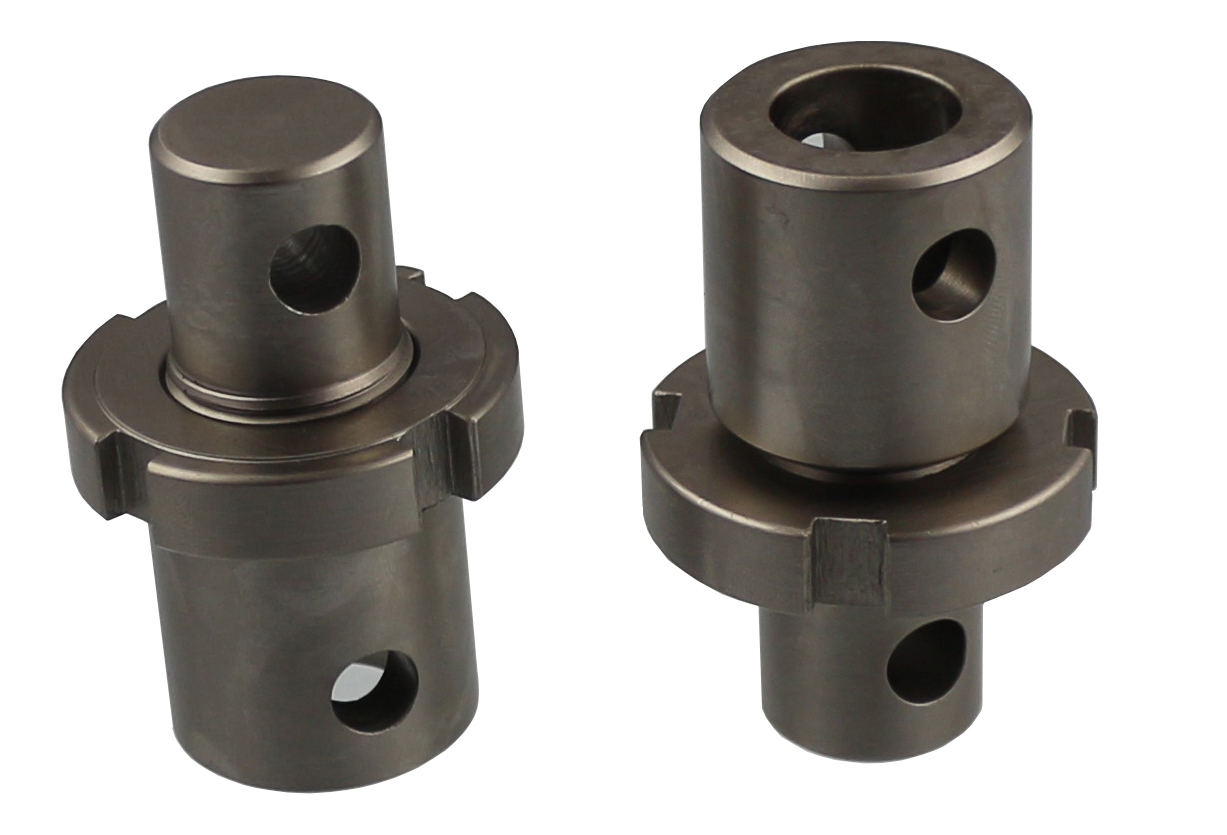

TH187-20-M-159a 2018-09-1111

TH187-Am20-M-Af159

Adapter male Ø 20 mm with
pin hole Ø 8 mm

female Ø 159 mm with pin hole Ø 8 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

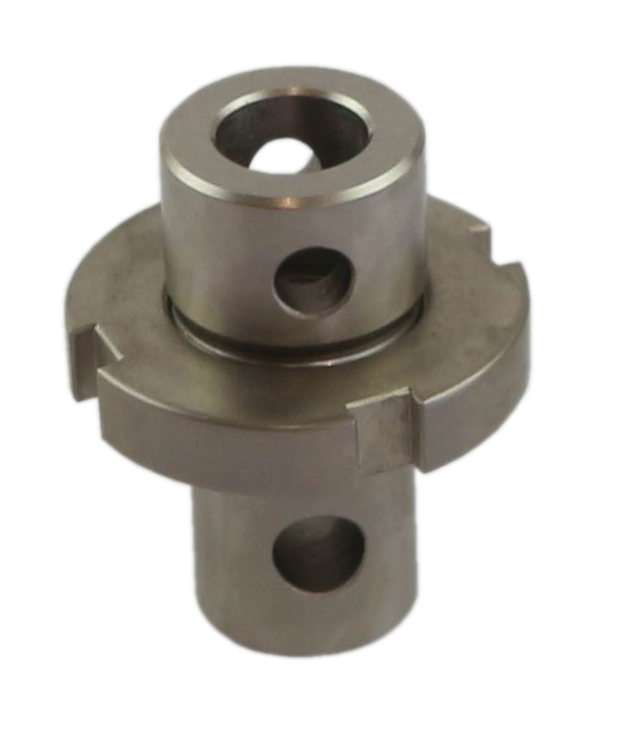

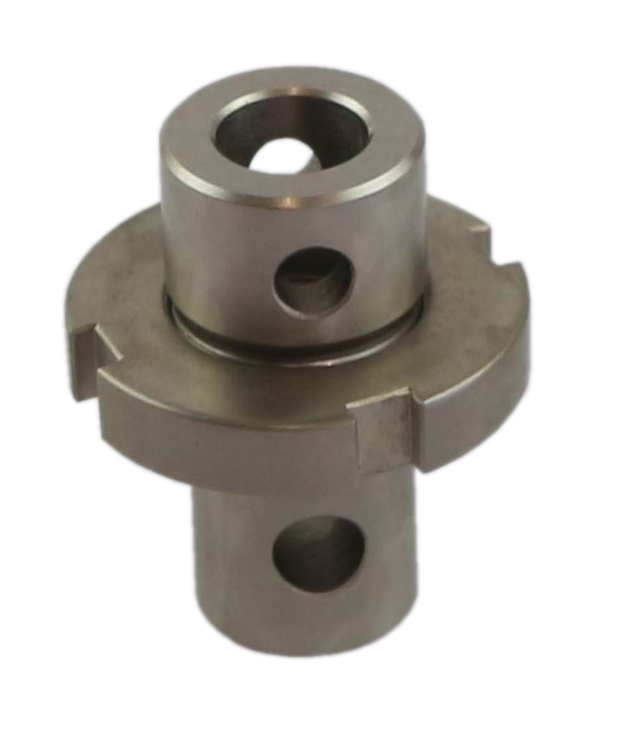

TH187-25-M-159 2022-06-01

TH187-Am25-M-Af159

Adapter male Ø 25 mm with
pin hole Ø 10 mm

female Ø 159 mm with pin hole Ø 8 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

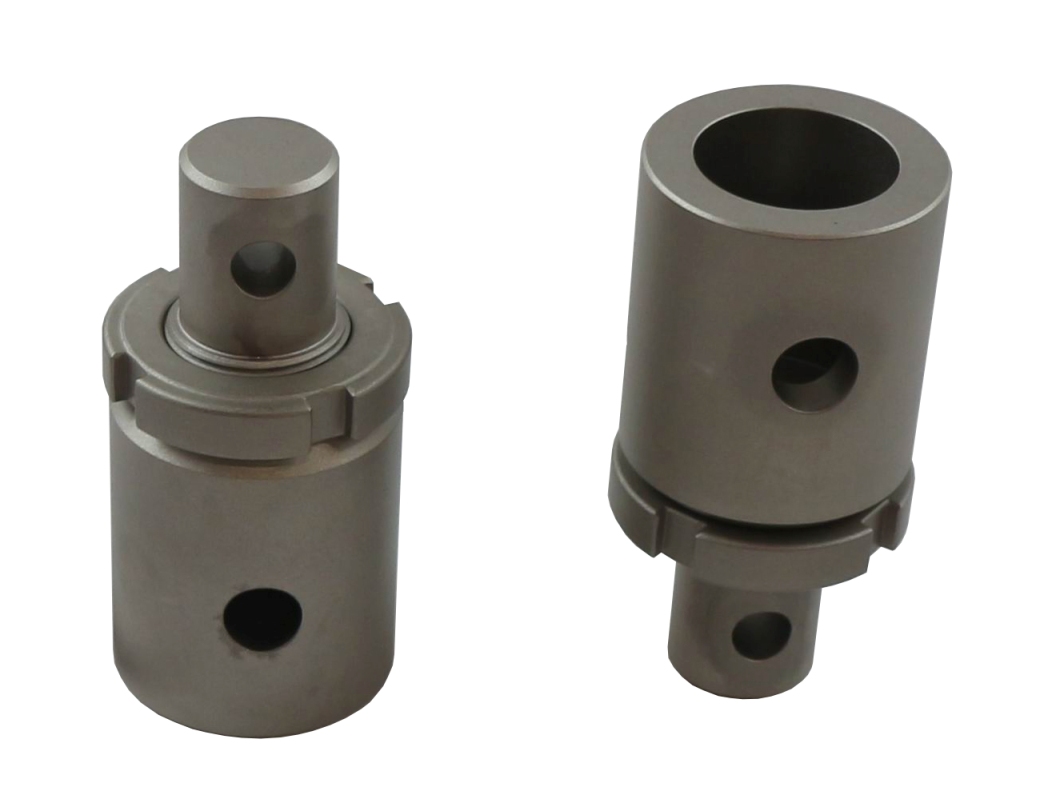

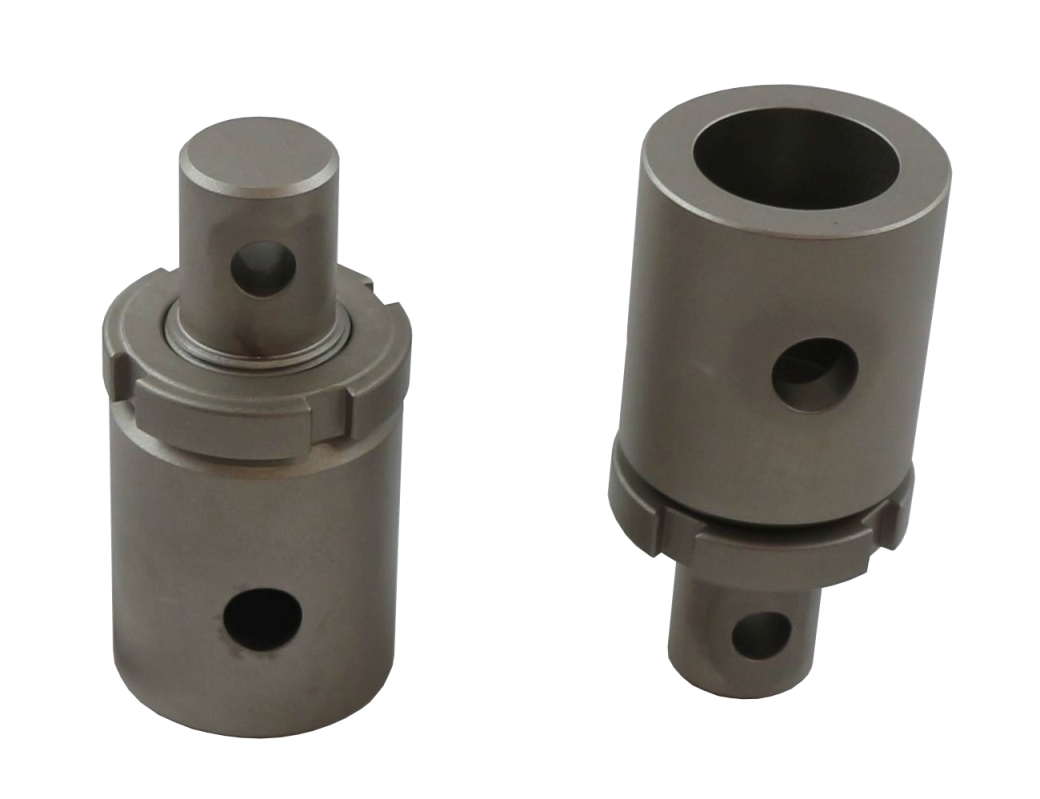

TH187-Am25-M-Af318

Adapter male Ø 25 mm with
pin hole Ø 10 mm

female Ø 12 mm with pin hole Ø 6 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

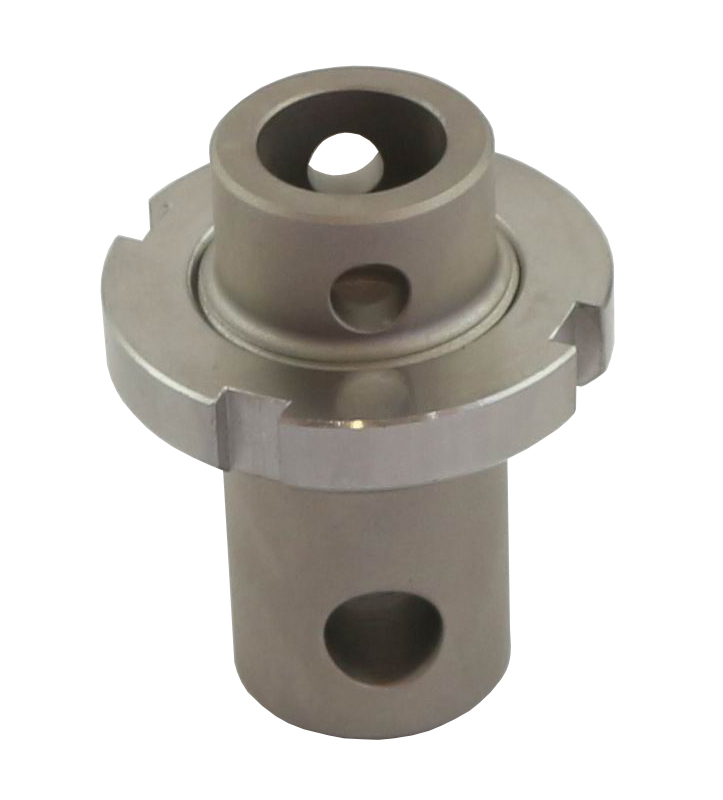

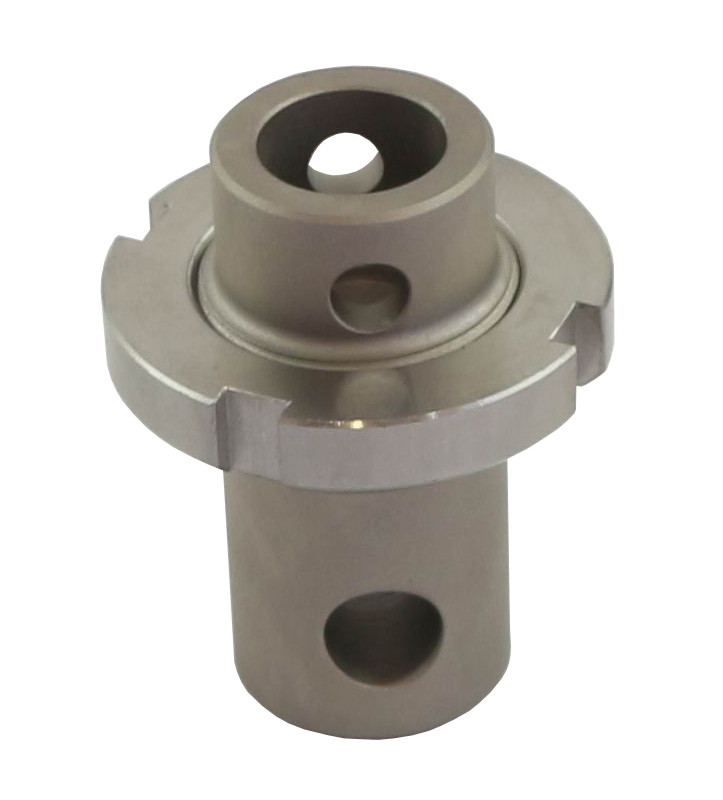

TH187-317-M-20-0.45kg_2022-09-14

TH187-Am317-M-Af20

Adapter male Ø 31.7 mm with
pin hole Ø 12.8 mm

female Ø 20 mm with pin hole Ø 8 mm

Incl. 1x locking nut and 2x pins
Steel, nickel-coated.

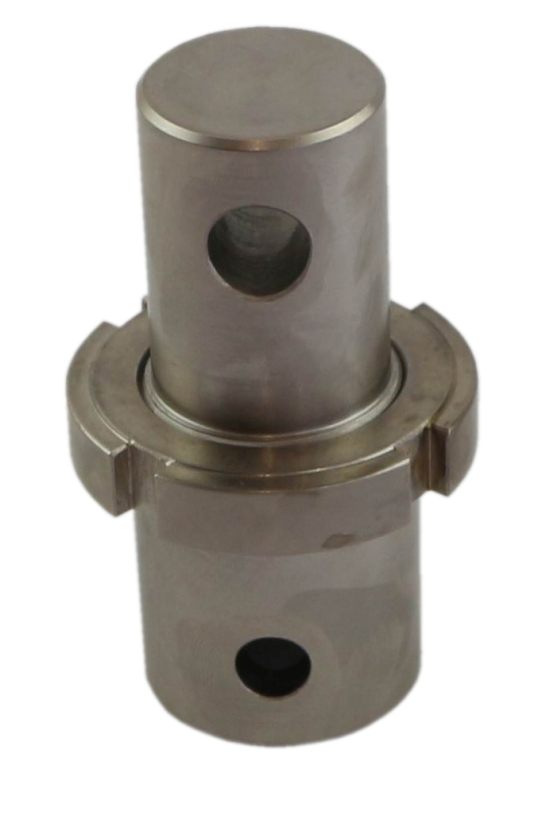

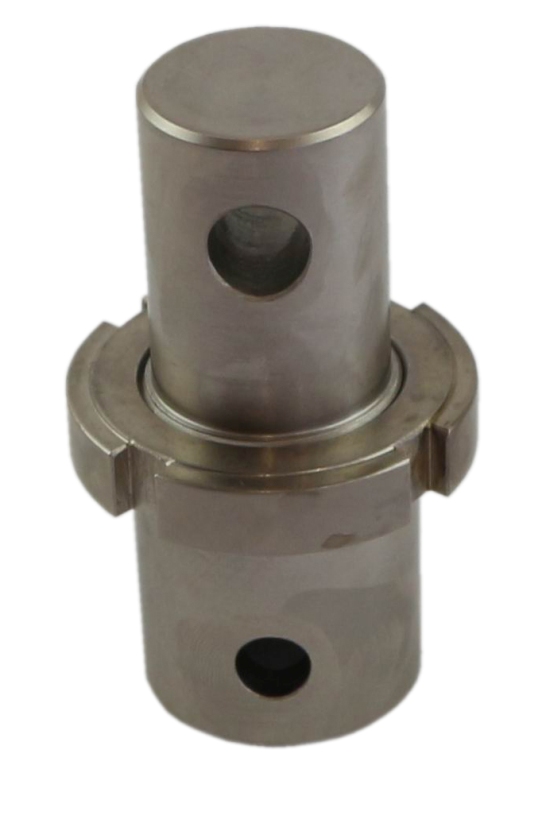

TH187-317-M-25 2022-06-01

TH187-Am317-M-Af25

Adapter male Ø 31.7 mm with
pin hole Ø 12.8 mm

female Ø 25 mm with pin hole Ø 10 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

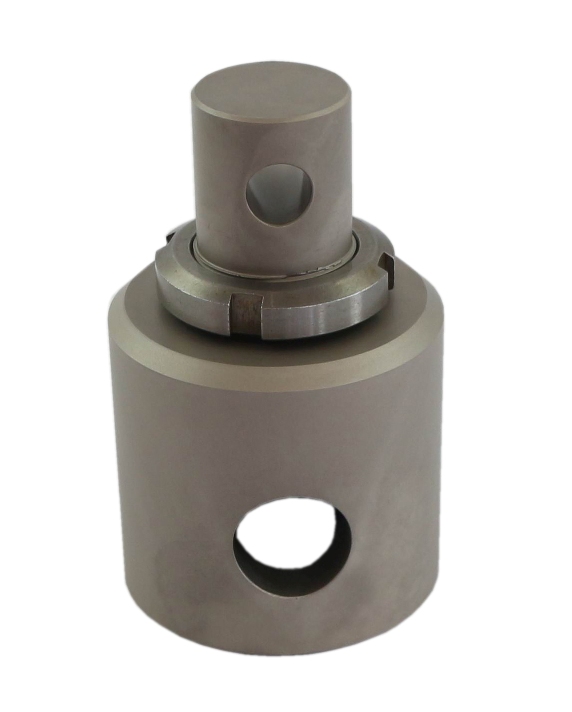

TH187-4016-M-603035 2022-06-01

TH187-Am40/16-M-Af60-30/35

Adapter male Ø 40/16 mm with

female Ø 60-30/35 mm

incl. 2x pins, without locking nut
Steel, nickel-coated.

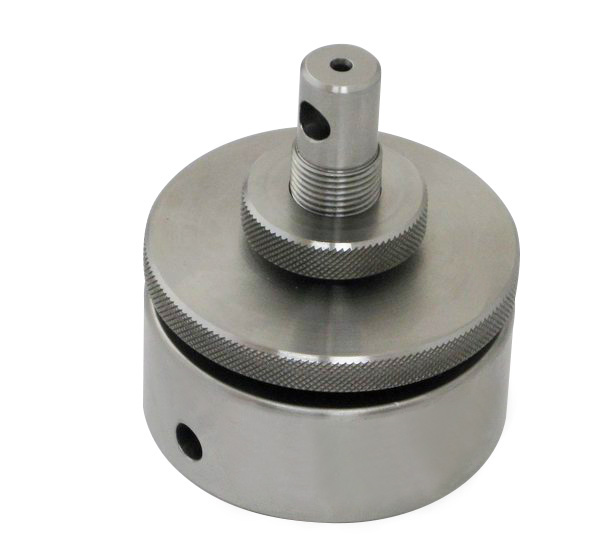

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: TH187-8-M-15.9-V2a-THS648 TH140-Ads12-A4-

Special versions



more
