Adapters



Back

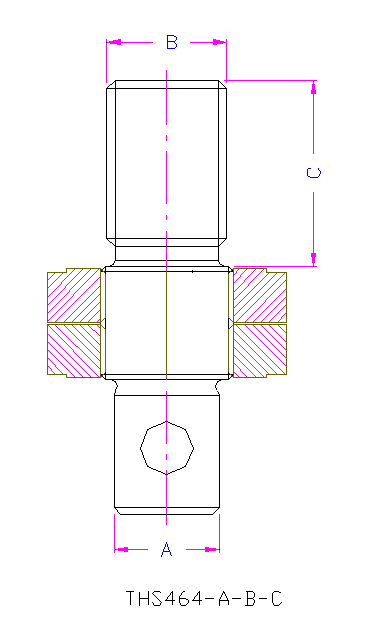

THS464-A-B-C

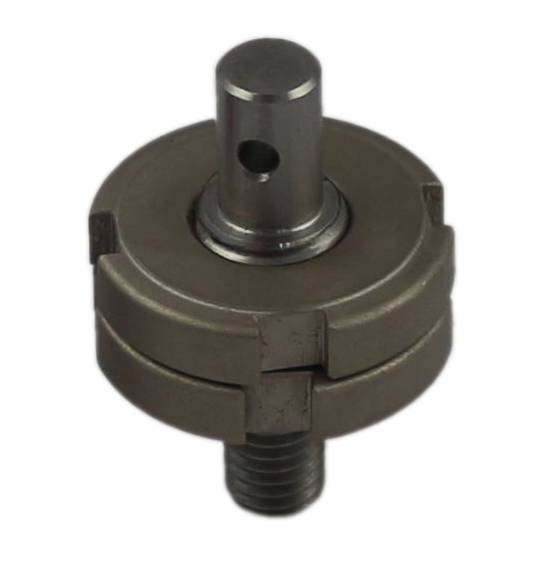

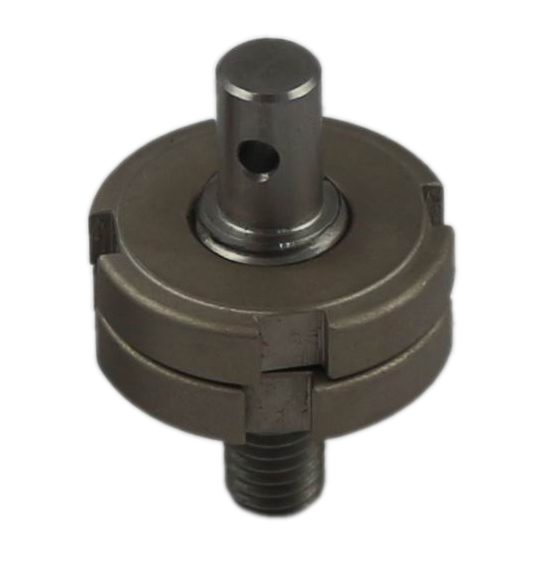

THS464-8-M8 2018-08-16

THS464-8-M8x1.25-L16

Adapter male Ø 8/3 mm

External thread M8x1.25, length 16 mm

Steel

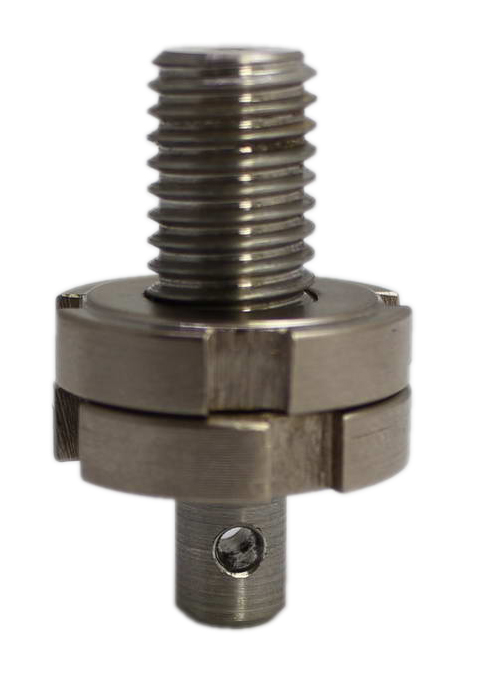

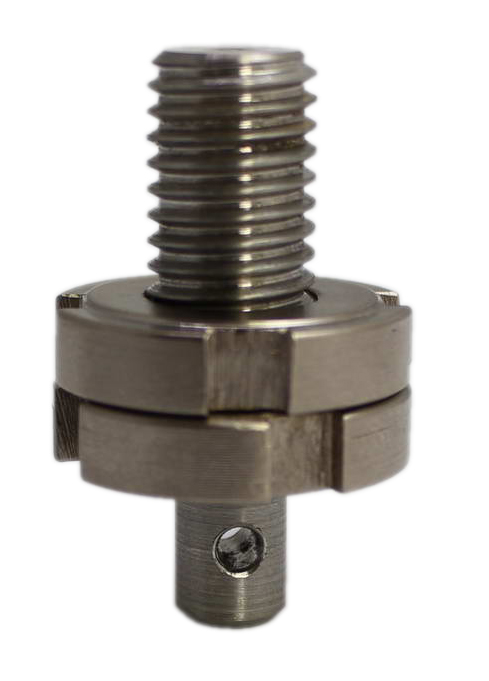

THS464-8-M12a 2016-03-25

THS464-8-M12x1.75-L26

Adapter male Ø 8/3 mm

External thread M12x1.75,length 27.2 mm

Steel

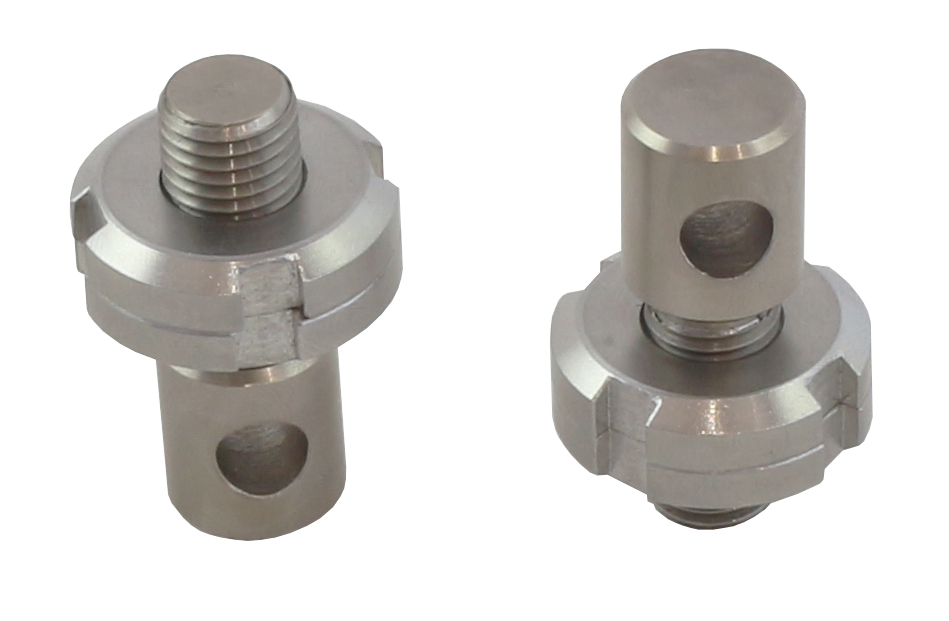

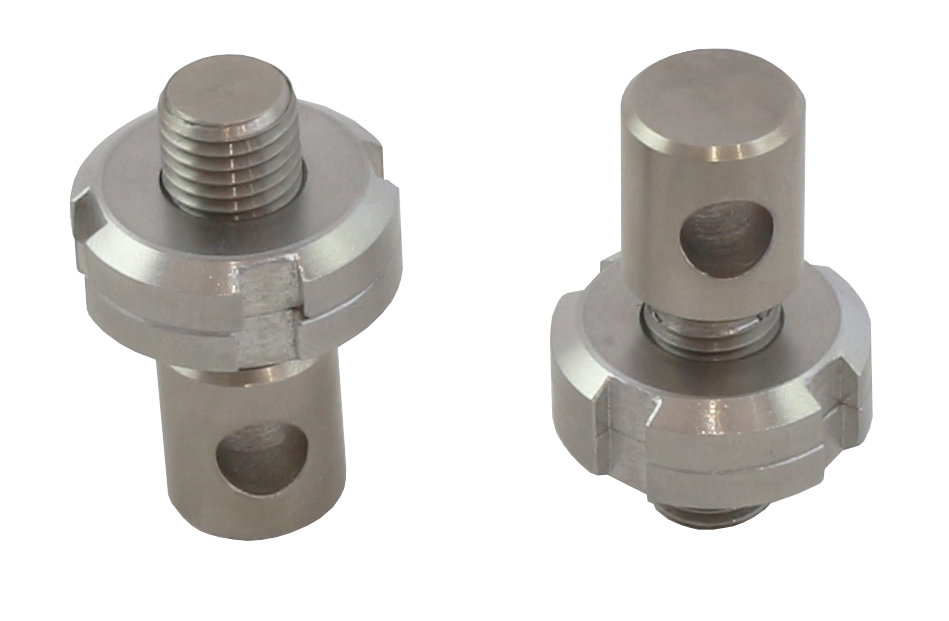

THS464-158-M12x1.5-L25_13-NA_2024-04-12

THS464-158-M12x1.5-L25

Adapter male Ø 158 mm

External thread M12x1.5, length 25 mm

THS464-16-M12x1.5-L40

THS464-158-M12x1.5-L40

Adapter male Ø 15.8/8 mm

External thread M12x1.5, length 40 mm
Steel, nickel-plated

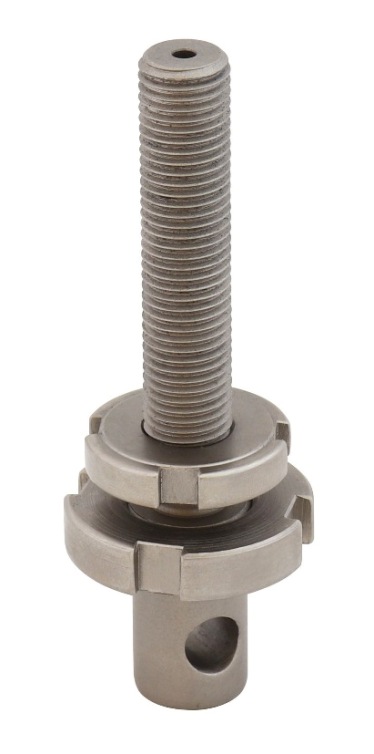

THS464-158-M12x1.5-L65

Adapter male Ø 15.8/8 mm

External thread M12x1.5, length 65 mm
Steel, nickel-plated

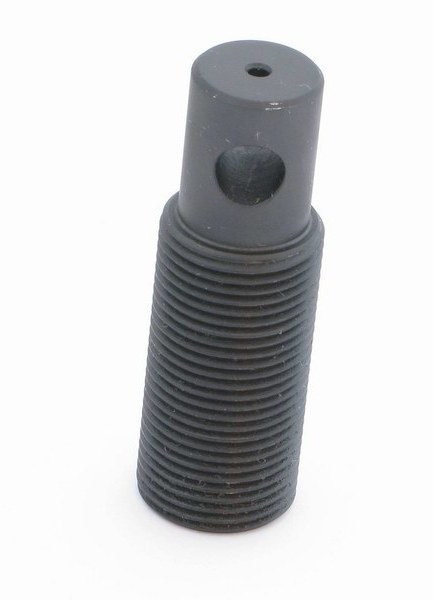

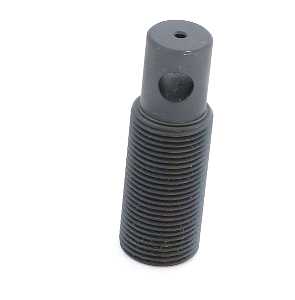

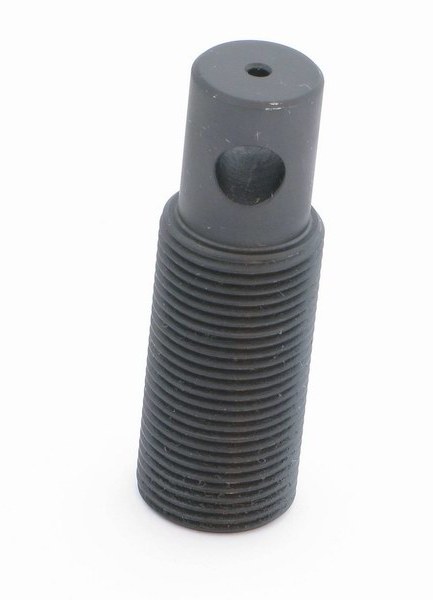

Description: Description: Description: Description: Description: Description: Description: Description: THS464-16-M20x15.jpg

THS464-158-M20x1.5-L40

Adapter male Ø 15.8/8 mm

External thread M20x1.5, length 40 mm
Steel, nickel-plated

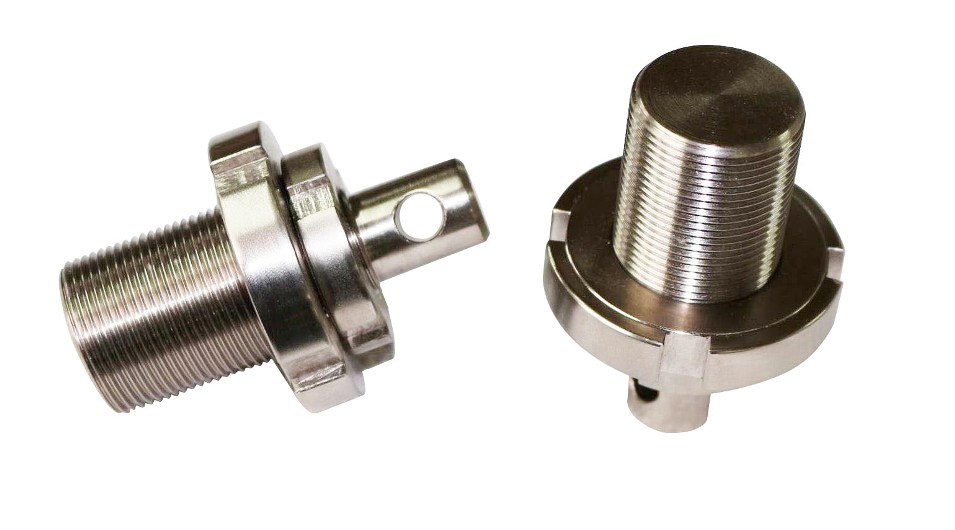

THS464-158-M28x1.5-Lxx

Adapter male Ø 15.8/8 mm

External thread M28x1.5, length xxx
Steel, nickel-plated

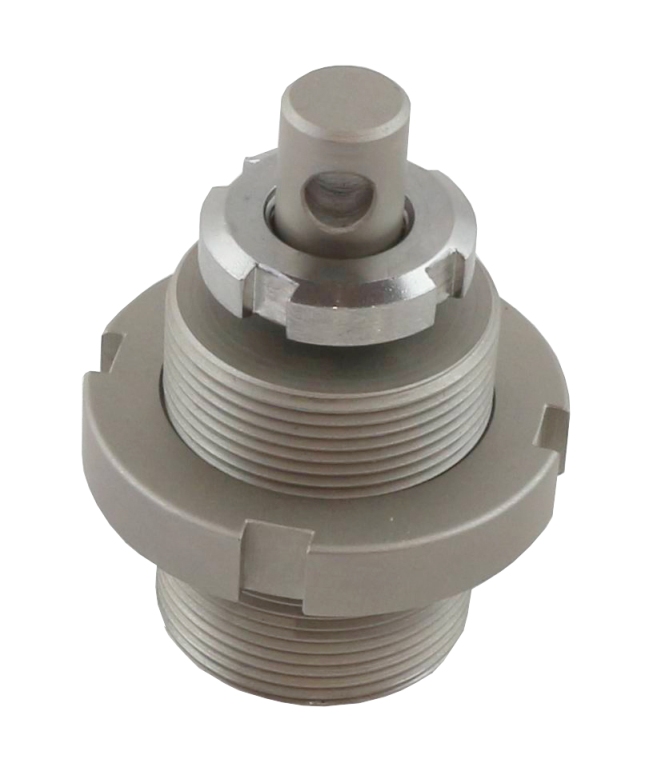

THS464-158-M42x2_2024-02-24

THS464-158-M42x2

Adapter male Ø 15.8/8 mm

External thread M42x2
Steel, nickel-plated

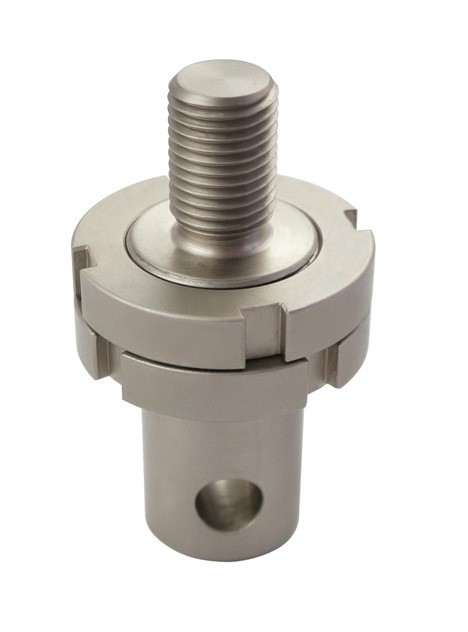

Description: Description: Description: Description: tn_THS464-317-3_4-12-BSF-2018-03-24-

THS464-317-3/4-12UNC

Adapter male Ø 31.7/12.8 mm
External thread 3/4-12UNC
Steel, nickel-plated

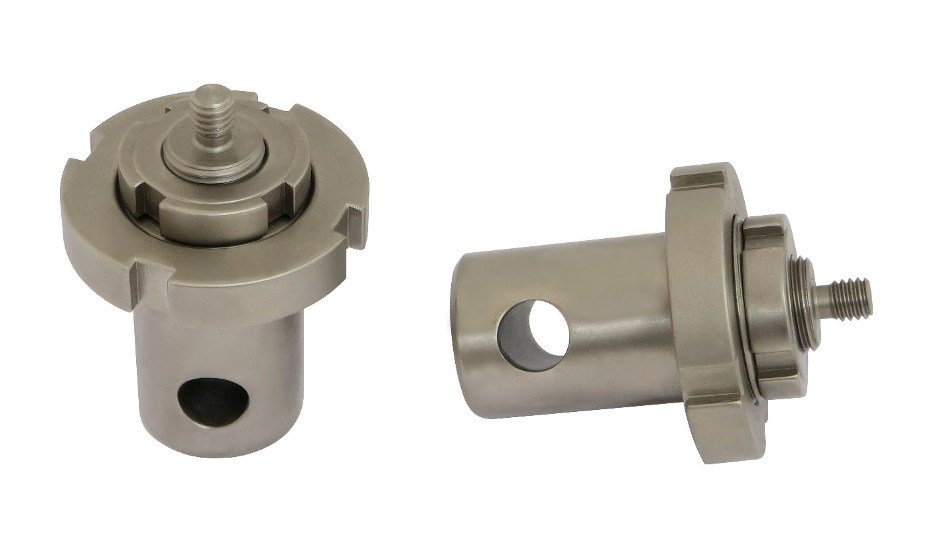

Description: Description: Description: Description: tn_THS464-317-5!16-18UNC-

THS464-317-5/16-18UNC

Adapter male 31.7 mm – thread- 5/16

Adapter male Ø 31.7/12.8 mm
External thread 5/16-18UNC
Steel, nickel-plated

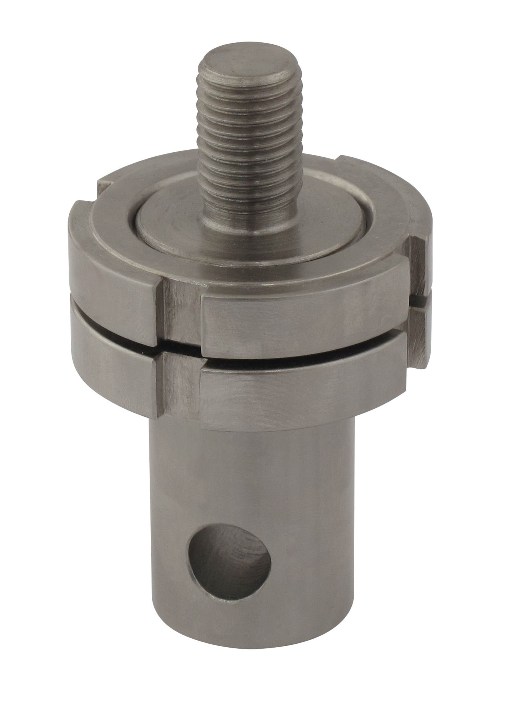

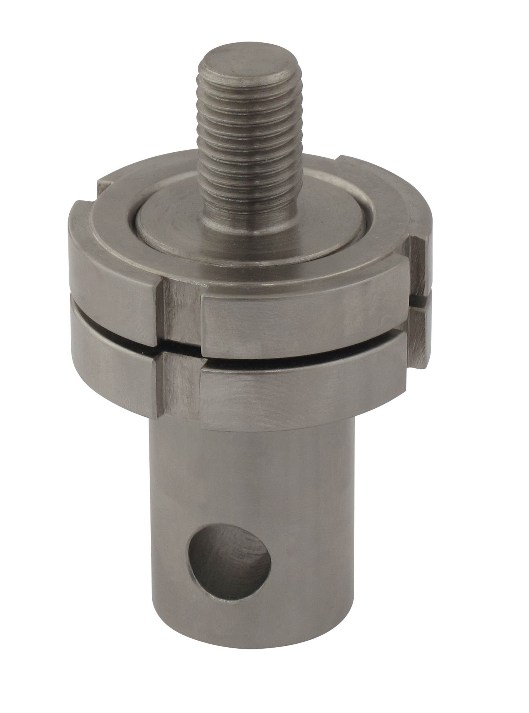

THS464-317-M16x2

Adapter male Ø 31.7/12.8 mm

External thread M16x2
Steel, nickel-plated

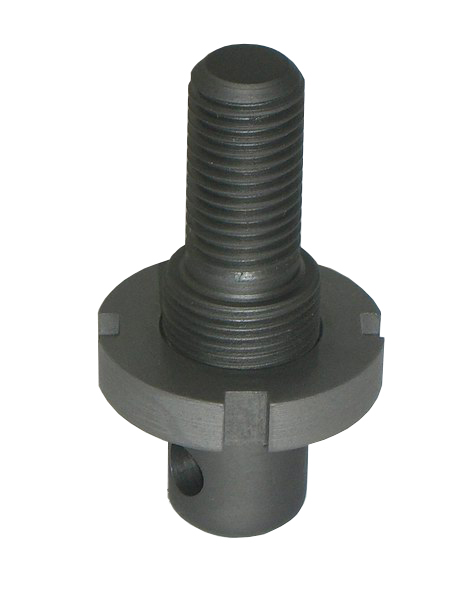

THS464-20-M16-He01

THS464-20-M16x2-L32

Adapter male Ø 20/8 mm

External thread M16x2, length 32 mm
Steel, nickel-plated

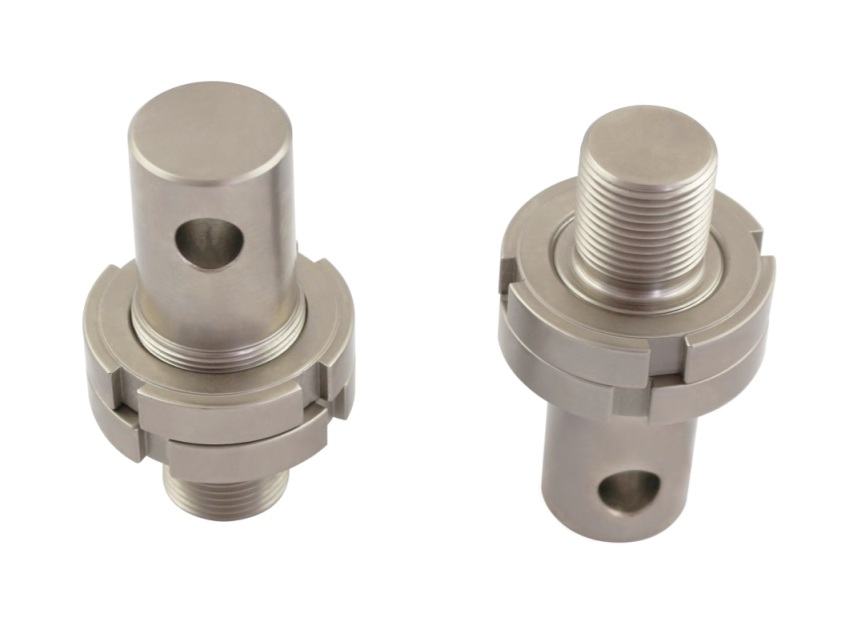

Description: Description: Description: Description: tn_THS464-317-M27x2-

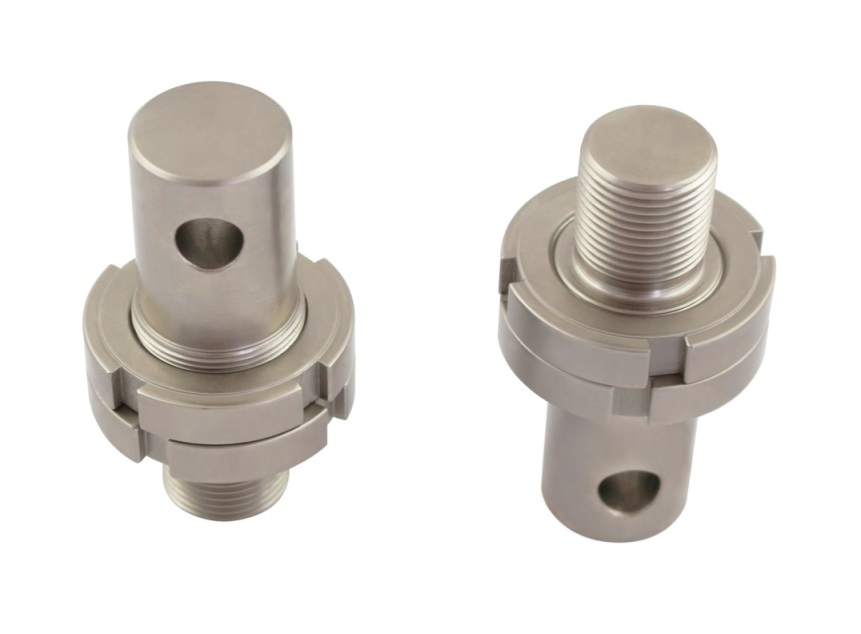

THS464-317-M27x2-L30

Adapter male Ø 31.7/12.8 mm

External thread M27x2, length 30 mm
Steel, nickel-plated

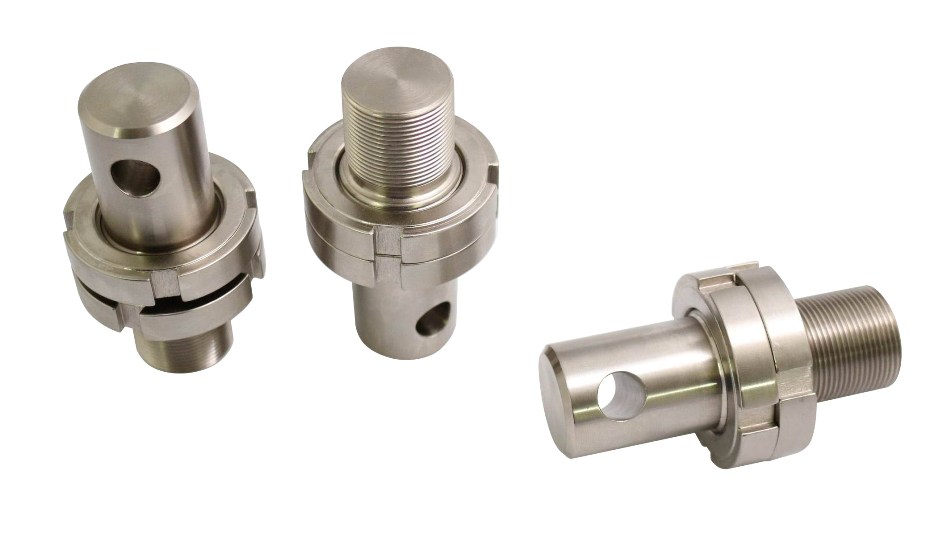

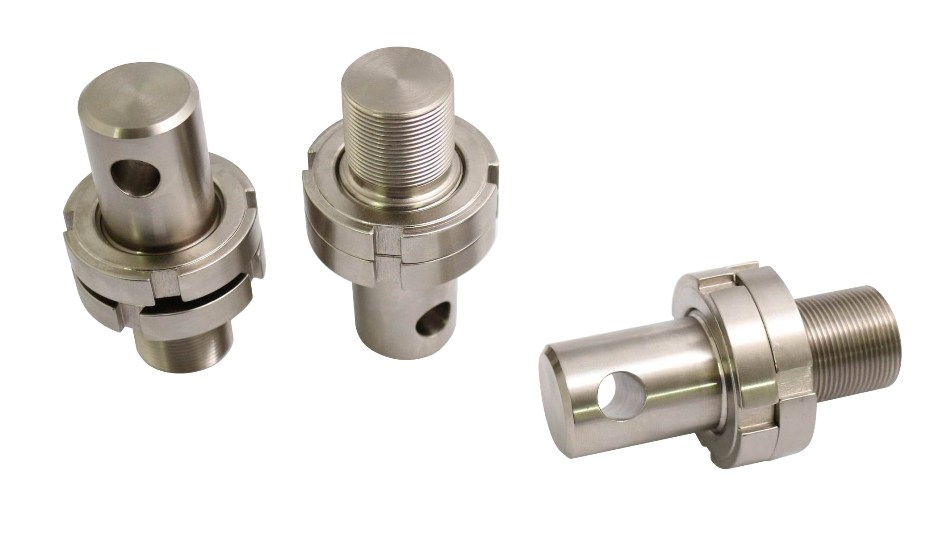

THS464-317-M30x1.5-L30

Adapter male Ø 31.7/12.8 mm

External thread M30x1.5, length 30 mm
Steel, nickel-plated

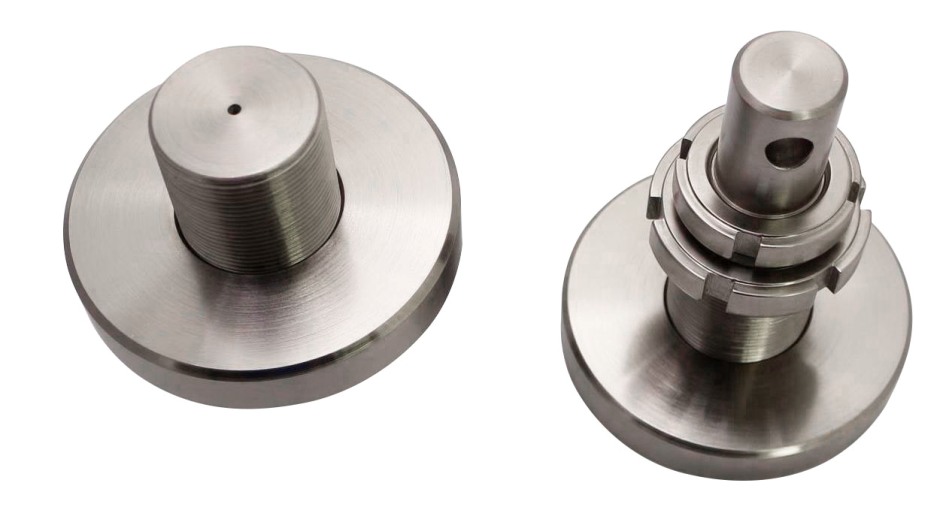

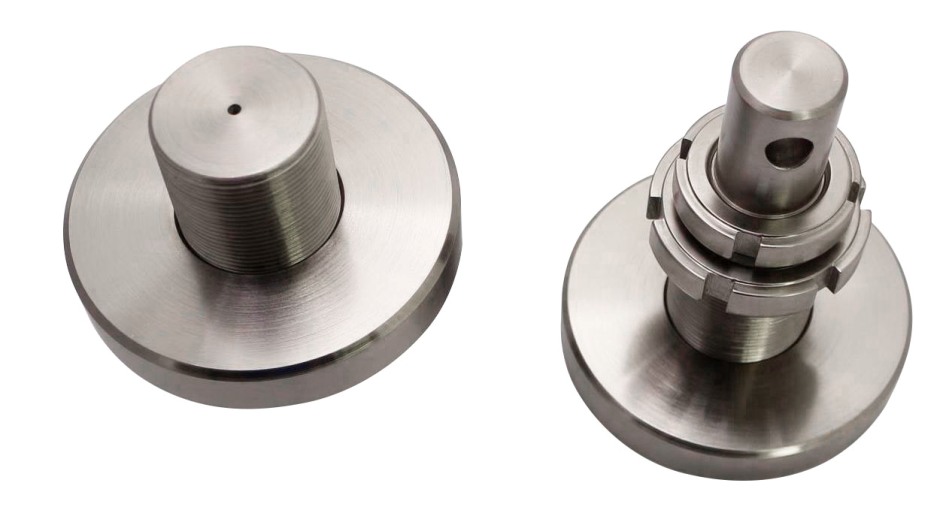

THS464-317-M48x2

Adapter male Ø 31.7/12.8 mm

External thread M48x2
Steel, nickel-plated

THS464-2510-M12x1.75_2024-07-20

THS464-2510-M12x1.75

Adapter male Ø 2510 mm

External thread M12x1.75
Steel, nickel-plated

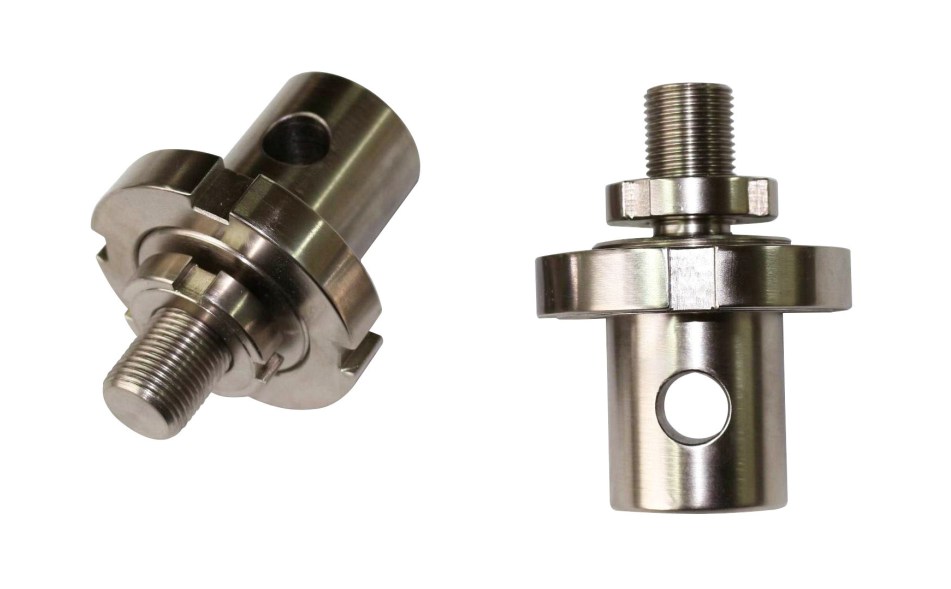

THS464-35-M18x1.5-L85

Adapter male Ø 35/13 mm

External thread M18x1.5, length 85 mm
Steel, nickel-plated

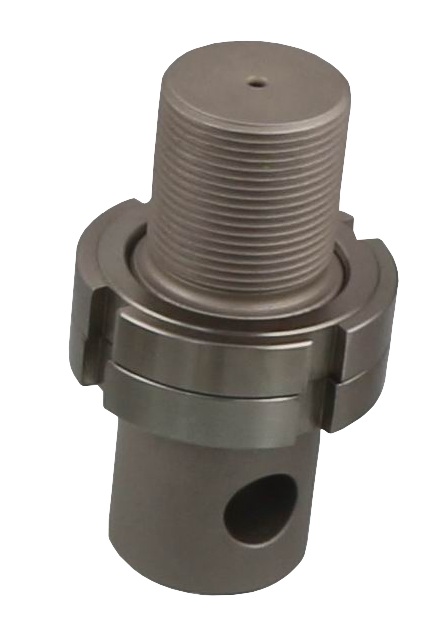

THS464-40-M36x2



Adapter male Ø 40/16 mm
External thread M36x2
Steel, nickel-plated

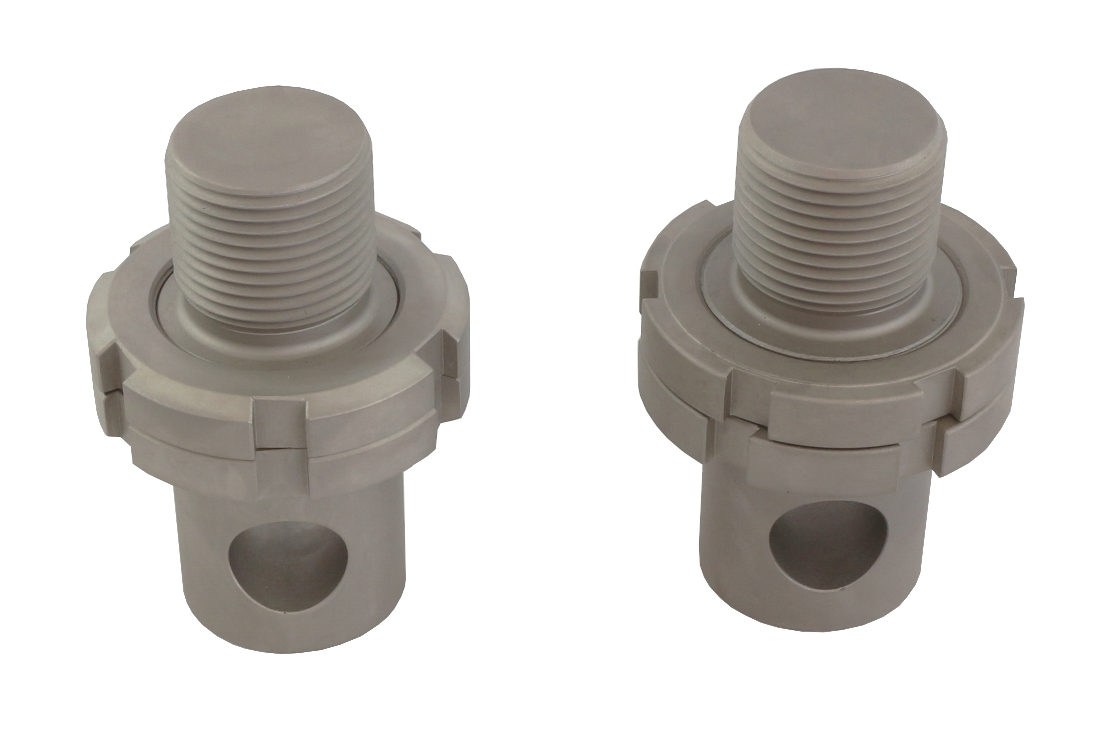

THS464-5025-M42x3-HRC_2024-04-12

THS464-5025-M42x3-HRC

Adapter male Ø 50/25 mm

External thread M42x3
Steel, hardened, nickel-plated

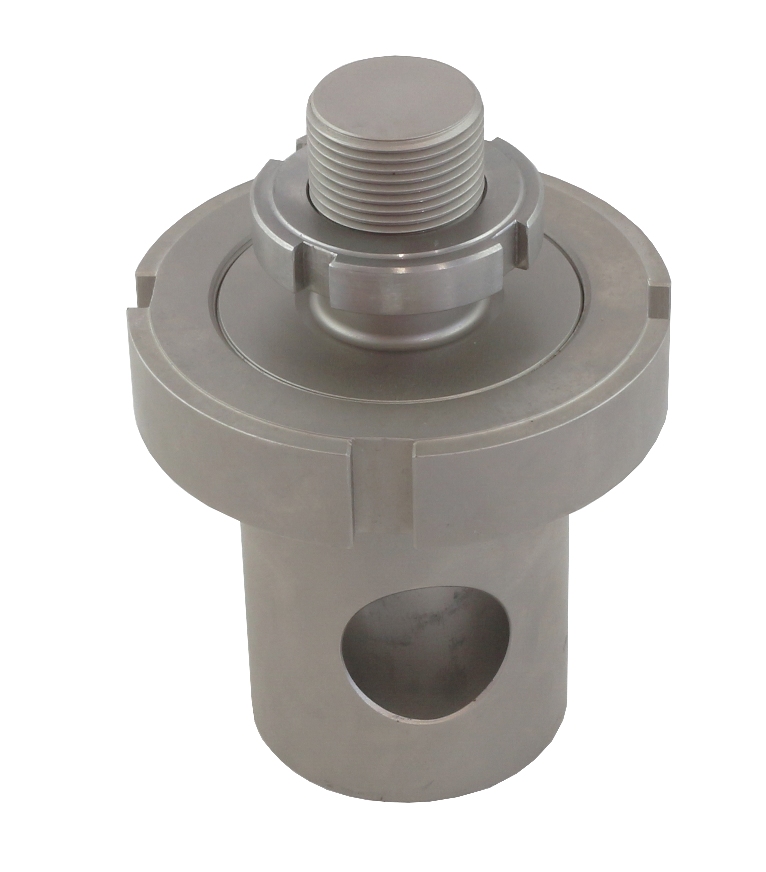

THS464-603035-M30x2-L40-HRC_2024-04-19

THS464-603035-M30x2-L40-HRC

Adapter male Ø 60/30-35 mm

External thread M30x2, length 40 mm
Steel, hardened, nickel-plated

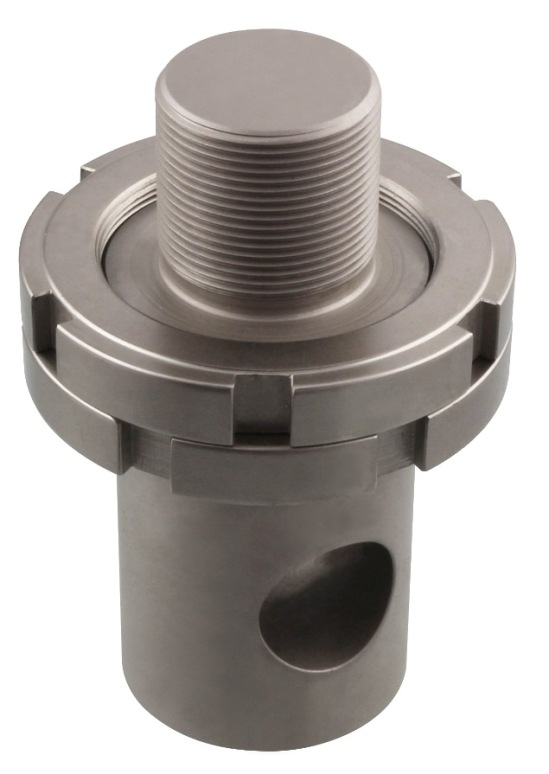

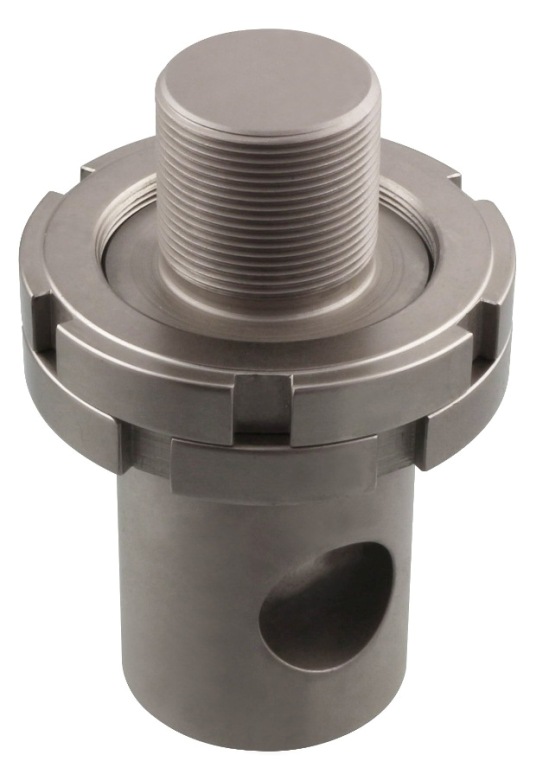

THS464-603035-M42x2-L40

Adapter male Ø 60/30-35 mm

External thread M42x2, length 40 mm
Steel, nickel-plated

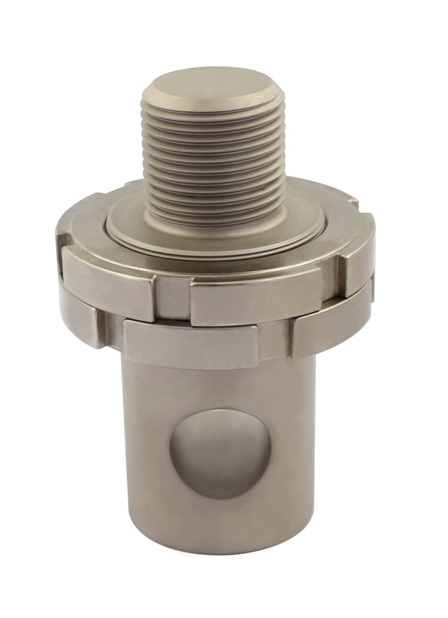

Description: Description: Description: Description: tn_THS464-603035-M42x3-L40-

THS464-603035-M42x3-L40


Adapter male Ø 60/30-35 mm

External thread M42x3, length 45 mm
Steel, nickel-plated

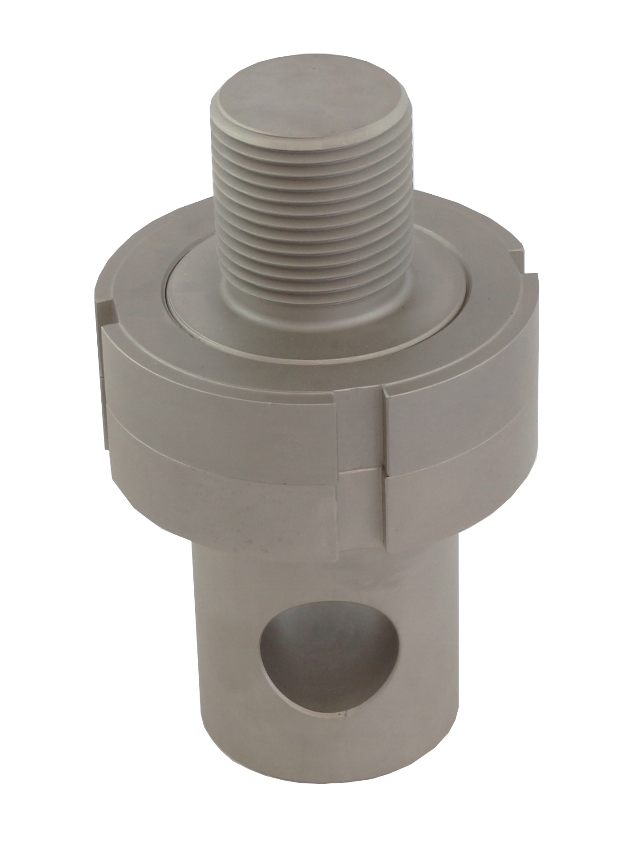

THS464-603035-M42x3-HRC-Nut20_2024-04-13

THS464-603035-M42x3-HRC

Adapter male Ø 60/30-35 mm

External thread M42x3
Max. load 300 kN
Steel, hardened, nickel-plated
