G17 Adapter

Back





Adapter overview.pdf



G17 Datasheet.pdf



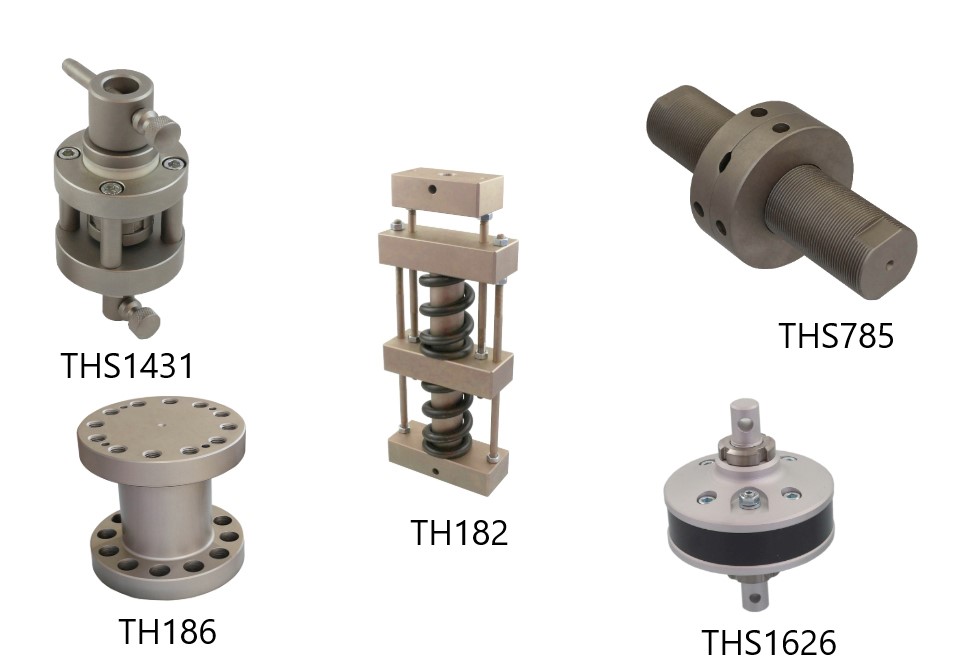

TH187 THS438 THS486 THS464 THS626 THS637

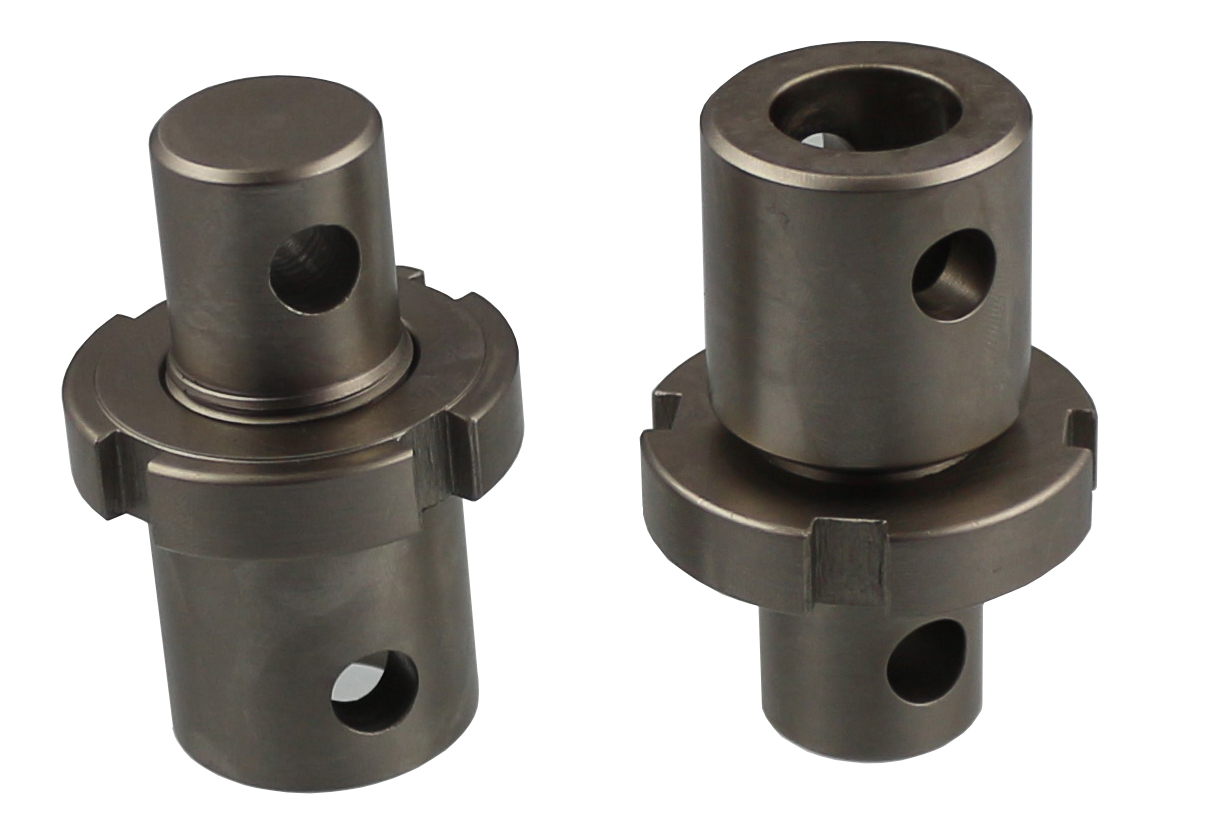

Description: Description: Description: Description: tn_TH187-158-M-318-2L

TH187



Zapfen – Außengewinde zum Verspannen - Adapterbohrung



male - thread with nut -  female



more

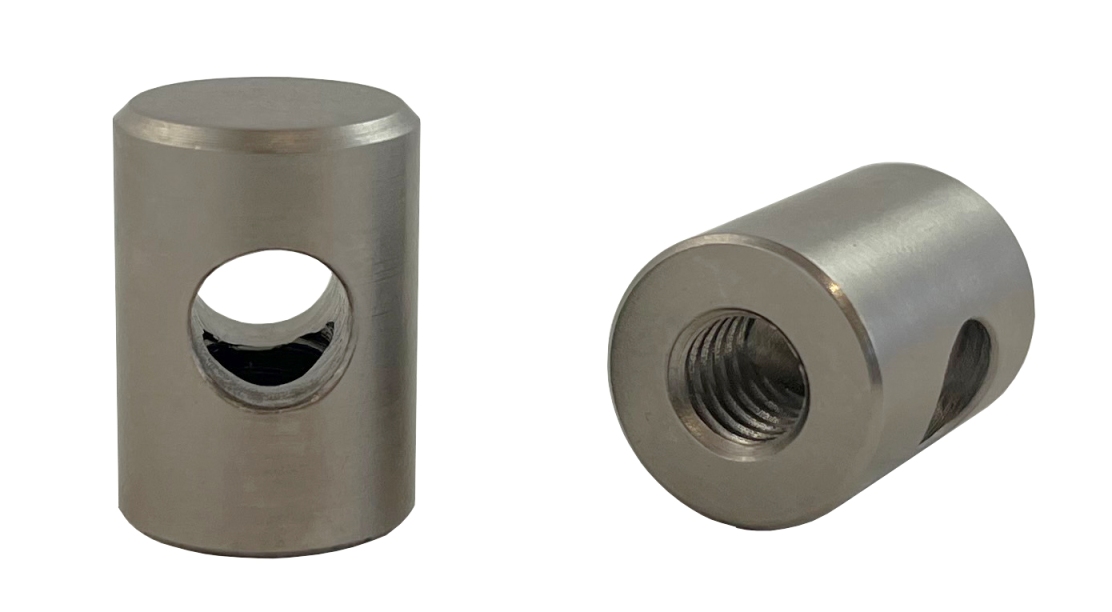

Description: Description: Description: Description: Description: TH220-158-M5

TH220-158-M5



Zapfen 158

Gewinde M5

Description: Description: Description: Description: tn_THS438-158-M6a-2016-11-08-

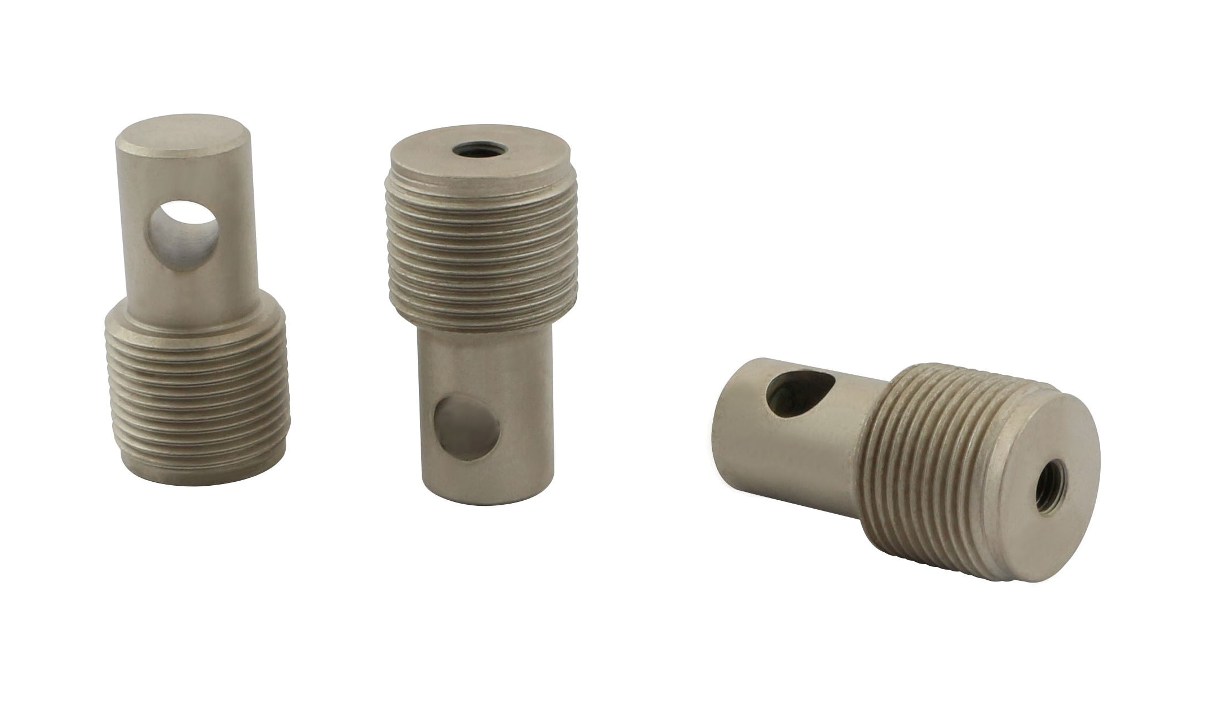

THS438-158-M6



Zapfen  hier 15.8 mm Durchmesser

-

Außengewinde zum Kontern

-

Innengewinde hier M6



Male - thread with nut -  female thread



more

Description: Description: Description: Description: tn_THS464-317-3_4-12-BSF-2018-03-24-

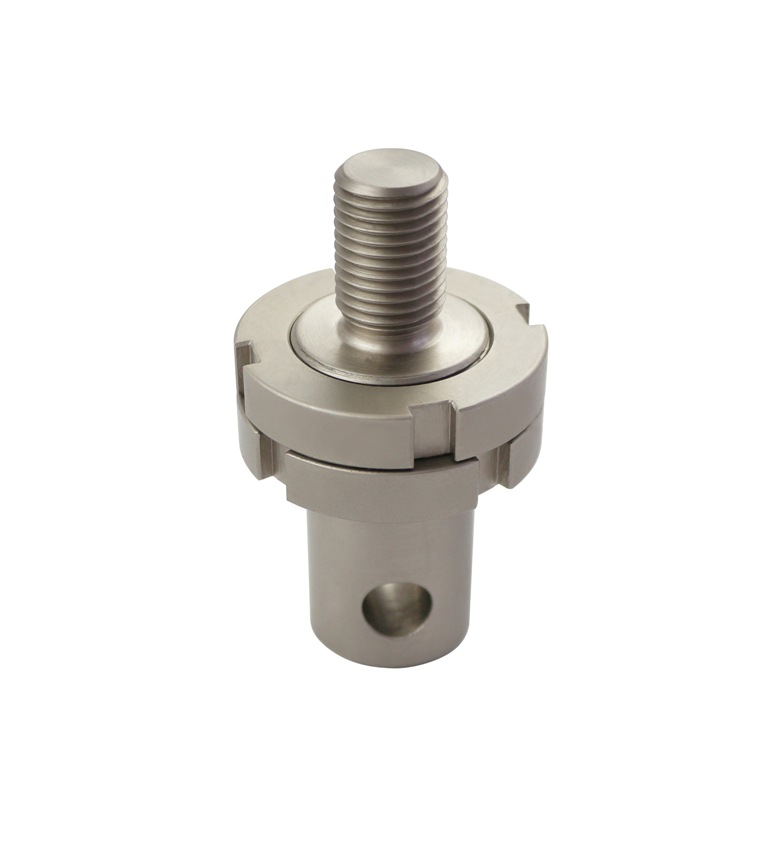

THS464--158--M12-L40



Zapfen - Verspanngewinde- Außengewinde Länge 40mm



(for small threads we propose to use

THS438 + a hex socket screw )



more

Description: Description: Description: Description: Description: THS220-8-M6

THS220-8-M6



Zapfen 8mm –



Innengewinde M6



more



Description: Description: Description: Description: tn_THS486-5025-M30x3.5-L30-2018-02-23-

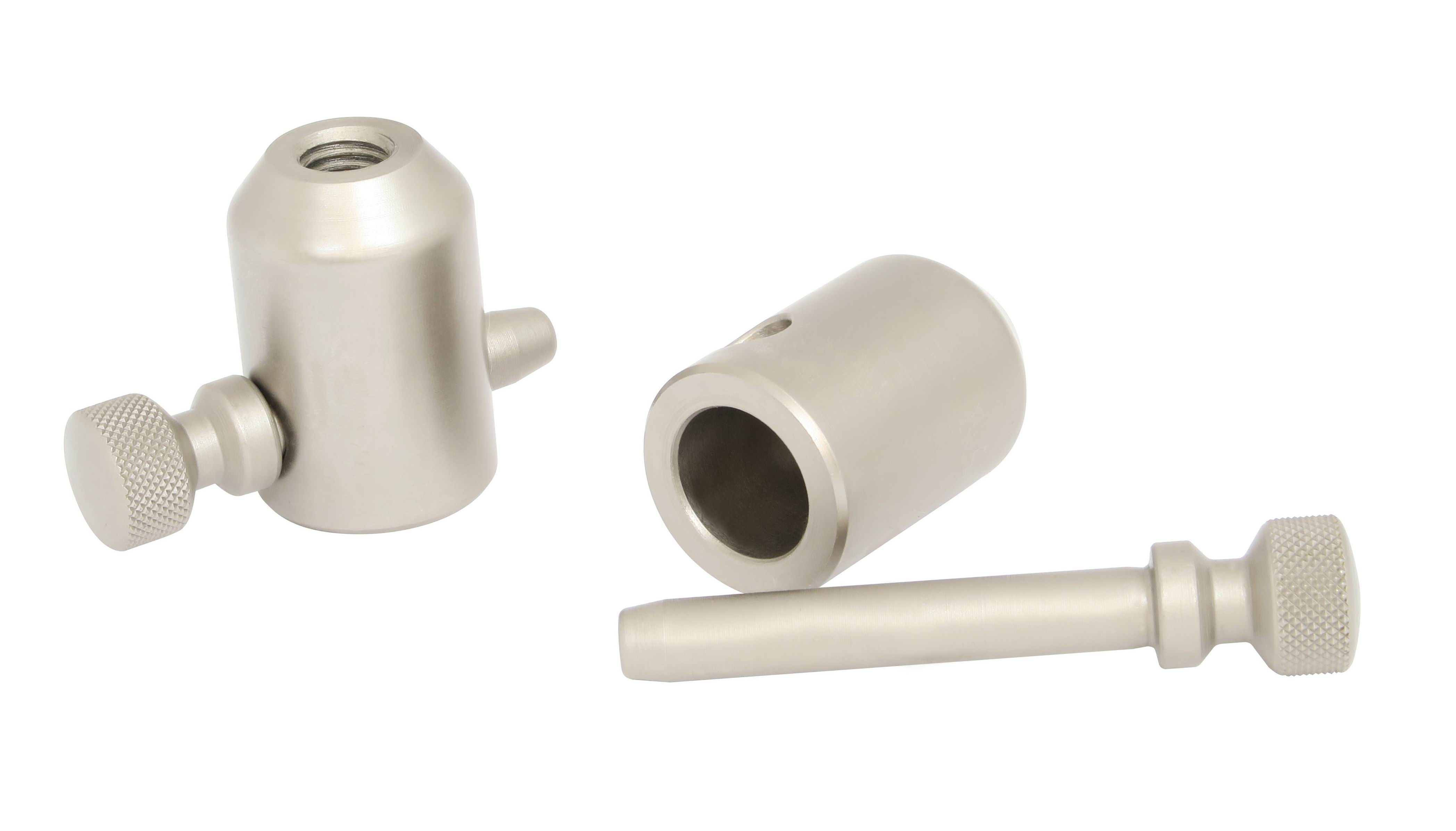

THS486



Female Pin hole

Adapterbohrung

-

Inner thread

Innengewinde



more




Description: Description: Description: Description: Description: THS892-30-mM16

THS892-30-M16



Adapterbohrung 30mm

-

Außengewinde M16





more

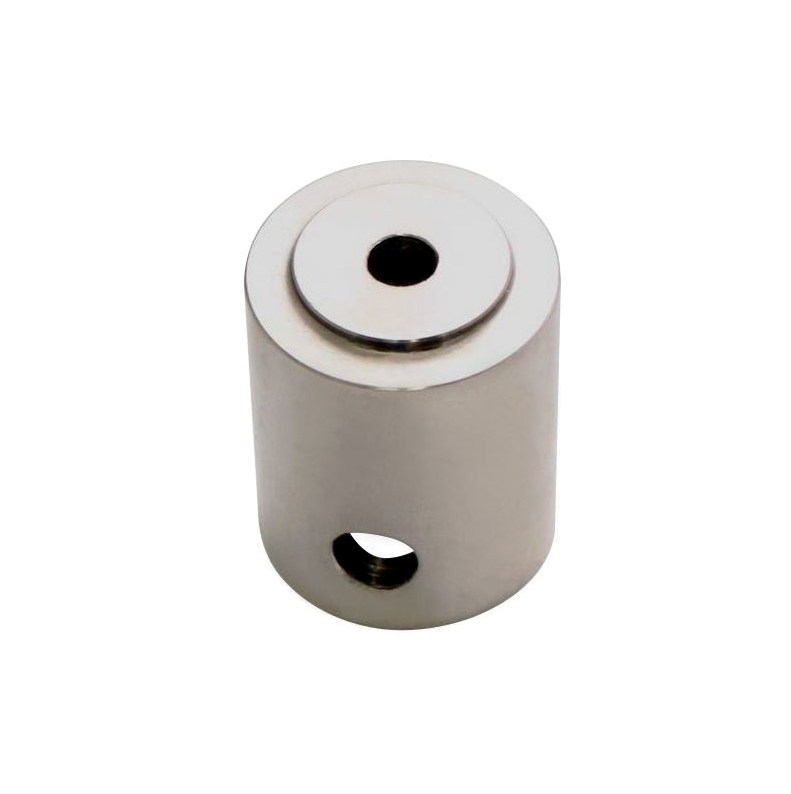

Description: Description: Description: Description: tn_THS637-20-Km6  2015-11-26-

THS637-20-Km6



Adapterbohrung 20mm

Kopfsenkung für Schraube DIN912 –M6



more

Description: Description: Description: Description: Description: THS636-317-Km8

THS636-317-Km8





Zapfen 31.7mm

-

Verspanngewinde

-

Kopfsenkung für Schraube DIN912 -M8

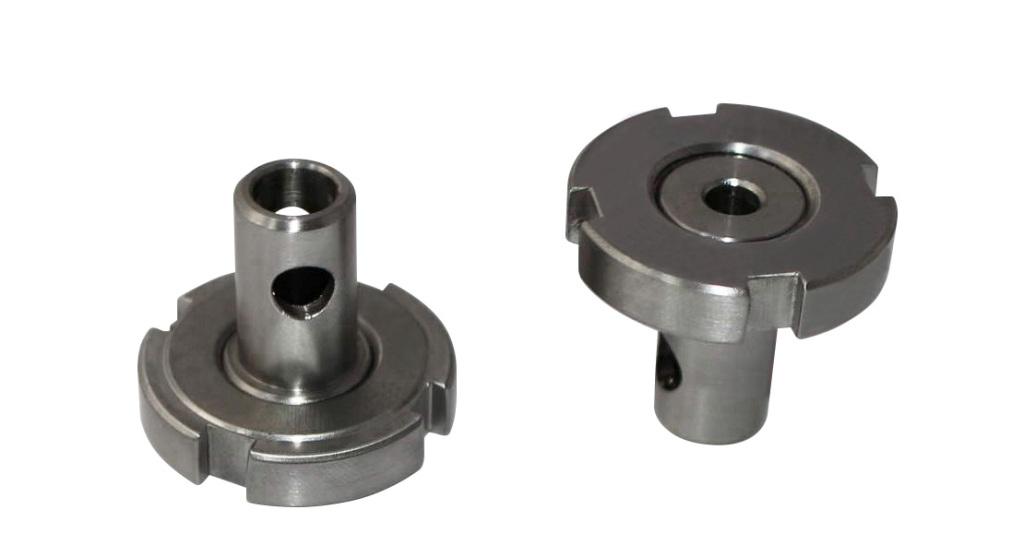

Description: Description: Description: Description: THS636-16-Km5-A4a-2

THS636-16-Km5-VA4



Stainless steel adapter,

Af16 mm, M5 inner thread





Description: Description: Description: Description: tn_THS626-25-317  2015-11-17-

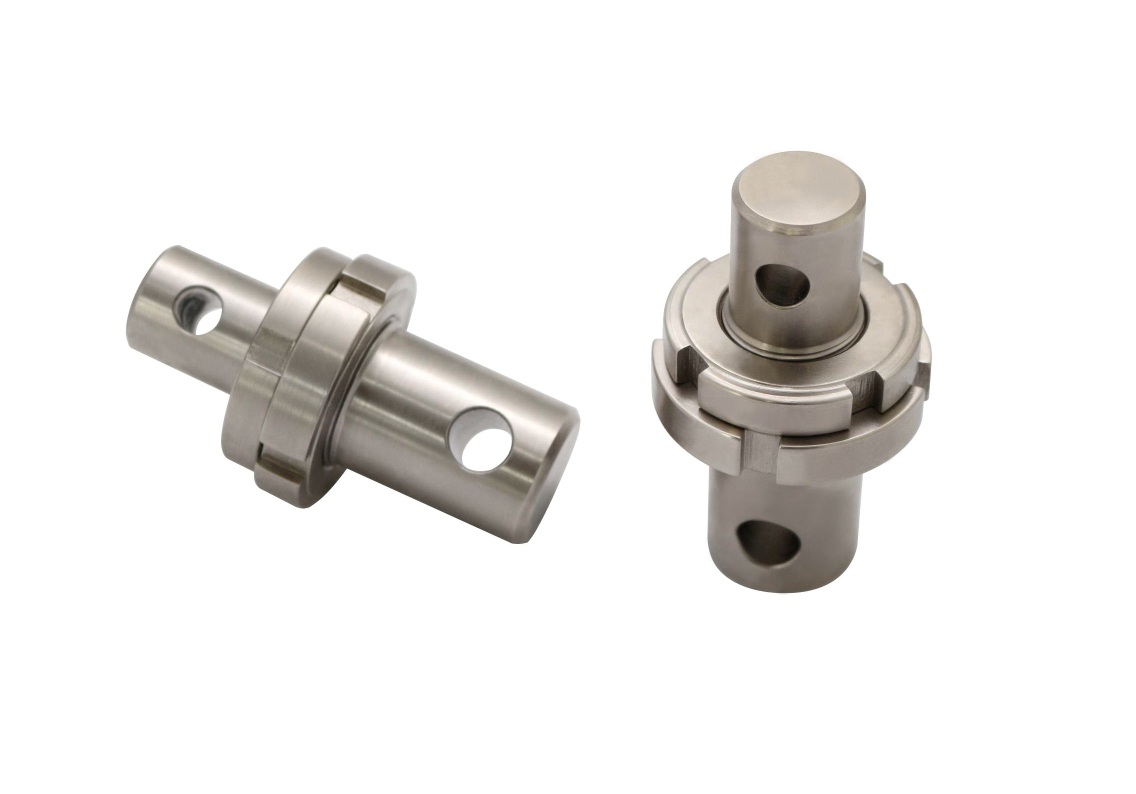

THS626-158-317



Zapfen 15.8mm



Zapfen 31.8mm



Im Lieferumgang :

2 Muttern + 2 Pins



Scope of delivery :
2 nuts 2 pins



more

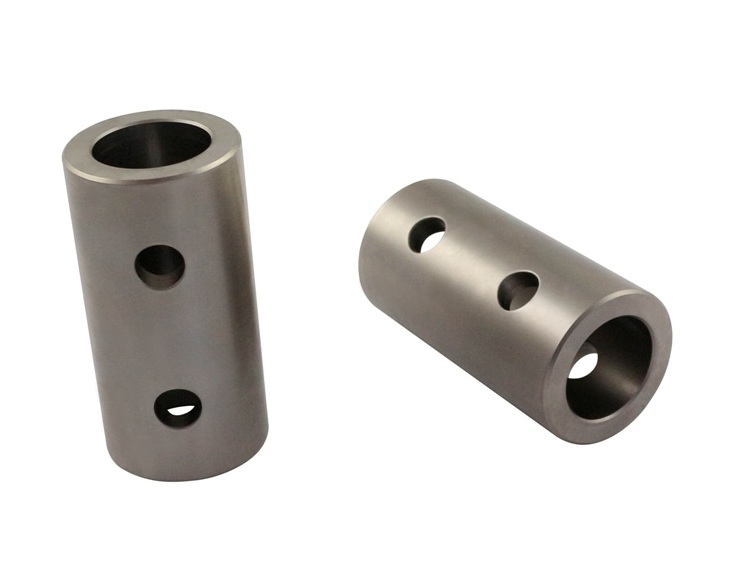

Description: Description: Description: Description: tn_THS531-20l8-30l14 684g excl-

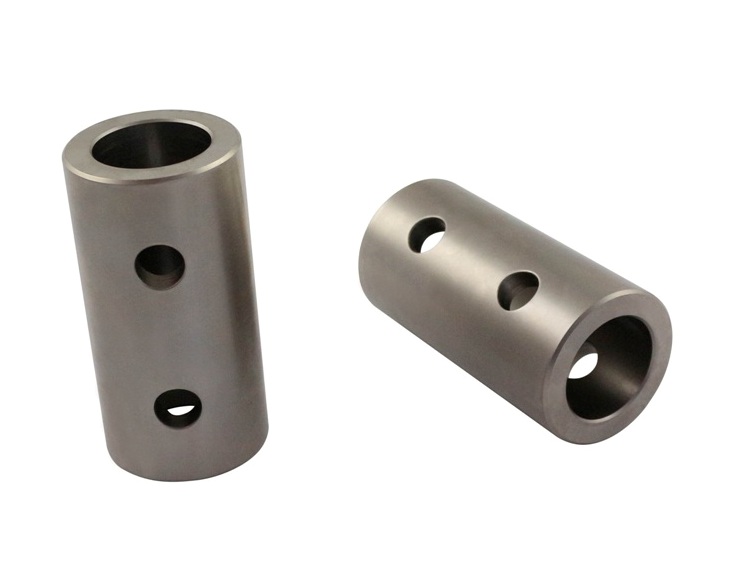

THS531-3014-318



Adapterbohrung 30mm 14mm Querbohrung

-

Adapterbohrung 31.8 Querbohrung 12.8



female Adaptor – female Adapter



more

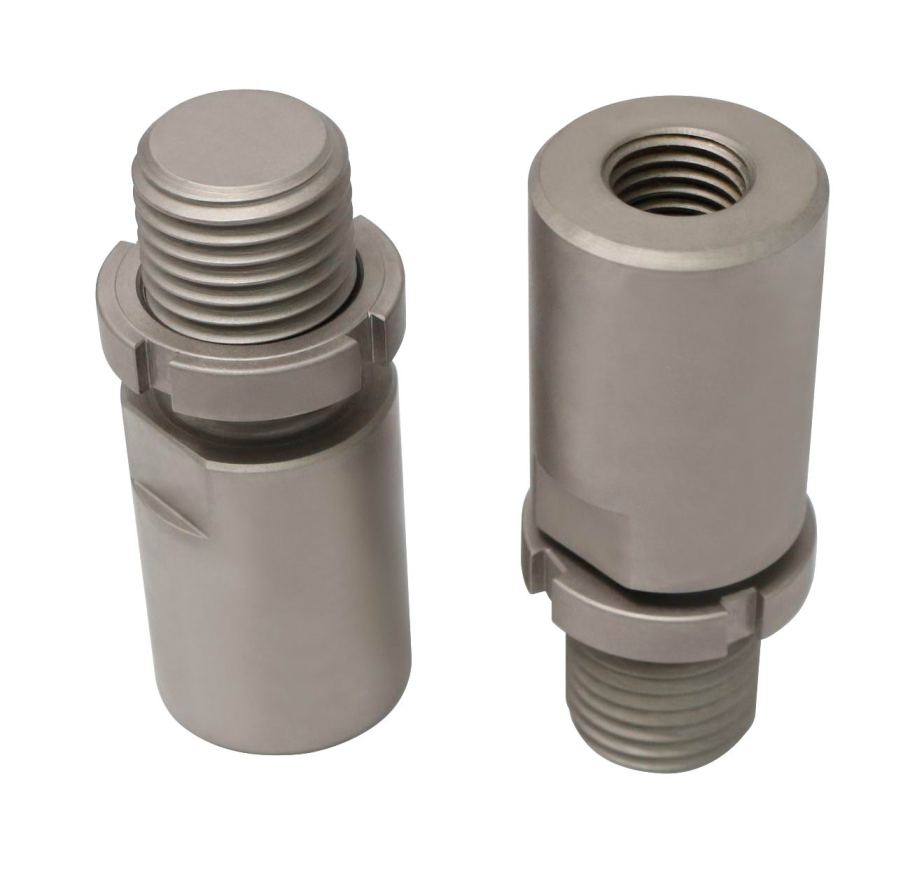

Description: Description: Description: Description: tn_THS658-M24-M36-2016-01-19-

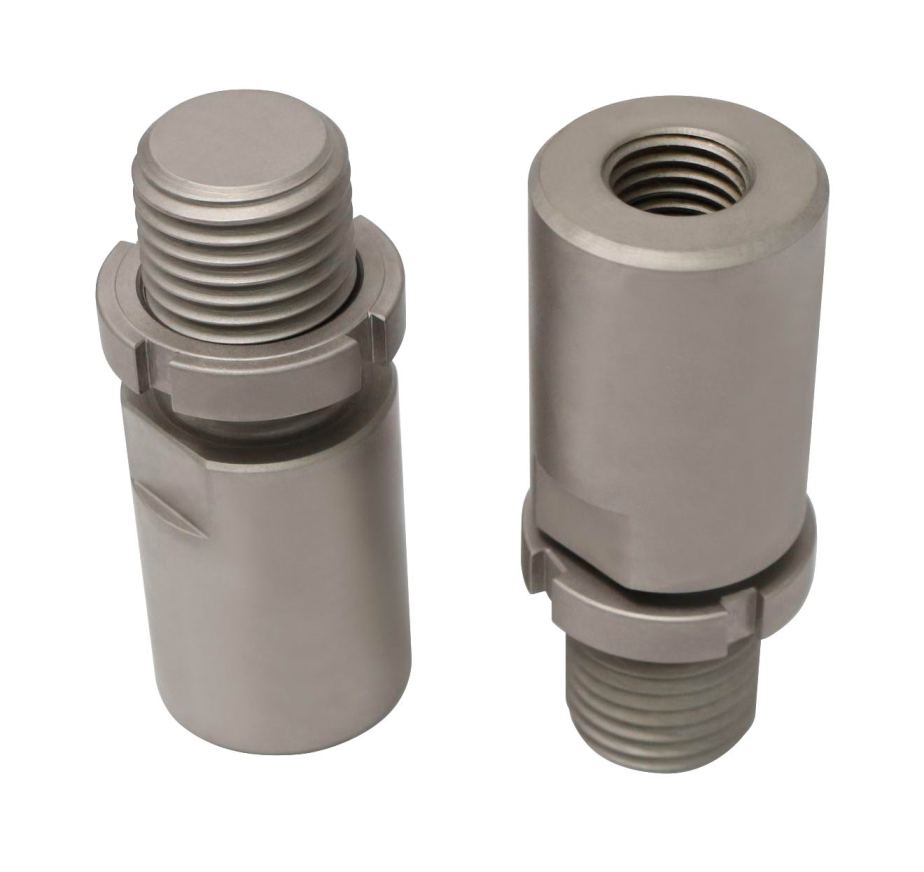

THS658



Außengewinde M36

-

Innengewinde M24

Description: Description: Description: Description: THS814-M14-M6-2016-01-15-

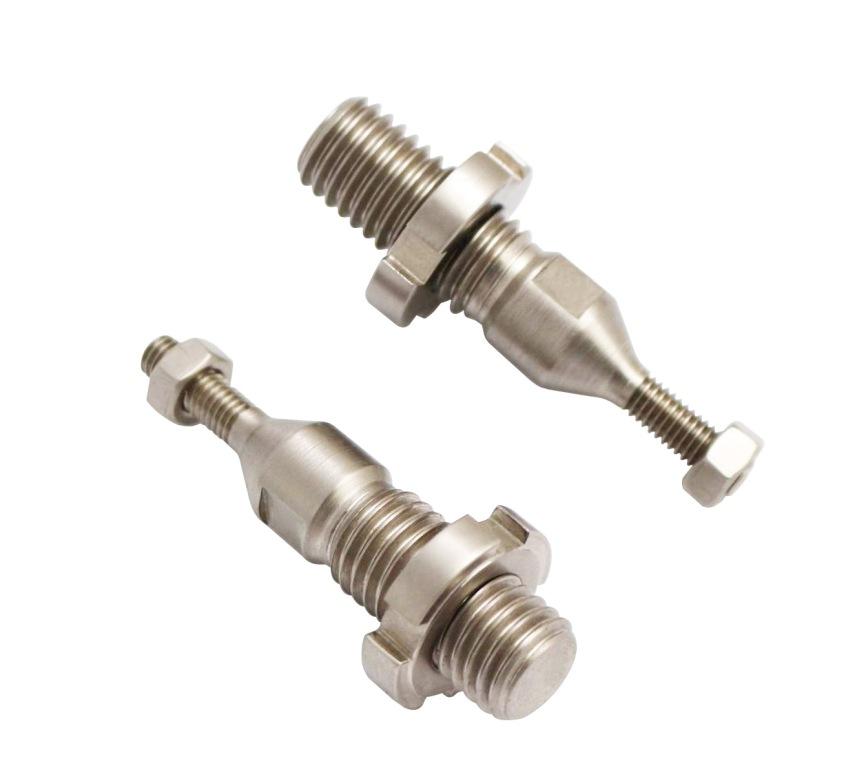

THS814-M14-M6



more

Description: Description: Description: Description: tn_TH239-8x60-

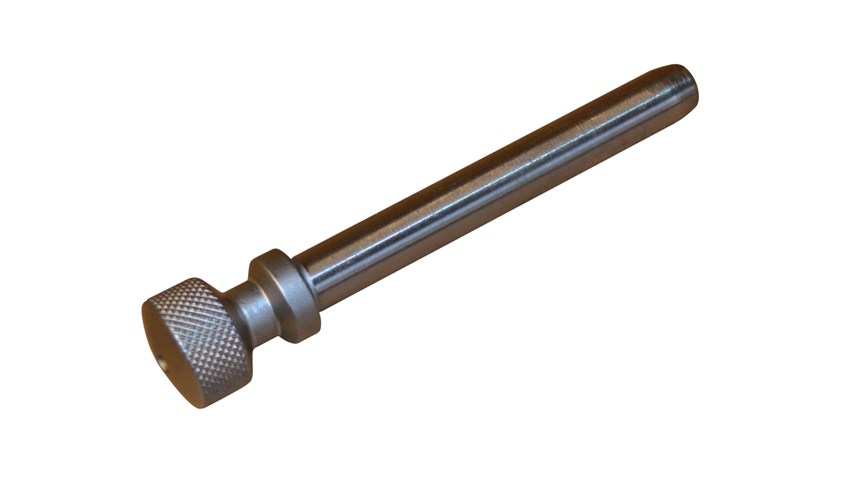

TH239



Locking pins



Absteckstifte



more

Description: Description: Description: Description: tn_THS646-36-40x8  2016-

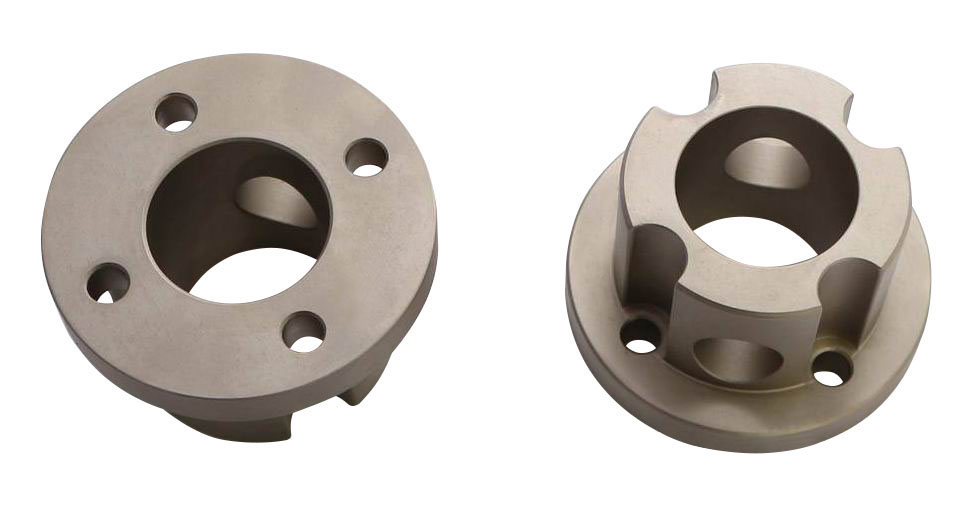

THS646



Adapterbohrung 36



Flansch 4 Bohrungen 8mm auf 40x40mm



more

Description: Description: Description: Description: tn_THS628-5025-8xkm12-TK120  4784g  09-02-2018  02-

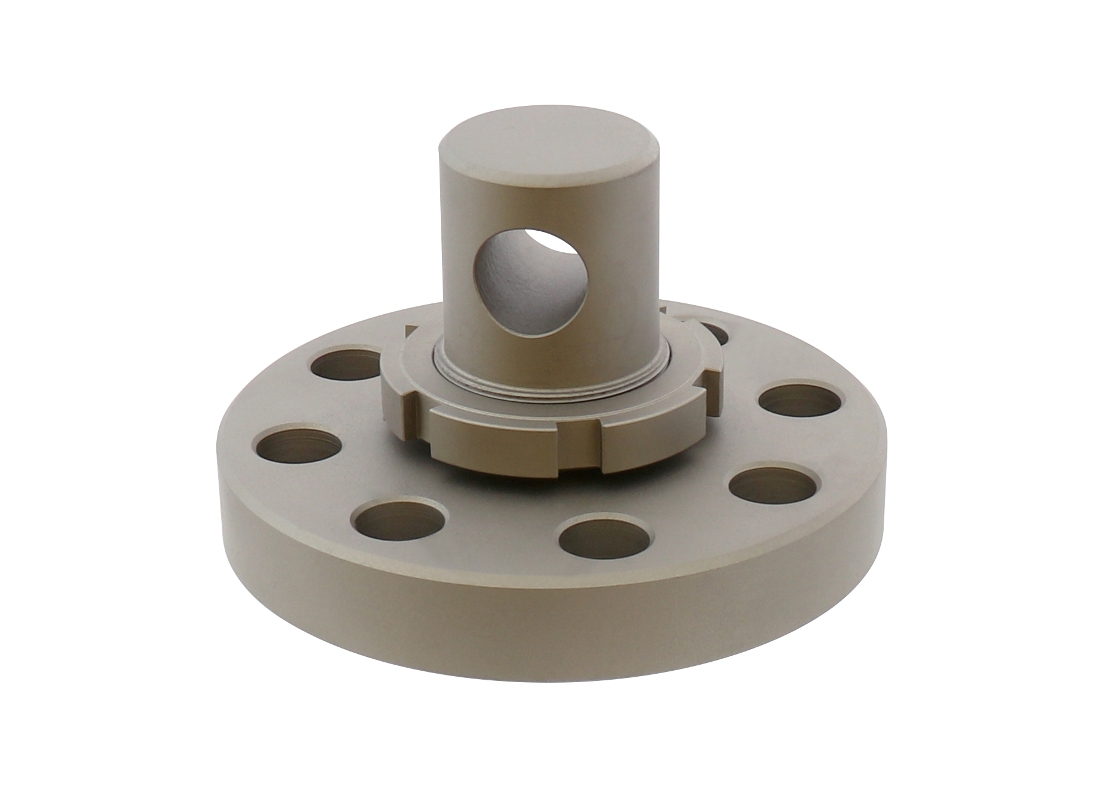

THS628



more

Description: Description: Description: Description: Description: Größenänderung THS892-318-M12

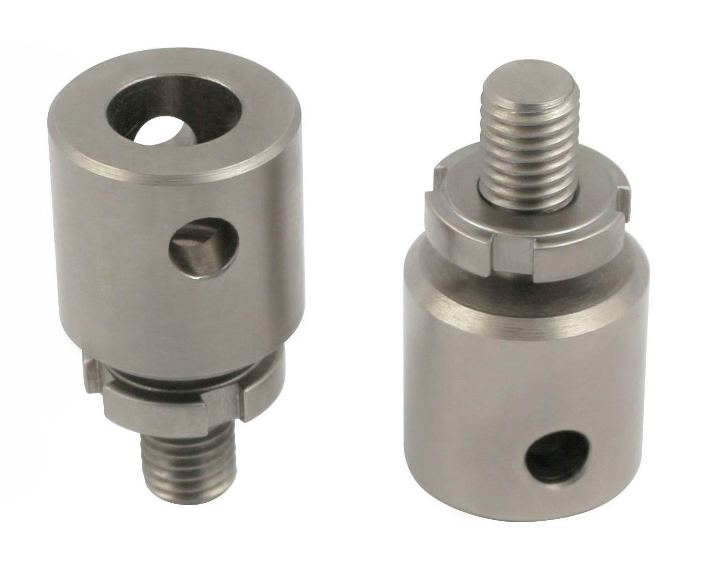

THS892-318-M12



Adapter Bohrung – Außengewinde



Female Adapter  – male thread





For small threads we take THS486 and a hex socket screw with 2 nuts

Description: Description: Description: Description: Description: THS950-A-B

THS950-A-B



Female thread (big) – female thread

Description: Description: Description: Description: tn_THS950-M33x2-M30x2-HRC-.jpg

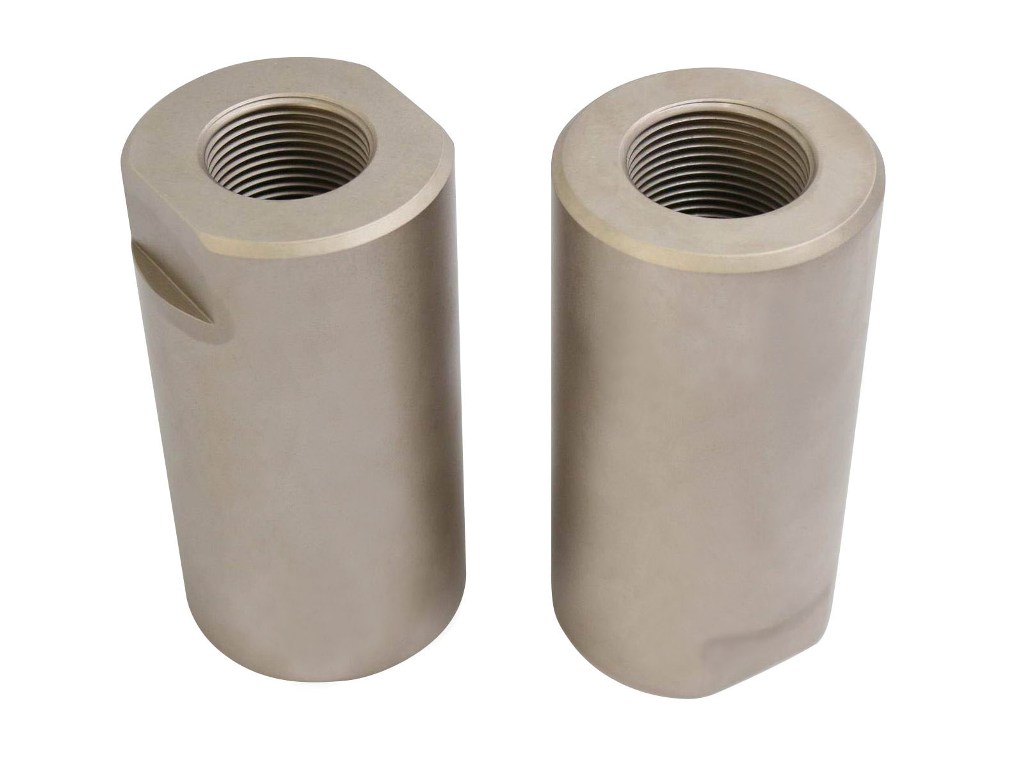

THS950-M33x2-M30x2-HRC

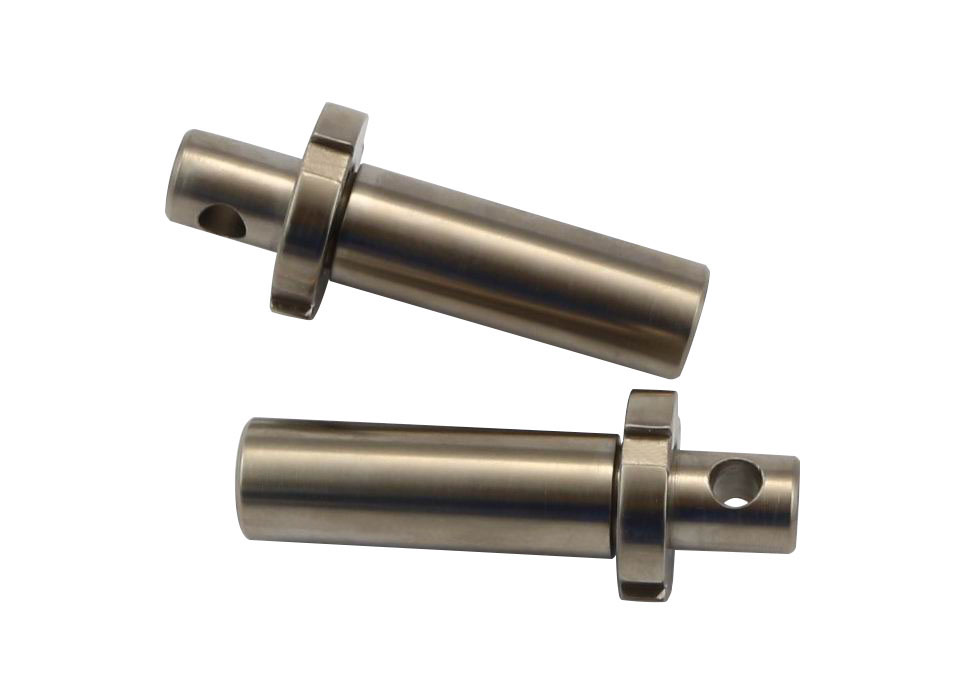

Description: Description: Description: Description: tn_THS988-Am158-D20x60  Adapter to be kept by V jaws of an hydraulic grip  6h2-.jpg

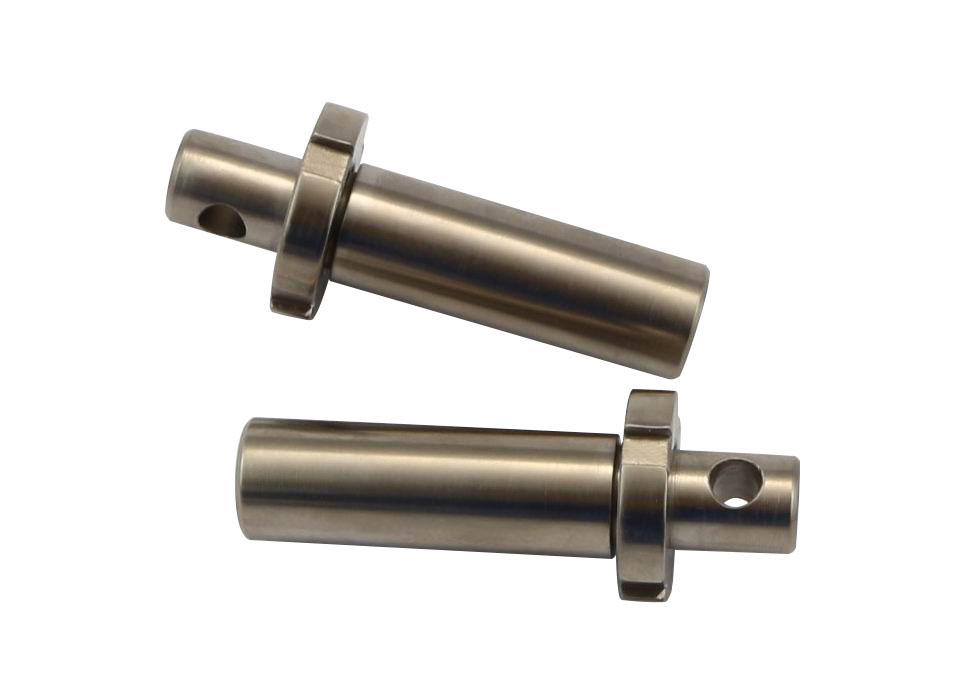

THS988



more



THS978

Male thread   flange

THS624

Flange female thread




Adapter für Thermokammer

Adapter for chamber

Description: Description: Description: Description: THS521-159-200-P_  200mm between eyes pneumatic connection-.jpg

THS521-159-200-P



200mm between eyes

pneumatic connection

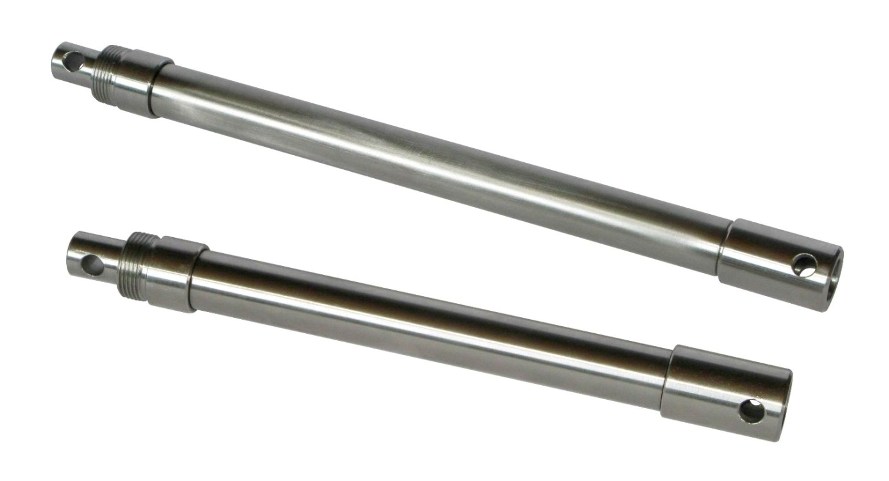

Description: Description: Description: Description: tn_THS521-158-159-Lxxx-.jpg

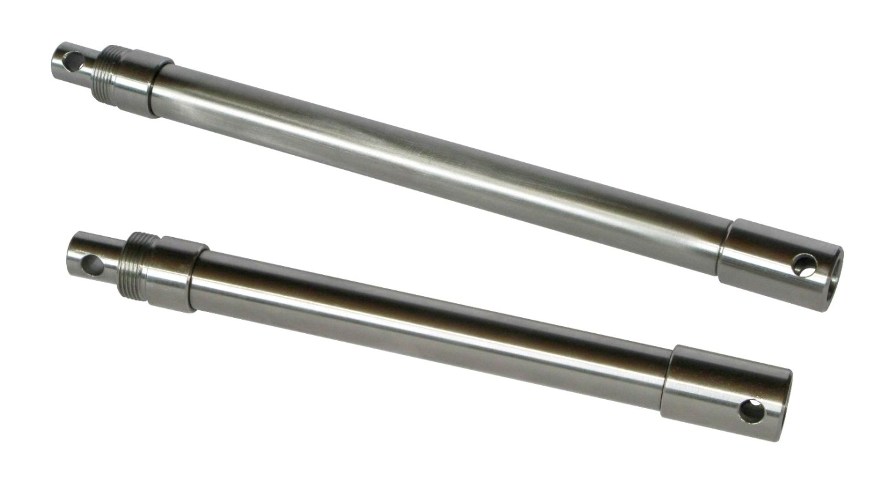

THS521-158-159-Lxxx

Description: Description: Description: Description: tn_THS521-Af40-Am40-L180  2,6kg08-03-2018    01-

THS521-Af40-Am40-L180



Pull rod for temperature chambers,

Couplings female (lower) and male (upper) 40/16, length between holes 180 mm

THS521-L200

THS521-L300



Pullrods with a coupling Am60, 200 mm and 300 mm long.








Sonderadapter

Special accessories

Description: Description: Description: Description: tn_THS327-40-18-M  4,2kg  08-03-2018  01-

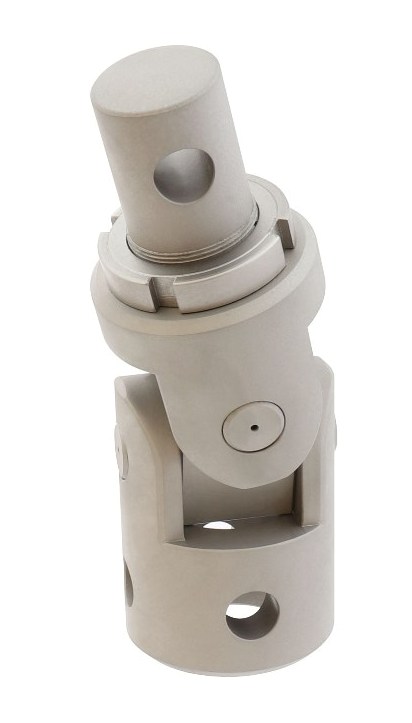

THS327



Kardan

Zapfen   15.8 mm

Bohrung 15.9 mm



more

Description: Description: Description: Description: Description: THS317-159

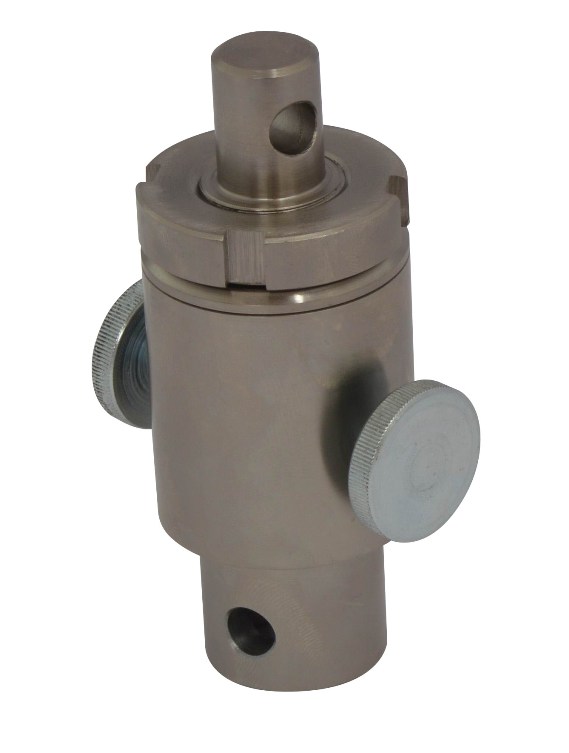

THS317-158-159



turnable Adapter with ball bearings



Drehadapter mit Axialkugellager

Zapfen   15.8 mm

Bohrung 15.9 mm



more

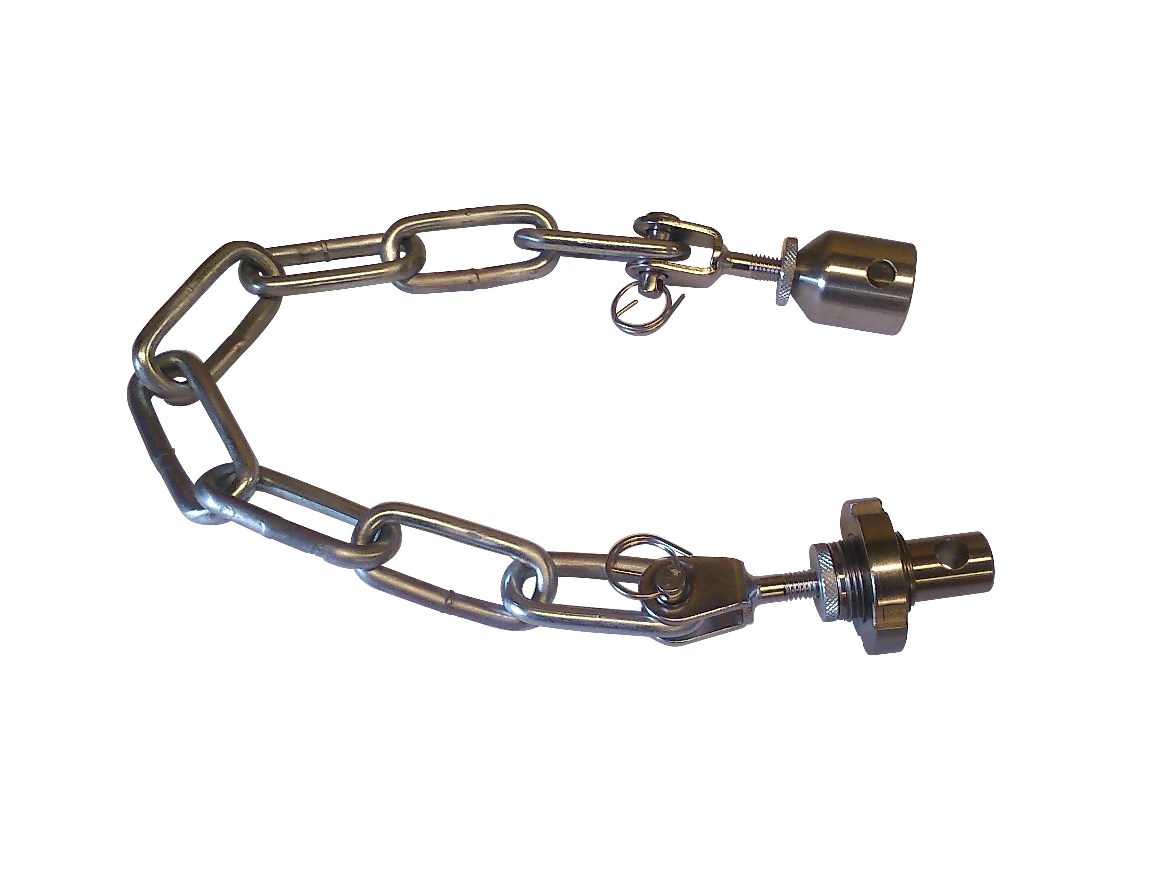

Description: Description: Description: Description: Description: tn_THS665-158-159-500-10kN Kette AF159 Am158 11.9.2015-.jpg

THS665-158-159-L500



Chain adapter

Male 15.8/8 mm

Female 15.9/8 mm

Length 500 mm



Kettenadapter



20 kN

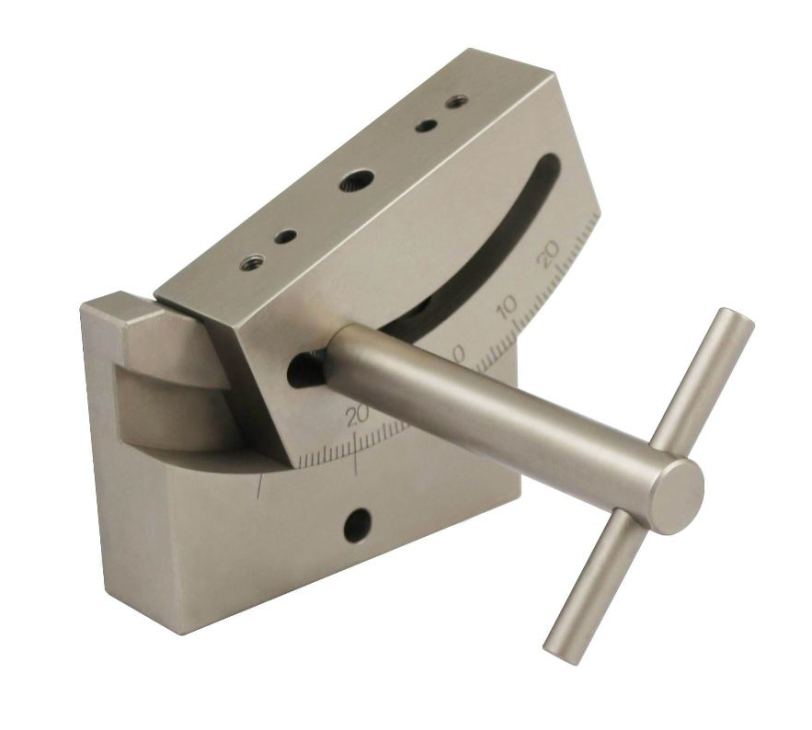

Description: Description: Description: Description: tn_THS572-45-avs-Af159  20° angle adjustable adapter 14.2.2018-

THS572-45-158-159



Winkeleinstellbare Adapter

±45°

Zapfen   15.8 mm

Bohrung 15.9 mm



more

Description: Description: Description: Description: THS350-50-50-8 10.3. D  spring adapter to adjust load-.jpg

THS350-50-50-8



Adapter to calibrate tensile tester with a second load cell

Description: Description: Description: Description: Description: THS91-100-Ad50-S2-MPA-Adapter-100kN

THS91



MPA Adapter mit Pfanne



more

Description: Description: Description: Description: Description: THS785-40-M33x3  spiralwasher

THS785-33



Spiral washers



Verspannscheiben

Adapterkürzel yy

nomenclature short forms yy

Weiblich / female

Af159 = Adapter female 15.9H7  = 15.900…15.918



59  = 5.9/2.6  mm
8 = 8/3

10 = 10.
126 = 12.6/3.9
14 = 14/6
155 =  15/5
1506  =   15/6
159 = 15.9/8  = 5/8"    häufigster Adapter  20kN
16  = 16/6.5
18  = 18/8
19197=19,1/9.7   6/8"

20  = 20/8  20kN
25  = 25/10

255  =  25.5 / 12.7
30  =   30/12   50kN
318 =  31.8/12.8    10/8"   50kN
32 =  32/16.3   Te
36  =  36/18     50kN
38  =  38/16     50kN     Ga
40  =  40/16     100kN
50 = 50/24
6025  = 60/25 (25/53)  250kN
6030 = 60/30   (35/72)   250kN
64 = 64 / 30    300 kN
70 = 70/35    (35/72)  300kN

Männlich / Male

Am15.8  Adapter male 15.8 f6   =  15.784…15.773

m8   = 8/3     500N
m119  =  11.9/6  10kN
m15865   =   15.8/6.5 (MTS)
m158    =  15.8/8  5/8"  20kN
m1660  = 16/6   10kN
m1665  = 16/6.5  10 kN
m19  =19/9.7   6/8"     19.0/9.7/12.7/28.5

m20  20/8
m2014  Zap fen 20/14 o Querbohrung MTS
m22  = 22 Diameter mitt Nut MTS
m317   10/8"    (Instron)
m35 =   35/13   / 20/40
m40  = 40/16
m45 =   45/20    35vR MTS
m50  = 50/24
