Adapters



Back

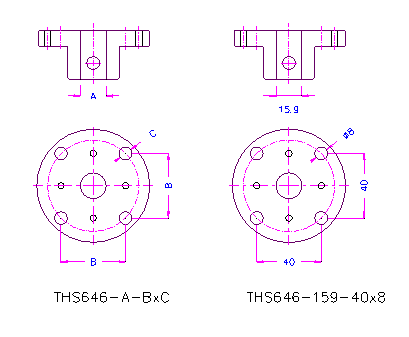

Description: THS646-A-BxC

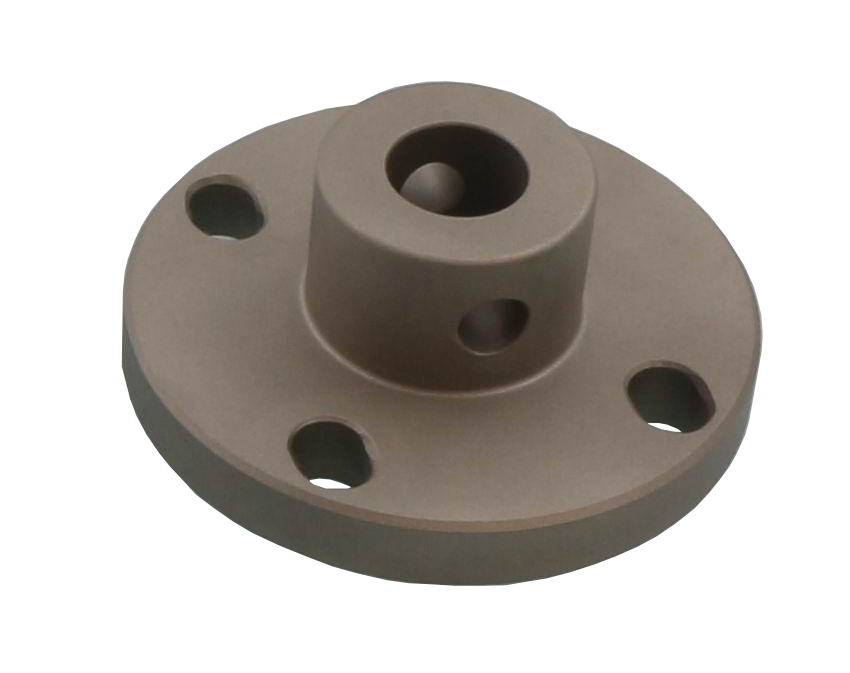

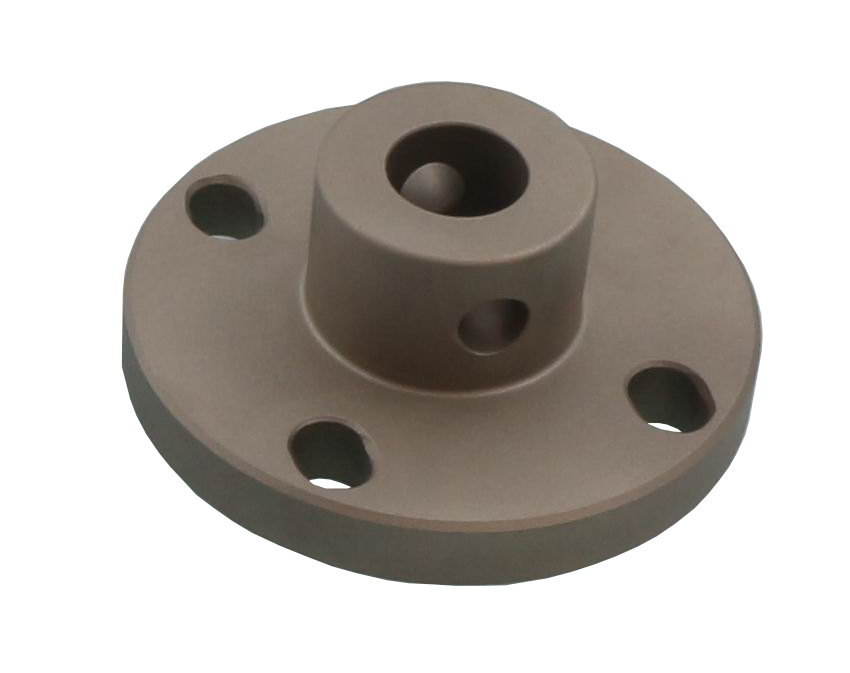

THS646-159-45 2021-11-24 Ready 2h1x

THS646-159-40x8

Adapter female 159 mm with pin hole 8 mm - flange with holes 40x8
Steel

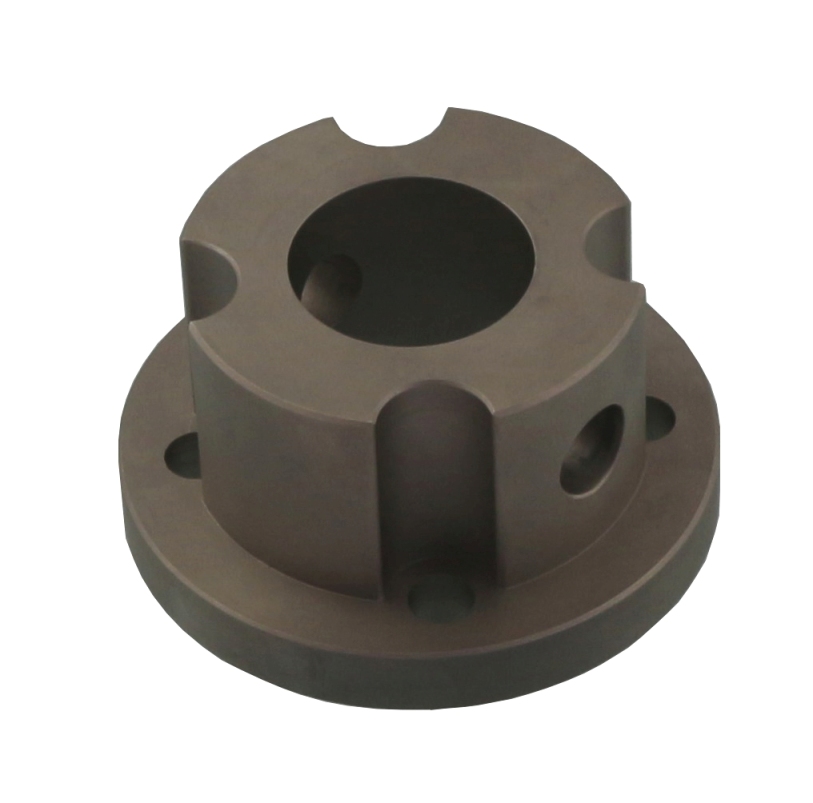

THS646-30-40xKM8-Ob 2019-06-18 ready 23h10x

THS646-30-40xKM8

Adapter female 30 mm with pin hole 12 mm - flange with holes 40xKm8
Steel

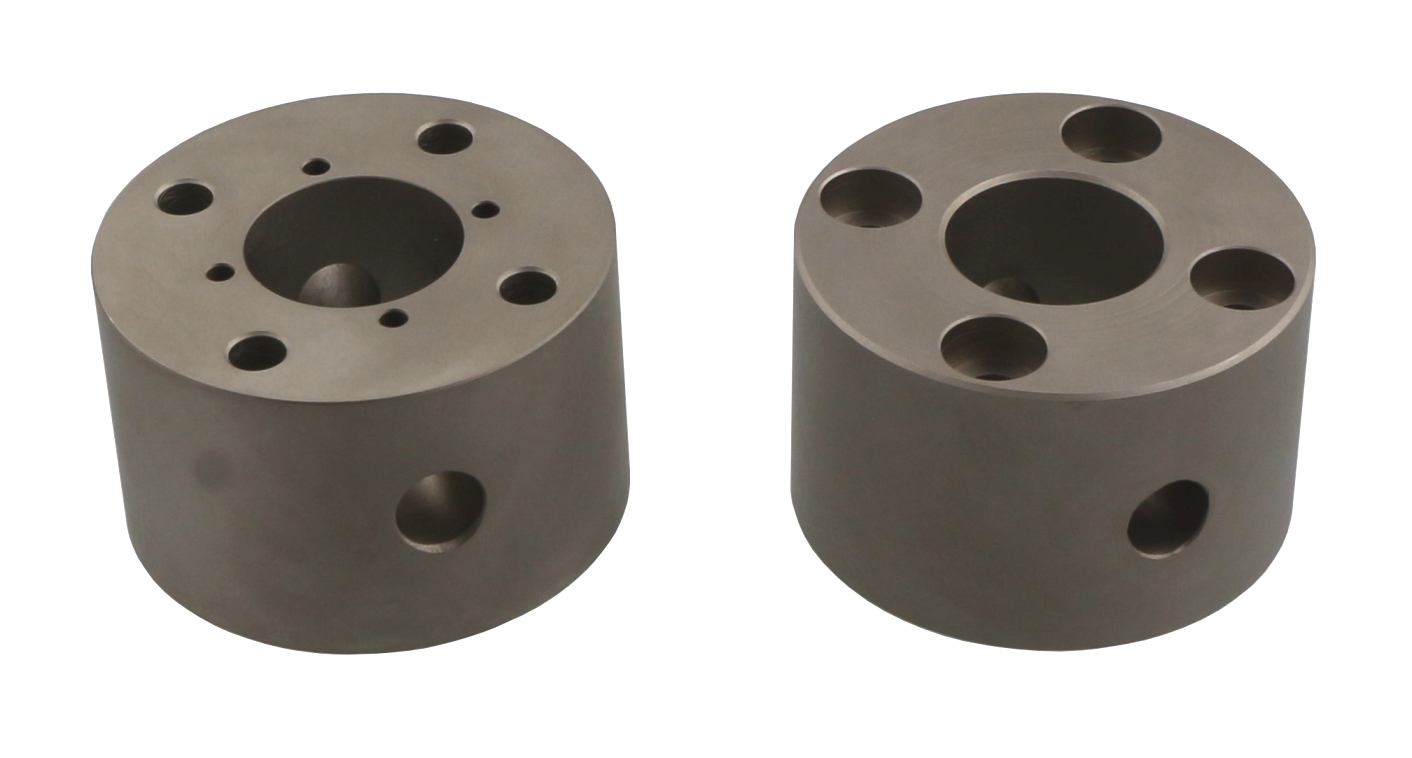

THS646-318-40xKM8-1.2kg_2019-12-24

THS646-318-40xKM8

Adapter female 318 mm with pin hole 12.8 mm - flange with holes 40xKm8
Steel

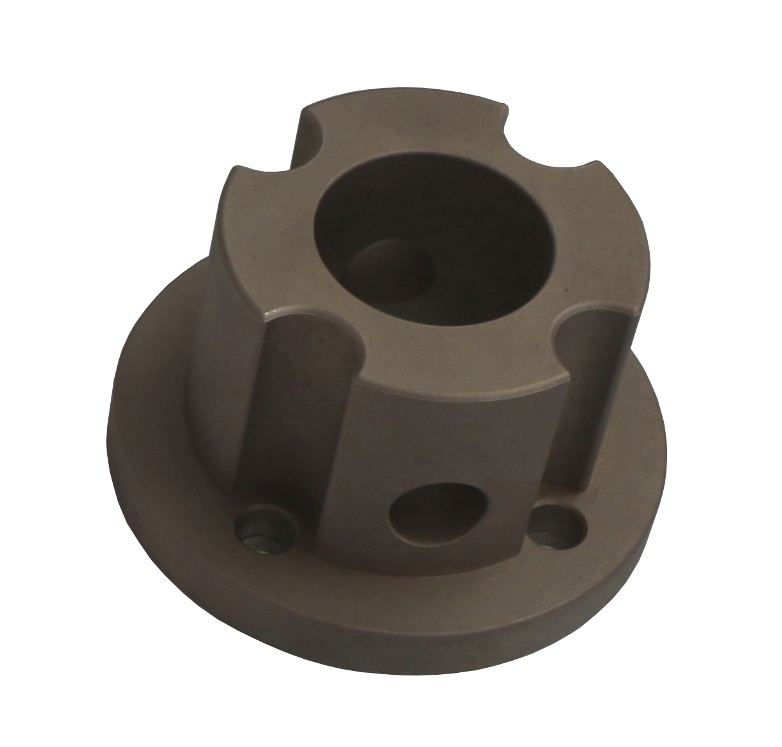

THS646-318-40x8_2019-09-19

THS646-318-40xM8

Adapter female 31.8 mm with pin hole 12.8 mm - flange with threaded holes
40xM8
Steel

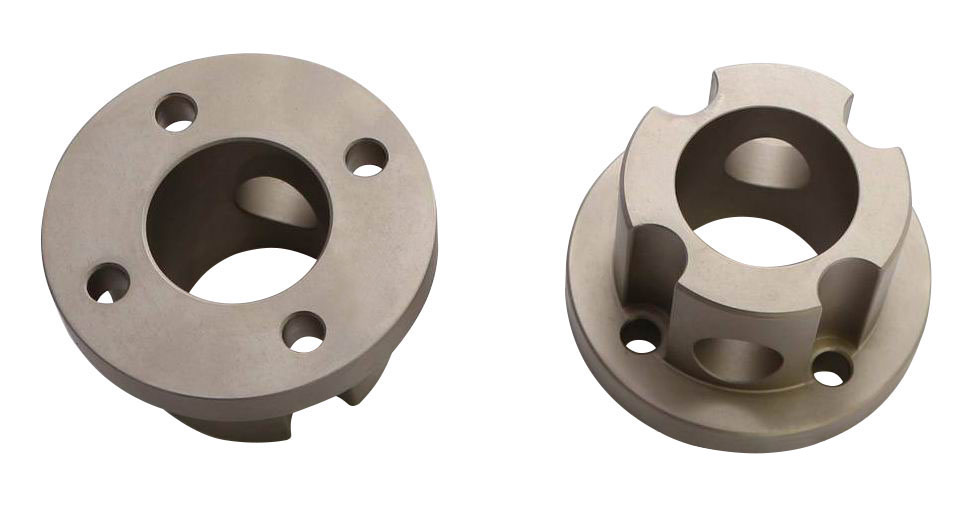

THS646-36-40xKm8

Adapter female 36 mm with pin hole 16 mm - flange with holes 40xKm8
Steel

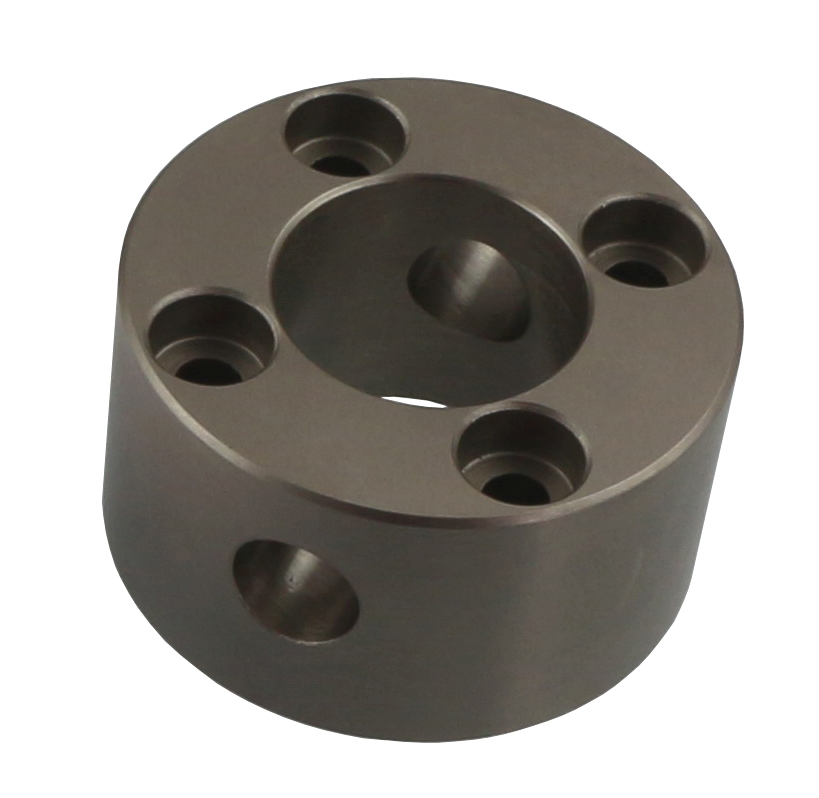

THS646-38-40xKM8_2019-10-31

THS646-38-40xKM8

Adapter female 38 mm with pin hole 16 mm - flange with holes 40xKm8
Steel

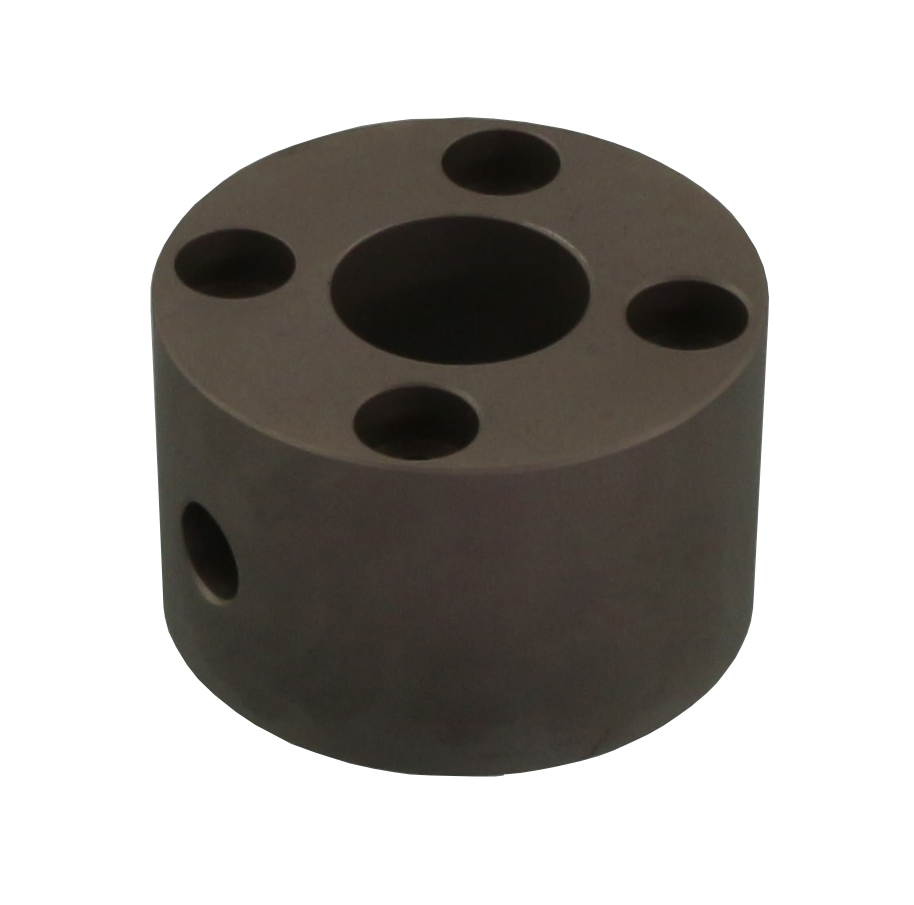

THS646-40-40Km8-1.4542_2019-06-27

THS646-40-40xKm8

Adapter female 40 mm with pin hole 16 mm - flange with holes 40xKm8
Steel

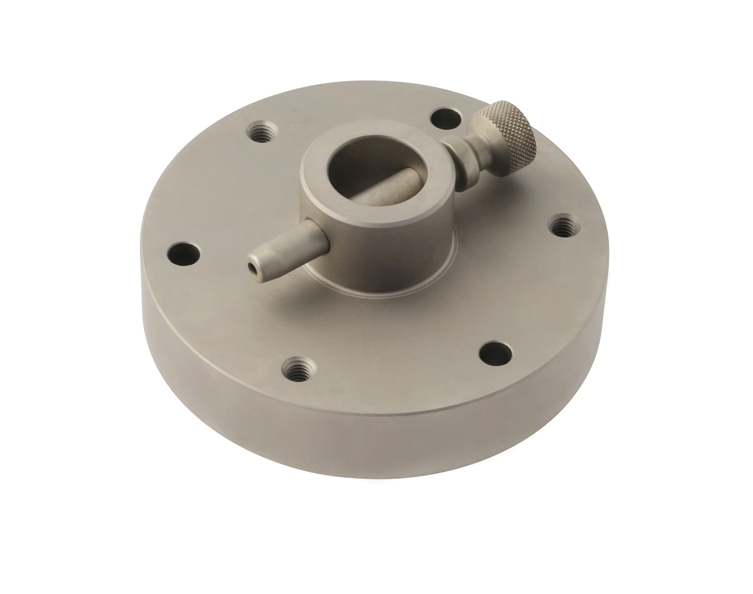

tn_THS646-20-3xM6-3xkm6.5-TK80 1175g excl. pin-

THS646-20-3xM6-3xkm6.5-TK80

Special adapter female 20/8 mm- flange 3xM6+3xKm6.5-TK80

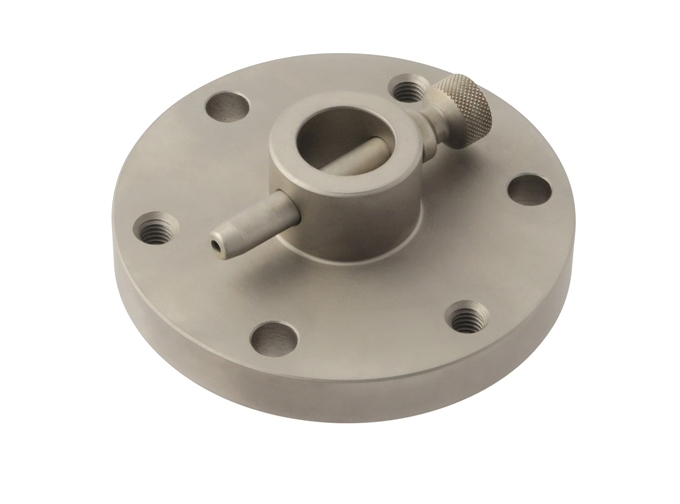

tn_THS646-20-3xM8-3xkm9-TK80 780g excl.pin-

THS646-20-3xM8-3xkm9-TK80

Special adapter female 20/8 mm- flange 3xM8+3xKm9-TK80

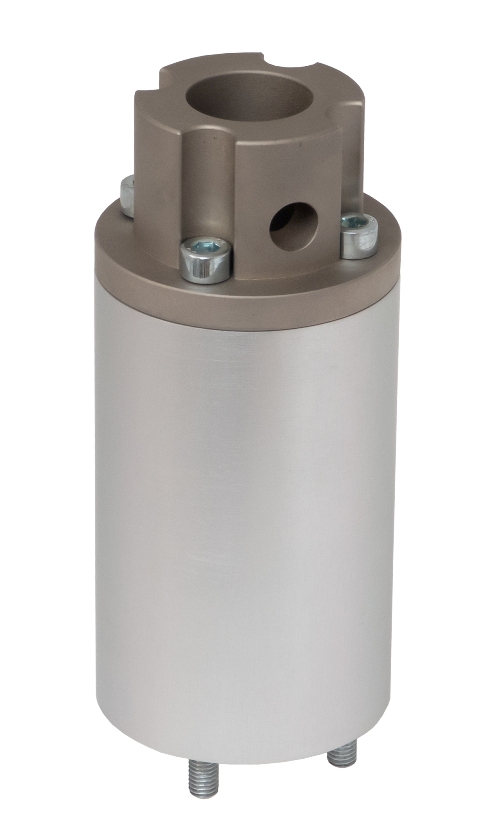

tn_THS646-318-40xKm8-H170 2.5kg 01

THS646-318-40xKm8-H170

Special adapter

Coupling Af318, height 170 mm

Steel, nickel-plated

info@grip.de



LX 18 Jul 2023

TOP









Adapter hole

Distance

of fixing holes

Diameter of

Fixing holes

Typus

THS646-159-38x8

15.9

38

8



THS646-159-40x8

15.9

40

8



THS646-191-40x8

19.1

40

8



THS646-20-40x8

20

40

8



THS646-30-40x8

30

40

8



THS646-318-40xKm8

31.8

40

Km8 Senkung

2 Hoch

THS646-318-40x8-Ob

31.8

40

8

Niedrig

THS646-318-44x8

31.8

44

8



THS646-318-TK72

31.8



8



THS646-318-80x8

31.8

80

8



THS646-32/16.3-40x8

32

40

8



THS646-36/16-40x8

36

40

8



THS646-36/18-40x8

36

40

8



THS646-36-50.91x8-TK72

36



8



THS646-38-40x8 V2a

38

40

8



THS646-40-40x8

40

40

8













THS646-159-40xM8

15.9

40

M8



THS646-159-40xM8-Z

15.9

40

M8



THS646-159-38xM8

15.9



M8



THS646-20-40xM8

20

40

M8



THS646-30-40xM8

30

40

M8



THS646-318-40xM8

31.8

40

M8



THS646-318-40xM8-Klein

31.8

40

M8



THS646-318-8+M8-

31.8



M8

Variabel

THS646-38-40xM8-Ni

38

40

M8

Vernickelt
