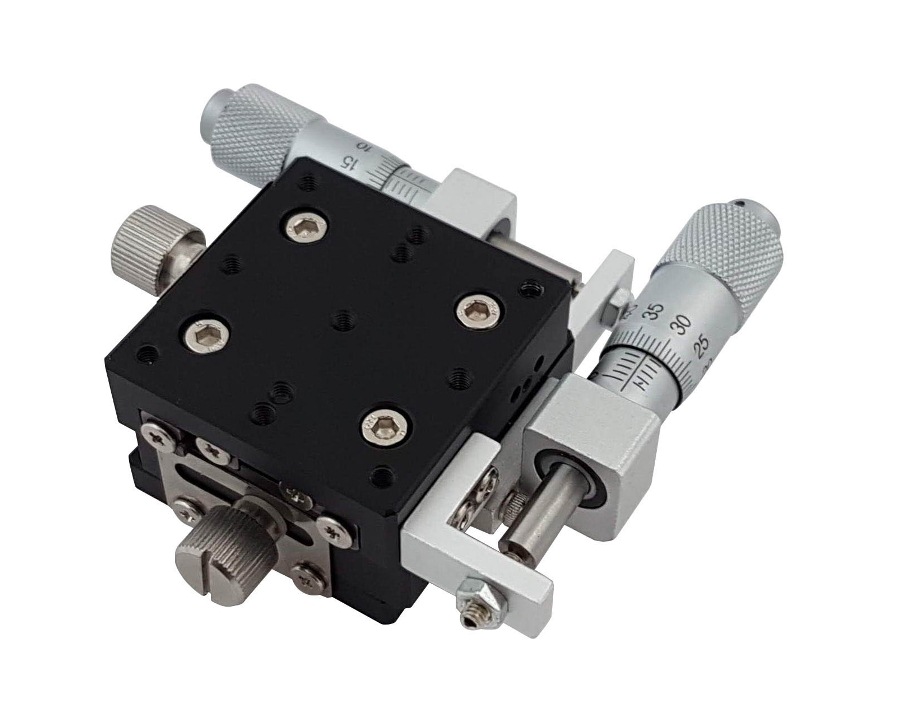

THS345-6x6

XY cross slide

X travel [mm]: 6
Y travel [mm]: 6

Table size [mm]: 40x40

Total size [LWH]: 80x80x35



THS345-x6y6z5 xy6.5mm z5mm 20N 0.01mm

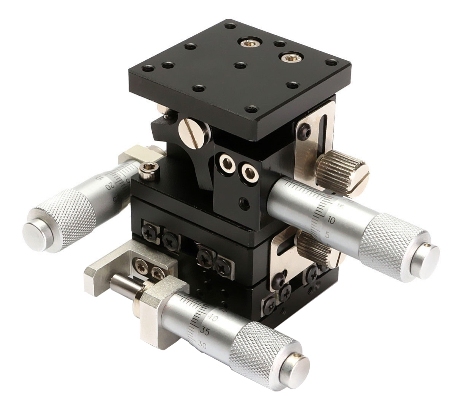

THS345-6x6x6

XYZ cross slide

X travel [mm]: 6
Y travel [mm]: 6
Z travel [mm]: 6
Table size [mm]: 40x40

Total size [LWH]: 100x80x70

tn_THS345-13  1,1kg  2018-11-12  04-

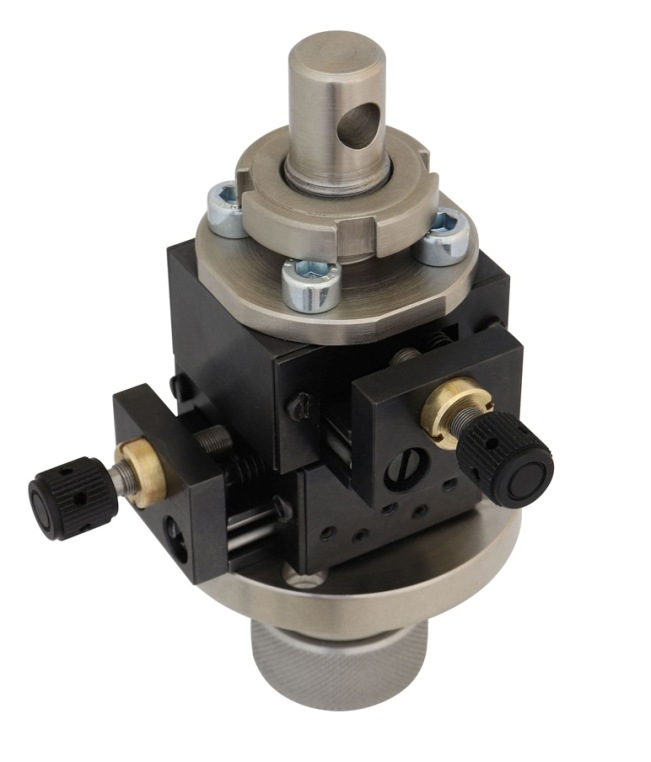

THS345-13x13

XY cross slide

X travel [mm]: 13
Y travel [mm]: 13
Table size [mm]:  60x60

Total size [LWH]: 80x80x50 without

coupling

THS345-25x25-12xM3-Am1665_4kg_2024-02-16

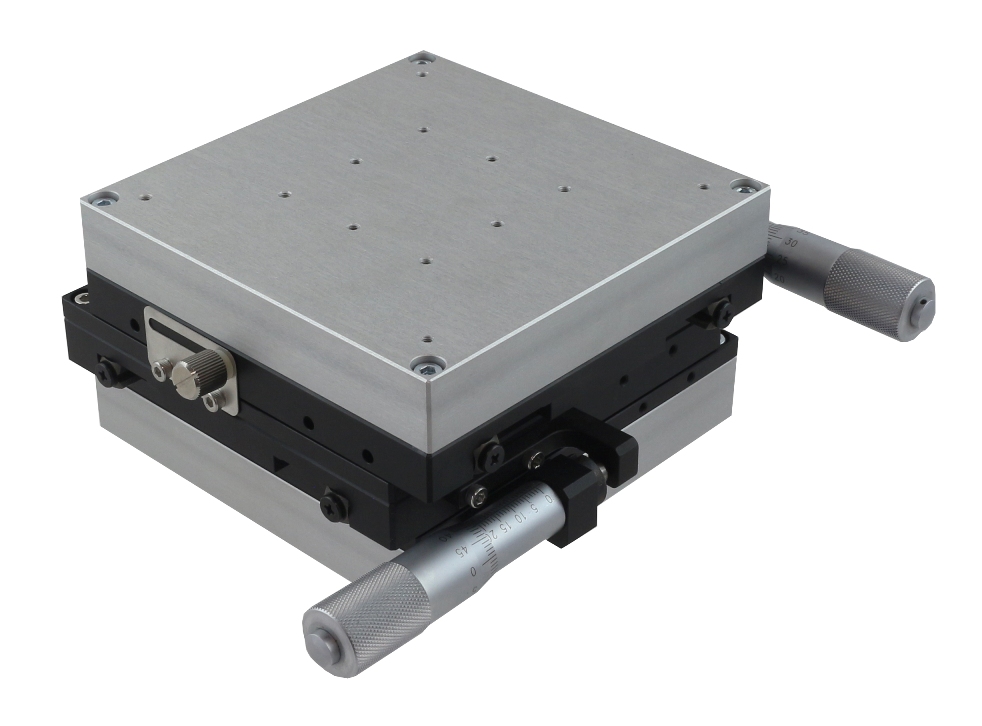

THS345-25x25-12xM3-Am1665

XY cross slide

X travel [mm]: 25
Y travel [mm]: 25
Table size [mm]:  125x125

Total size [LWH]: 175x175x128
Max. load 5 kN
Incl. 12x thread holes M3
Coupling Am1665





tn_THS345-xy30-Digital

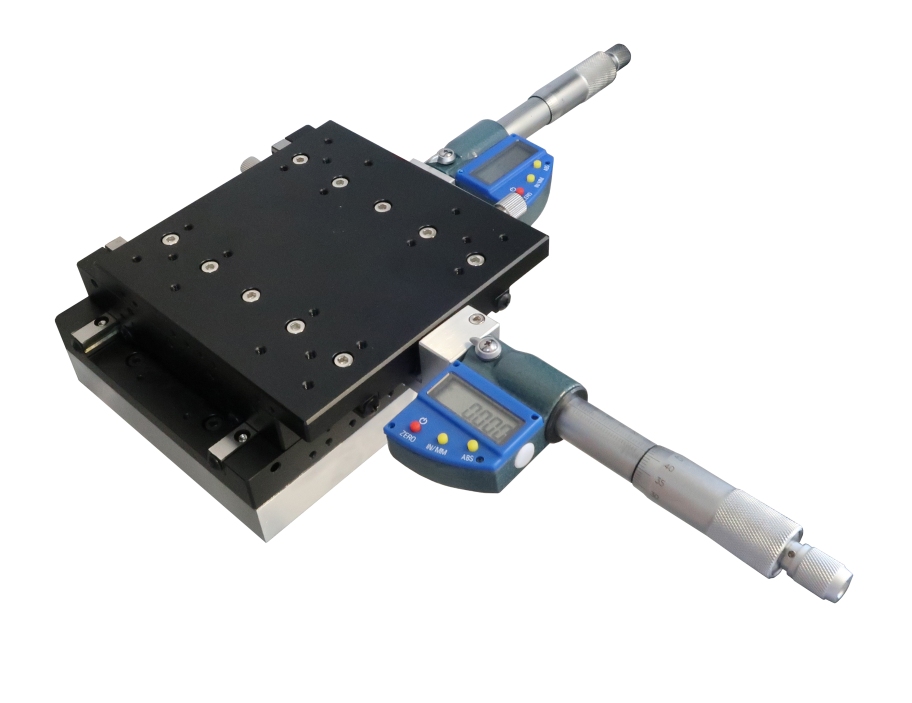

THS345-xy30-Digital

XY cross slide


X travel [mm]: 30
Y travel [mm]: 30
Table size [mm]: 125x125

Total size [LWH]: 267x267x121





tn_THS345-33x33 Kreuzschlitten mit Mikrometer Verfahrweg 33mm(1)

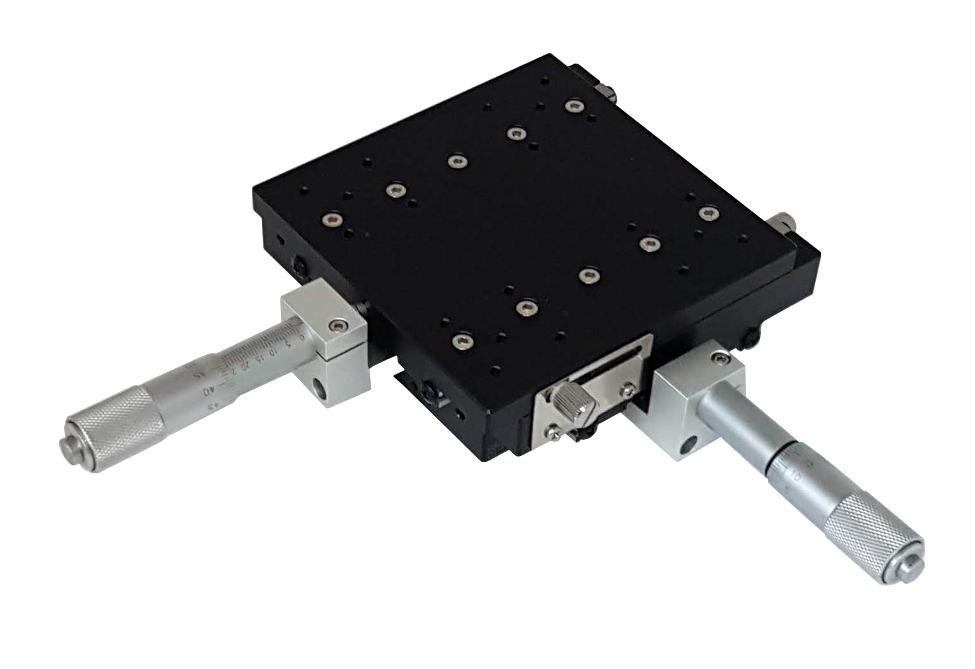

THS345-33x33


XY cross slide

X travel [mm]: 33
Y travel [mm]: 33
Table size [mm]: 125x125

Total size [LWH]: 247x247x46







THS345-50x50 -sl100 50mm2

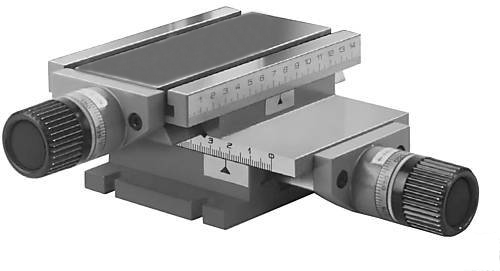

THS345-50x50


XY cross slide

X travel [mm]: 50
Y travel [mm]: 50
Table size[mm]: 150x100
Total size [LWH]: 210x210x73

Two continuous T-slots 8 mm






tn_THS1516 THS345-xy-50x70  Tisch 2.7kg 004-

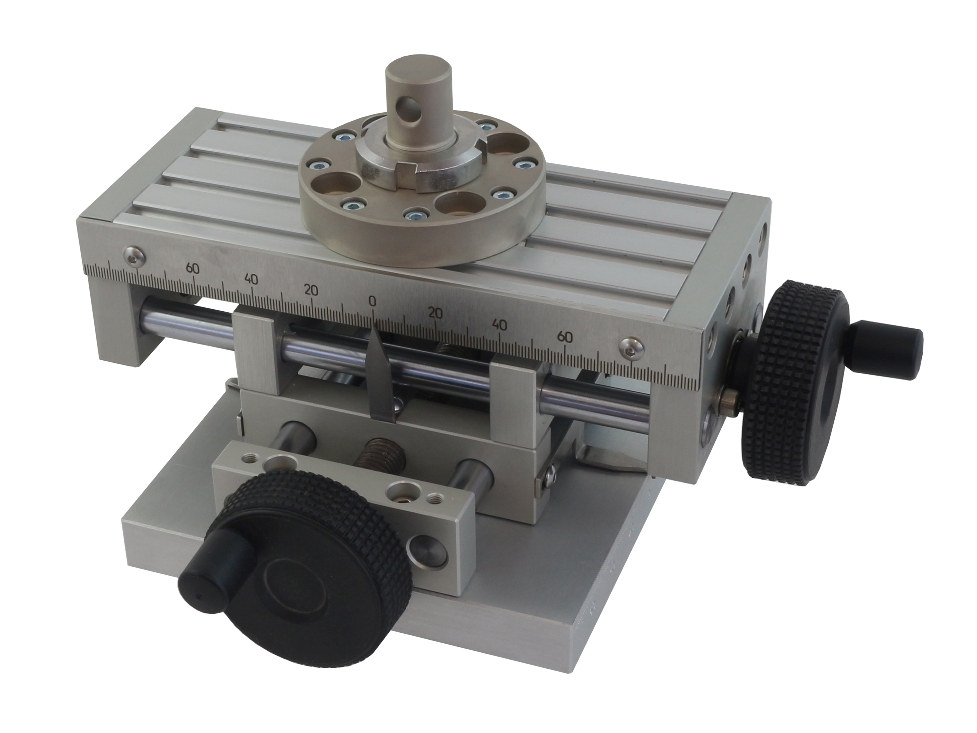

THS345-50x70

XY cross slide


X travel [mm]: 50
Y travel [mm]: 70
Table size [mm]: 80x200

Total size [LWH]: 273x233x93

Four continuous T-slots 6 mm for M4 slot nuts






tn_THS345-xy-100x320 15.04.2020 (2)

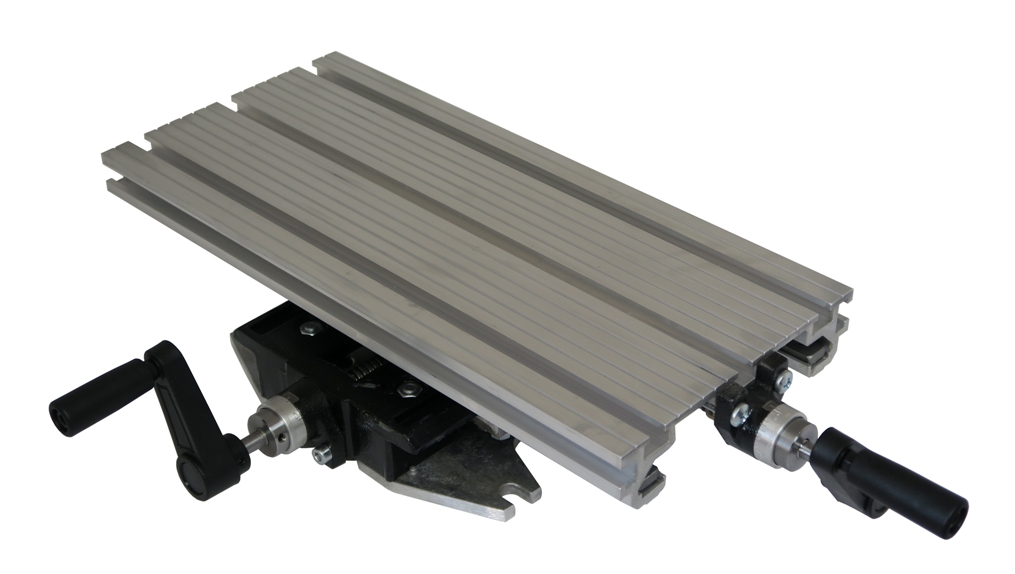

THS345-100x320

XY cross slide

X travel [mm]: 100
Y travel [mm]: 320
Table size [mm]: 400x180

Total size [mm]: 540x360x105
Width of the grooves for 10 mm T-grooves or M10 hexagon screws







tn_THS345-xy-135x105

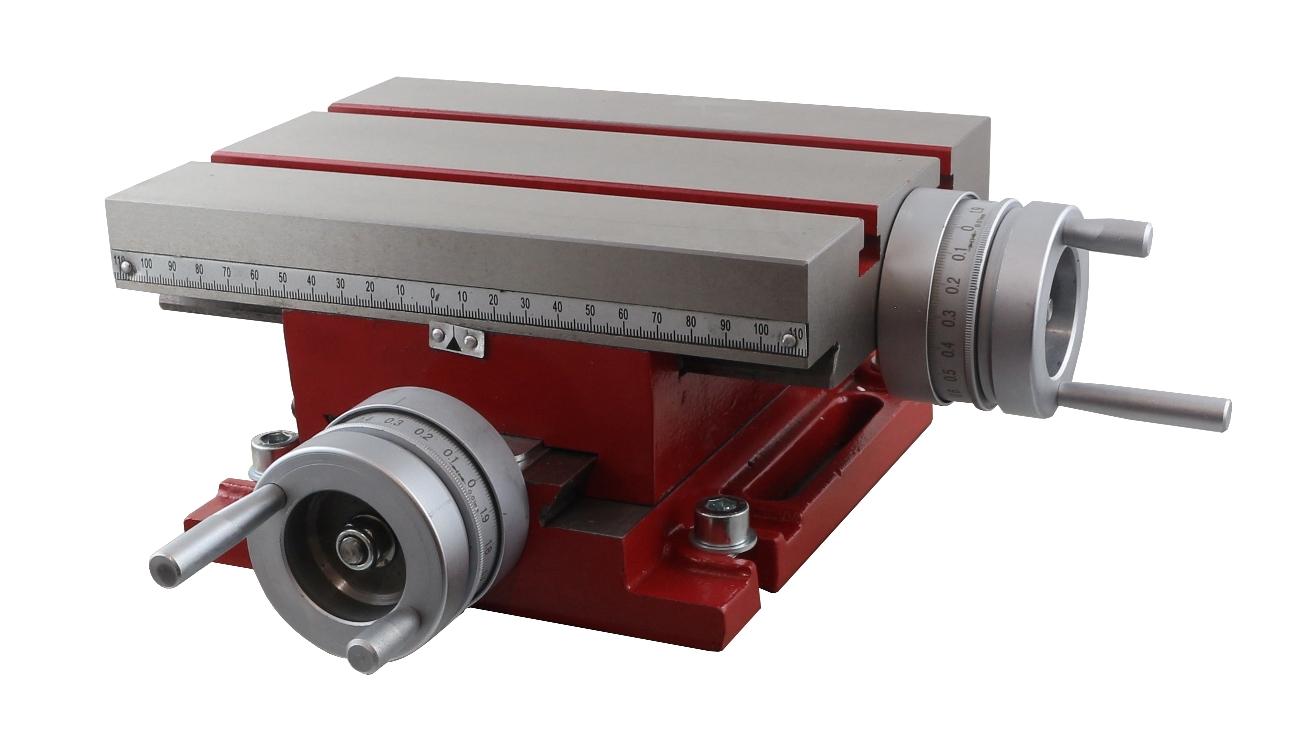

THS345-105x110

XY cross slide

X travel [mm]: 105
Y travel [mm]: 110
Table size [mm]: 225x175

Total size [mm]: 321x321x108
Two continuous T-slots 12 mm for M10 slot nuts







tn_THS345-xy-125x220 25.02.2020 (1).jpg1.jpg222

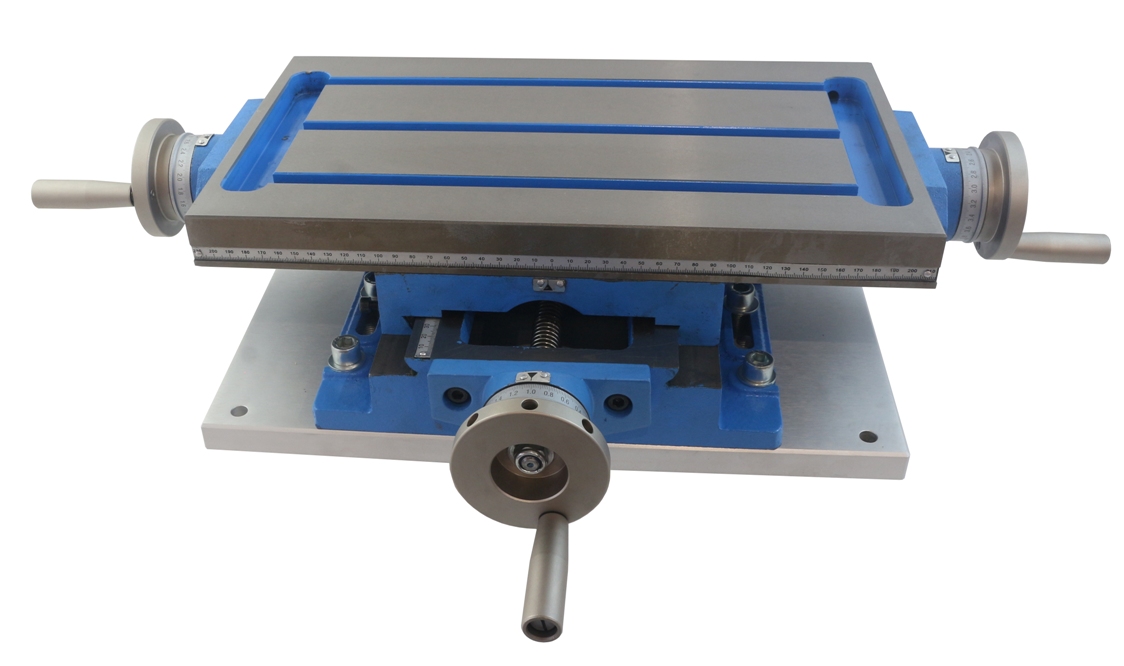

THS345-125x220

XY cross slide


X travel [mm]: 125
Y travel [mm]: 220
Table size [mm]: 220x330

Total size [mm]: 390x330x115
Three continuous T-slots 12 mm for M10 slot nuts

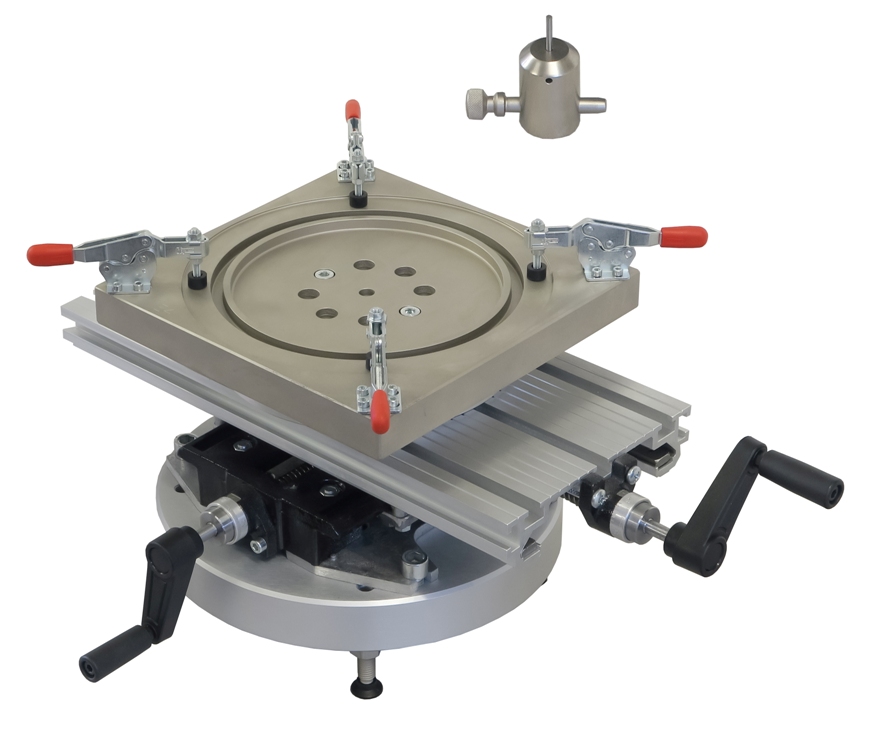

tn_THS1313-70-GT+ED4  THS345-xy-100x320 27kg
