G08 Wedge grips



Back

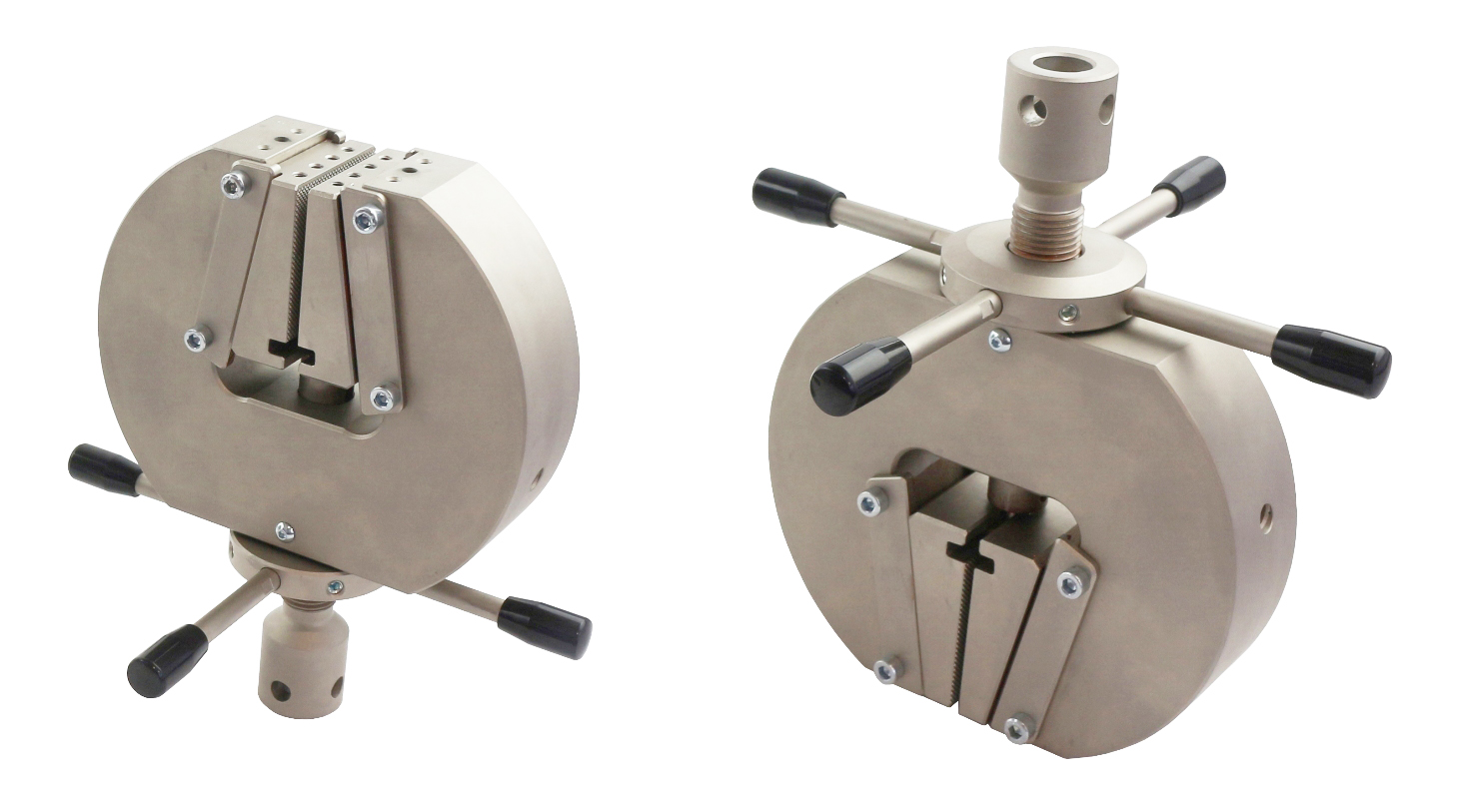

THS527-20-Af159  +BP10

THS527-20



20 kN



Description: pdf_icon.gifTHS527 Datasheet.pdf



Description: pdf_icon.gifTHS527 Datenblatt.pdf





Customized versions

tn_THS527-45-W50-7225-Af191+THS527-20-BZ10+THS527-20-BD10-x-2018-03-16-

THS527-45-W50

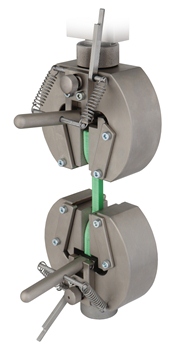

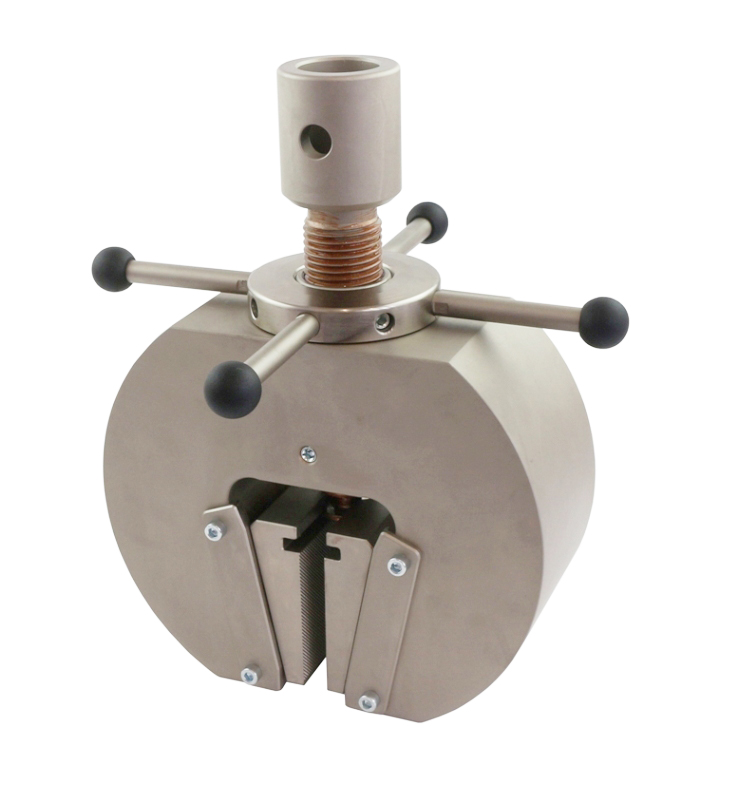

THS527-50

THS527-50



50 kN

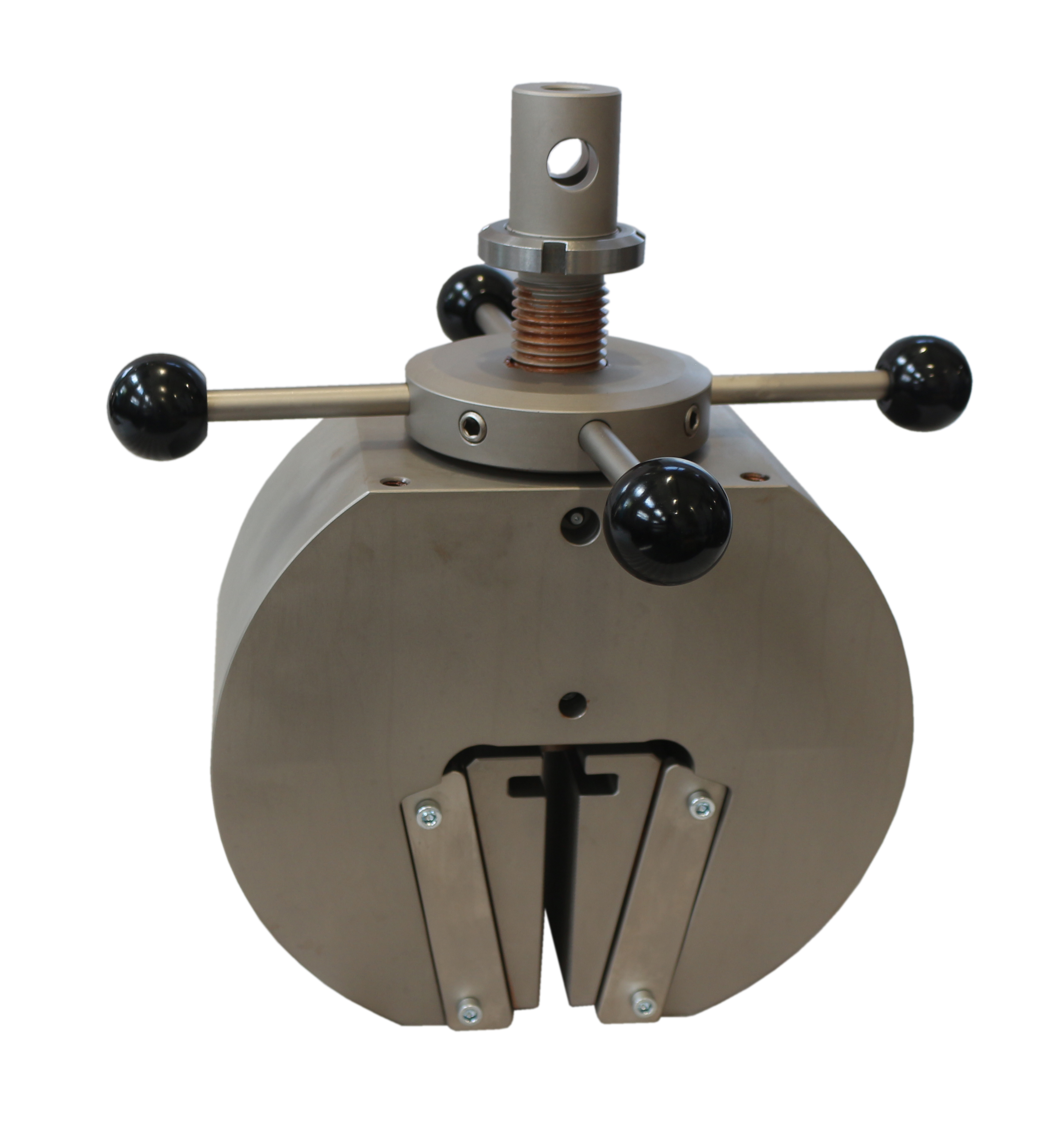

THS527-100

THS527-100



100 kN

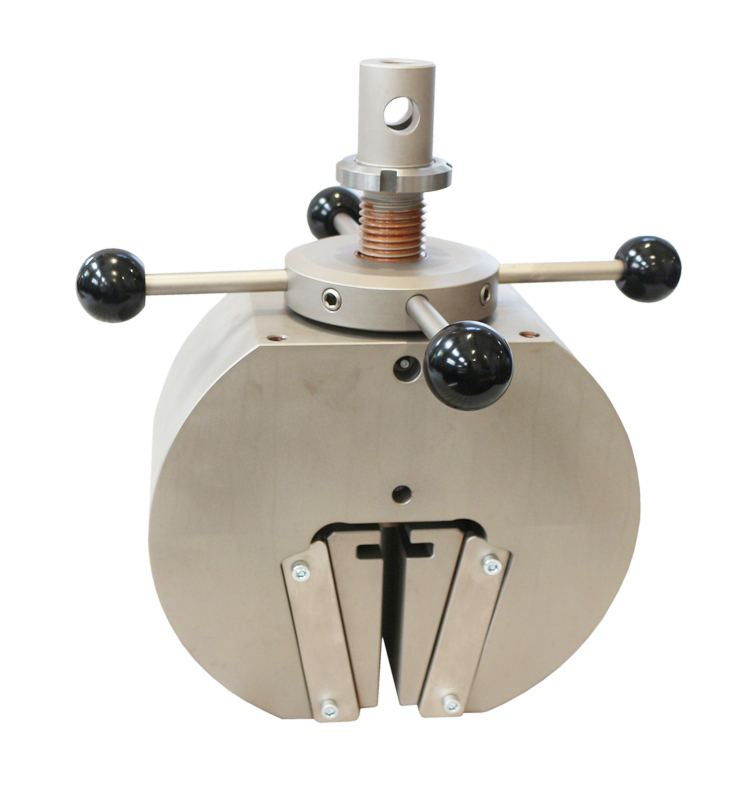

THS527-150

THS527-150



150 kN

THS527-20-BP-

THS527-20-BP



Pyramid (serrated, cross-cut) jaws

for flat samples,

52 x 40 mm (height x width)

THS527-20-BV-

THS527-20-BV



V-jaws jaws for THS527-20

for round samples,

52 x 40 mm (height x width)

tn_THS527-45-BD10-4125-2018-03-03-

THS527-45-BD10

tn_THS527-45-BZ10-4125a-2018-03-13-

THS527-45-BZ10

THS527-45-W50 BD

tn_THS527-50-BP30-W80 66x80mm

THS527-50-BP30-W80



Pyramid jaws 66x80 mm

Opening width 15-30 mm

tn_THS527-50-BV17  5-17mm-

THS527-50-BV17



V-jaws for round samples 5-17 mm

tn_THS527-50-BP17-66x100  W100-

THS527-50-BP17-W100



Special jaws 0-17mm, width 100mm



66x100 mm (h x w)

tn_THS527-50-KA-01-M30x2-2-

THS527-50-KA-M30x2



Adapter to attach other grips to THS527-50 without dismounting THS527-50 from tensile tester
