Description: Description: TH113-GT-1Axe + TH113-E50-50x50

TH113



Flatwise tensile bond test fixtures according to ASTM C297, ASTM D3354, ASTM D1623-B, EN1607, EN 2243-4, DIN 53292



Description: Description: Description: pdf_icon.gifTH113_Datasheet.pdf

Description: Description: Description: pdf_icon.gifTH113_Datenblatt.pdf

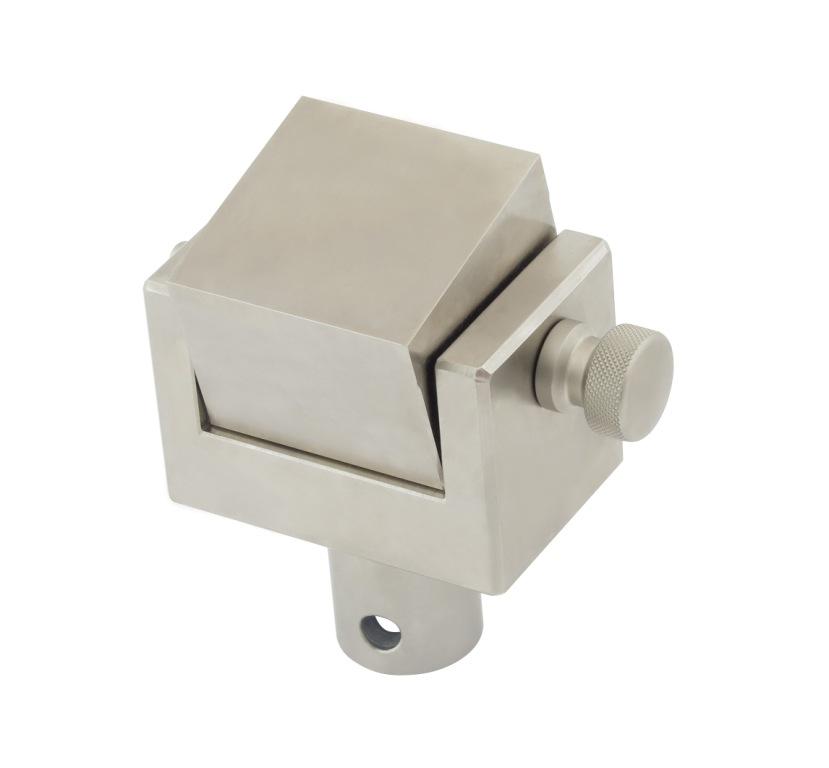

TH113-GT + TH113-E50-50x50



1 axis tensile bond test fixture

to test adhesion properties

according to EN 2243-4

for samples 50x50 mm

Description: Description: TH113-2Axe + TH113-E50-50x50

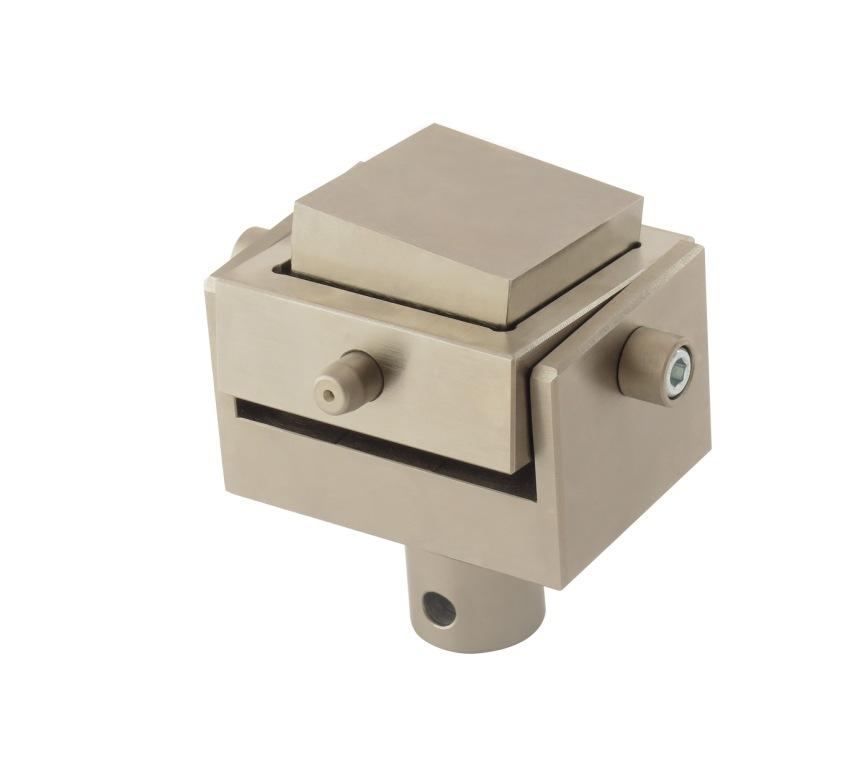

TH113-2Axe-GT + TH113-E50-50x50



2 axis tensile bond fixture

to test tensile strength flatwise

according to EN 1607 and DIN 53292

for samples 50x50 mm

Description: Description: TH113-GT-

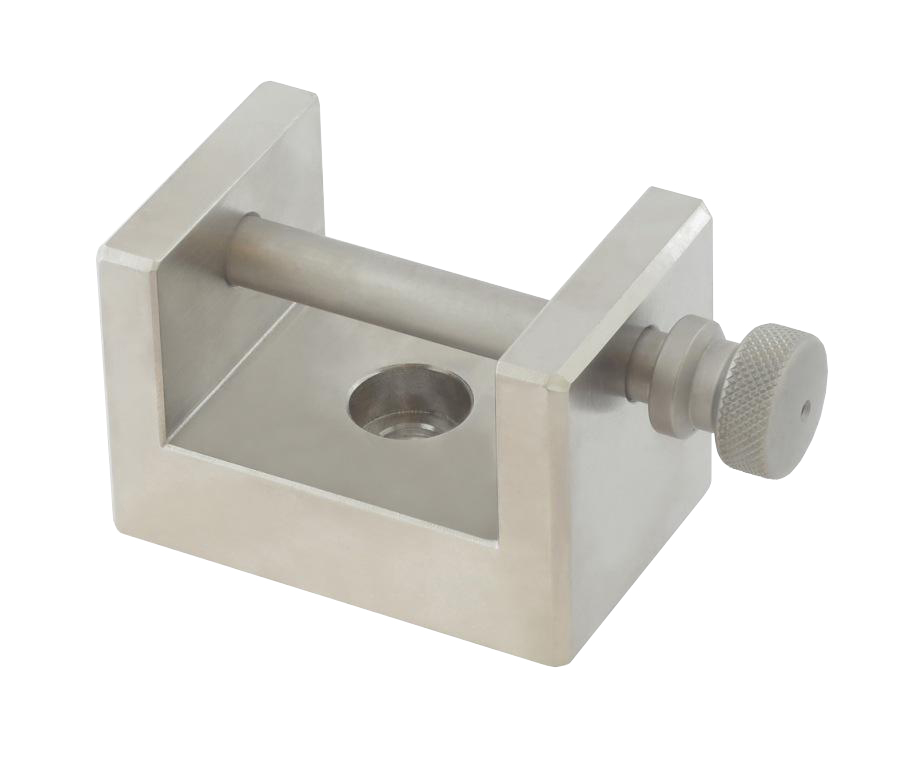

TH113-GT



1 axis tensile bond fixture carrier

to test tensile strength flatwise

according to ASTM C297, EN 2243-4

Description: Description: TH113-GT-2Axe

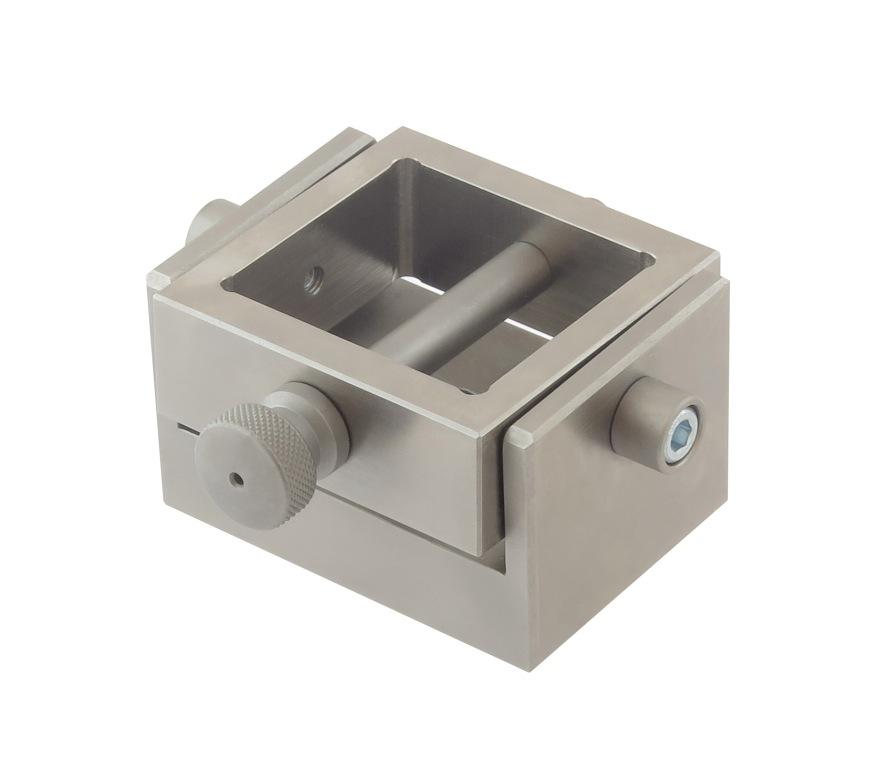

TH113-2Axe-GT



2 axis tensile bond fixture carrier

to test tensile strength flatwise

according to ASTM D1623B, ASTM D3354, EN 1607, DIN 53292

Description: Description: TH113-E50-50x50-

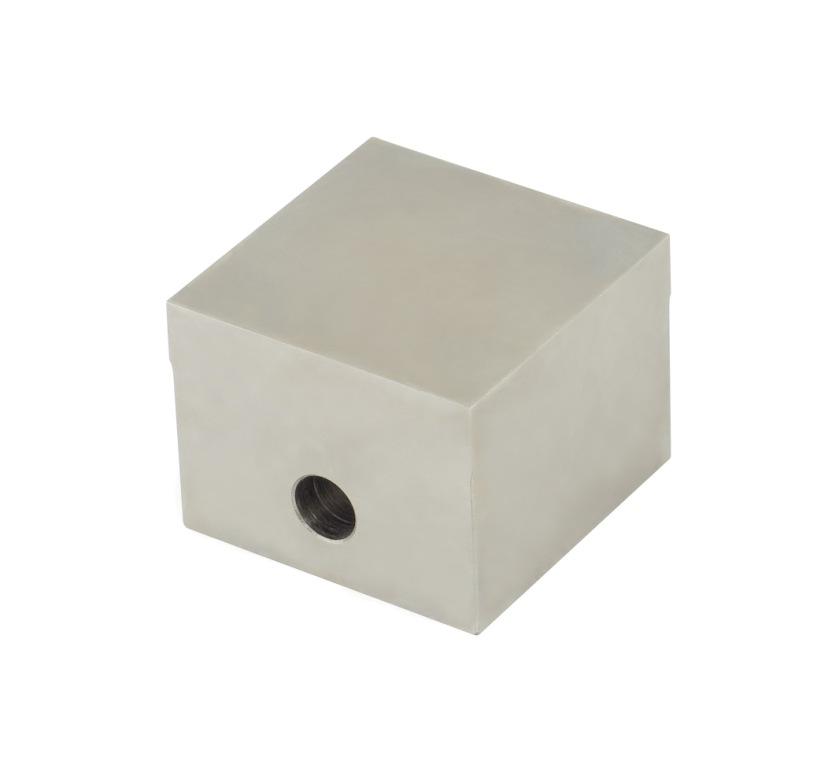

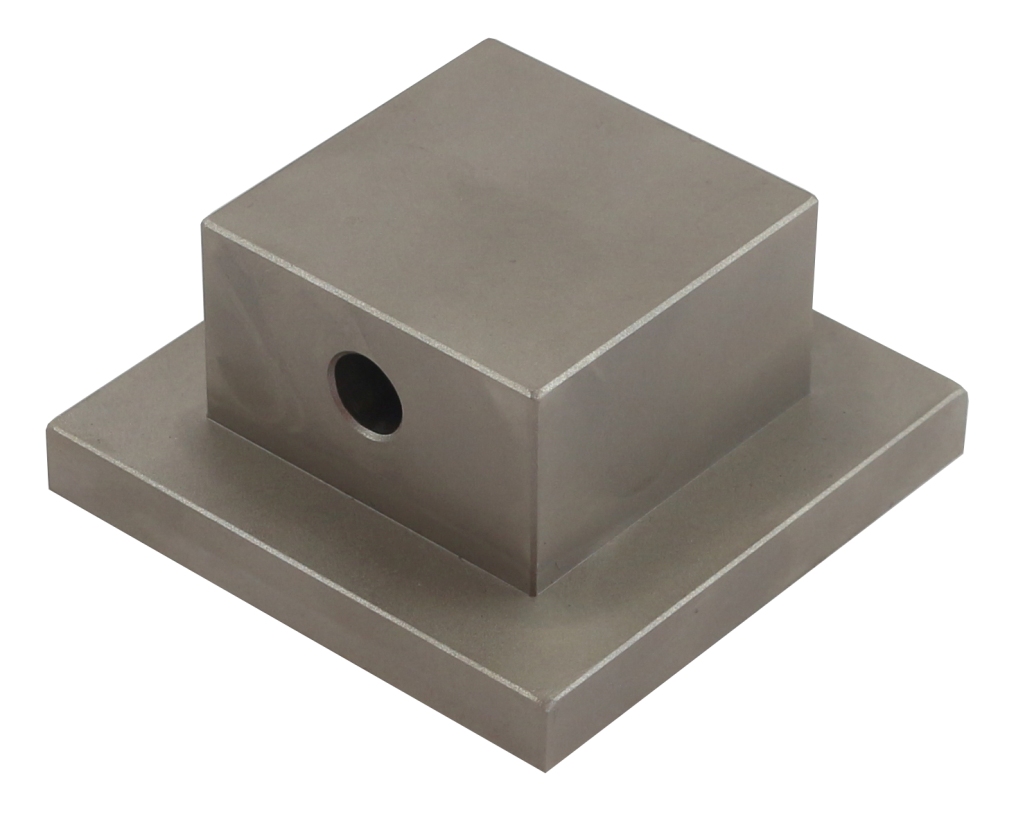

TH113-E50-50x50



Insert block for TH113-GT carrier

to test samples 50x50 mm to EN 2243-4



and for TH113-2Axe-GT carrier

to test samples 50x50 mm

to EN 1607, DIN 53292

Description: Description: TH113-E50-100x100-

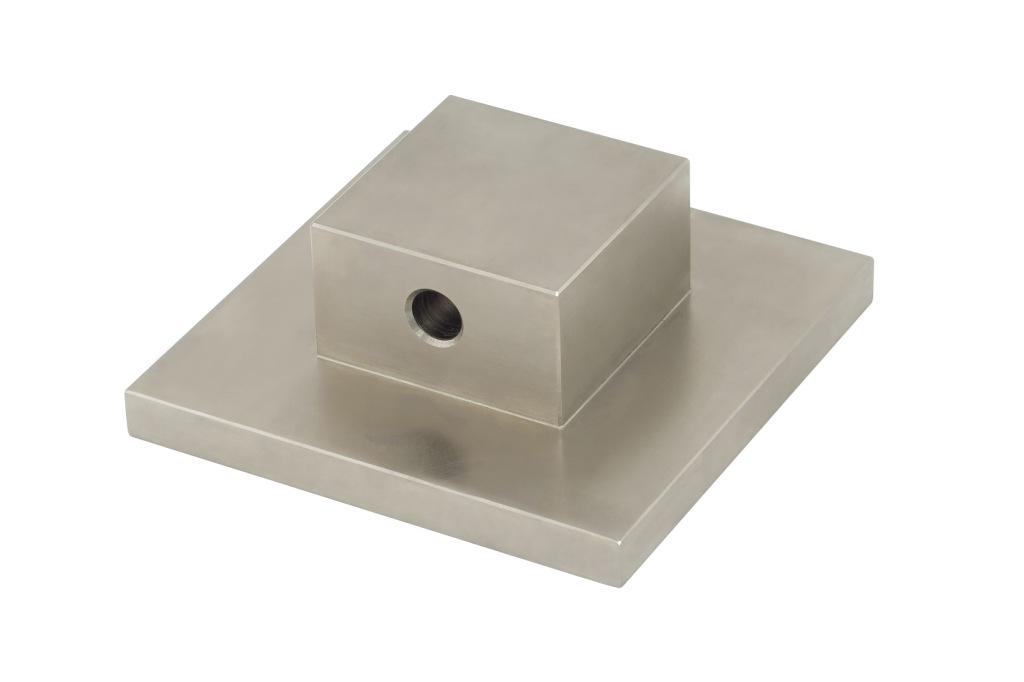

TH113-E50-100x100



Insert block for TH113-2Axe-GT carrier

to test samples 100x100 mm

according to ASTM D3354, EN 1607



and for TH113-GT carrier

to test samples 100x100 mm

Description: Description: TH113-GT + TH113-E50+100x100-

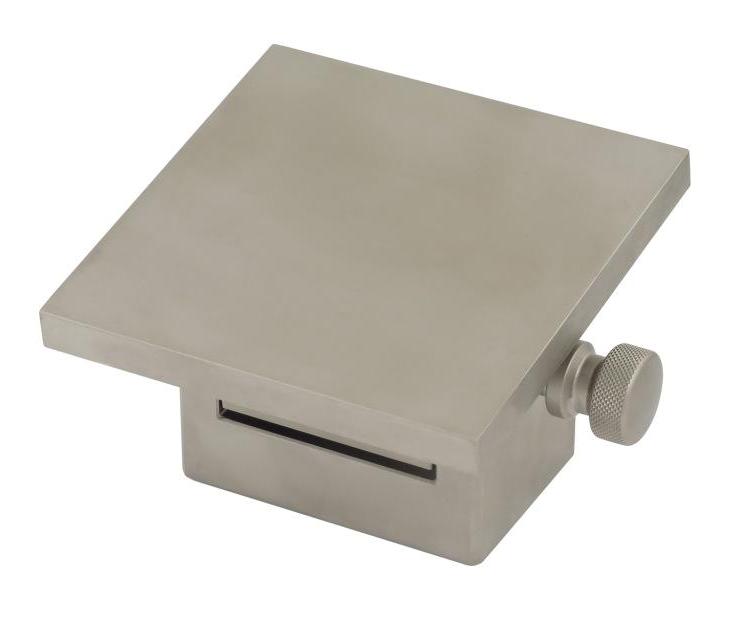

TH113-GT + TH113-E50-100x100



1 axis tensile bond test fixture

to test adhesion properties

for samples 100x100 mm

Description: Description: TH113-327-P100x100-Af159_060217 002--

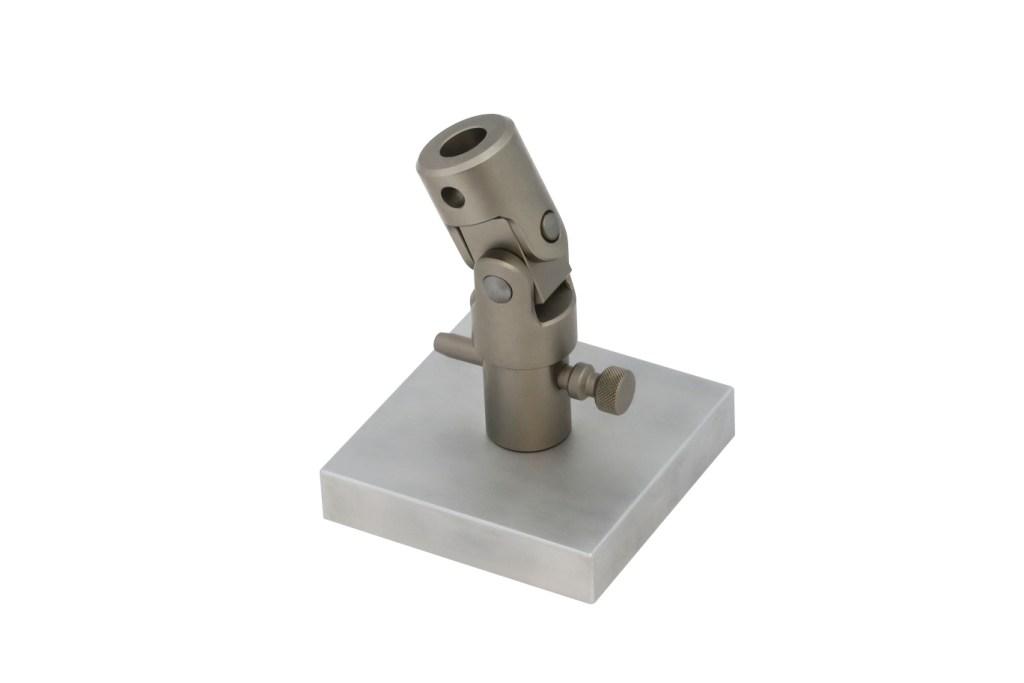

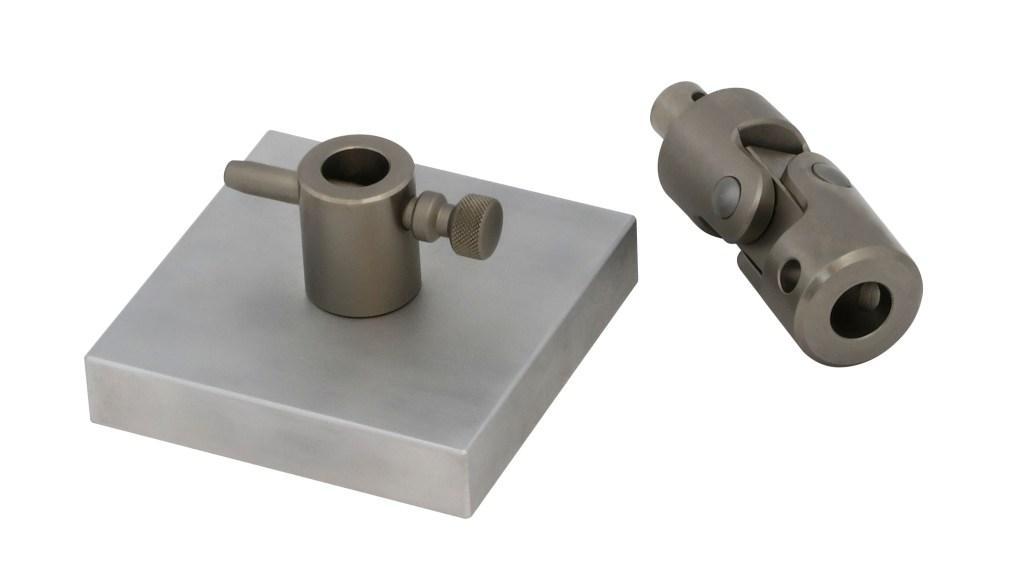

TH113-327 fixtures to test larger samples





TH113-327-P100x100



2 axis tensile bond test fixture

for samples 100x100 mm



Description: Description: TH113-327-P100x100-Af159_060217 003-

TH113-327-P100x100
