G04 Eccentric roller grips

Back

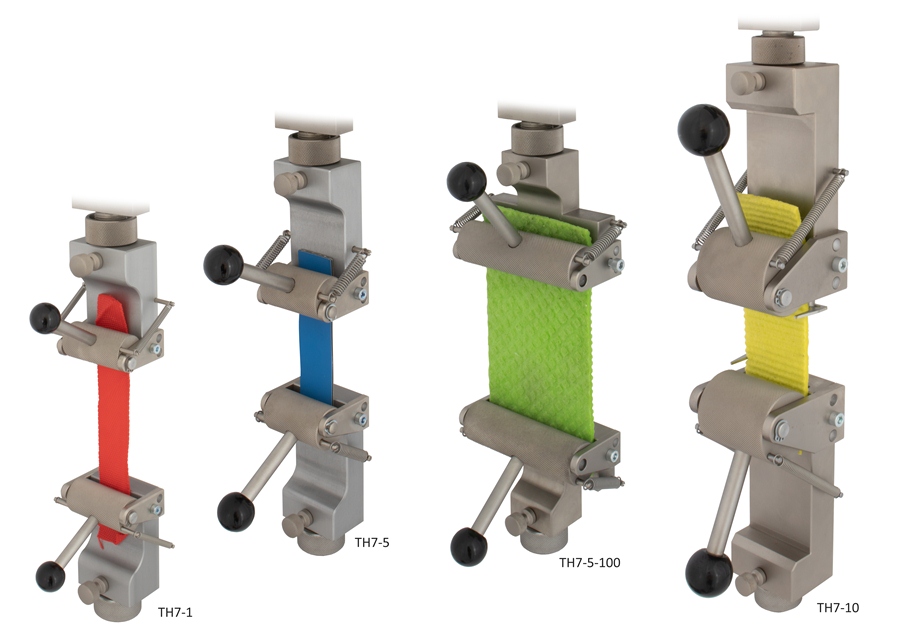

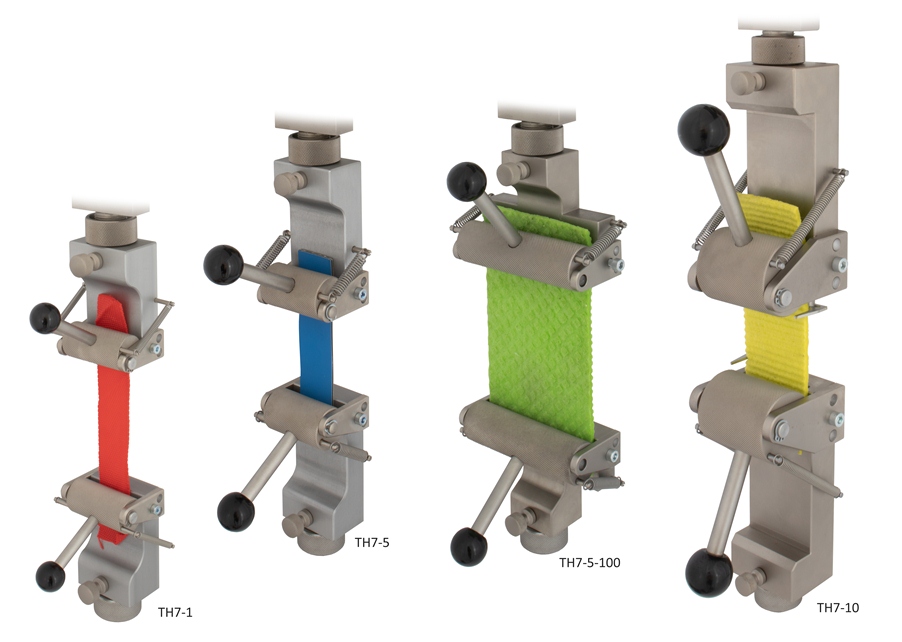

TH7



Eccentric roller grips, 1 kN, 5kN, 10kN, 20kN



Description: Description: Description: Description: pdf_icon.gifTH7 Datasheet.pdf

Description: Description: Description: Description: pdf_icon.gifTH7 Datenblatt.pdf

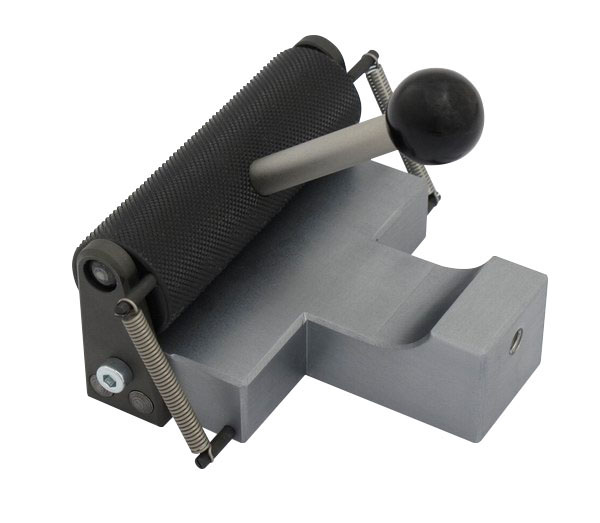

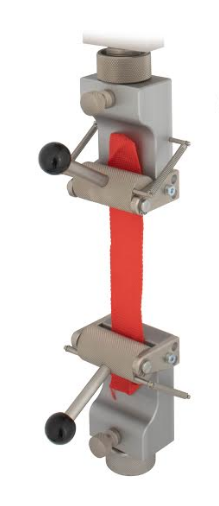

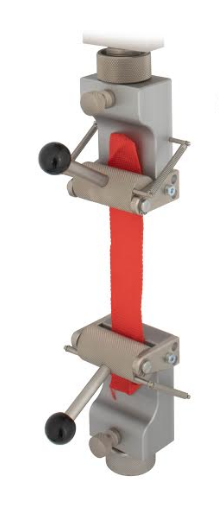

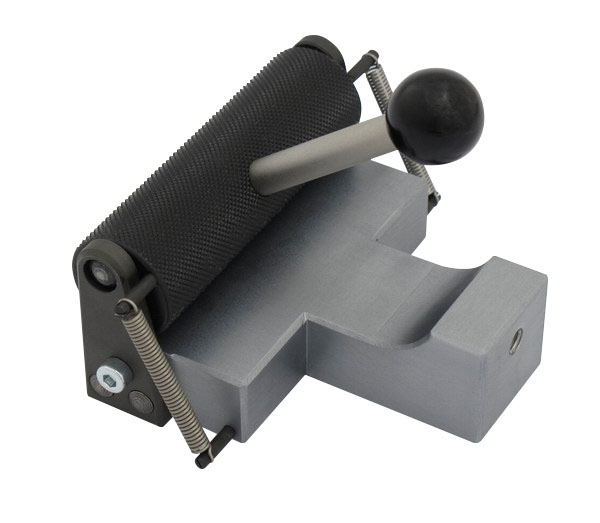

TH7-1

TH7-1



1 kN, roller 25 mm Ø cross-cut surface



1 kN, Walze 25 mm Ø Pyramidenrändelung





Description: Description: Description: Description: tn_TH7-1-A4.jpg

TH7-1-A4



Same as TH7-1 but made of stainless steel A4, Teflon knob.

Pyramid (serrated) or blank roller

Temperature range: -70 … +280 °C

Description: Description: Description: Description: TH7-1-SR-

TH7-1-SR



1 kN, roller 25 mm Ø smooth,

rubber-base plate



1 kN, Walze 25 mm Ø glatt,

gummierte Bodenplatte

tn_TH7-5  2019-05-22

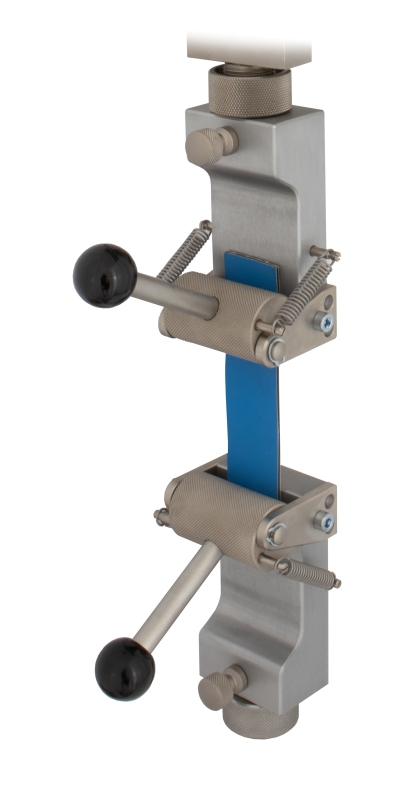

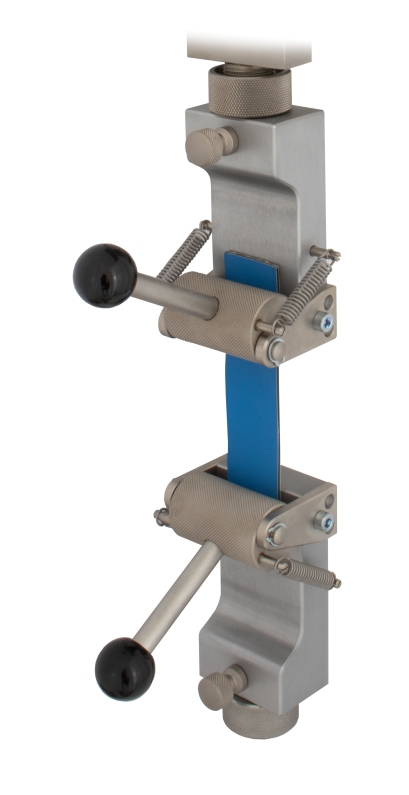

TH7-5



5 kN, roller 30 mm Ø cross-cut surface



5 kN, Walze 30 mm Ø Pyramidenrändelung



Description: Description: Description: Description: tn_TH7-5-A4.jpg

TH7-5-A4



Same as TH7-5 but made of stainless steel A4, Teflon knob.

Pyramid (serrated) or blank roller

Temperature range: -70 … +280 °C

tn_TH7-10  2019-05-22

TH7-10



10 kN, roller 50 mm Ø cross-cut surface



10 kN, Walze 50 mm Ø Pyramidenrändelung

Description: Description: Description: Description: tn_TH7-10  with Pin 15.7mm dia-.jpg

TH7-10



10 kN, roller 50 mm Ø,

Pyramid faced roller (serrated)

With pin 15.7 mm

Description: Description: tn_TH7-10 04.03.2020

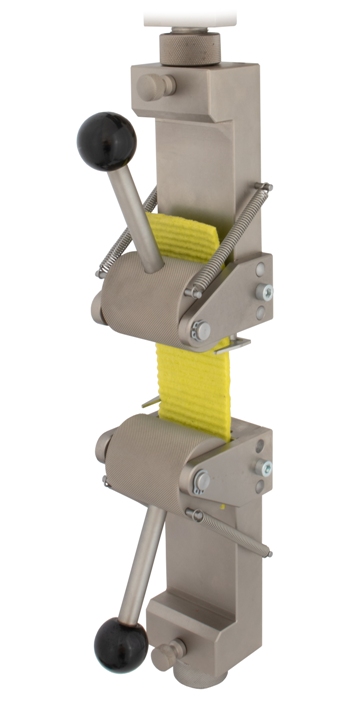

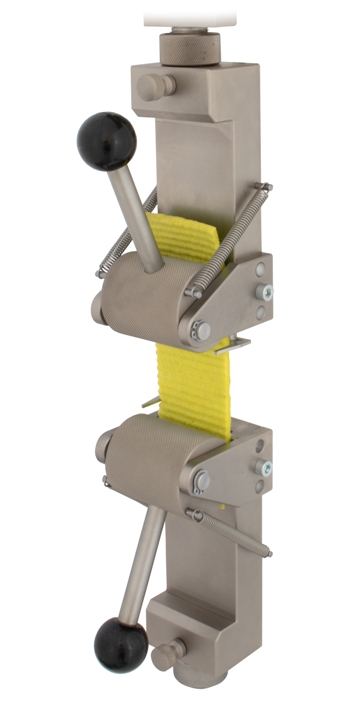

TH7-10



Eccentric roller grip, 10 kN

Pyramid faced roller (serrated)

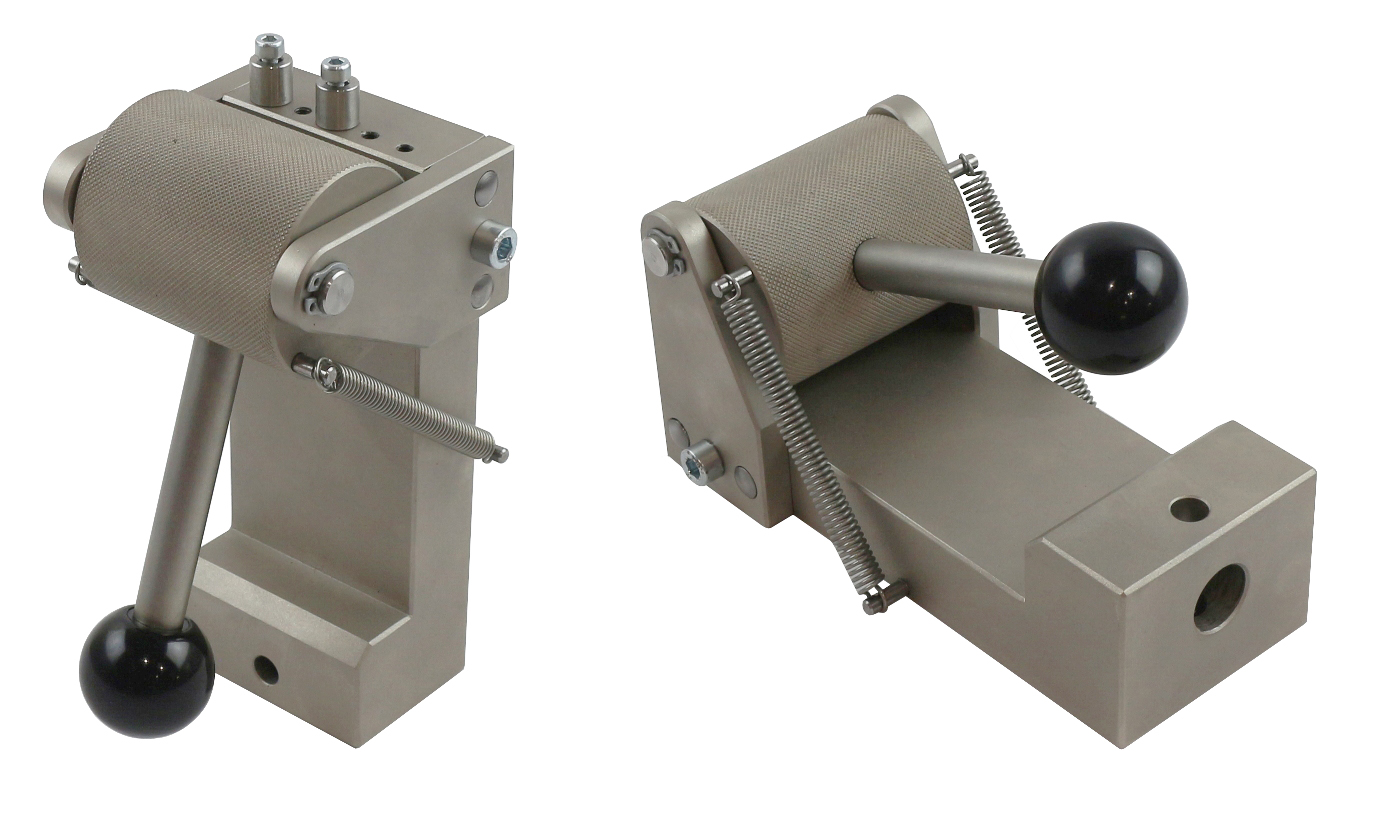

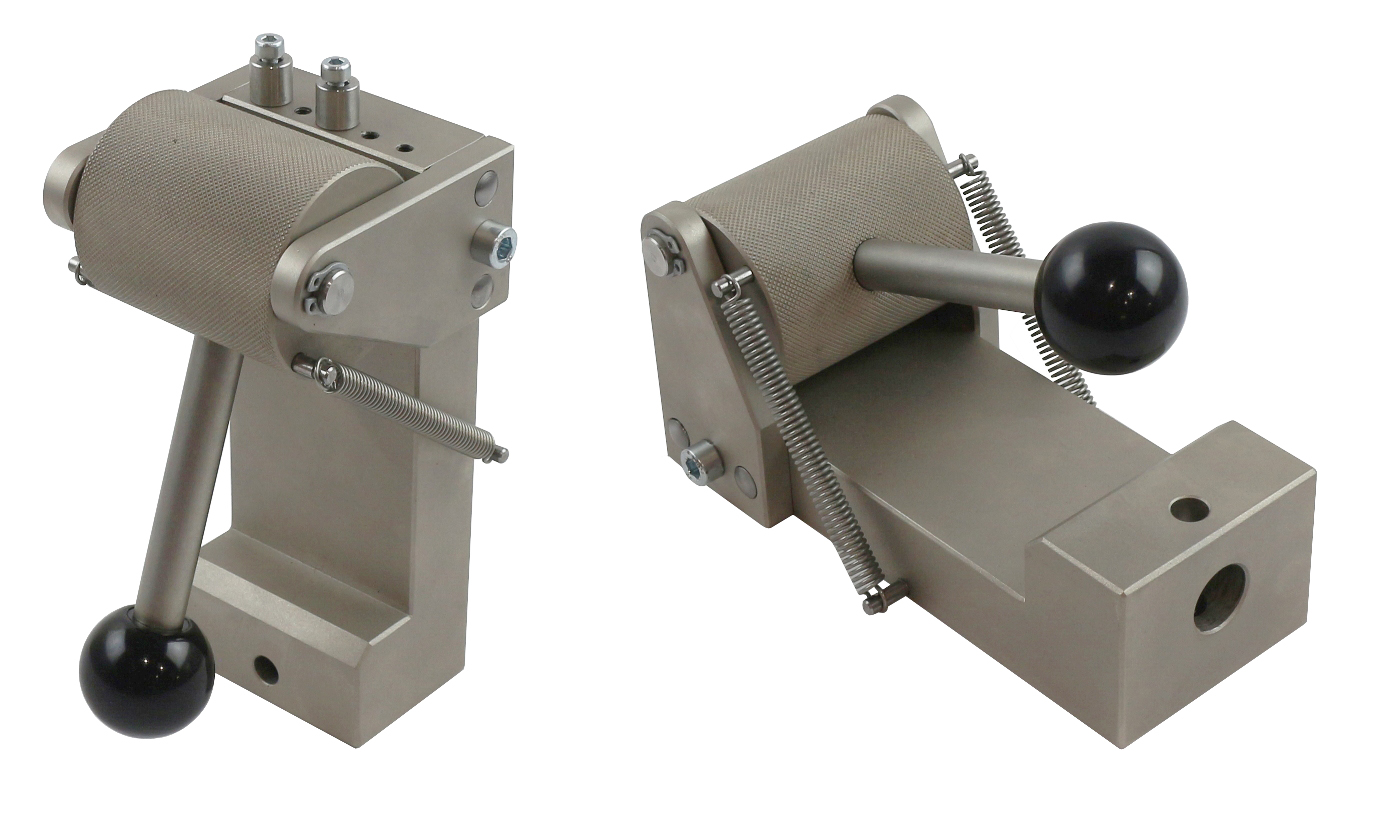

TH7-20



Eccentric roller grip, 20 kN

Pyramid-faced roller (serrated)



TH7-5-100

TH7

Special solutions
