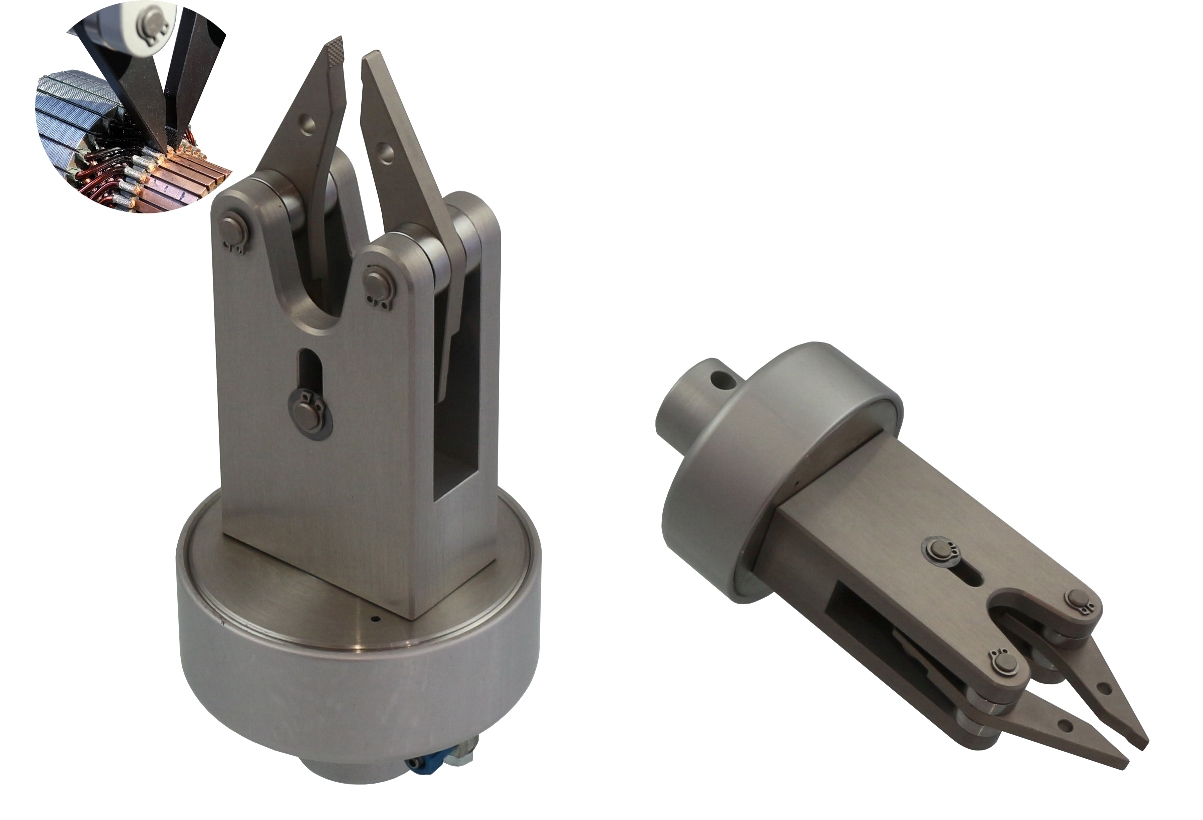

THS501-BP-Af159-0.80kg-2021-04-30

THS501+BP

Pneumatic pincer grip
Tensile force: 1 kN
Clamping force: 2 kN at 7 bar
Aluminum, anodized

Description: Description: Description: Description: Description: Description: pdf_icon.gif THS501 Datasheet.pdf
Description: Description: Description: Description: Description: Description: pdf_icon.gif THS501 Datenblatt.pdf

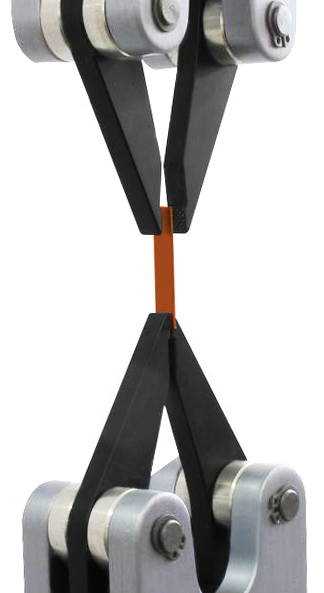

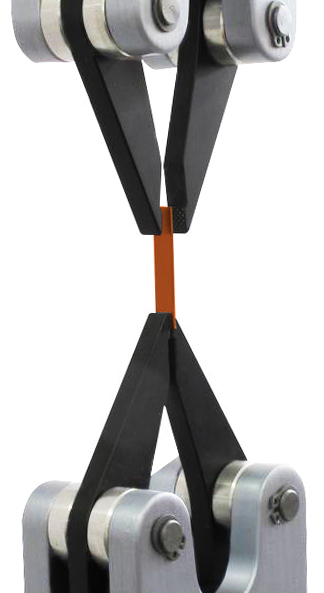

Jaws

THS50

THS501

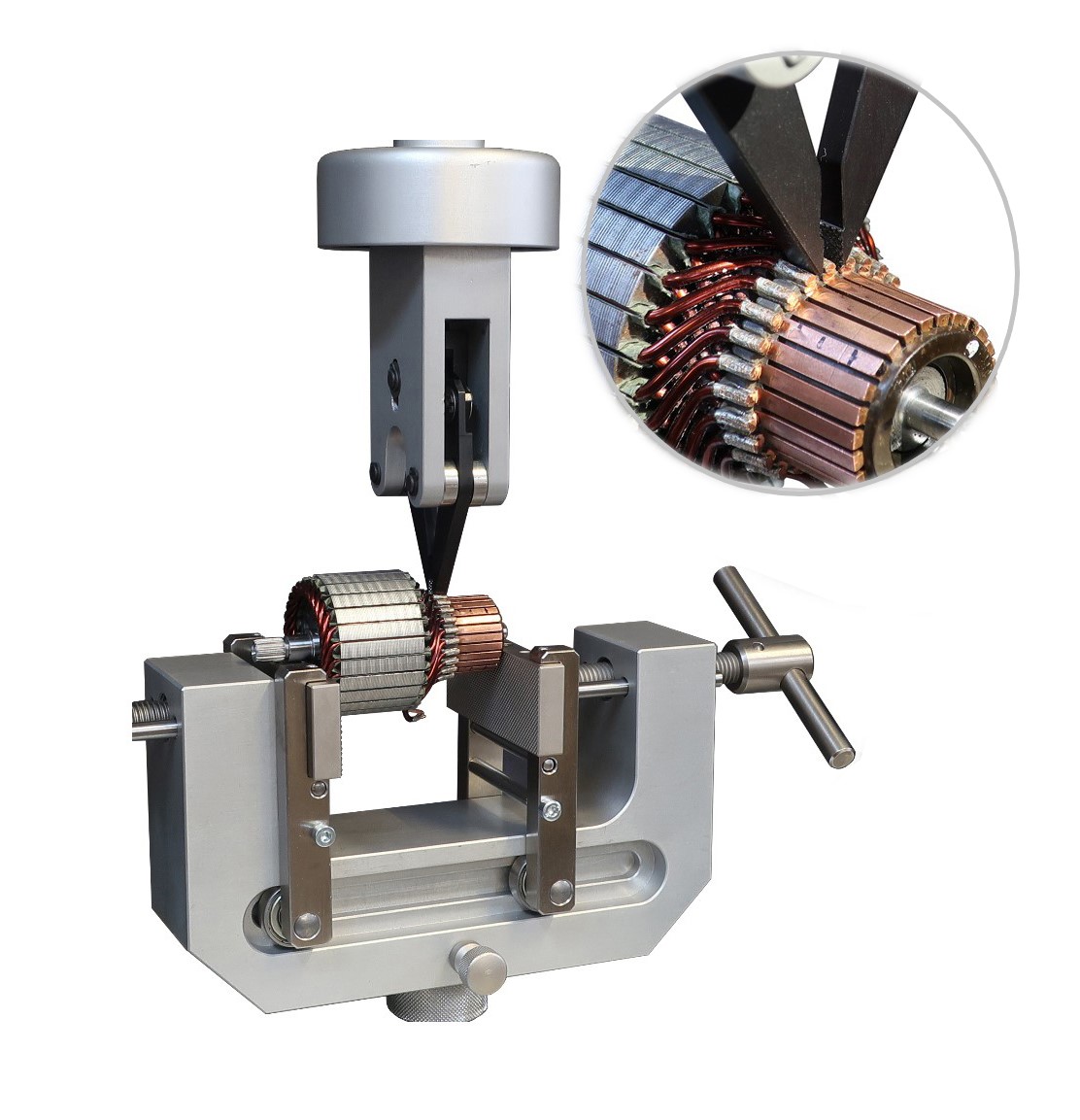

THS501+BP + TH240g-S100+BP80



Solder joint test



THS501+BP + TH240g-S100+BP80



Solder joint test

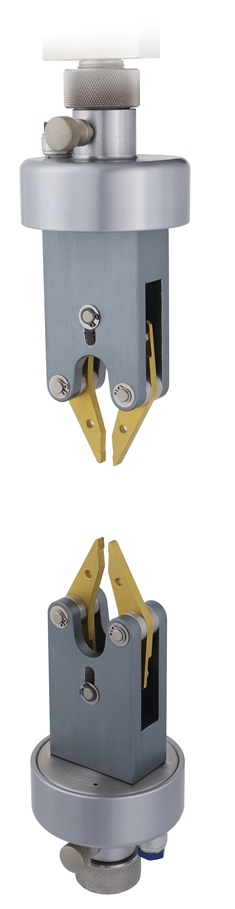

THS501+BP-TiN

Jaws with titan nitride coating

more

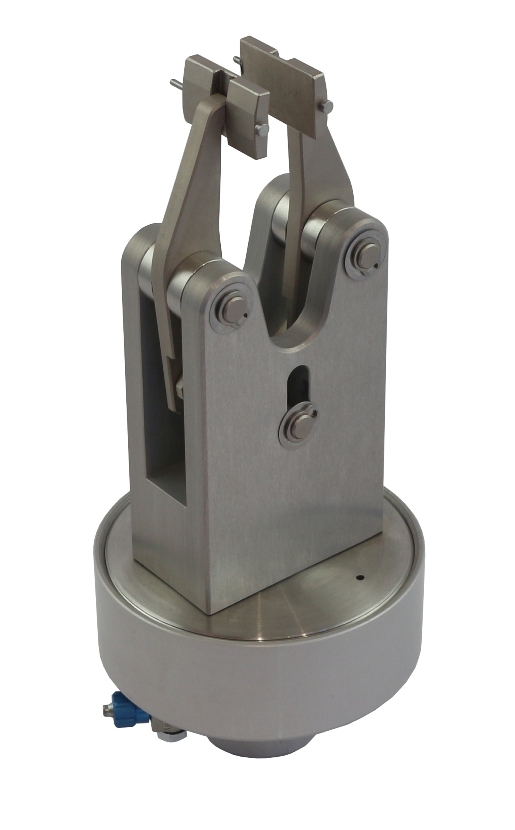

THS501-GT-S10-Af159_0,8kg 02

THS501-GT-S10+EBP25x10

Special pneumatic version

Max. load 2 kN at 7 bar (1,4 kN at 5 bar)

Articulating  Insert jaws 25x15 mm with pyramid surface 0.5x45°

Jaw opening 2 – 10 mm

Coupling Af159
