G06 Vice grips



Back

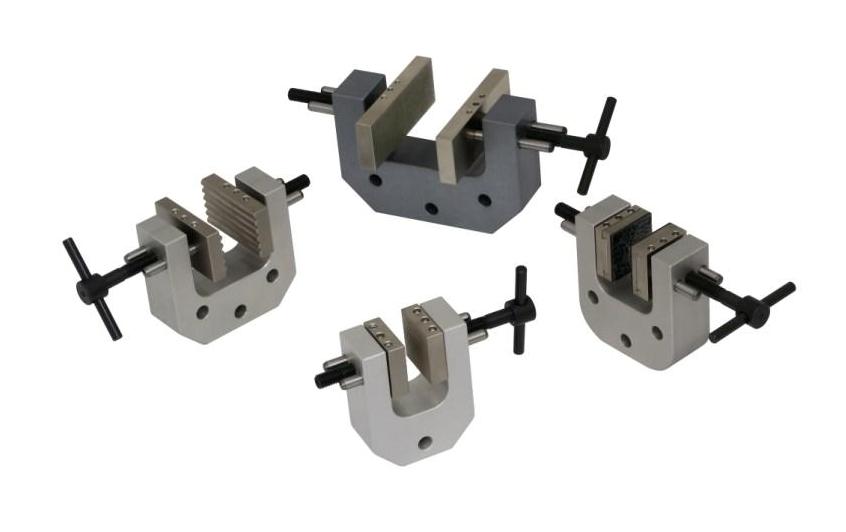

Description: TH240k -S20 -S30 -S50-

TH240k Overview



Small vice grips


Kleine Schraubspannköpfe

Click here to see jaws

Special versions

Description: Description: Description: Description: pdf_icon.gifTH240k Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gifTH240k Datenblatt.pdf


Description: TH240k--

TH240k



U-form vise grip, tensile force 2.5 kN,

Opening 0-10 mm



Schraubspannkopf U-Form, Zugkraft 2,5 kN
Öffnungsweite 0 - 10 mm

TH240k+BP



With pyramid jaws

Opening 0-10 mm



Mit Pyramidenbacken

Öffnungsweite 0-10 mm

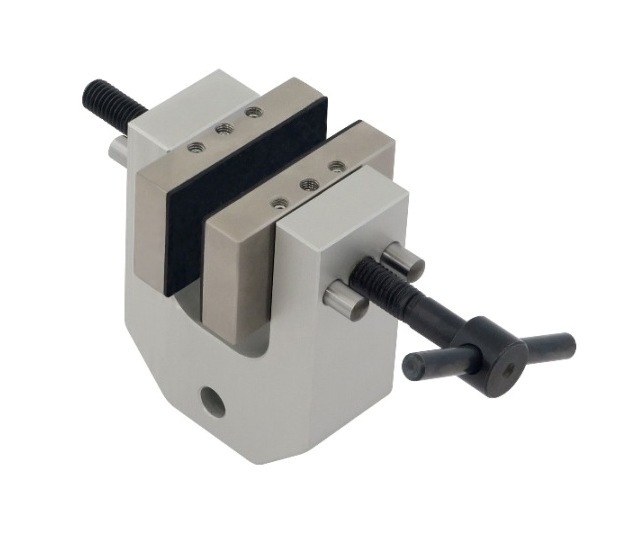

Description: tn_TH240k+BG50-

TH240k+BG50

Description: TH240k-S20+BV33-2015-

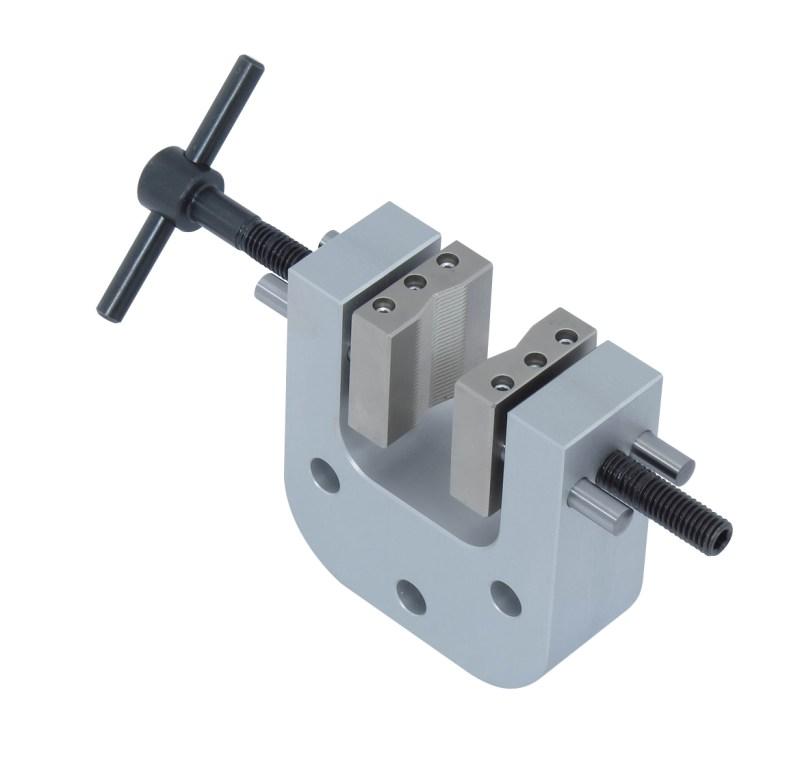

TH240k-S20





U-form vise grip, tensile force 2 kN
Opening: 0-20 mm



Schraubspannkopf U-Form, Zugkraft 2 kN
Öffnungsweite 0 - 20 mm

Description: TH240k-S30-

TH240k-S30



U-form vise grip, tensile force 1 kN
Opening: 0-30 mm



Schraubspannkopf U-Form, Zugkraft 1 kN
Öffnungsweite 0 - 30 mm

Description: TH240k-S30GT EBP-V2astainless steel insertjaws-

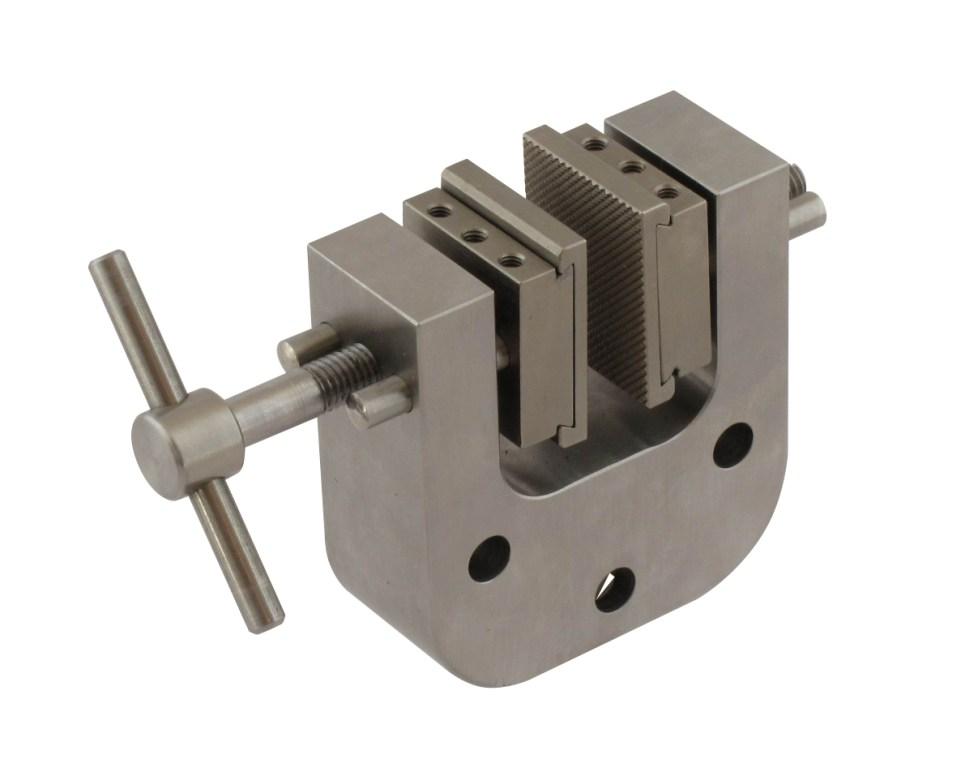

TH240k-S30-V2A+EBP



Stainless steel version, pyramid insert jaws



Edelstahl-Ausführung,

Pyramiden Einsatzbacken



tn_TH240k-S30+KO-BP200-L  2,5kg  30-05-2018   03-

TH240k-S30+KO-BP200

U-shaped vise action grip with 1 pneumatic rod Ø 50 mm

Opening width: till 30 mm

With special L-shaped pyramid (serrated) jaws, 200 mm

Description: TH240k-S50+BP-

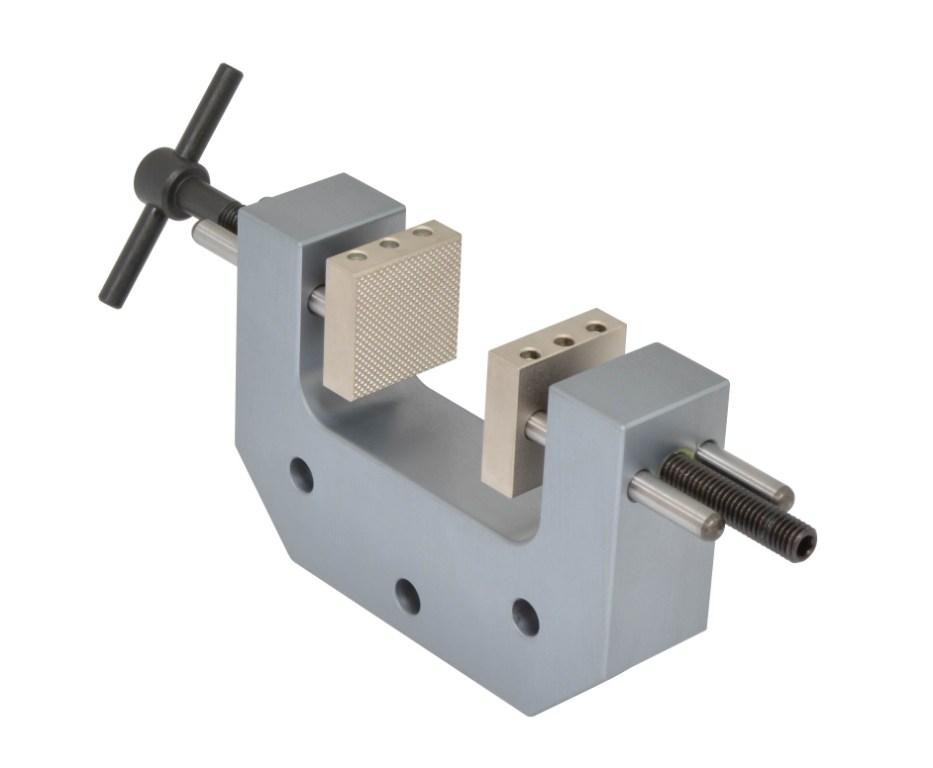

TH240k-S50





U-form vise grip, tensile force 1 kN
Opening: 0-50 mm



Schraubspannkopf U-Form, Zugkraft 1 kN
Öffnungsweite 0 - 50 mm

Description: TH240k-A4+BP-

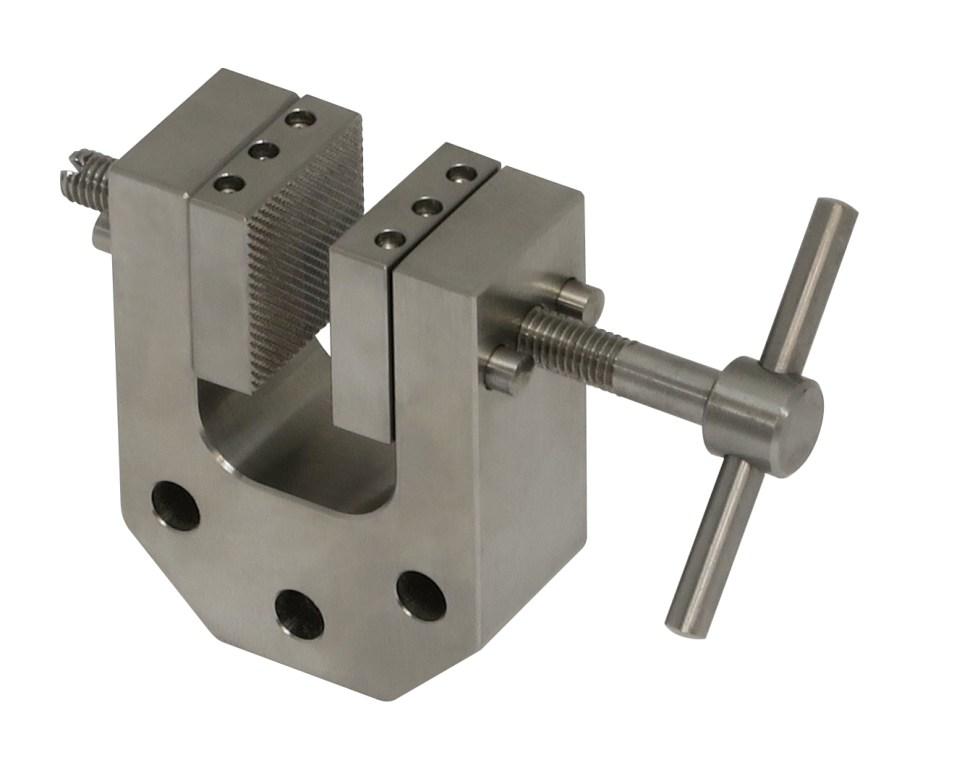

TH240k-A4



Stainless steel version, 5 kN,

Opening 0-10 mm



Edelstahl-Version, 5 kN,

Öffnungsweite 0-10 mm

TH240k-S20+2Ko+EBP



For pneumatic TH240k versions see G12

Click here

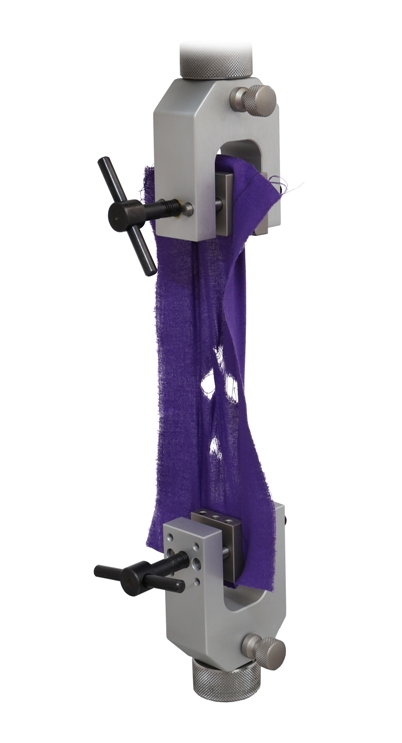

tn_TH240k+BW25+BW50 Grab Test Textile Breaking Strength ASTM-D5034  Textil    G06  2020-08-10  02

TH240k+BW25+BW50-ASTM-D5034



Breaking Strength and Elongation

of Textile Fabrics (Grab Test) to ASTM-D5034



Bruchfestigkeit und Dehnung von

Textilgeweben (Grab Test) gemäß ASTM-D5034

more

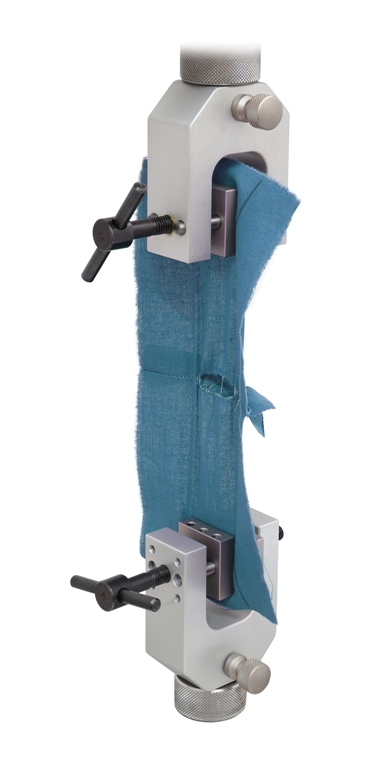

tn_TH240k+BW30+BW50   DIN EN ISO13936-2 slippage resistance  Textil    2020-09-02  04

TH240k+BW30+BW50-DIN EN ISO13936-2



Determination of the slippage resistance of yarns at a seam in woven fabrics by fixed load method.



Bestimmung des Schiebewiderstandes von Garnen in Gewebenähten. Verfahren mit festgelegter Kraft.

more
