G08 Wedge grips



Back



Description: tn_TH243-20 2018

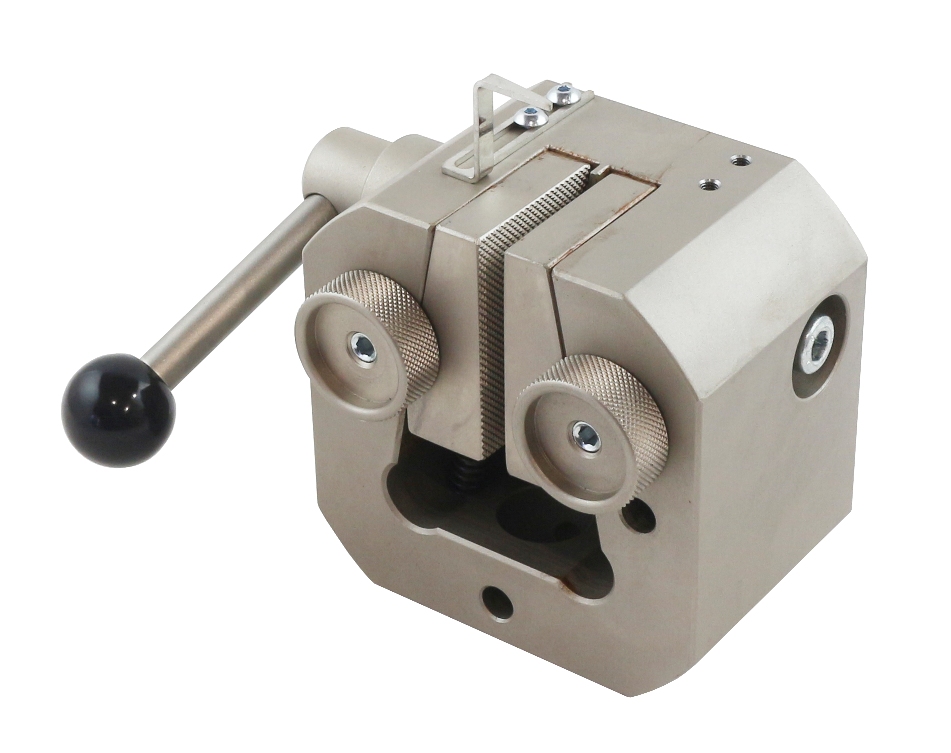

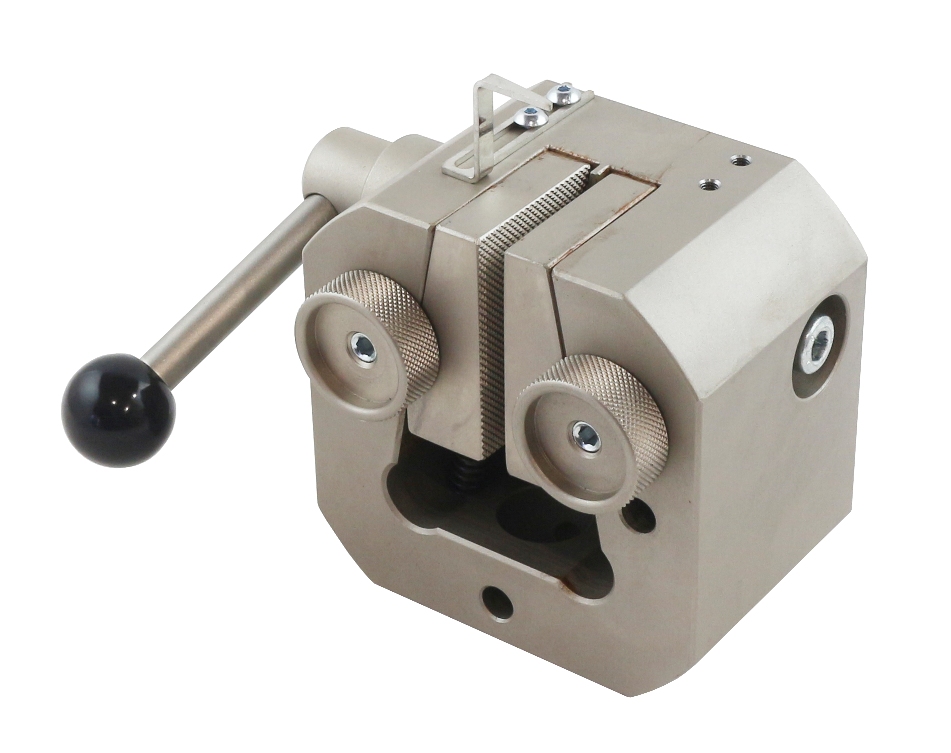

TH243-20-Af159

Wedge grip 20 kN

Steel, nickel-plated

Coupling: Af15.9/8 mm

Description: pdf_icon.gif TH243 Datasheet.pdf
Description: pdf_icon.gif TH243 Datenblatt.pdf

Jaws

Description: TH243-20-Af159-3d..jpg

TH243-20-Af159-3D



20 kN version

Description: tn_TH243-50-Af30-2016-09-27-

TH243-50-Af30



Wedge grip 50 kN
Steel, nickel-plated

Coupling: Af30/12 mm

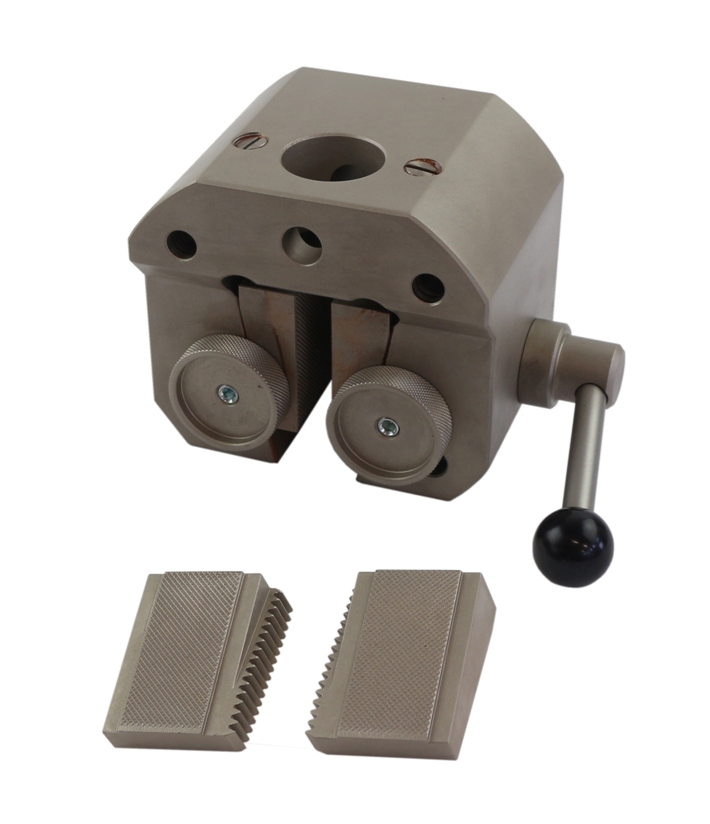

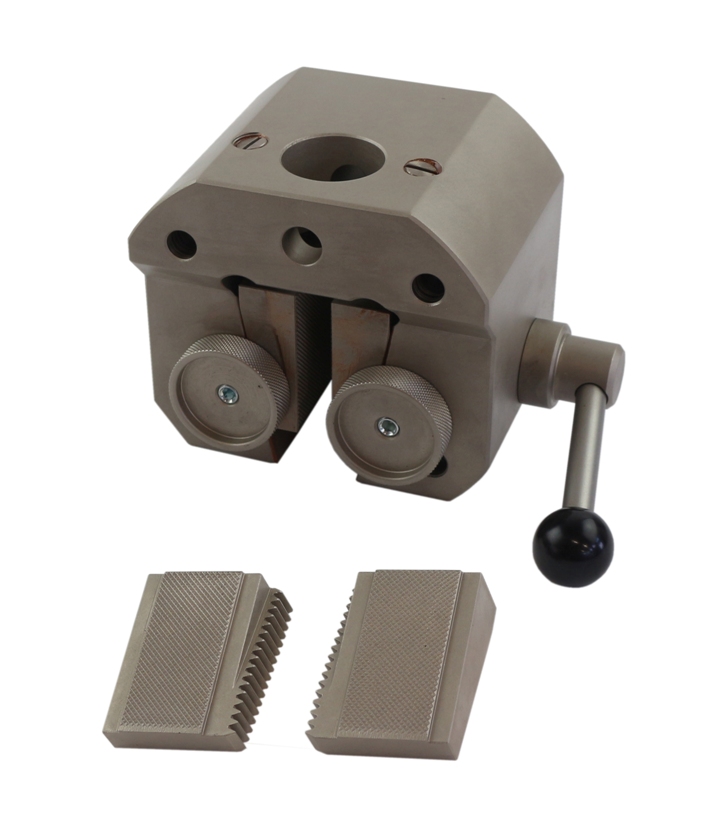

TH243-50-Af318+BP13

Wedge grip 50 kN
Opening 0-13 mm
Steel, nickel-plated

Coupling: Af31.8/12.8 mm

TH243-20+TK-Option-

TH243-50+TK-Option



50 kN version for temperature chambers

TH243-20+TH187-Am30-M-Af3816

TH243-20 + TH187-Am30-Af3816



With adapter TH187-Am30-Af3816

Description: tn_TH243-20-T500+TK-Option-

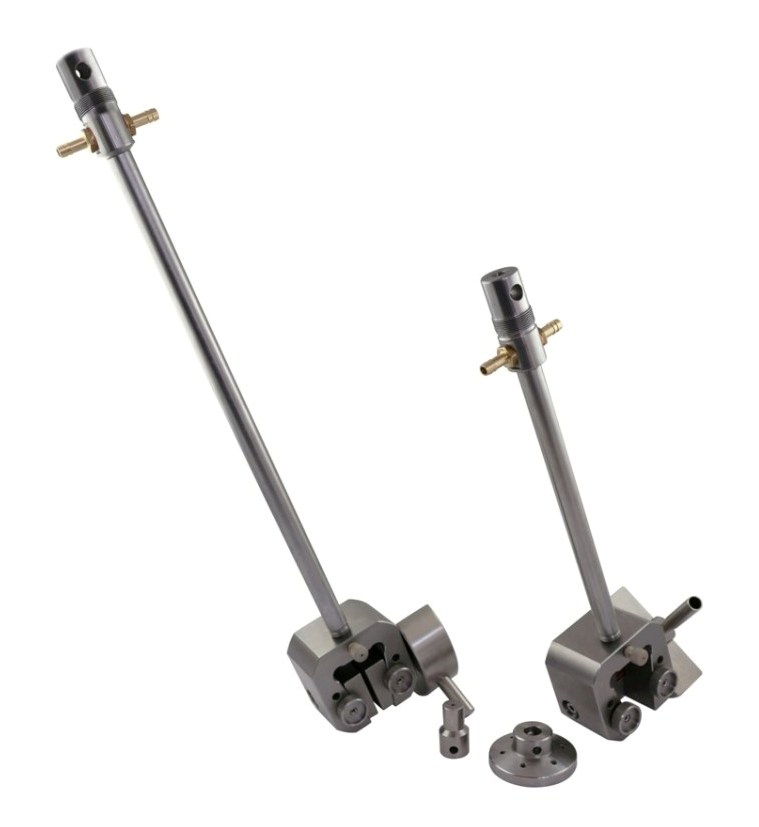

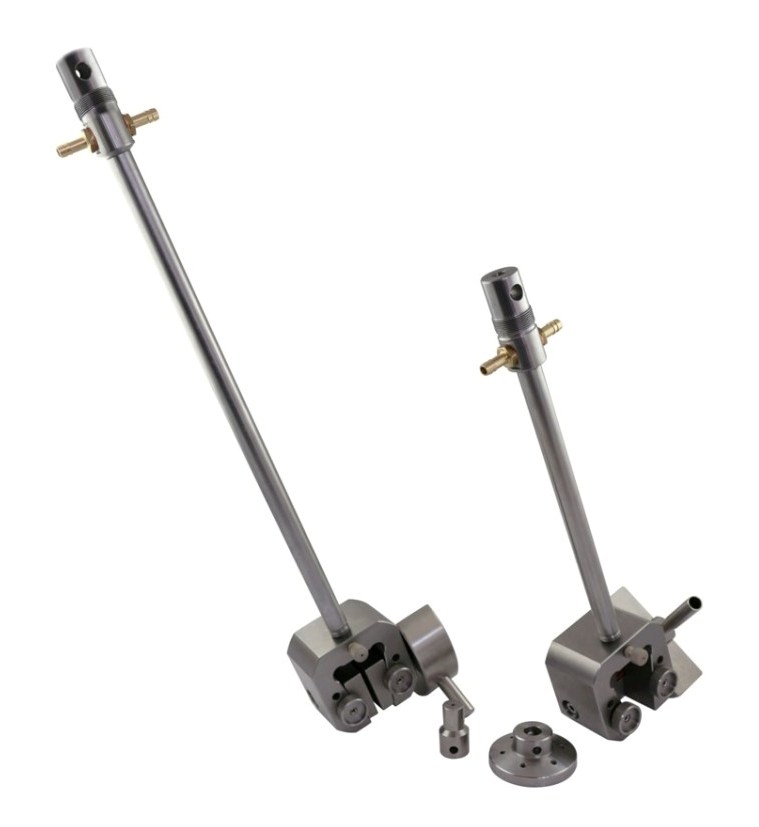

TH243-20-T500



With special rod for temperature chamber usage
