G12 Pneumatic grips



Back

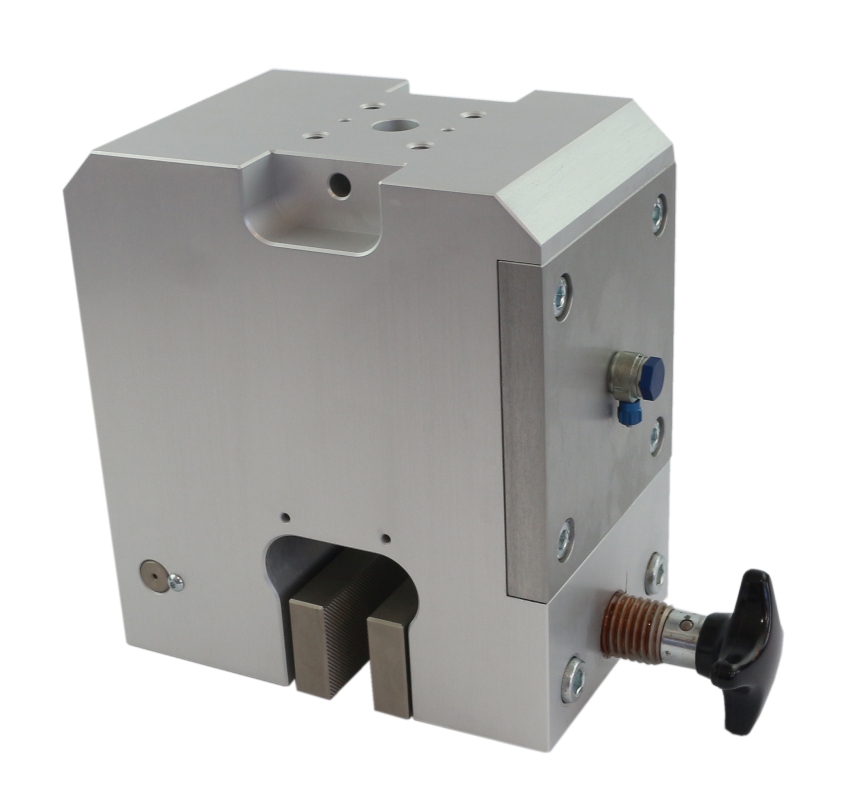

TH126-Af159

Pneumatic grip
Tensile force: 20 kN
Clamping force: 30 kN/7 bar
Aluminum, anodized

Description: pdf_icon.gifTH126 Datasheet.pdf
Description: pdf_icon.gifTH126 Datenblatt.pdf

Jaws

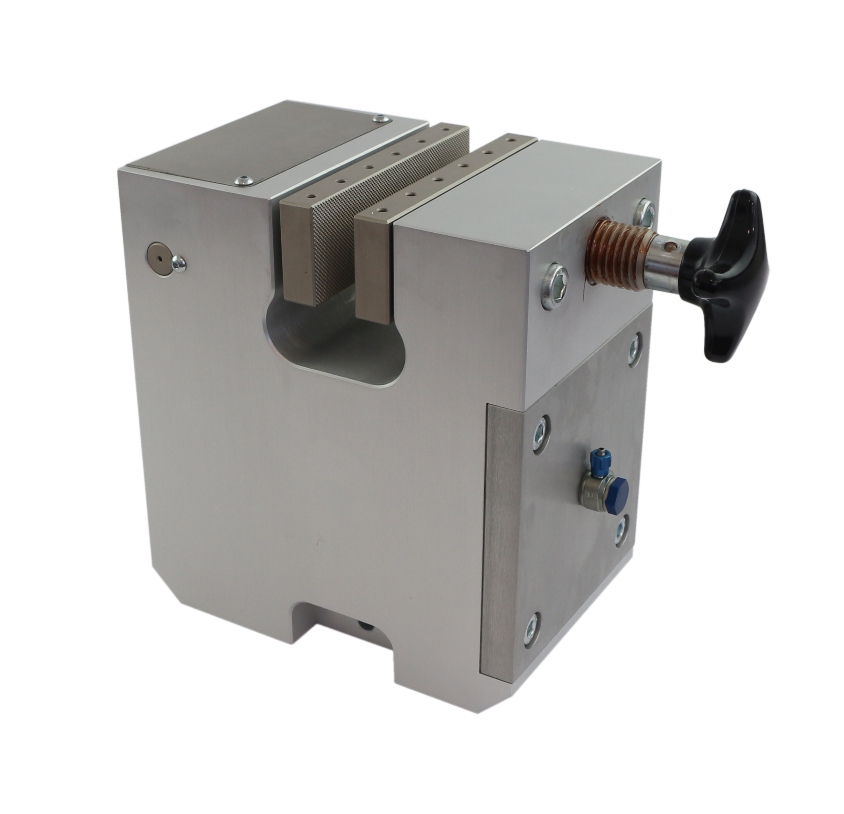

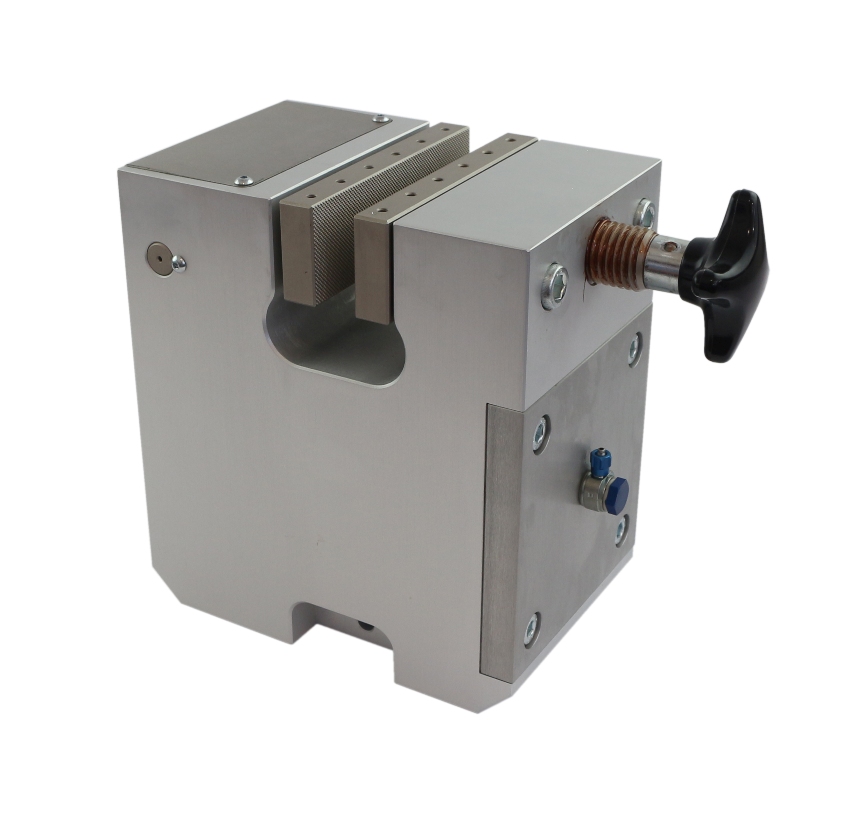

TH126-Af159

TH126+BW200  17052019 002-

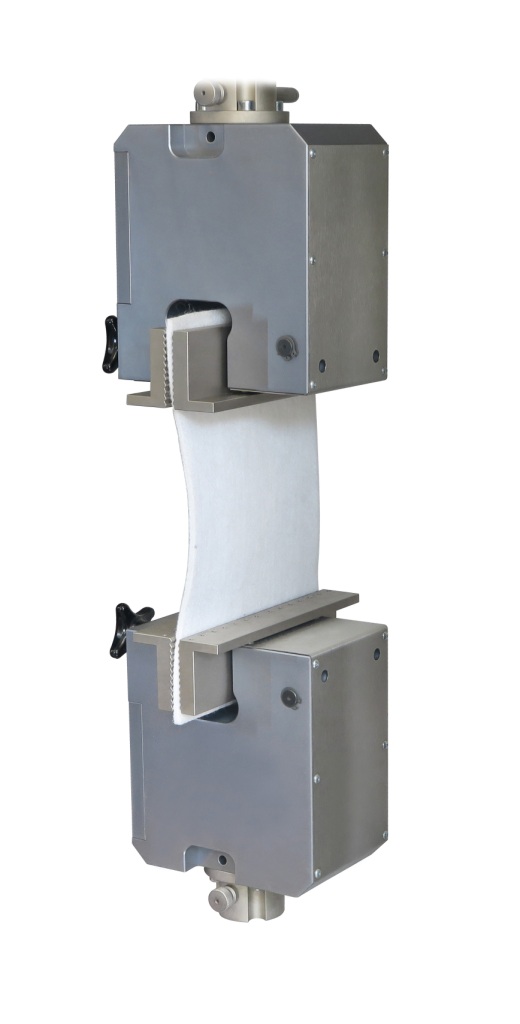

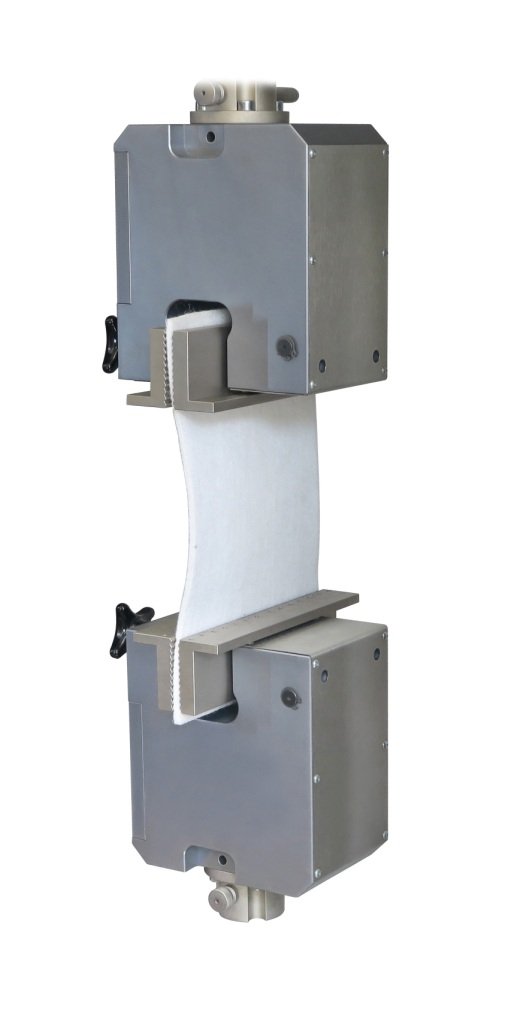

TH126+BW200

With L-shaped wave jaws, 200 mm long,
in a tensile tester

more

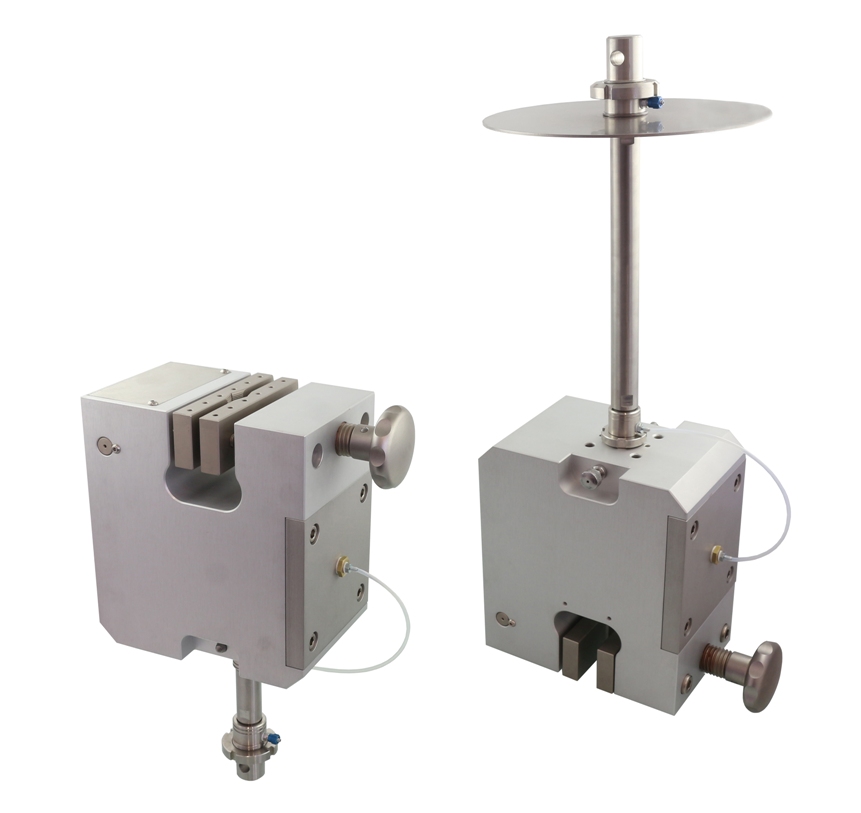

TH126-T180+FxGr-Am25+BP-L514+L349 22.4kg 003

TH126-T180+FxGr-Am25+BV-L514+L349



Temperature range -40 +180C

Pull rod length: 300 mm and 135 mm (from pin hole to pin hole)

With heat protection disc

Total grip body length: 514 mm and 349 mm

V-jaws, clamping height 40 mm

Coupling Am25

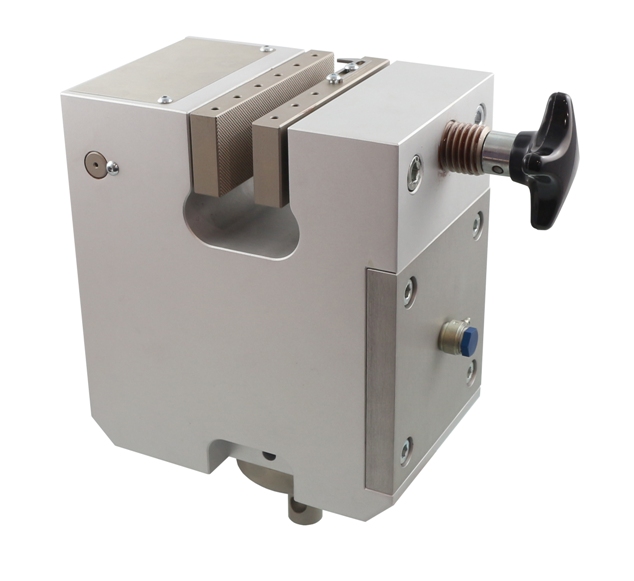

TH126-S20-Am2010-As+BP+BV 11.7kg

TH126-S20-Am2010-As+BP+BV



Special jaw opening 0-20 mm

Incl. V-jaws for round samples and

pyramid (serrated) jaws for flat samples

Coupling Am20

TH126-S20-Am2010-As+BP+BV,11.7kg

TH126-S20-Am2010-As+BP+BV
