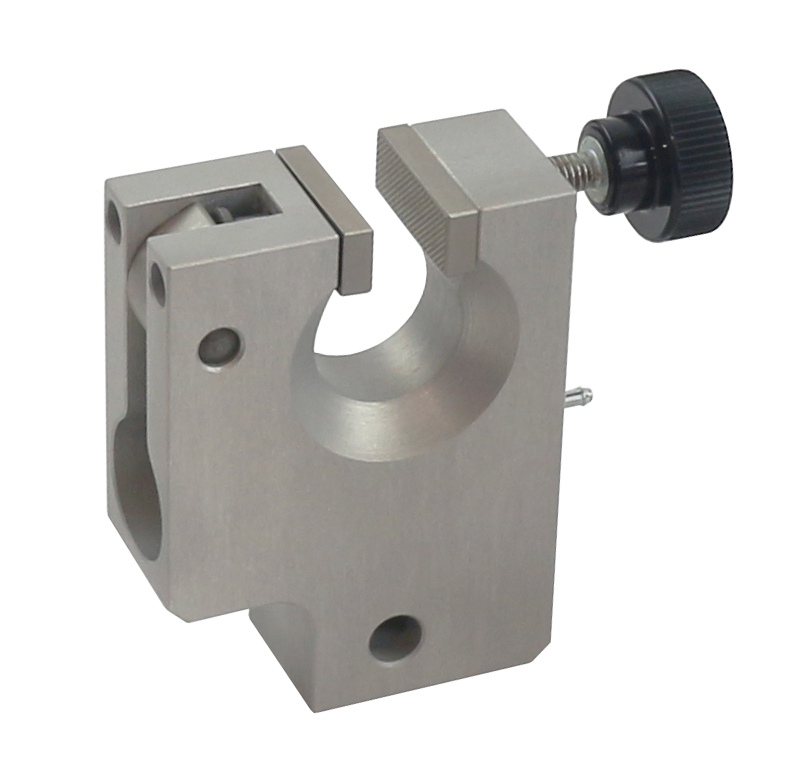

TH229

Pneumatic grip
Max. clamping force: 1 kN at 7 bar
Max. tensile force: 0.5 kN at 0.5 COF
Jaw clamping surface: 10x25 mm
Aluminium, anodized



Description: Description: Description: pdf_icon.gifTH229 Datasheet.pdf
Description: Description: Description: pdf_icon.gifTH229 Datenblatt.pdf

Jaws



Description: Description: 360view.png

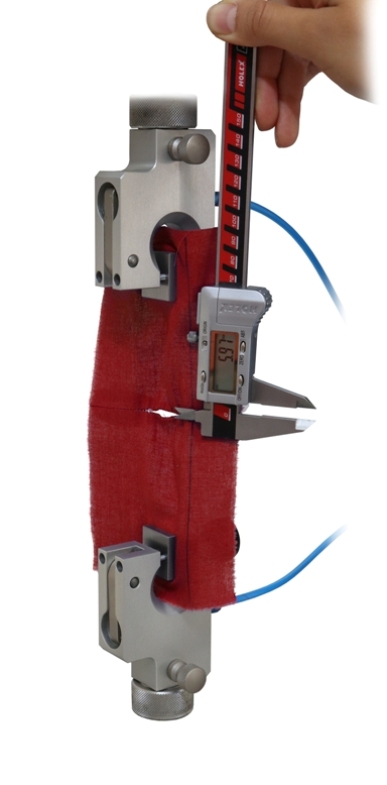

tn_TH229-B25x50+B25x25  ASTM-D1683  Textile    2020-08-11  04

TH229+B25x50+B25x25-ASTM-D1683



Failure in Sewn Seams of Woven Fabrics

to ASTM-D1683



Versagen in genähten Nähten von

Geweben gemäß ASTM-D1683



more

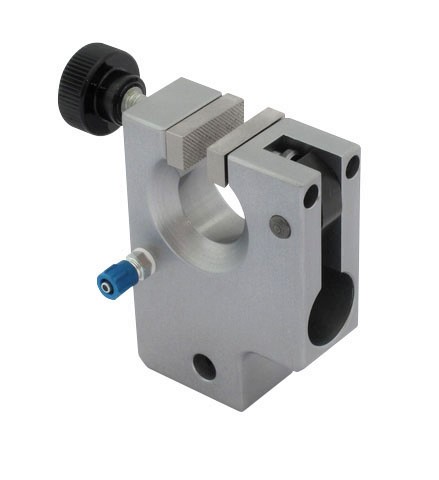

TH229+BP

Pyramid jaws
Clamping surface 10x25 mm

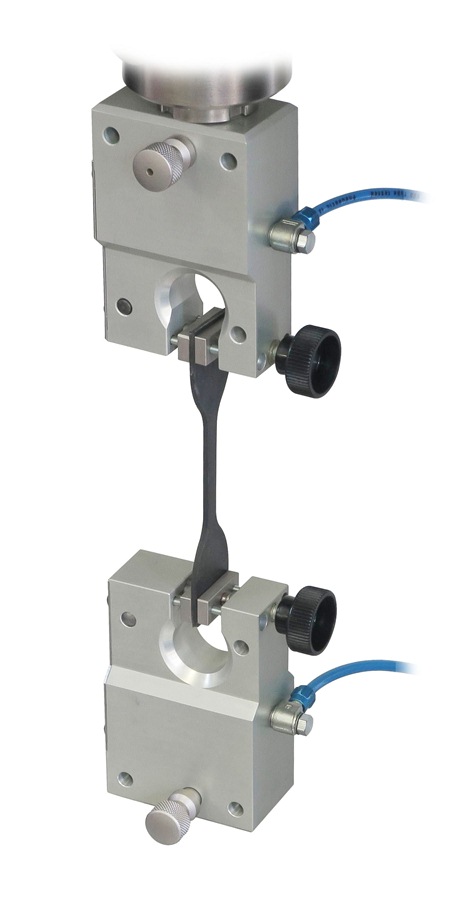

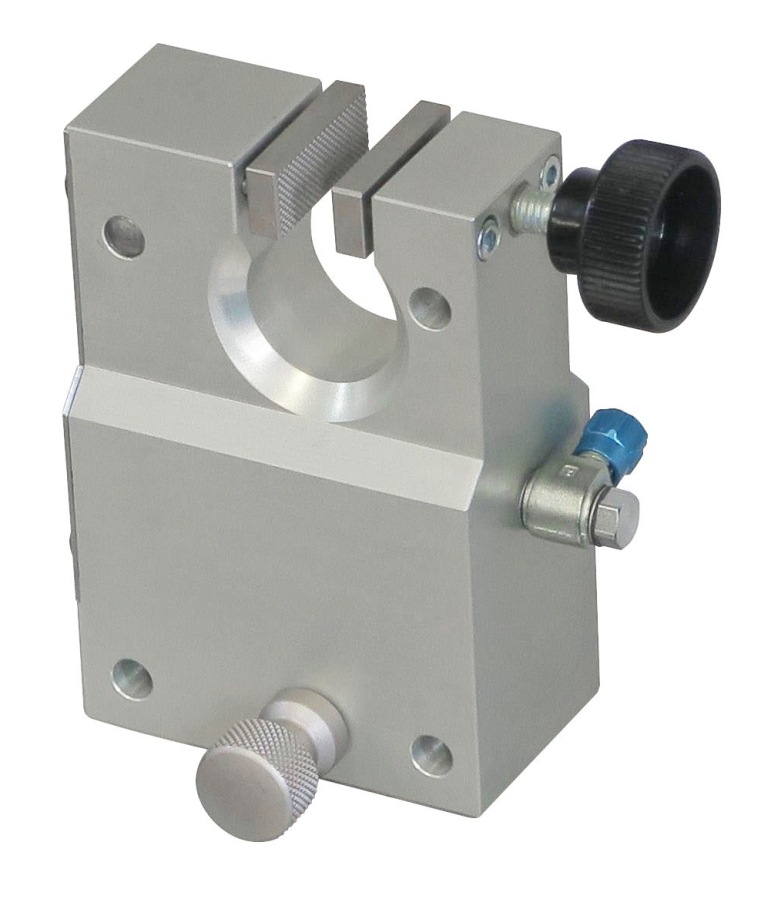

TH229+Ko30



Pneumatic grip
Max. clamping force: 2 kN at 7 bar
Max. tensile force: 1 kN at 0.5 COF
Jaw clamping surface: 10x25 mm
Aluminium, anodized

TH229+Ko30

TH229+BP



THS341-10 With upper pincer grip

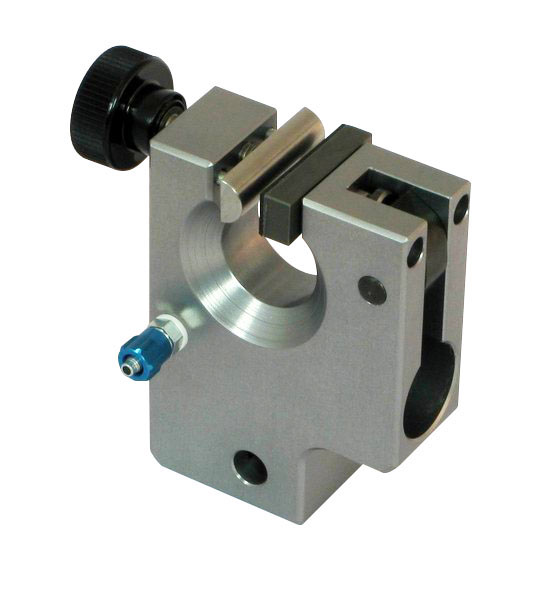

TH229+BLC

With line-contact jaws

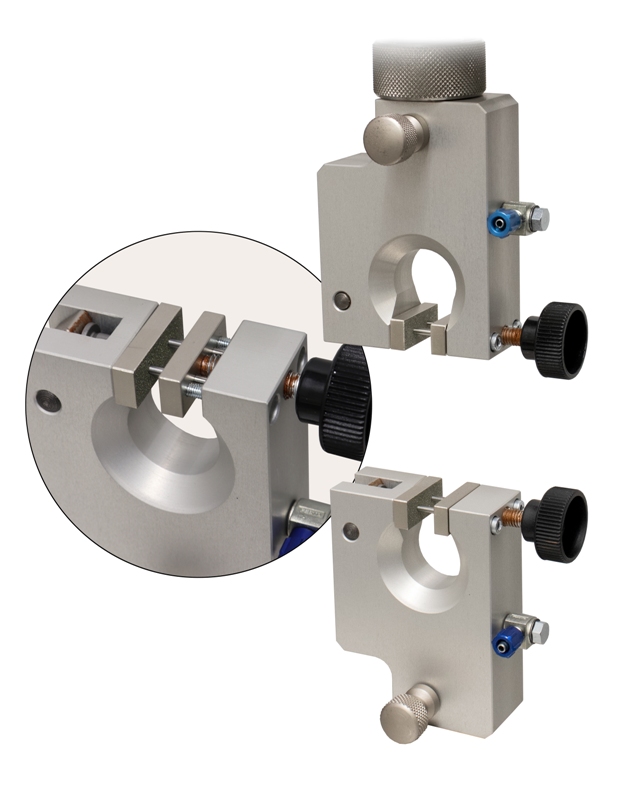

TH229+BD-GDP 2022-02-02

Special versions

more
