G12 Pneumatic grips



Back

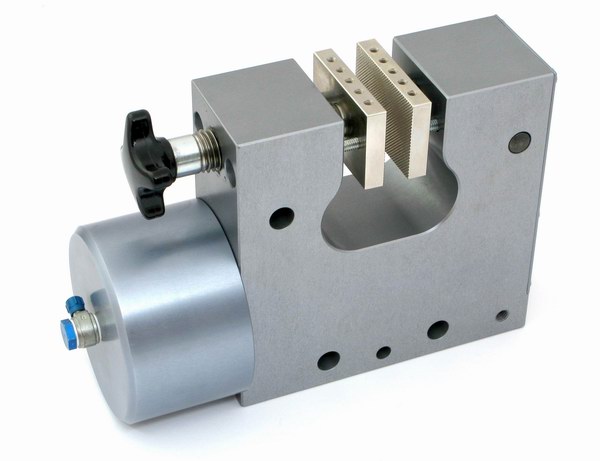

TH232

Pneumatic grip

Clamping force: 16 kN / 7bar

Aluminum, anodized
Temperature range: 0...+70°C

Coupling: Af15.9/8mm



Pneumatisches Spannzeug

Spannkraft: 16 kN / 7 bar

Aluminium, eloxiert

Temperaturbereich: 0...+70°C

Anschluss: Af15.9/8mm

Click here to see jaws

Description: Description: Description: pdf_icon.gifTH232 Datasheet.pdf
Description: Description: Description: pdf_icon.gifTH232 Datenblatt.pdf

tn_TH232+2Ko+BP 7.7kg  02-06-2020  02

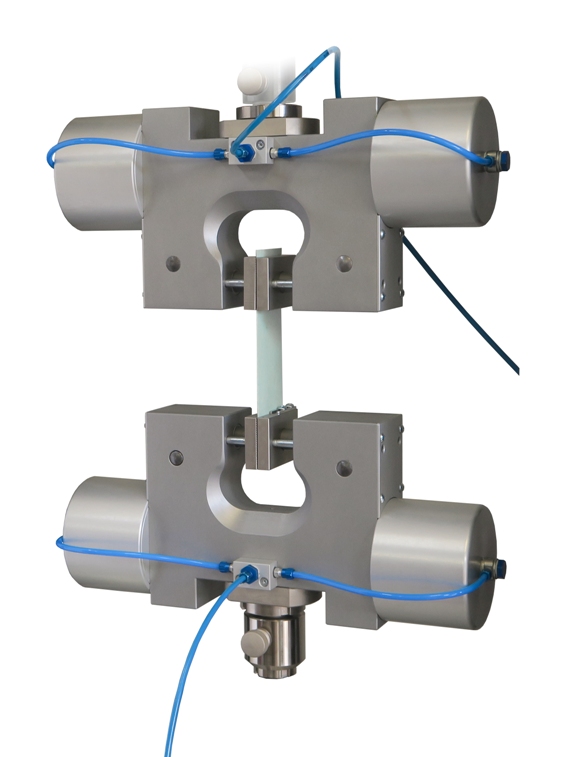

TH232



Pneumatic grip with 2 rods

Pneumatisches Spannzeug mit 2 Kolben



more

Description: Description: Description: C:\Users\Anri\Desktop\TH232\TH232-.jpg

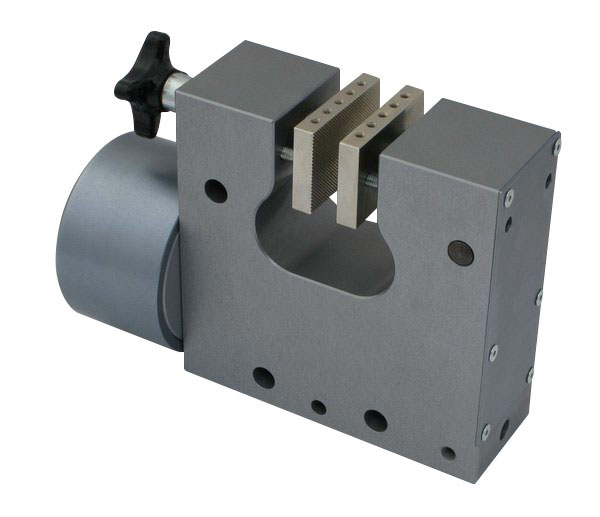

TH232



Pneumatic grip

Clamping force: 16 kN / 7bar

Variably applicable for metals, plastics, wood samples,

metal foil, textiles, braids etc.

1 pair without jaws
Aluminum, anodized

Adapter size: Af159

Temperature range: 0…+70°C





Pneumatisches Spannzeug

Spannkraft: 16 kN / 7 bar

Variabel einsetzbar für Metalle,

Kunststoffe, Hölzer, Metallfolien,

Textilien, Litzen etc.

1 Paar ohne Backen
Aluminium, eloxiert

Adaptergröße: Af159

Temperaturbereich: 0…+70°C

tn_TH232+STP  08-03-2018  02-

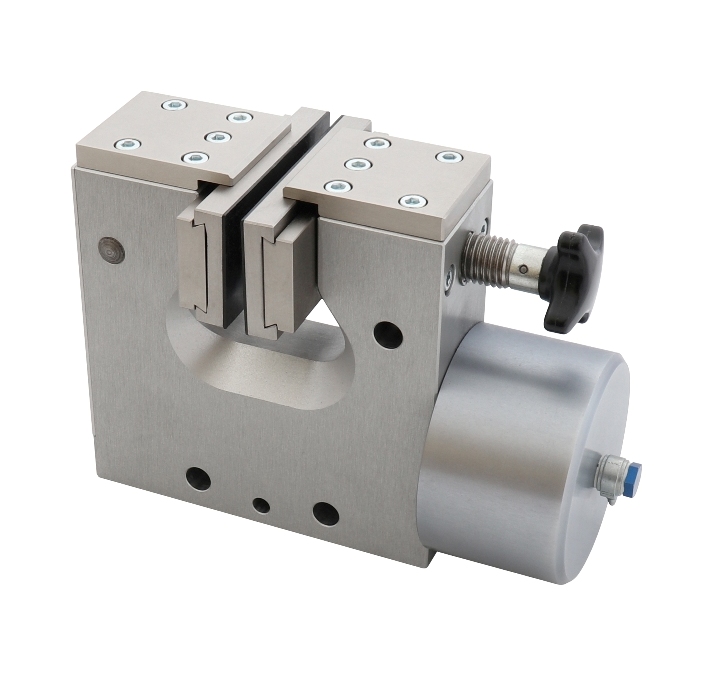

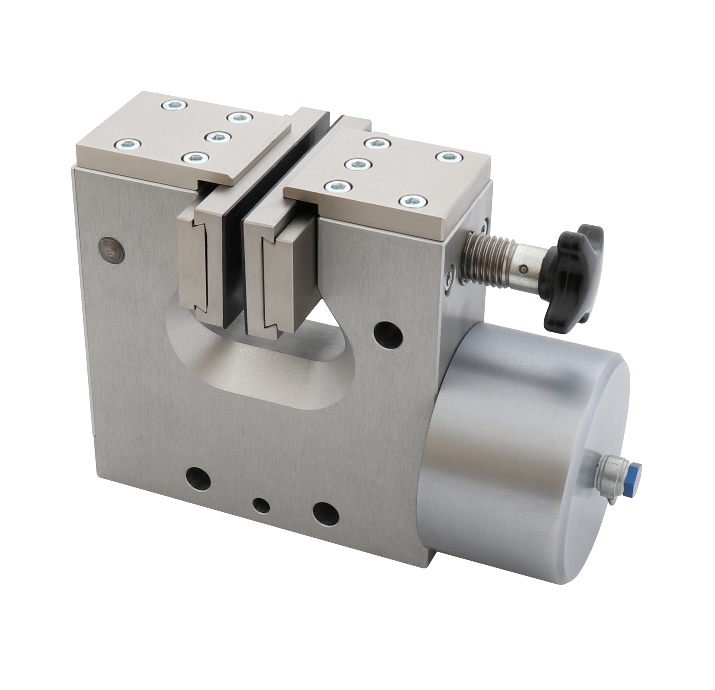

TH232+STP



16 kN pneumatic grip with upper jaw support Platens. Rubber-coated insert jaws.

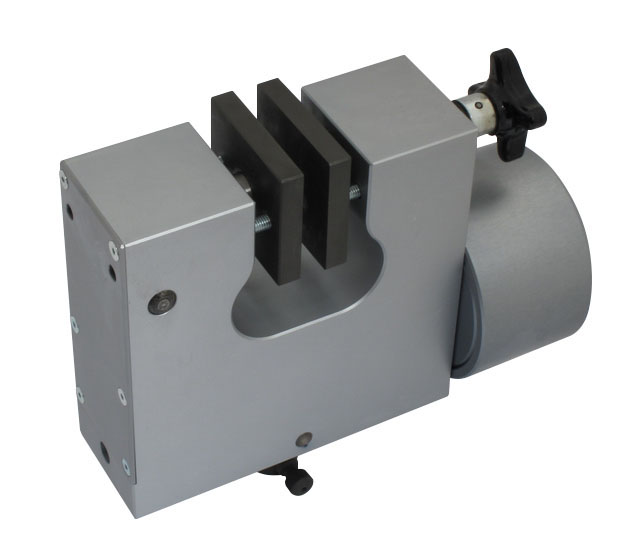

TH232+TH232-B55x60
