G12 Pneumatic grips



Back

TH83


Pneumatic grip with lever

7 mm movement with one jaw

Clamping force: 7 kN / 7 bar (16 kN with 16 bar TH216)

Coupling Af159

pdf_icon.gifTH83 Datasheet.pdf
pdf_icon.gifTH83 Datenblatt.pdf

Jaws

TH83GT100 EBG100--

TH83+GT100+EBG100



With insert jaw carriers and rubber insert jaws 50x100 mm

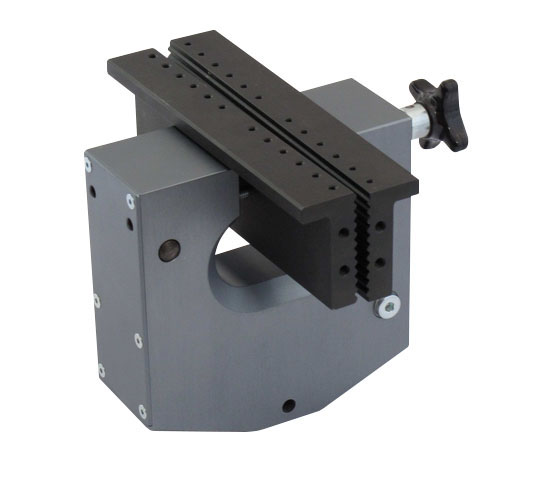

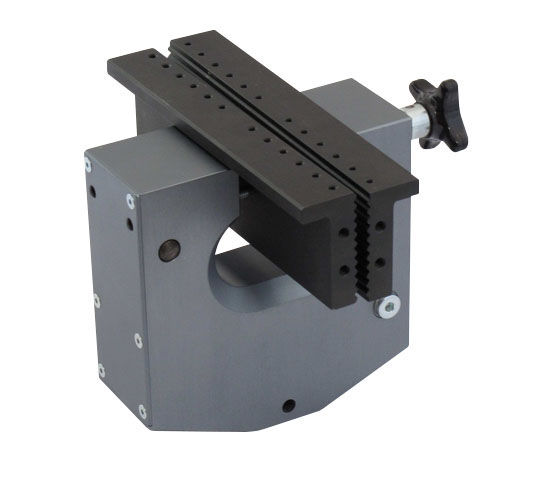

TH83+BW200L-

TH83+BW200



With wave jaws for textiles,

clamping surface 60x200 mm,

opening width 0-10 mm

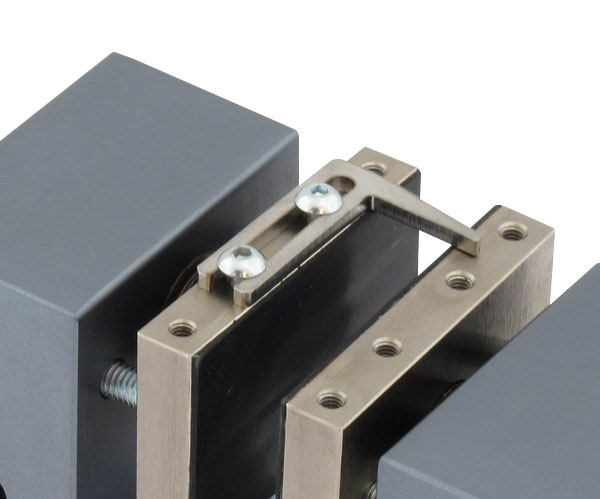

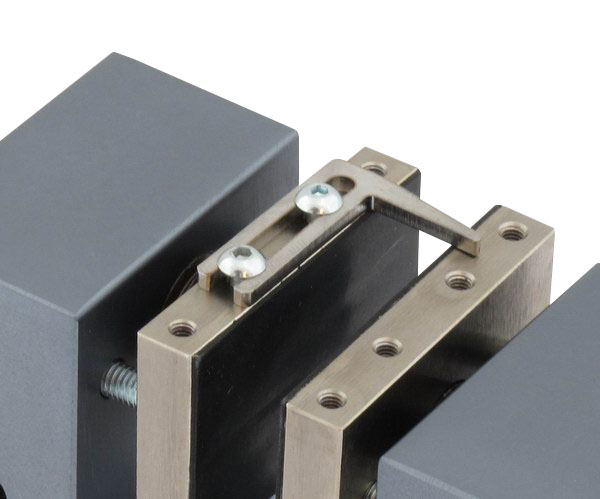

TH83-BG+THS519-M4 Anschlag-.jpg

TH83-BG + THS519-M4 Anschlag



Centering device

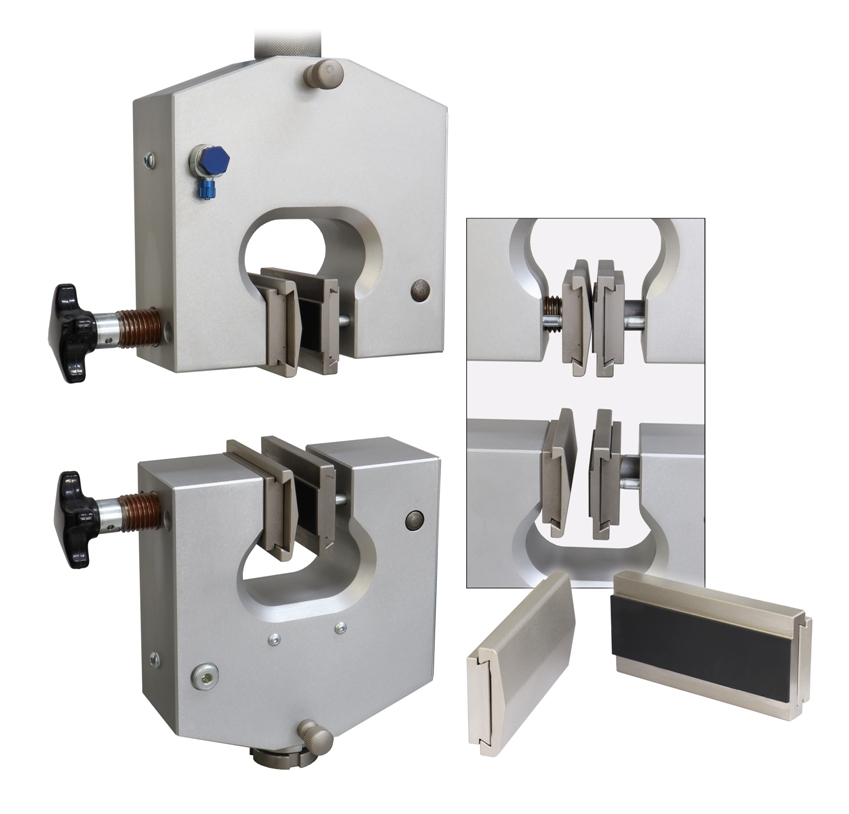

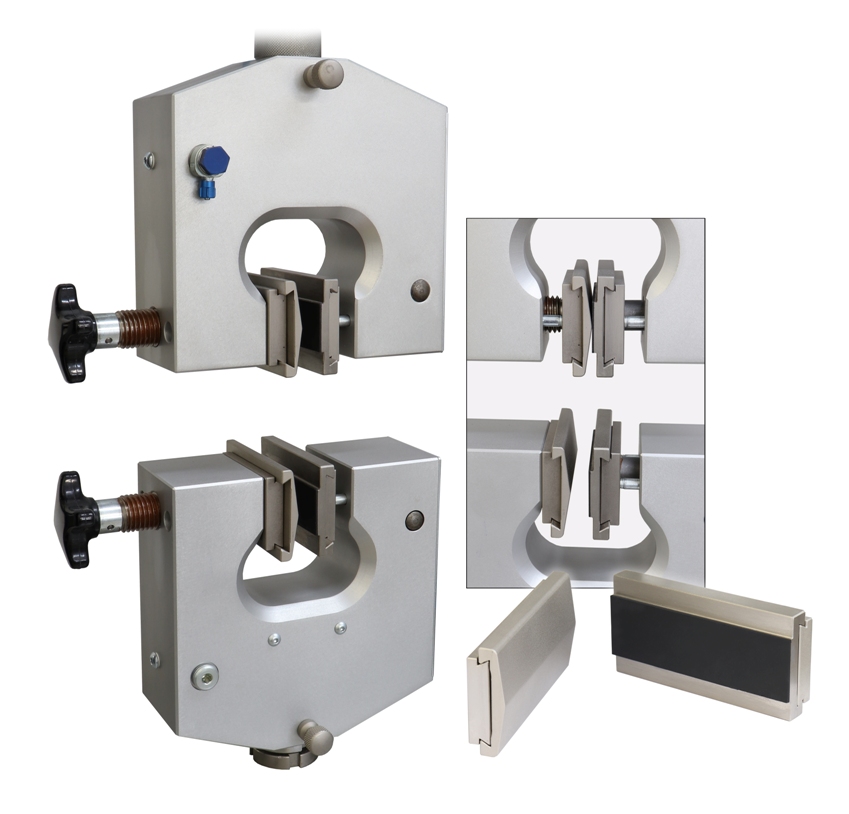

TH83+GT-EBG30x100+EBLCR3-100  2022-05-10

Special versions



more
