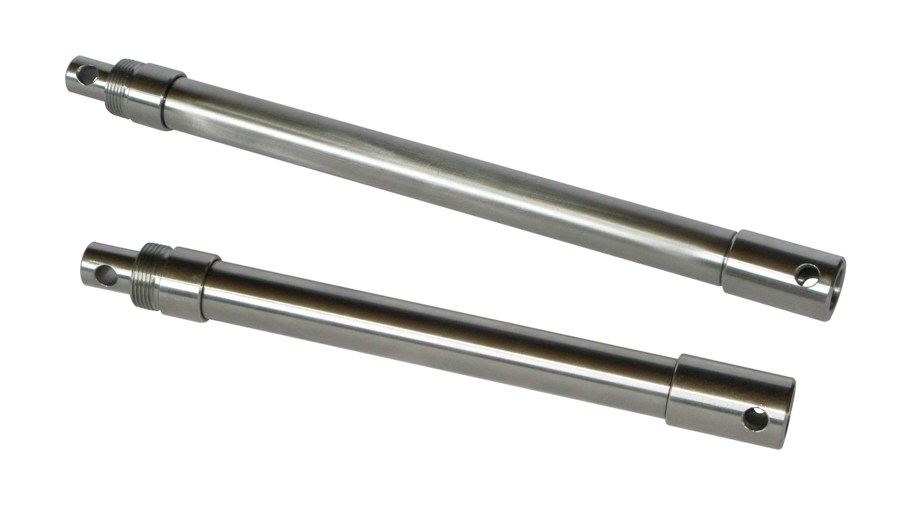

	THS521-Am158-Af159-D21-L220-psd Pull rod for temperature chamber Coupling: male 158 mm, female 159 mm Diameter 21 mm, length 220 mm Force: 20 kN THS521 Datasheet.pdf THS521 Datenblatt.pdf

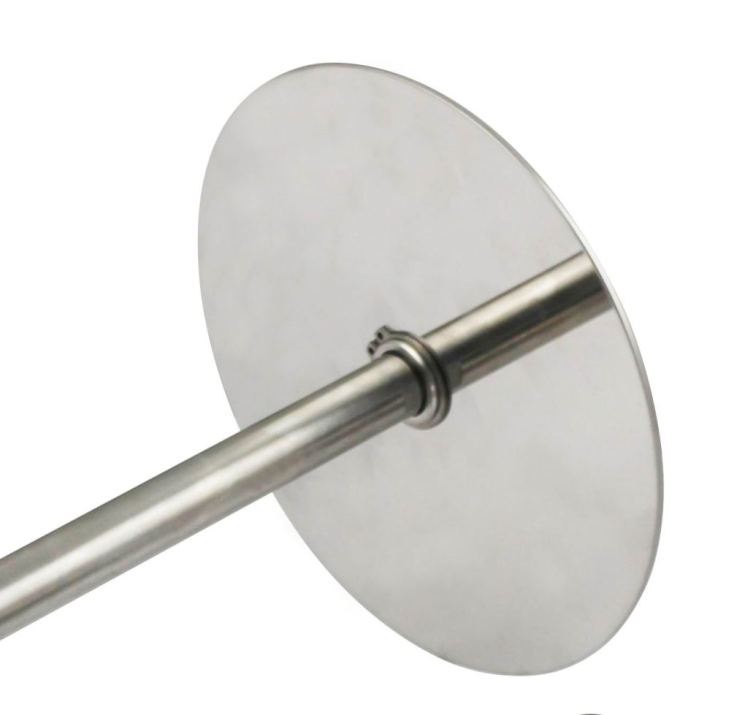

	THS521-psd Protection shield heat shield Hitzeschild

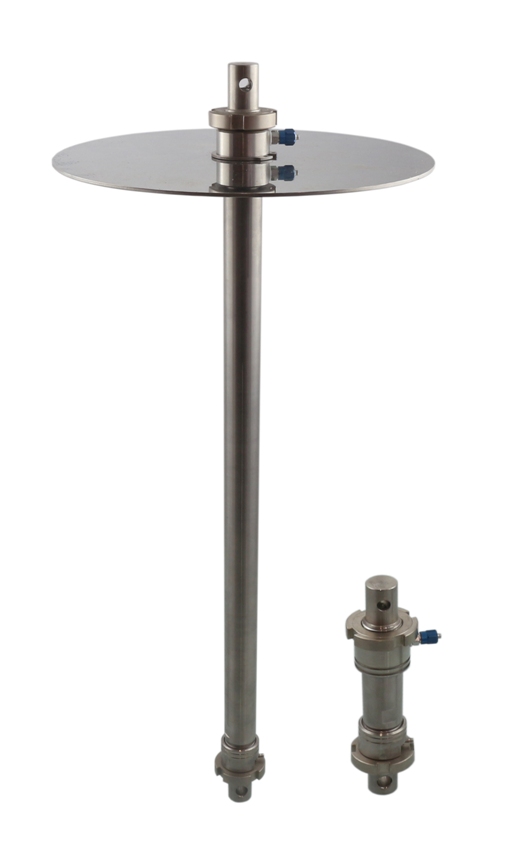

	THS521-Am158-Am16-D21-L120 + THS521-Am158-Am16-D21-L450-psd Coupling: male 158 mm, male 16 mm Diameter 21 mm , length 120 mm and 450 mm

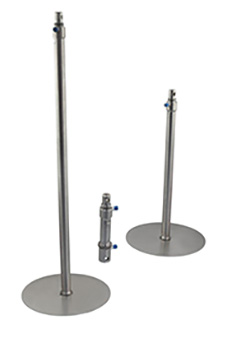

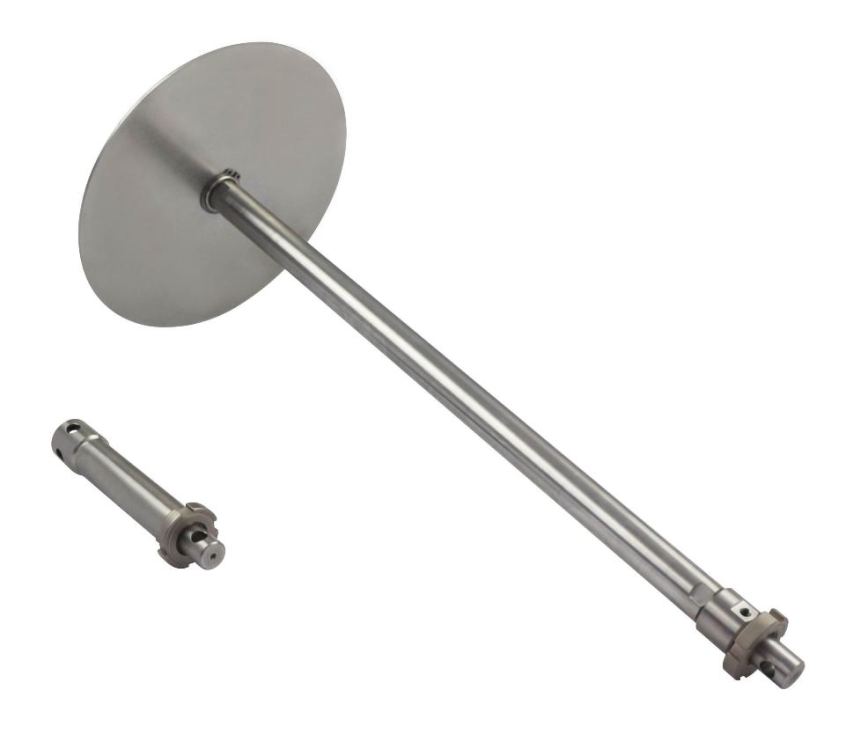

	THS521-Am158-Af159-D21-L400-psd + THS521-Am158-Af159-D21-L150 Stainless steel

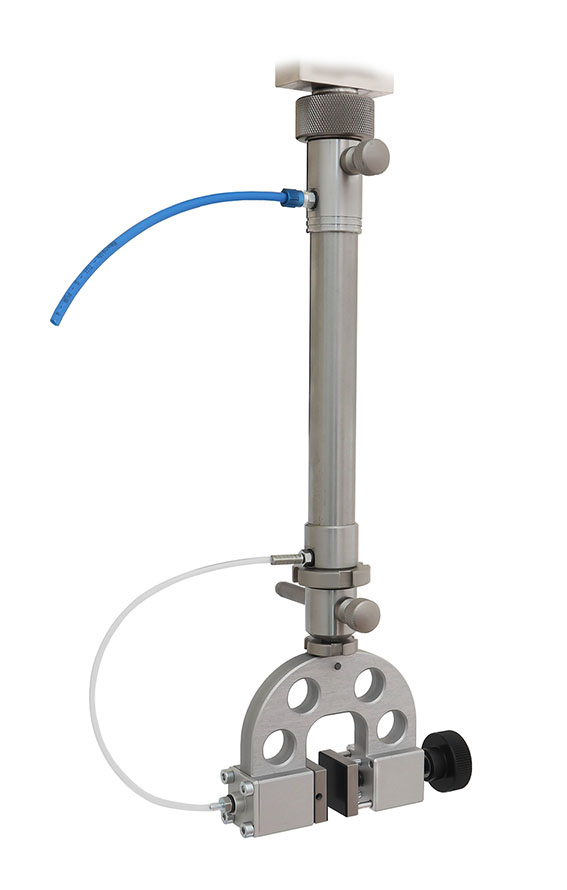

	THS521 pull rod adapter with TH94 pneumatic grip

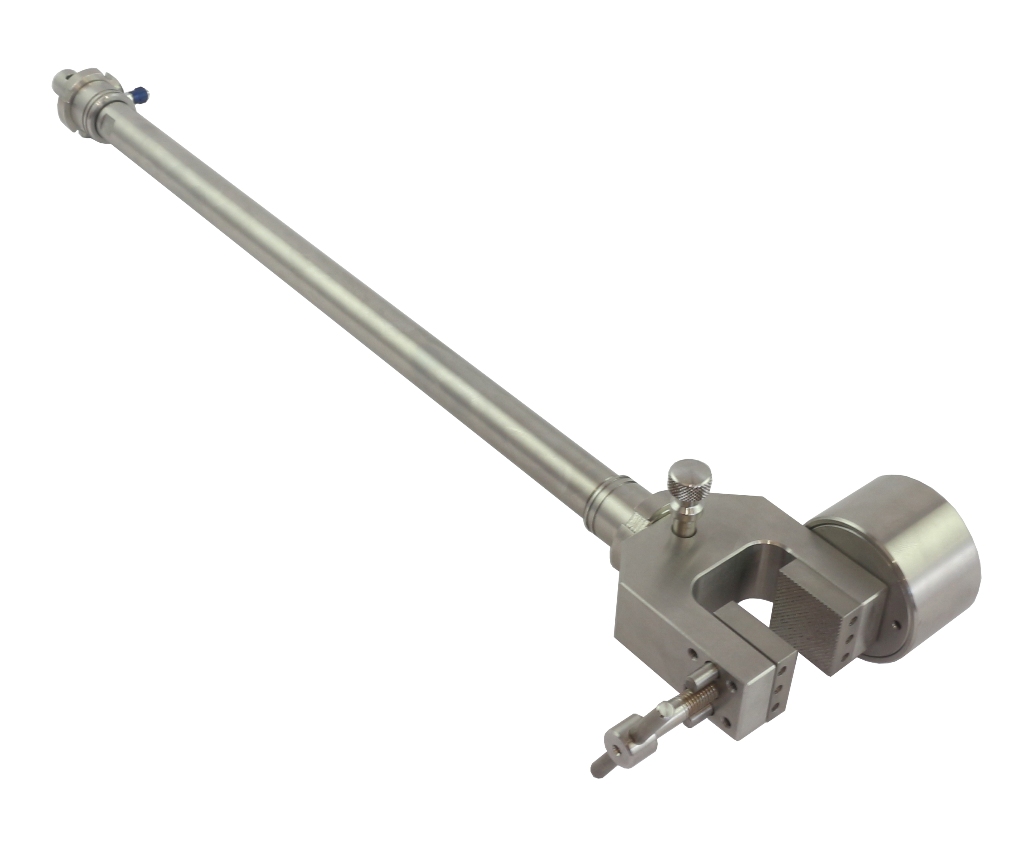

	TH240k-S20-A4-Af159 + THS521-Am158-Am1665-D21-L450 Stainless steel pneumatic grips with pull rods 450 mm long Temperature range 0 … +280°C Max. load 1 kN Clamping surface 30x30 mm Jaw opening 0-20 mm Coupling Af159

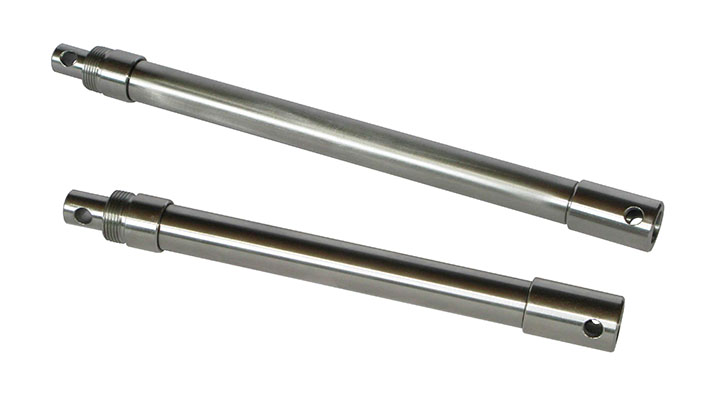

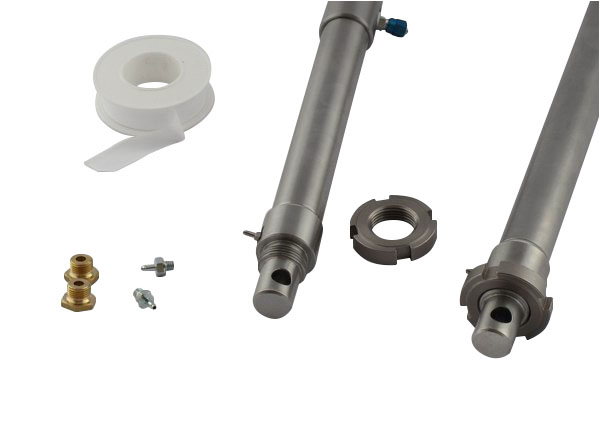

	THS521-Am158-Af159-D21-L150 Coupling: male 158 mm, female 159 mm Diameter 21 mm , length 150 mm Force: 20 kN

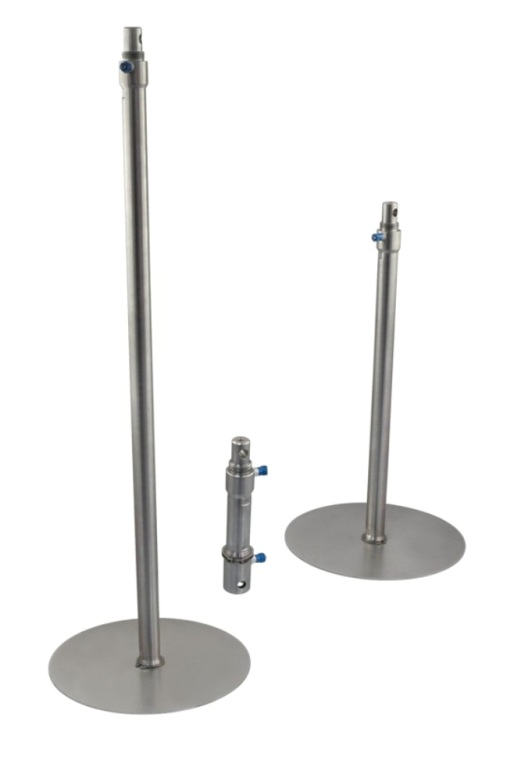

	THS521-Am158-Af159-D21-Lxxx Coupling: male 158 mm, female 159 mm Diameter 21 mm , force 20 kN
	THS521-Am16-Am25-D21-Lxxx Coupling: male 16/6.5 mm, male 25/10 mm, diameter 21 mm

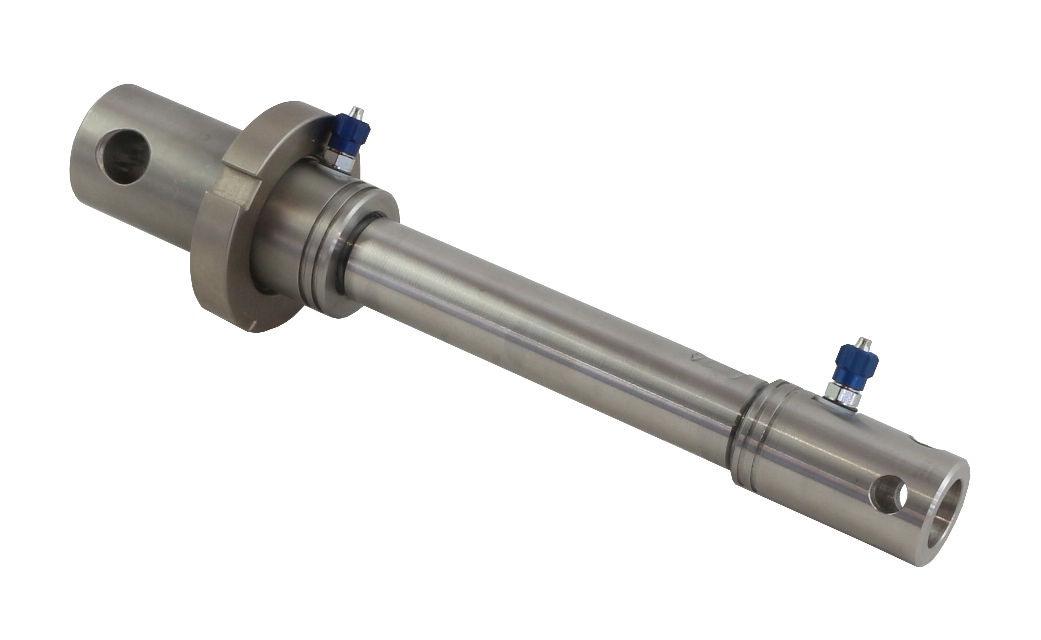

	THS521-Af159-Am317-L200 Special pull rod for chamber Coupling: female 159 mm, male 317 mm Max. load 10 kN Length 200 mm

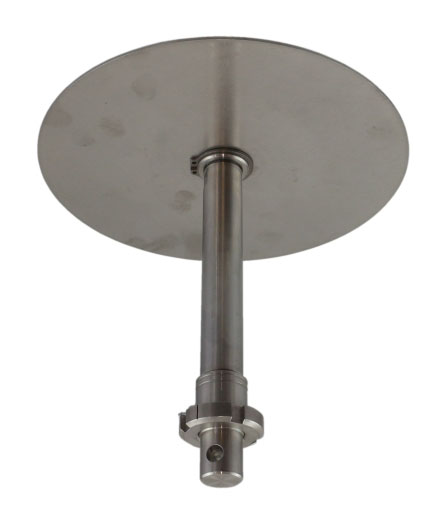

	THS521-Am20-Af20-L200-psd Coupling: male 20/8 mm, female 20/8 mm Length 200 mm

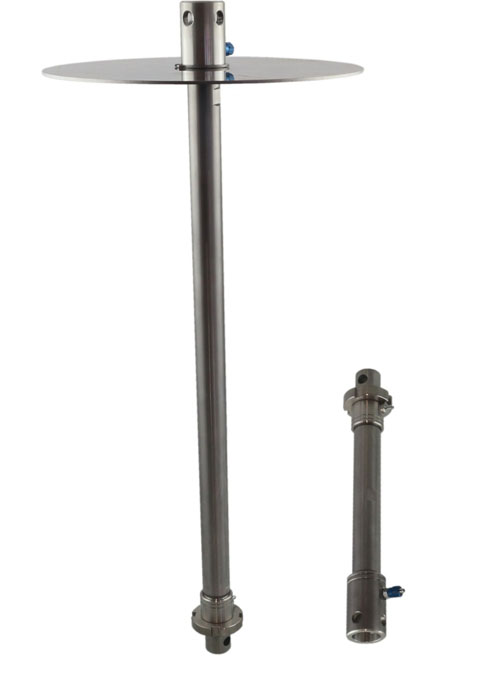

	THS521-Am20-Af20-D21-L450-psd + THS521-Am20-Af20-D21-L200 Coupling: male 20/8 mm, female 20/8 mm Diameter 21 mm , length 450 mm and 200 mm

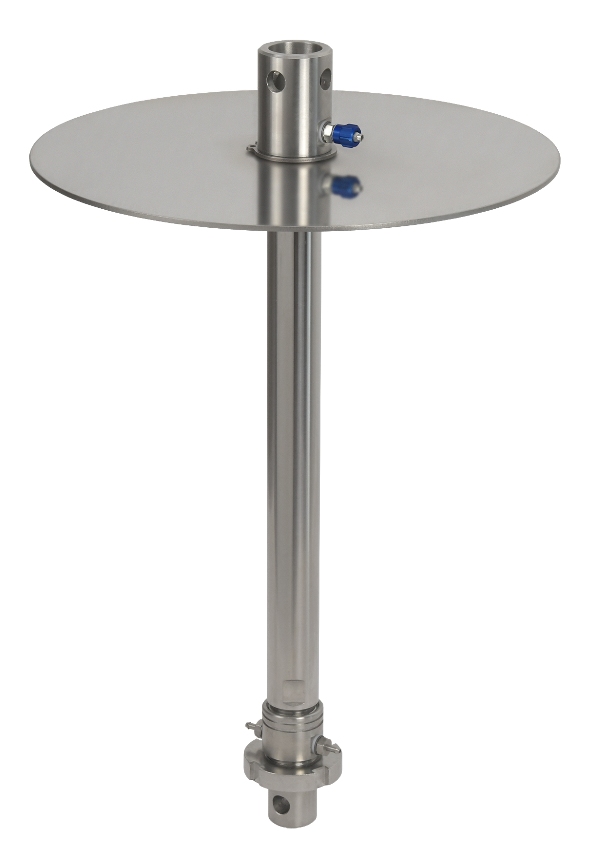

	THS521-Am20-Af20-D21-L300-psd Upper pull rod for temperature chamber Max. load 20 kN Coupling: male 20/8 mm, female 20/8 mm, diameter 21 mm Length 300 mm with protection shield and pneumatic fittings and Teflon tube (260°C) V2A stainless steel Zugstange für oben für Zugversuche in einer Temperaturkammer Anschluss: 20/8 männlich – 20/8 weiblich Zugstangenlänge (Querloch zu Querloch): 300 mm mit Abschirmblech inkl. Fittings mit Teflonschlauch (bis 260 °C) V2A-Edelstahl Max. Kraft: 20 kN

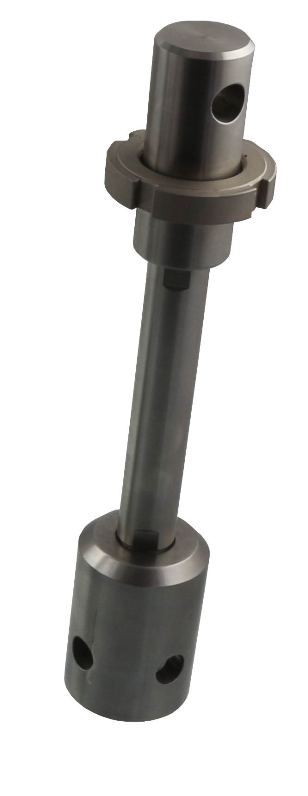

	THS521-Am317-Af318-D21-L250 Coupling: male 317 mm , female 318 mm Diameter 21 mm , length 250 mm Force: 50 kN

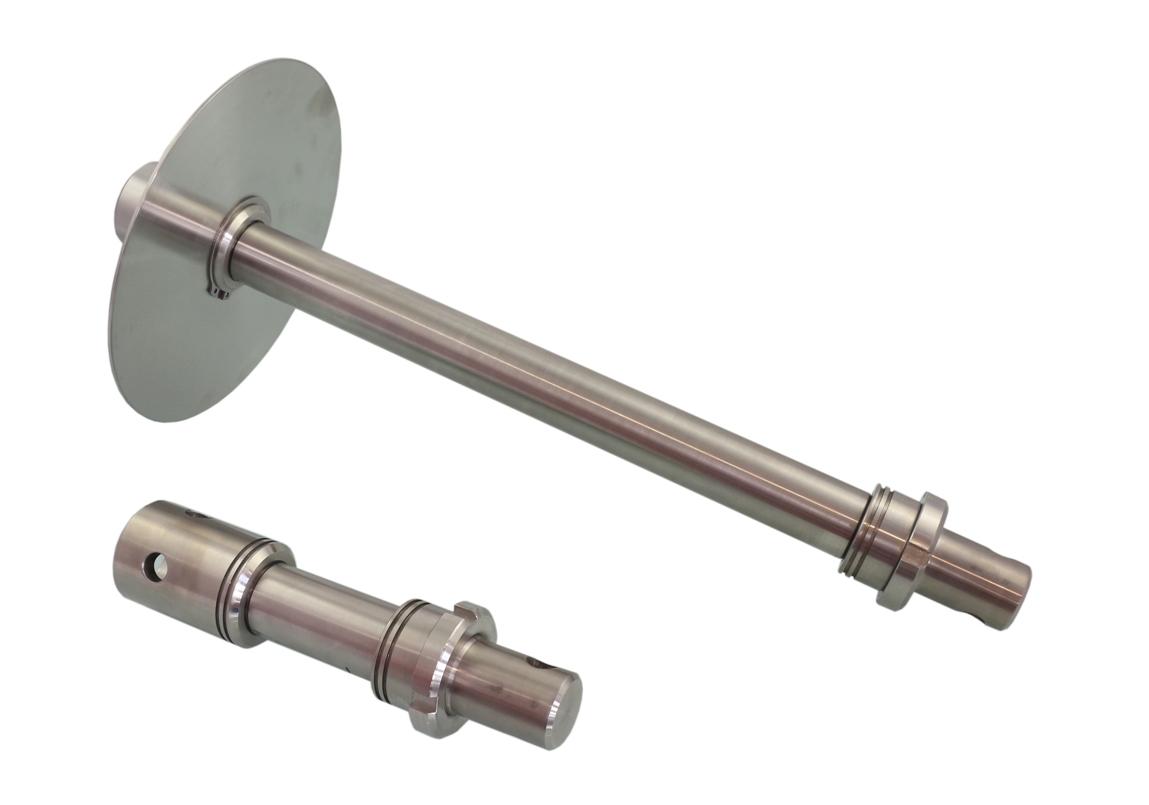

	THS521-Am317-Af318-D34-L171 + THS521-Am317-Af318-D34-L436-psd Coupling: male 317 mm, female 318 mm Diameter 34 mm , length 171 mm and 436 mm

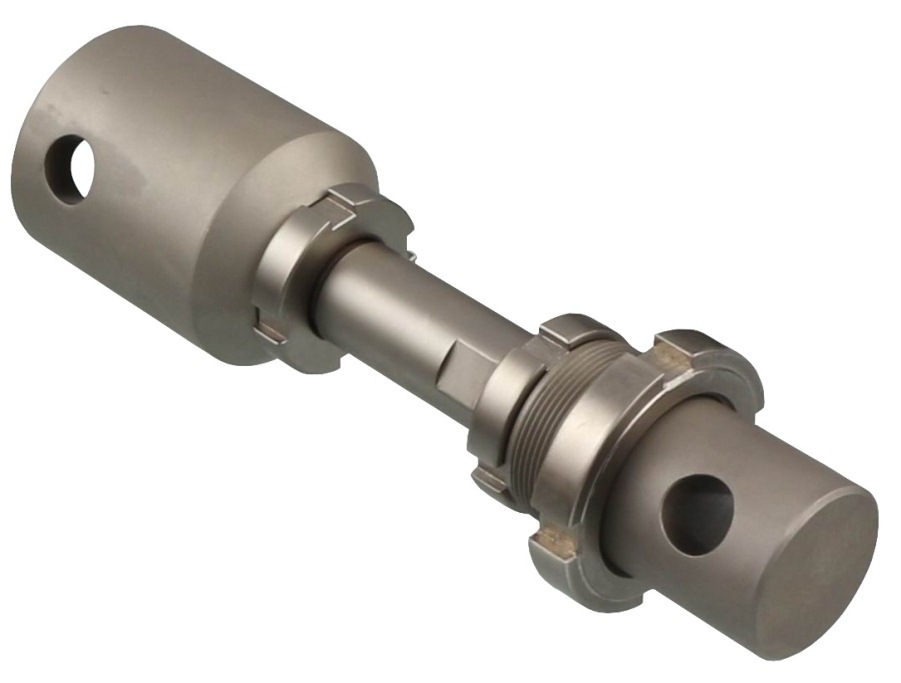

	THS521-Am40-Af40-D25-L180 Special adapter from Af40 to Am40 Pin hole to pin hole distance 180 mm Diameter 25 mm

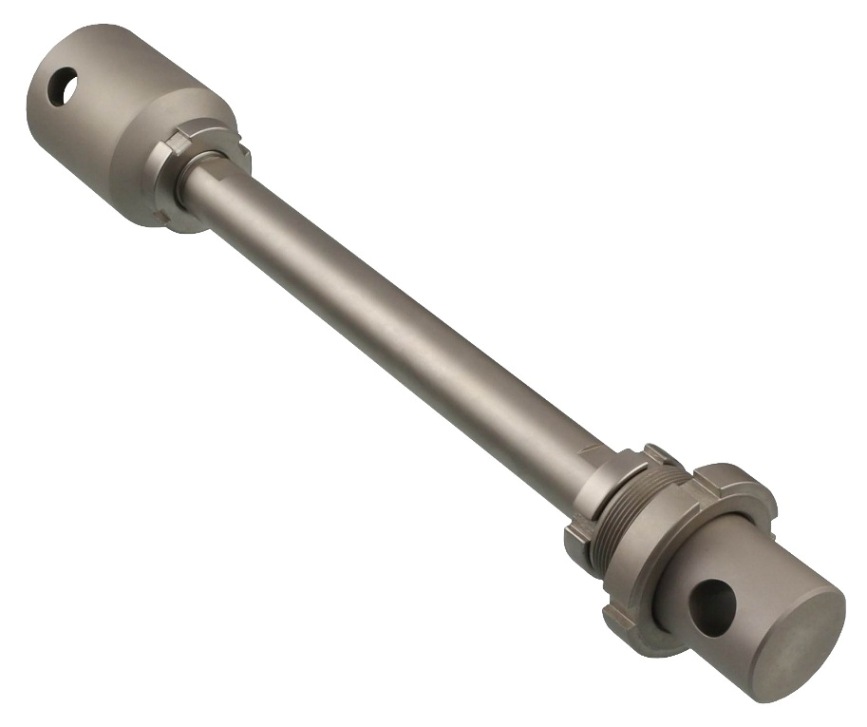

	THS521-Am40-Af40-D25-L350 Special adapter from Af40 to Am40 Pin hole to pin hole distance 350 mm Diameter 25 mm

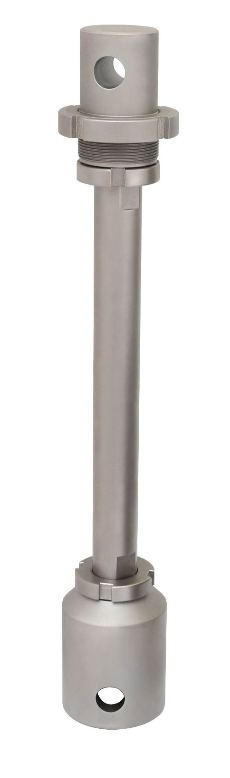

	THS521-Af40-Am40-D25-L250 Pull rod for chamber Coupling: female 40 mm, male 40 mm Diameter 25 mm , length 250 mm

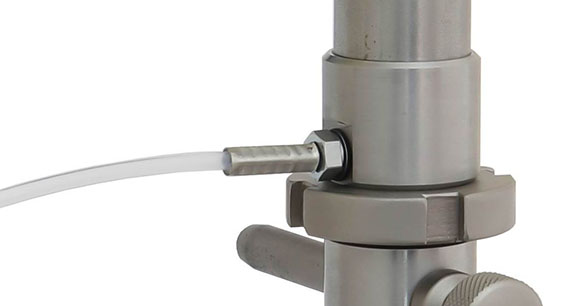

	THS521-M3-Pk2 Fitting + Telfonube + metal tube  Kabelhülse gequetscht

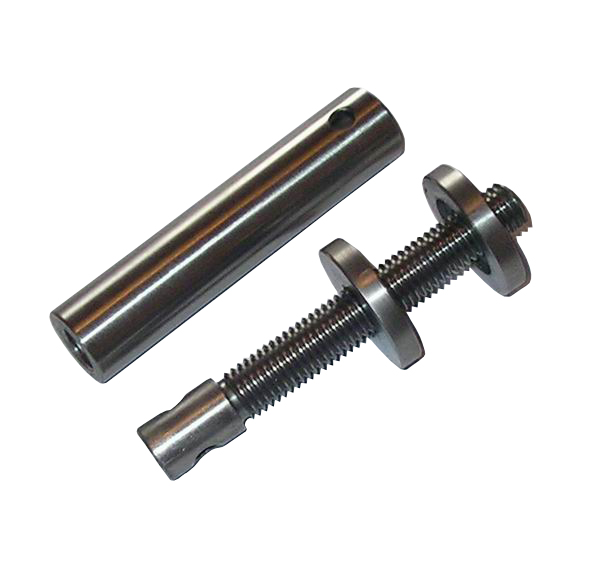

	THS521-300 V2a adapter for chamber
