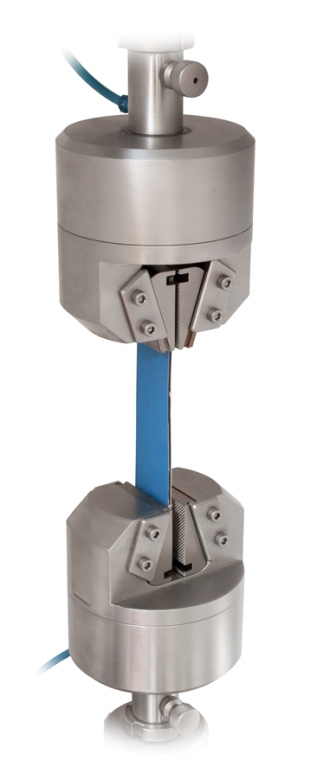

TH175-10+BP 2019-05-17 IMG_8347

TH175-10+BP



Pneumatic wedge grip
Clamping force: 20 kN at 7 bar and 10 kN tension 26 kN at 16 bar and 10 kN tension
temperature range: -70° … 280°C
Stainless steel

Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH175 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH175 Datenblatt.pdf

Jaws

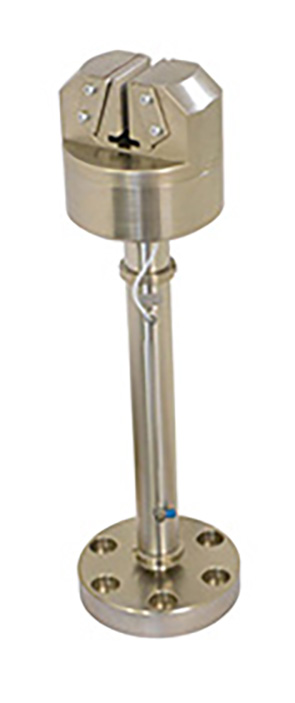

TH175-10-Af159-T280 + L300 tube 2

TH175-10-Af159

TH175-10 with pull rod for temperature chamber use

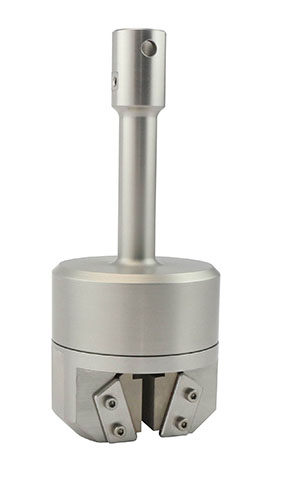

Special TH175-10-Af20-L160-D21.4 pneumatic wedge grips with pullrod dia 21.4 length 160mm

TH175-10-L160-D21.4-Af20



Pneumatic wedge grips with pullrod D21.4 length 160 mm
Coupling Af20

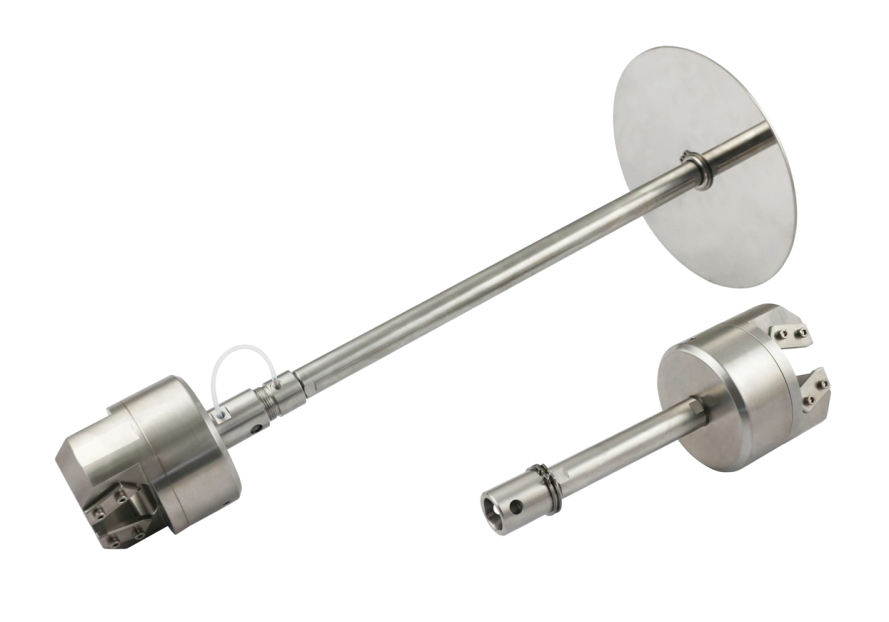

TH175-10-Af20-T280+THS521-20-20-L146+L416-xb- pullrod with heat shield Hitzeschild

TH175-10-Af20-T280
+

THS521-20-20-L146+L416



Upper pneumatic wedge grip with pullrod and heat protection shield

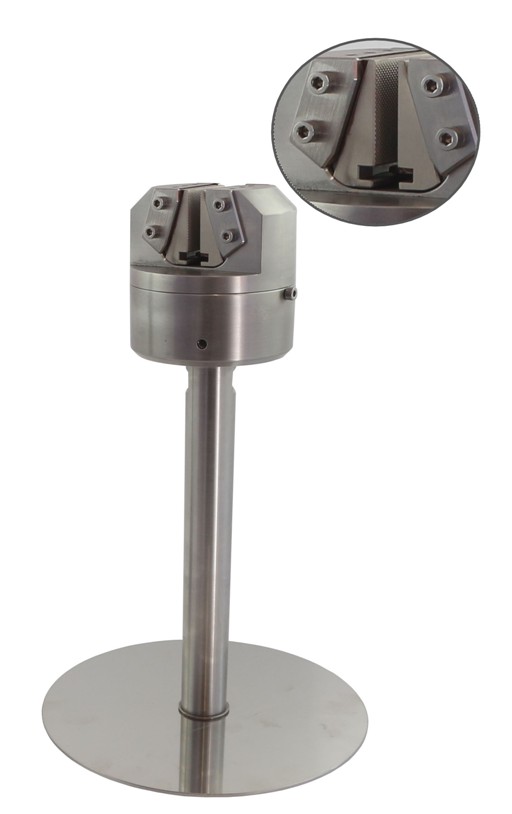

TH175-10-Af159-L254+BP6

Pneumatic wedge grip
Max. load 10 kN
Coupling Af159, length 254 mm
Jaws opening 0 - 6 mm
