G14 Peel Grips



Back

Description: Description: Description: Description: TH3-90-

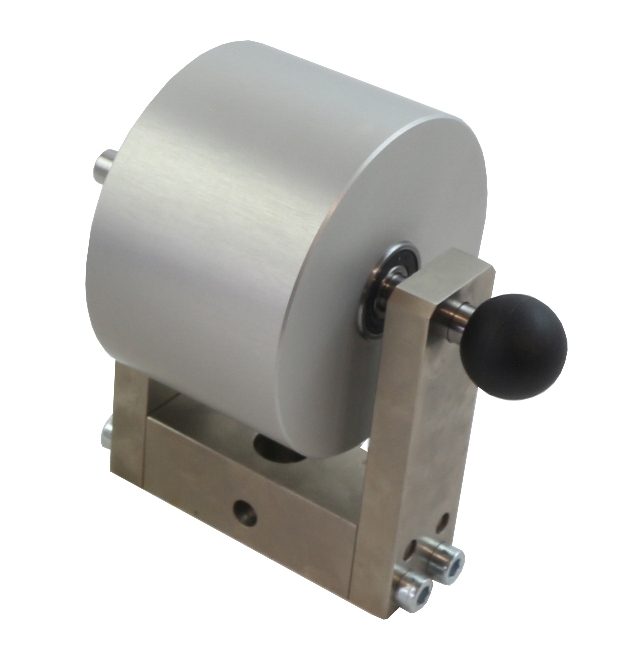

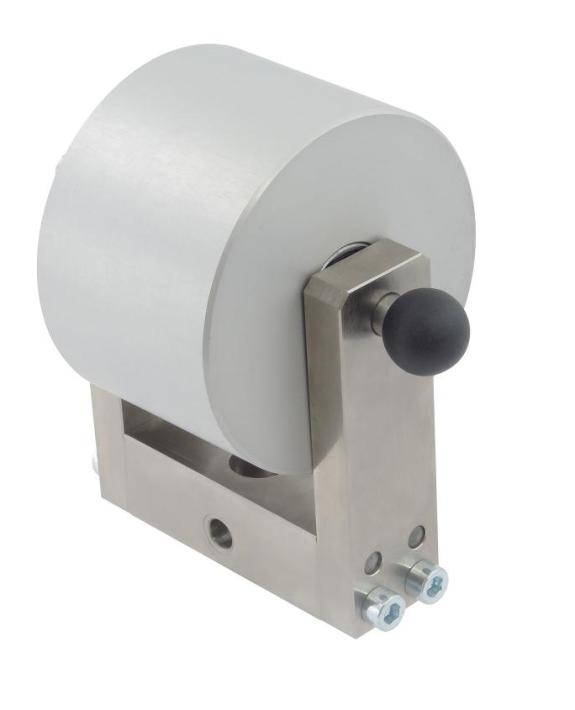

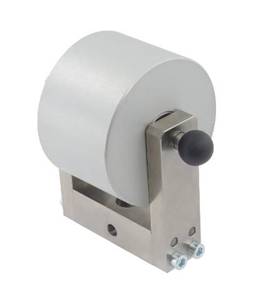

TH3-90



According to DIN 53357-B



Rotating German wheel peel fixture to test the bond strength of tapes, plastic and paper films, laminated release coatings at 90 peel angle





Description: Description: Description: Description: pdf_icon.gifTH3 Datasheet.pdf

Description: Description: Description: Description: pdf_icon.gifTH3 Datenblatt.pdf

Description: Description: Description: Description: TH3-90-Kl-

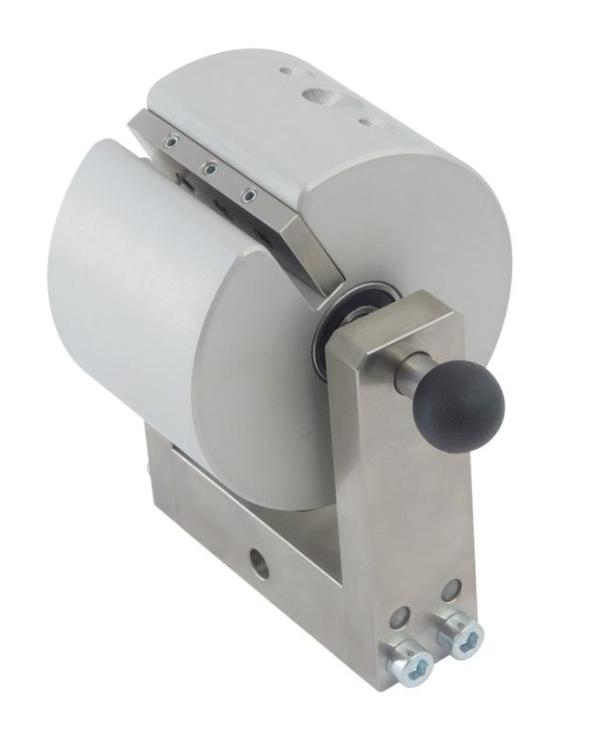

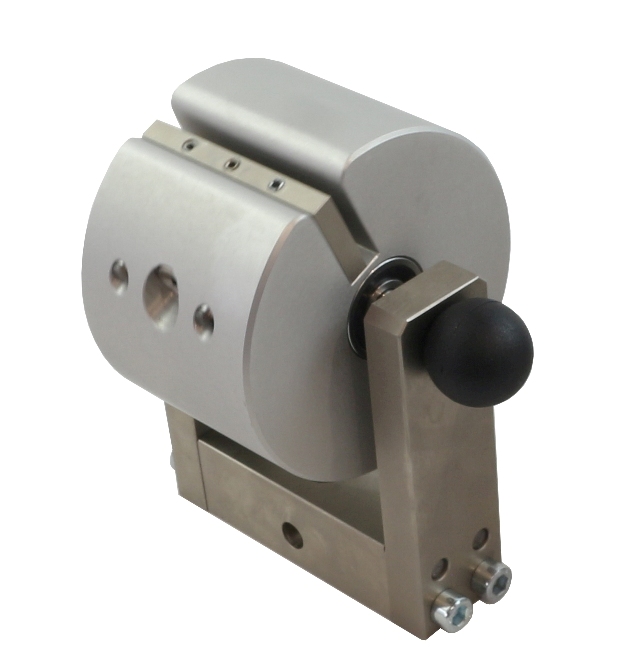

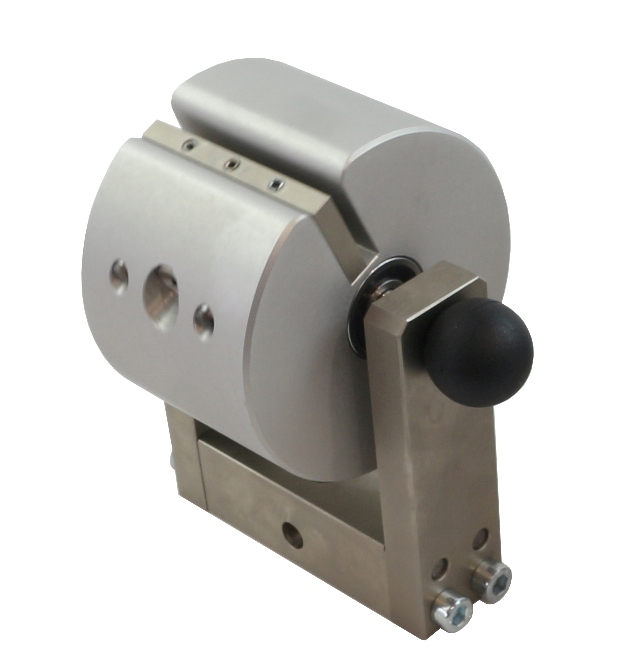

TH3-90-KL



With a clamp to fix a sample



According to DIN 53357-B

TH3-100-D90x8-W20-Am35



Custom peel test fixture

50 kN, coupling Am35

Wheel diameter 100 mm

Groove: 90 mm diameter x 8 mm width



Description: Description: Description: Description: TH3-152

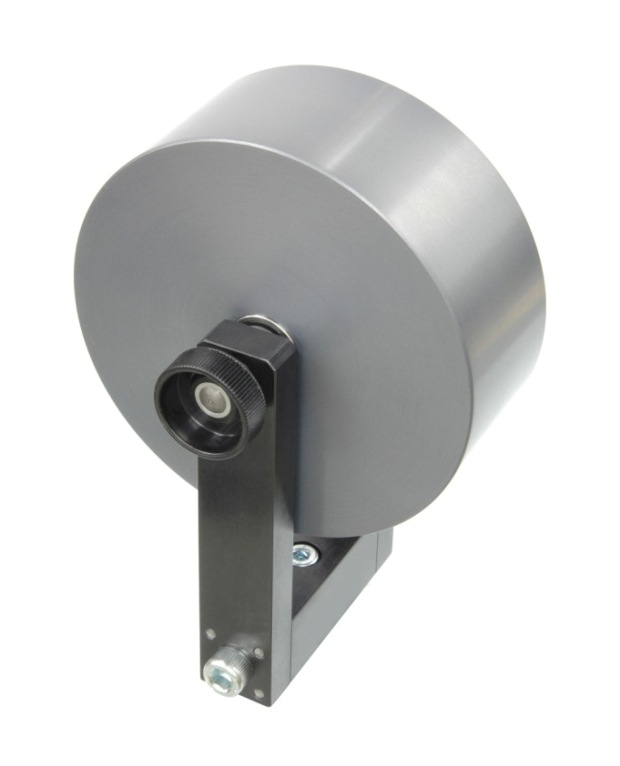

TH3-152.4



According to ISO 6133, IPC-TM-650 2.4.9

152.4 mm (6 in) wheel

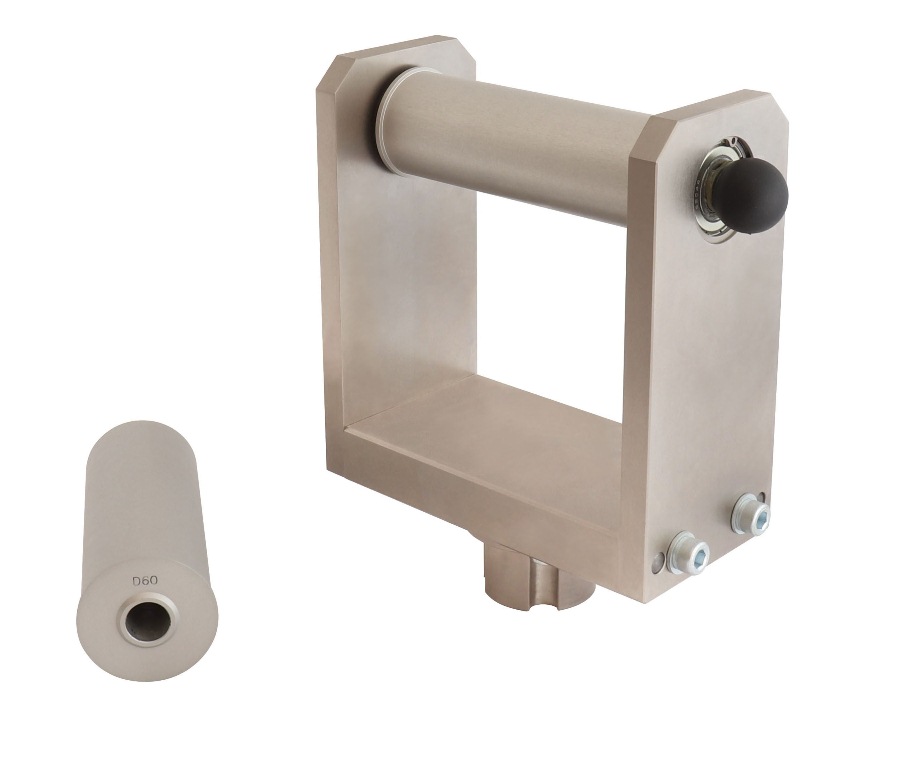

TH3-280



Peel test fixture according to ISO21809-Fig.H1 to test peel strength of pipe coatings



Description: Description: Description: Description: TH3-S21 11.8, 13.8, 15.8, 21.8, 25

TH3-ES21



Peel test fixture with interchangeable rollers: 11.8, 13.8, 15.8, 21.8, 25.8 mm

Description: Description: Description: Description: tn_TH3-38-S-Af20-.jpg

TH3-38-S-Af20



Peel test fixture with interchangeable rollers: 11, 14, 19, 25 mm



Roller width 38 mm

TH3-S21-ED



Customized peel grip, single arm version, steel, nickel-coated

incl. hardened steel insert rollers  9.8, 11.8, 13.8, 15.8, 19.8, 25.8, 31.8, 40.6, 50.7, 69.6 mm



TH3-S21-ED



Customized peel grip, single arm version, steel, nickel-coated

incl. hardened steel insert rollers  9.8, 11.8, 13.8, 15.8, 19.8, 25.8, 31.8, 40.6, 50.7, 69.6 mm



TH3-S125-P16-Af20



Customized peel grip, roller 16 mm diameter

Steel, nickel-plated

Coupling Af20 mm, weight 1,73 kg
