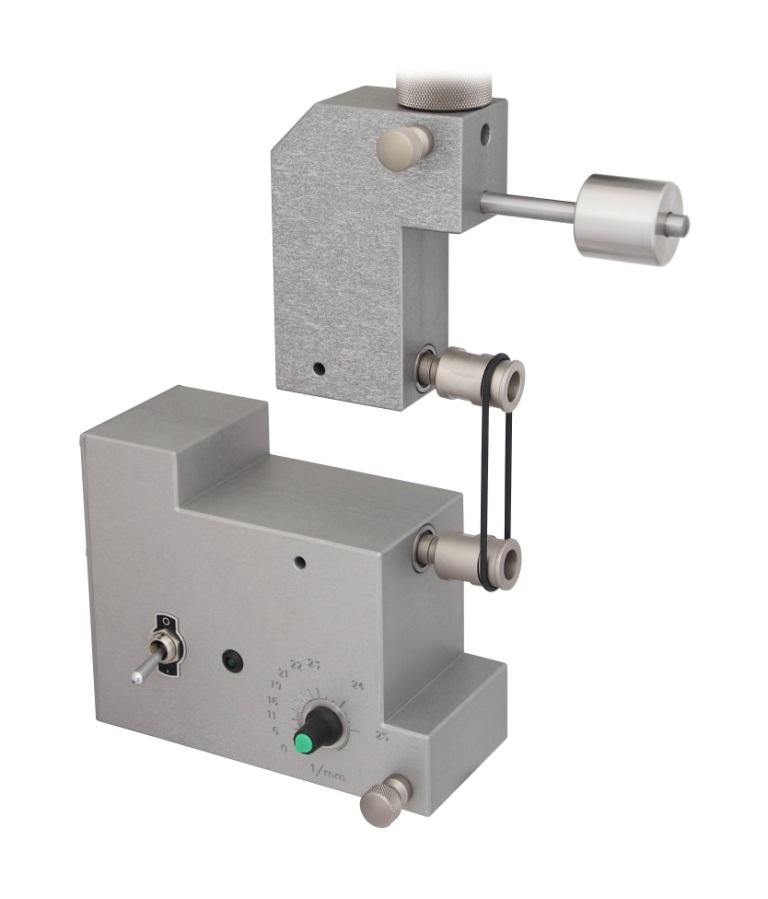

TH44-2

Vorrichtung zum Testen von O-Ringen DIN 53504

2 Rollern (15 und  25mm Durchmesser)



Drehzahl der Rolle ist einstellbar 4-17 U/min

Kleinster O-Ring ohne Rollen 21mm iŲ



TH44 Datasheet.pdf

TH44 Datenblatt.pdf



Tensile strength tester on rubber O-Rings conform to ASTM D1414     Rotation speed is adjustable 4-17 R/min

Smallest inner diameter 21mm without Roller  8mm pins



220 Volt    20 Watt

Description: Description: TH44-2

Description: Description: TH44-OT

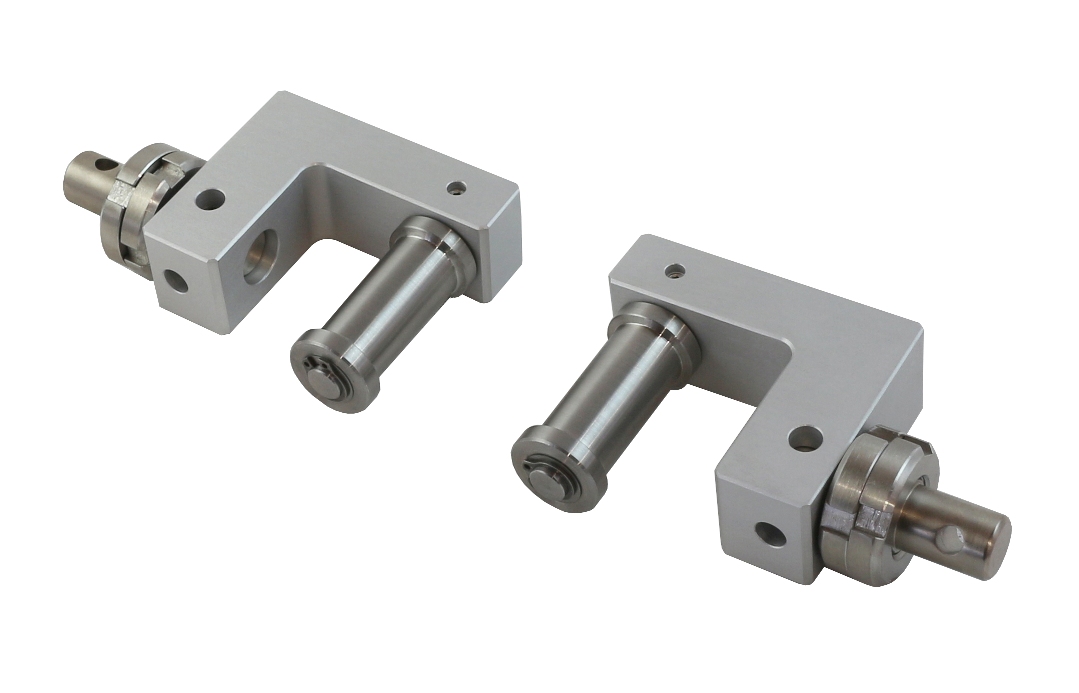

TH44-OT

Description: Description: TH44-2-oZy  kleinster O-ring 21iD

smallest distance between pins without roller 20mm



allow to test o-ring with min 21mm inner diameter



TH44-2 test

TH44-O-Ring Type 3



Description: Description: TH44-2

2. Standard Roller



25 mm diameter

Description: Description: TH44-2-D8-Af159



Special version



TH44-2-D8-Af159





2 pins of 4mm



Smallest O-Ring

inner diameter 8mm



needle bearing



Description: Description: TH44-2  kleine ringe 13

TH44-2-D8-Af159



Similar grips

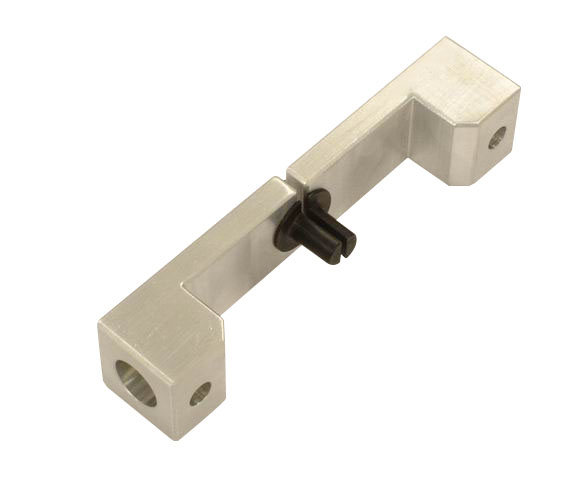

THS43-HR10
