th_TH3-SH+EDxx 0,5kg 2020-09-21 01

TH3-SHo+EDxx

O-ring test fixture, single arm version

2 bearings to rotate rollers

Aluminium, 500 N

Coupling Af159

Rollers: stainless steel V2a, Ø on request



Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gifTH3 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gifTH3 Datenblatt.pdf

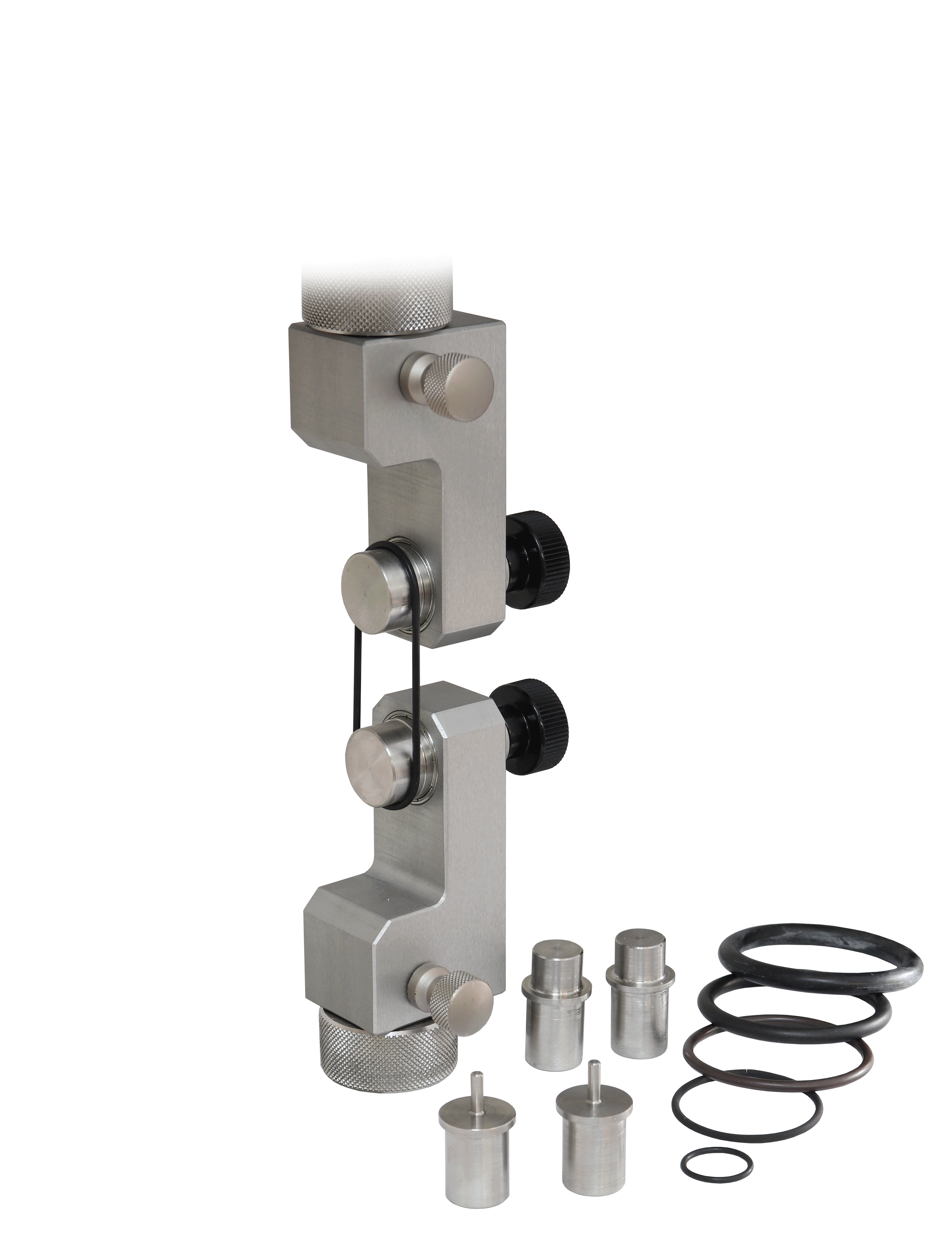

Animation

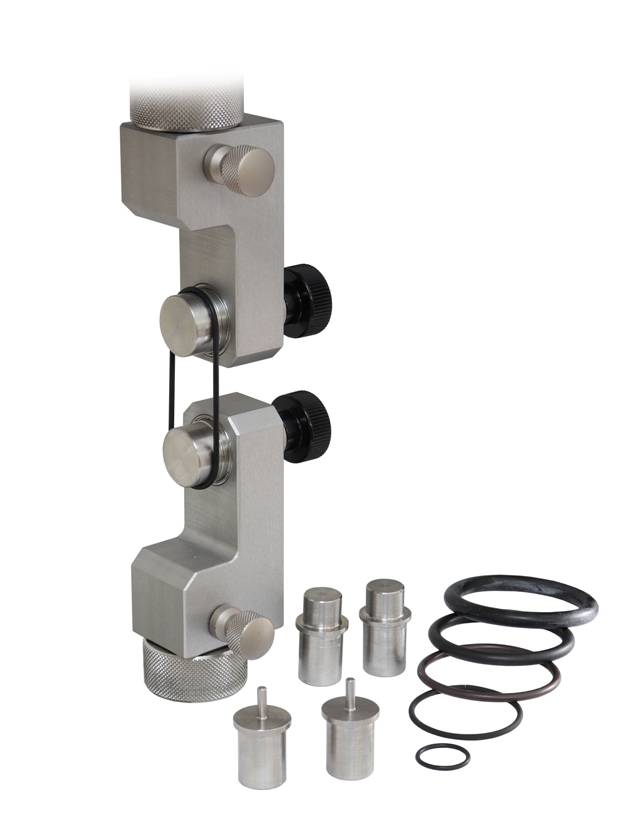

tn_TH3-SH+ED3 0,5kg 2020-09-21 07

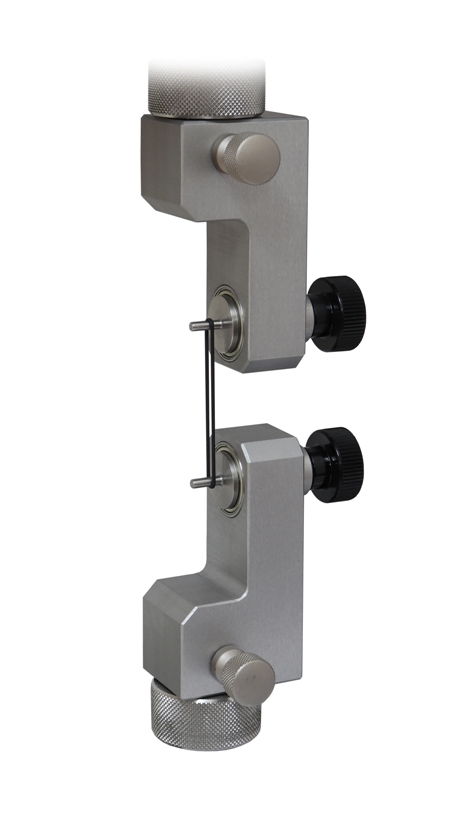

TH3-SHo+ED3



With rollers Ø 3 mm

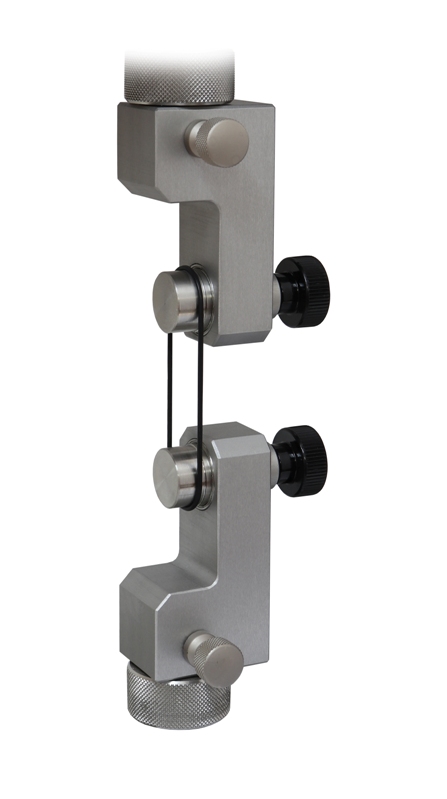

tn_TH3-SH+ED13 0,5kg 2020-09-21 05

TH3-SHo+ED13



With rollers Ø 13 mm

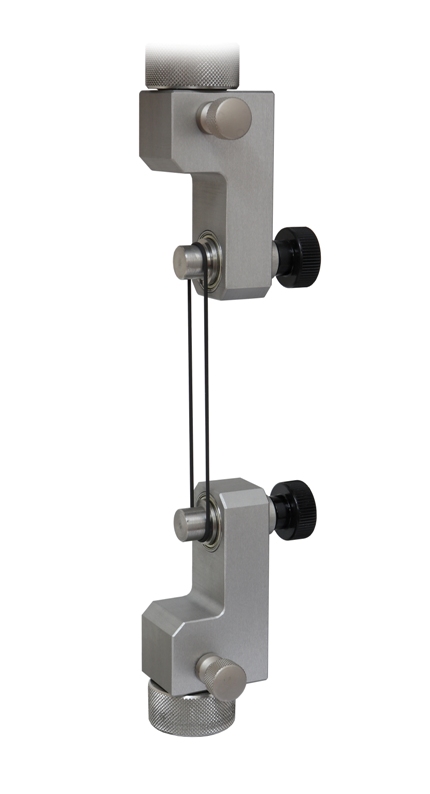

tn_TH3-SH+ED20 0,5kg 2020-09-21 08

TH3-SHo+ED20

With rollers Ø 20 mm

tn_TH3-SH+ED13 0,5kg 2020-09-21 02

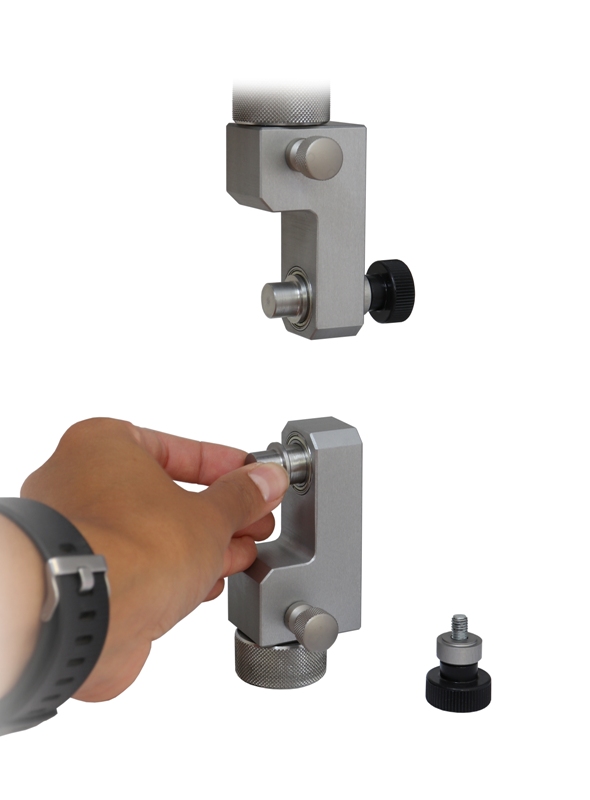

Quick interchanging of rollers
