G12 Pneumatic grips



Back

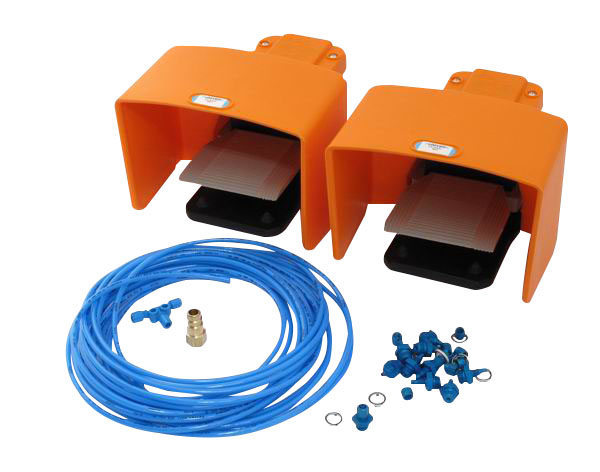

TH205-1-feed-pedal-for-pneumatic-grips-

TH205-1

Pneumatic accessories

Foot switches, non-locking.

Incl. tubes and switches

Description: Description: Description: pdf_icon.gifTH205 Datasheet.pdf
Description: Description: Description: pdf_icon.gifTH205 Datenblatt.pdf

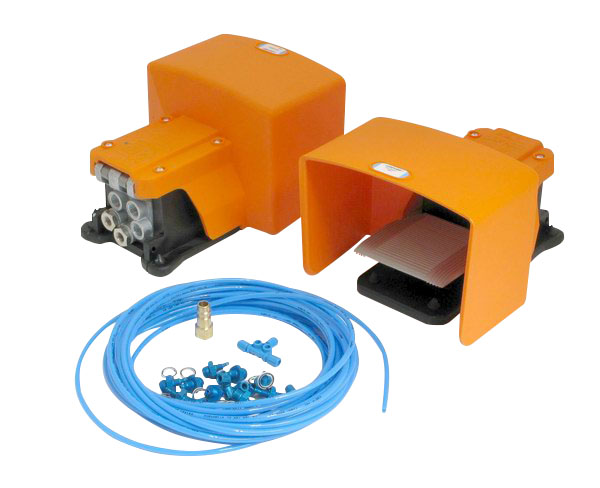

TH205-2 foot switches for pneumatic grips with locking function

TH205-2



Foot switches, with locking function.

3/2 directional valve

Incl. tubes and fittings





TH205-8



Foot switches, with locking function.

5/2 directional valve

Incl. tubes and fittings

tn_TH205-3 002-

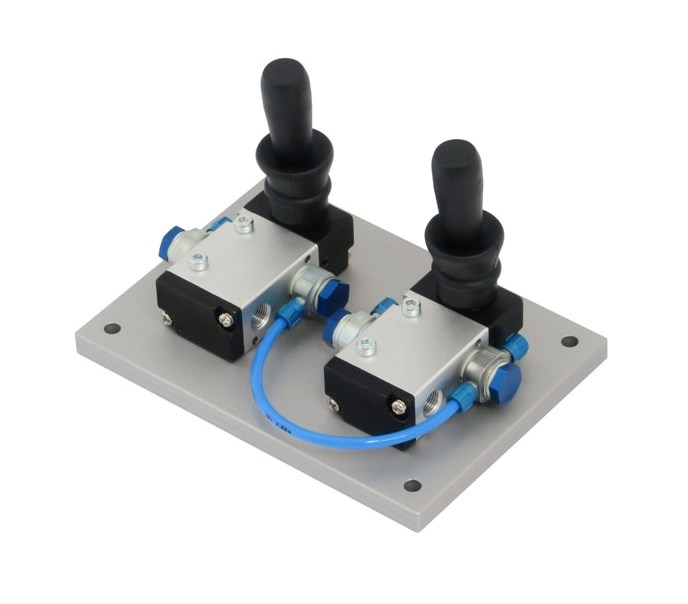

TH205-3+prr



Hand switches

tn_TH205-6 -7 el  safety system-

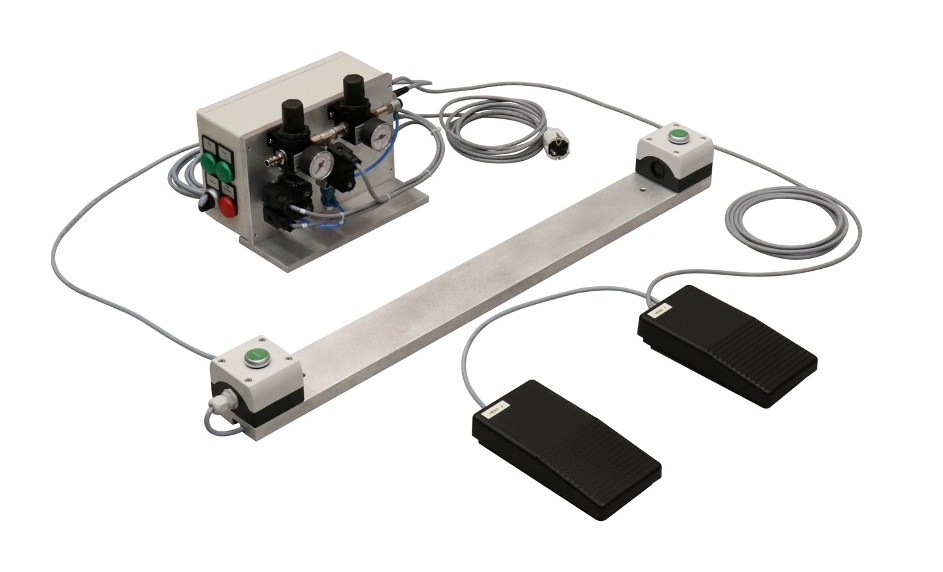

TH205-6-2H

Safety system for pneumatic grips
Incl. 2 foot pedals, 2 hand buttons, and electric box. 220 volt, 10 bar
Step 1 Single closing of grips by low pressure (0.5 bar) by foot pedals
Step 2 By two hand buttons (which must be pressed simultaneously within 0.5 sec) pressure will be increased from 0.5 to 7 bar. Tensile test can be started now. If any button is touched now load will drop to 0.5 bar

tn_TH205-6-2H front side-

TH205-6-2H



tn_TH205-6-2H manometers-

TH205-6-2H



High and low pressure manometers

tn_TH205-6-2H manometers top view-

TH205-6-2H

TH205-4 micro hand switches

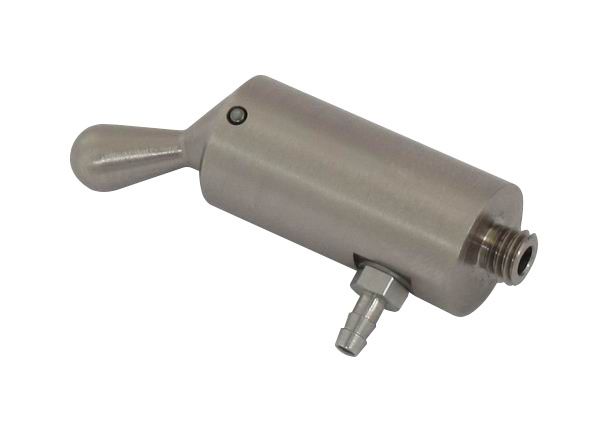

TH205-4-M5

Micro hand switches, M5 connection

Incl. tubes and fittings



TH205-4-1/8

Micro hand switches, 1/8 connection

Incl. tubes and fittings

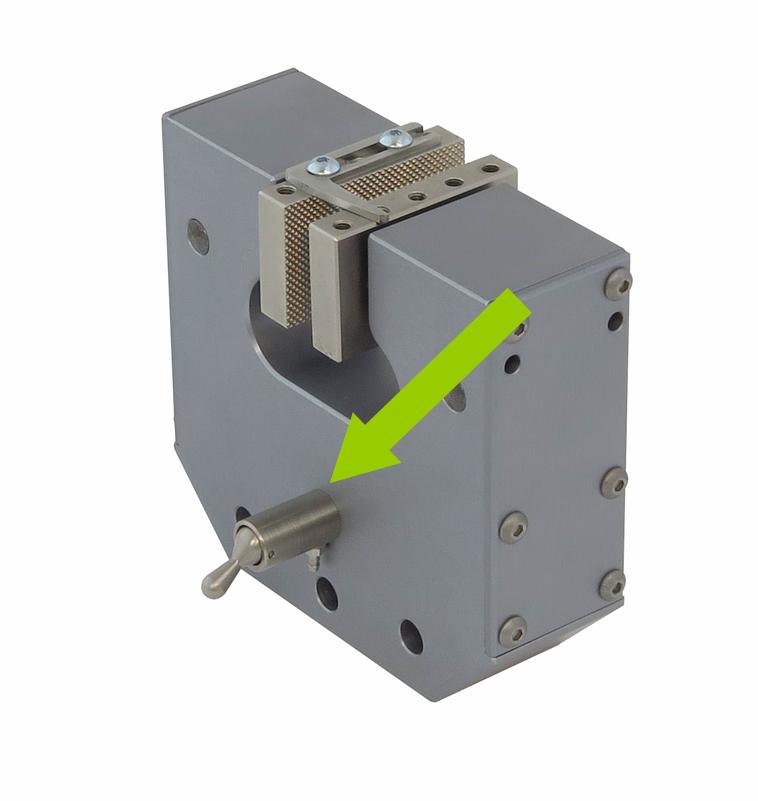

Watch video guide
How to mount pneumatic micro hand switches

TH205-4-M5-Hand switch-3-2-directional valve

TH205-4-M5



Micro hand switch

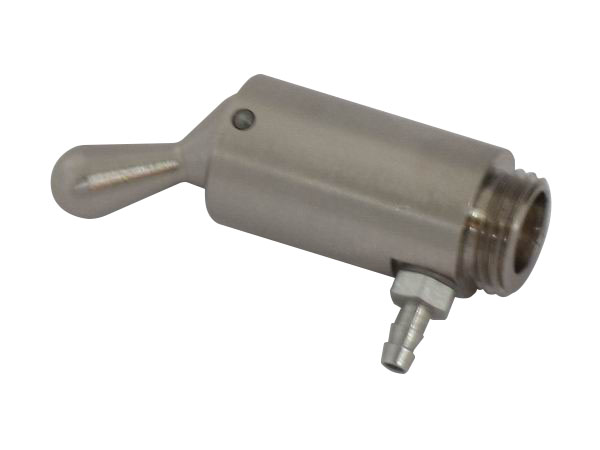

TH205-4-1-8-hand-switch-1-8-inchl--

TH205-4-1/8



Micro hand switch

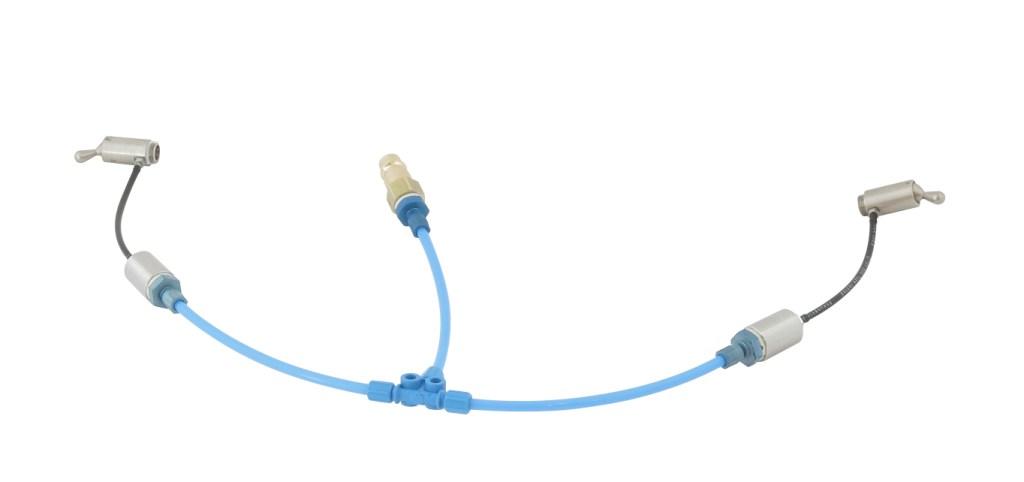

TH205-4 micro hand switches incl

TH205-4



2 micro hand switches (1/8 or M5) +

2 tubes (3 mm and 2 mm inner ) +

Tee connector + 2 adapters +

1 Euro plug ( 12 mm, hole 7,9 mm)

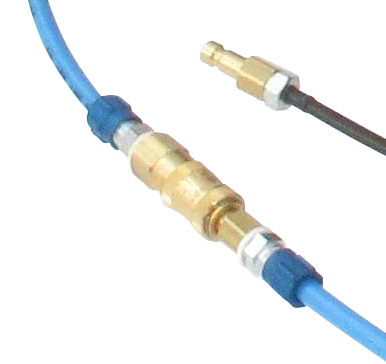

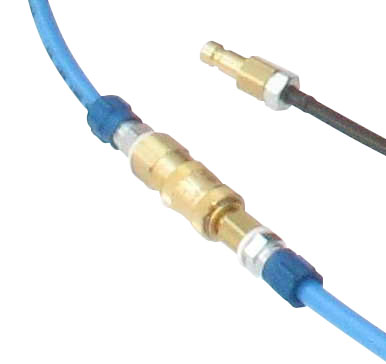

TH205-9-Pk3-Pk3  blue  Pk2 black plug for air  .5h

TH205-9

Fittings

more

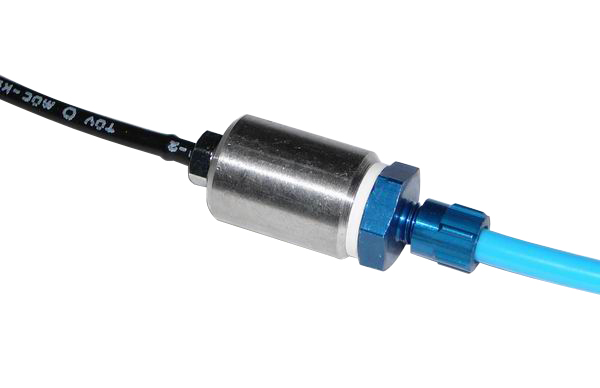

TH205-Pk23  PK3 1!8Z reduction to Pk2  M5

TH205-Pk23

Small pneumatic grips have a tube with 2 mm on feed pedals fittings allow a connection to a tube with 3 mm diameter M3 to G1/8 Whitworth to connect small grips to feed pedals included with all small grips with a tube of 2 mm

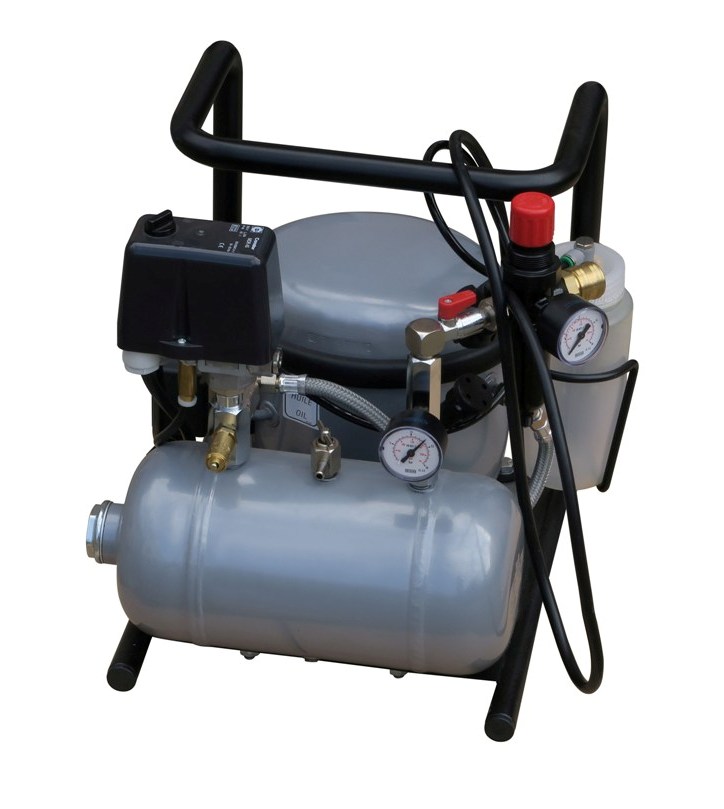

TH216



Silent compressor for laboratories,

oil-lubricated, with pressure reducer



Description: Description: Description: pdf_icon.gifTH216 Datasheet.pdf
Description: Description: Description: pdf_icon.gifTH216 Datenblatt.pdf
